2018 MITSUBISHI OUTLANDER III horn

Instruments and controls1-1
1
Overview
N00100202788
Instruments and controls
Combination headlights an
d dimmer switch P.5-207
Automatic high beam system switch (if so equipped) P.5-211Turn signal lever P.5-217 Front fog light switc
h (if so equipped)
P.5-218
Steering wheel remote control switches[Refer to the separate owner’s manual.]
Active stability control (ASC) OFF switch P.5-101
Supplemental restraint system (SRS) - airbag (for driver’s seat) P.4-35, 4-42Horn switch P.5-227
Instrument clusterP.5-154
Windshield wiper and washer switch P.5-219Rear window wiper and washer switch P.5-223
Cruise control switches P.5-103, 5-107
Steering wheel height and reach adjustment lever P.5-57
Engine switch (if so equipped) P.5-18
Driver’s ventsP. 7 - 2
Sportronic steering wheel paddle shifter (if so equipped) P.5-72, 5-80
Driver’s vents P.7-2
Multi information display switch (if so equipped)
Headlight leveling switch (if so equipped) P.5-216
Driver’s side power liftgate switch (if so equipped) P.5-41Fuse box P.9-26
Lane Departure Warning (LDW) switch (if so equipped)Forward Collision Mitigation system (FCM) ON/OFF switch (if so equipped)P.5-122
Supplemental restraint system (SRS) - front knee airbag (for driver’s seat) P.4-35, 4-42
Ignition switch (if so equipped) P.5-63
Camera switch (if so equipped) P. 5-144
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

If this problem occurs...2-6 Quick index
2
Cannot shift the selector lever from the “P” (PARK) position.
Shift the selector lever while pressing the brake pedal.Check that the ignition switch
or the operation mode is in ON.
P. 5-68
The windows are fogged up.
Push the defogger switch to
change to the “ ” position.
P. 7-8
The engine does not start.The lights do not come on.The lights are dim.The horn does not honk.The horn sound is weak.
Have the battery checked. Rech
arge or replace as needed.
P. 8-2,9-13
Problem
Do this
Ref. Page
BK0249100US.book 6 ページ ２０１７年５月１０日　水曜日　午前８時４９分

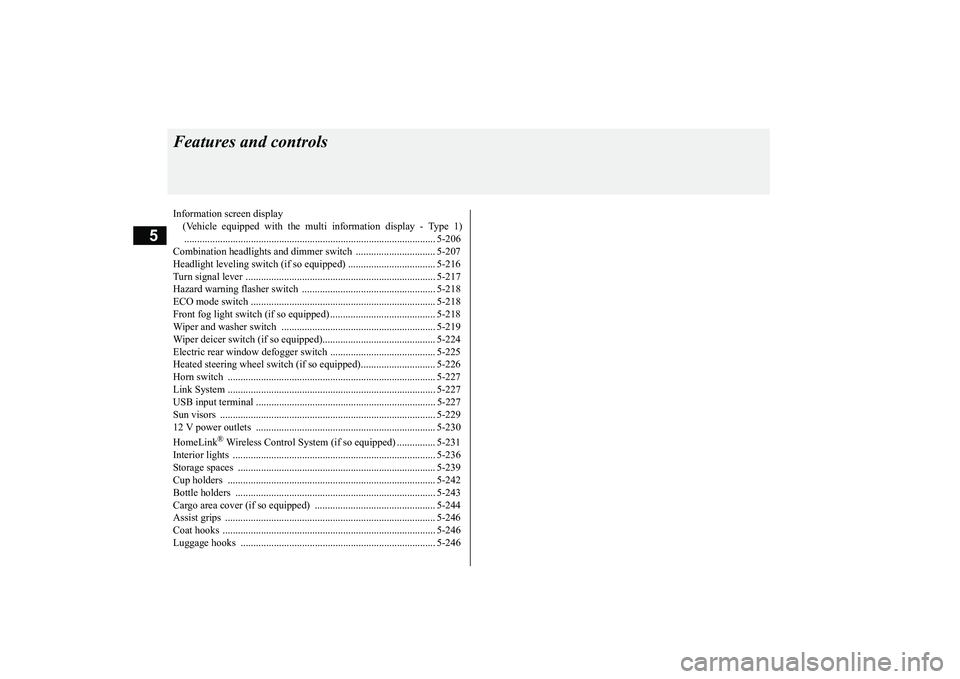

5
Features and controlsInformation screen display (Vehicle equipped with the mul
ti information display - Type 1)
.................................................................................................. 5-206Combination headlights and dimmer switch ............................... 5-207Headlight leveling switch (if so equipped) .................................. 5-216Turn signal lever .......................................................................... 5-217Hazard warning flasher switch .................................................... 5-218ECO mode switch ........................................................................ 5-218Front fog light switch (if so equipped) ......................................... 5-218Wiper and washer switch ............................................................ 5-219Wiper deicer switch (if so equipped)............................................ 5-224Electric rear window def
ogger switch ......
...........
...........
............. 5-225
Heated steering wheel switch (if so equipped)............................. 5-226Horn switch ................................................................................. 5-227Link System ................................................................................. 5-227USB input terminal ...................................................................... 5-227Sun visors .................................................................................... 5-22912 V power outlets ...................................................................... 5-230HomeLink
® Wireless Control System (if so equipped) ............... 5-231
Interior lights ............................................................................... 5-236Storage spaces ............................................................................. 5-239Cup holders ................................................................................. 5-242Bottle holders .............................................................................. 5-243Cargo area cover (if so equipped) ............................................... 5-244Assist grips .................................................................................. 5-246Coat hooks ................................................................................... 5-246Luggage hooks ............................................................................ 5-246BK0249100US.book 2 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Keyless entry system (if so equipped)

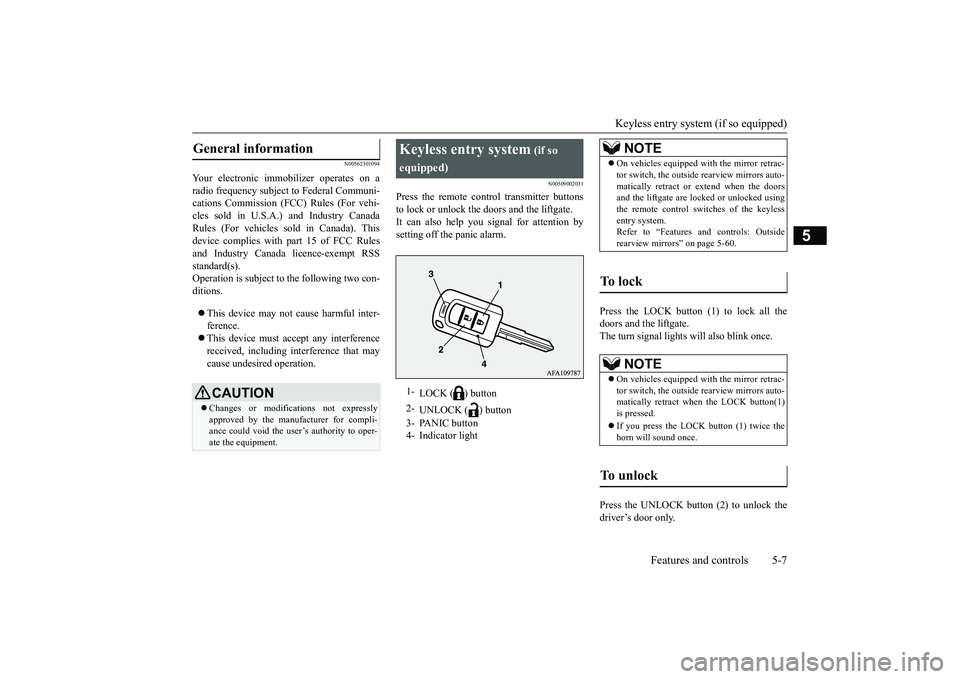

Features and controls 5-7
5
N00562301094
Your electronic immo
bilizer operates on a
radio frequency subject to Federal Communi-cations Commission (FCC)
Rules (For vehi-
cles sold in U.S.A.
) and Industry Canada
Rules (For vehicles so
ld in Canada). This
device complies with part 15 of FCC Rulesand Industry Canada
licence-exempt RSS
standard(s).Operation is subject to the following two con-ditions.This device may not
cause harmful inter-
ference.This device must ac
cept any interference
received, including interference that maycause undesired operation.
N00509002031
Press the remote control transmitter buttonsto lock or unlock the doors and the liftgate.It can also help you signal for attention bysetting off the panic alarm.
Press the LOCK button (1) to lock all thedoors and the liftgate.The turn signal lights
will also blink once.
Press the UNLOCK button (2) to unlock thedriver’s door only.
General information
CAUTIONChanges or modifica
tions not expressly
approved by the manufacturer for compli-ance could void the user’s authority to oper-ate the equipment.
Keyless entry system
(if so
equipped)
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button4- Indicator light
NOTE
On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto-matically retract or extend when the doorsand the liftgate are locked or unlocked usingthe remote control swit
ches of the keyless
entry system.Refer to “Features and controls: Outsiderearview mirrors” on page 5-60.
To l o c k

NOTE
On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto-matically retract when
the LOCK button(1)
is pressed.If you press the LOCK button (1) twice thehorn will sound once.
To unlock

BK0249100US.book 7 ページ ２０１７年５月１０日　水曜日　午前８時４９分

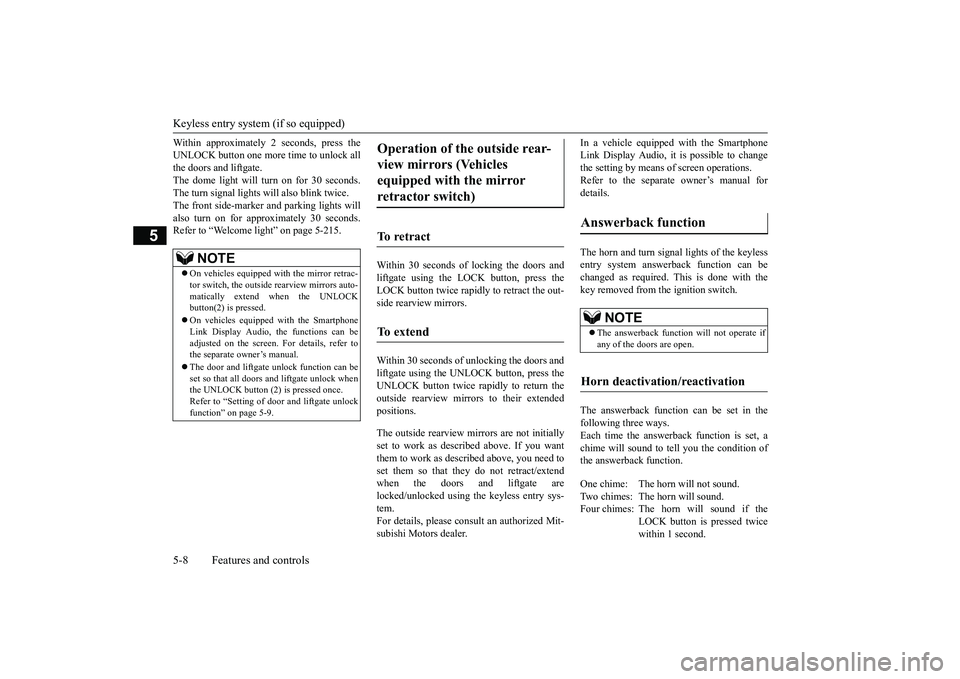

Keyless entry system (if so equipped)5-8 Features and controls
5
Within approximately 2 seconds, press theUNLOCK button one more time to unlock allthe doors and liftgate.The dome light will turn on for 30 seconds.The turn signal lights will also blink twice.The front side-marker and parking lights willalso turn on for approximately 30 seconds.Refer to “Welcome light” on page 5-215.
Within 30 seconds of locking the doors andliftgate using the LOCK button, press theLOCK button twice rapidly to retract the out-side rearview mirrors.Within 30 seconds of unlocking the doors andliftgate using the UNLOCK button, press theUNLOCK button twice rapidly to return theoutside rearview mirrors to their extendedpositions.The outside rearview mirrors are not initiallyset to work as described above. If you wantthem to work as described above, you need toset them so that they do not retract/extendwhen the doors and liftgate arelocked/unlocked using
the keyless entry sys-
tem.For details, please consult an authorized Mit-subishi Motors dealer.
In a vehicle equipped with the SmartphoneLink Display Audio, it is
possible to change
the setting by means of
screen operations.
Refer to the separate owner’s manual fordetails.The horn and turn signal lights of the keylessentry system answerback function can bechanged as required. This is done with thekey removed from the ignition switch.The answerback function can be set in thefollowing three ways.Each time the answerback function is set, achime will sound to
tell you the condition of
the answerback function.
NOTE
On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto-matically extend when the UNLOCKbutton(2) is pressed.On vehicles equippe
d with the Smartphone
Link Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.The door and liftgate
unlock function can be
set so that all doors a
nd liftgate unlock when
the UNLOCK button (2) is pressed once.Refer to “Setting of door
and liftgate unlock
function” on page 5-9.
Operation of the outside rear-view mirrors (Vehicles equipped with the mirror retractor switch)

To r e t r a c t

To e x t e n d

Answerback function

NOTE
The answerback functi
on will not operate if
any of the doors are open.
Horn deactivation/reactivation

One chime: The horn will not sound.Two chimes: The horn will sound.Four chimes: The hor
n will sound if the
LOCK button is pressed twicewithin 1 second.
BK0249100US.book 8 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Keyless entry system (if so equipped)5-10 Features and controls
5
N00543701060
If you are near your vehicle and feel threat-ened, you may activate the alarm to call atten-tion as follows:1. Press the PANIC button (3) for more than1 second.2. The headlights will blink on and off andthe horn will sound intermittently forabout 3 minutes.3. To turn off the alarm, press any button onthe remote control transmitter.
N00543801087
Only remote control transmitters pro-grammed with the vehicle’s electronics canlock or unlock all doors and the liftgate.If you lose the remote control transmitter, youcan order a remote control transmitter fromyour authorized Mitsubishi Motors dealer byreferring to the key number.To prevent vehicle theft, the ID code for theremote control transmitter must be changed.Take your vehicle and all remote controltransmitters to your authorized MitsubishiMotors dealer to have your ID code changed.
N00543900049
To add a remote control transmitter, you mustalready have 1 regist
ered remote control
transmitter.Registering the ID code can be done by your-self or by your authorized Mitsubishi Motorsdealer. For you to regist
er the ID code your-
self, follow the “Customer remote controltransmitter programming” procedure below.If you choose to have your authorizedMitsubishi Motors dealer register the IDcode, take your vehi
cle and any remaining
keys to your authorized Mitsubishi Motorsdealer.
N00544001204
You can program new remote control trans-mitters to the system if you have one valid
(already registered) re
mote control transmit-
ter by doing the following:1. Have available al
l (current and new)
remote control transmitters you wish toregister.2. With a valid (already registered) remotecontrol transmitter, press the UNLOCKbutton (2) for 4 to 10 seconds. Then pressand hold the LOCK button (1).3. Within 10 seconds of pressing the LOCKbutton, release the LOCK and UNLOCKbuttons in sequence.At this time, ID codes for all remote con-trol transmitters except for the transmitterused in steps 2 and 3 are erased and theanswerback function (door is locked andunlocked) informs you that the registra-tion mode has been activated.4. Within 60 seconds after step 3, completethe following ID code
registration opera-
tion using the next remote control trans-mitter you wish to register within 4seconds.i) Press both the LOCK and UNLOCKbuttons for 2 seconds.ii) Release both the LOCK and UNLOCKbuttons for 1 second.iii) Press the UNLOCK button. Theanswerback function informs you that theID code registration
of the transmitter is
completed.
Using the panic alarm

Replacement remote control transmitters

Additional remote control transmitters

NOTE
You are provided with
2 remote control
transmitters, but you may register up to 8remote control transmitters.
Customer remote control trans-mitter programming (Except for vehicles sold in Canada)

BK0249100US.book 10 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
7. Release in sequence the LOCK andUNLOCK buttons within 10 seconds ofpressing the LOCK button in step 6. Theimmobilizer display on the informationscreen in the multi-information displaywill blink.When registration of ID
code is complete,
the buzzer will sound 3 times and theimmobilizer display will come on for 30seconds.If an error occurs, F.A.S.T.-key program-ming will be terminated and the buzzerwill sound for 3 seconds.8. If you wish to register another F.A.S.T.-key, repeat the process from step 1 afterthe operation mode is put in OFF.9. When all F.A.S.T.-keys are registered,remove the F.A.S.T.-key from the keyslot.
N00515501281
Press the remote control transmitter buttonsto lock or unlock the doors and the liftgate.It can also help you
signal for attention by
setting off the panic alarm.
Press the LOCK button (1) to lock all thedoors and the liftgate.The turn signal lights will also blink once.
NOTE
F.A.S.T.-key programming will be termi-nated if the operation
mode is put in OFF
before the immobilizer
display starts blink-
ing.
NOTE
The immobilizer displa
y will go off immedi-
ately if the operation mode is put in OFF.Perform the operation when the interrupt dis-play screen is not show
ing. The interrupt dis-
play screen may prevent you from seeing theimmobilizer display.It is not possible to re
gister a F.A.S.T.-key if
the immobilizer displa
y goes off during the
procedure.
Keyless entry system

1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- Power liftgate but
ton (if so equipped)
4- PANIC button5- Operation indicator light
NOTE
On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto-matically retr
act or extend when the doors
and the liftgate are locked or unlocked usingthe remote control transmitter buttons.Refer to “Features a
nd controls: Outside
rearview mirrors” on page 5-60.
To l o c k

NOTE
On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto-matically retract when the LOCK button (1)is pressed.If you press the LOCK button (1) twice, thehorn will sound once.
BK0249100US.book 30 ページ ２０１７年５月１０日　水曜日　午前８時４９分

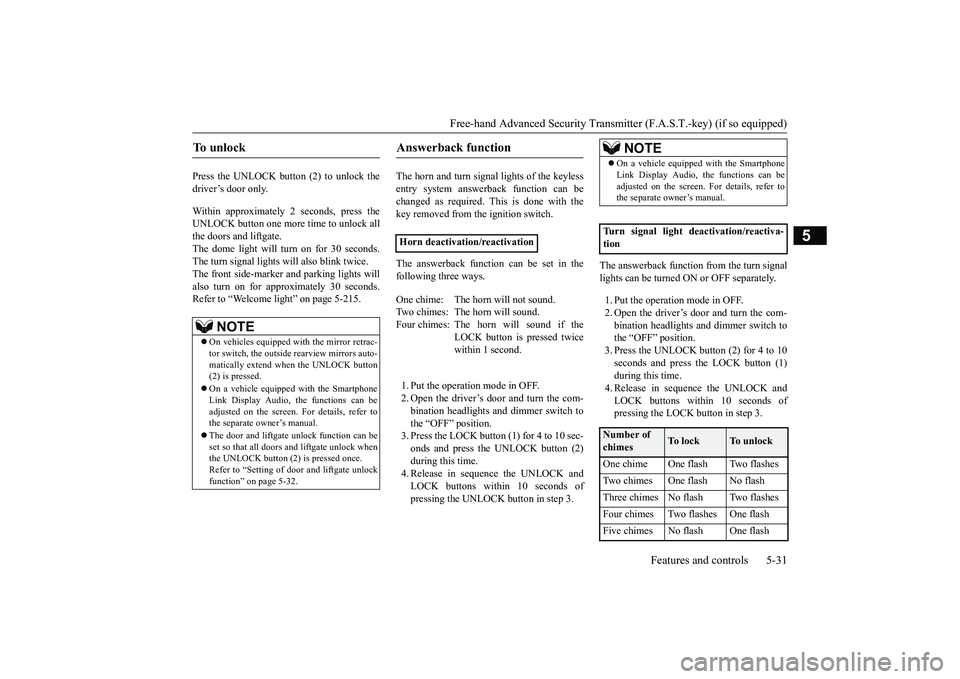

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-31
5
Press the UNLOCK button (2) to unlock thedriver’s door only.Within approximately 2 seconds, press theUNLOCK button one more time to unlock allthe doors and liftgate.The dome light will turn on for 30 seconds.The turn signal lights will also blink twice.The front side-marker
and parking lights will
also turn on for appr
oximately 30 seconds.
Refer to “Welcome light” on page 5-215.
The horn and turn signal lights of the keylessentry system answerback function can bechanged as required. This is done with thekey removed from the ignition switch.The answerback function can be set in thefollowing three ways.1. Put the operation mode in OFF.2. Open the driver’s door and turn the com-bination headlights a
nd dimmer switch to
the “OFF” position.3. Press the LOCK button (1) for 4 to 10 sec-onds and press the UNLOCK button (2)during this time.4. Release in sequence the UNLOCK andLOCK buttons within 10 seconds ofpressing the UNLOCK button in step 3.
The answerback function from the turn signallights can be turned ON or OFF separately.1. Put the operation mode in OFF.2. Open the driver’s door and turn the com-bination headlights and dimmer switch tothe “OFF” position.3. Press the UNLOCK button (2) for 4 to 10seconds and press the LOCK button (1)during this time.4. Release in sequence the UNLOCK andLOCK buttons within 10 seconds ofpressing the LOCK button in step 3.
To u n l o c k

NOTE
On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto-matically extend when
the UNLOCK button
(2) is pressed.On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.The door and liftgate unlock function can beset so that all doors and liftgate unlock whenthe UNLOCK button (2) is pressed once.Refer to “Setting of door
and liftgate unlock
function” on page 5-32.
Answerback function

Horn deactivation/reactivationOne chime: The horn will not sound.Two chimes: The horn will sound.Four chimes: The horn will sound if the
LOCK button is pressed twicewithin 1 second.
NOTE
On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
Turn signal light deactivation/reactiva-tionNumber of chimes
To l o c k
To u n l o c k
One chime One flash Two flashesTwo chimes One flash No flashThree chimes No flash Two flashesFour chimes Two flashes One flashFive chimes No flash One flash
