2018 MITSUBISHI OUTLANDER III automatic door lock

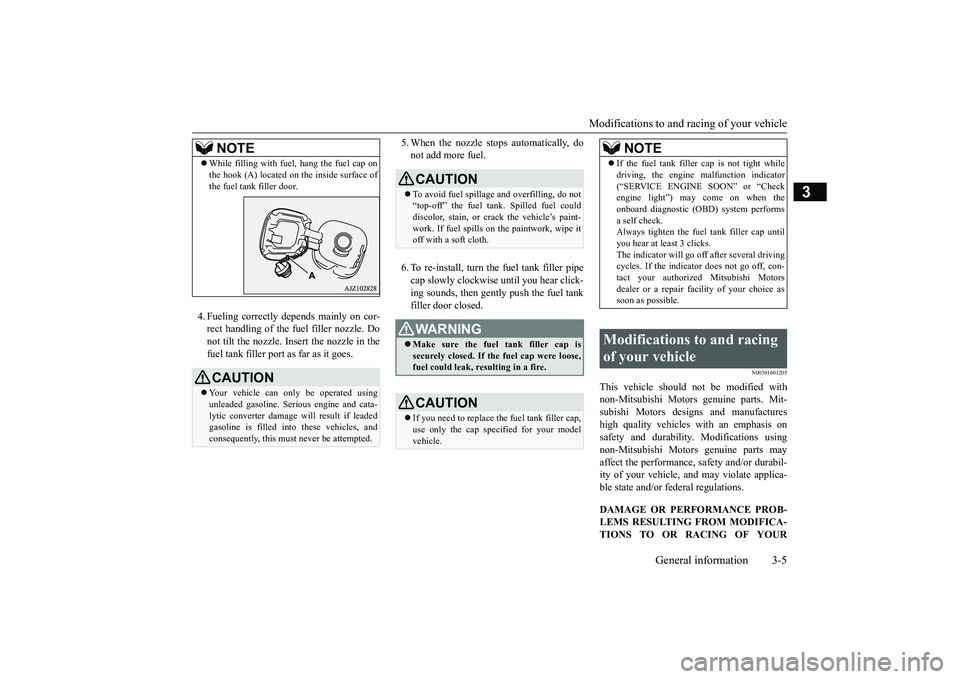

Modifications to and racing of your vehicle
General information 3-5
3
4. Fueling correctly depends mainly on cor-rect handling of the fuel filler nozzle. Donot tilt the nozzle. Insert the nozzle in thefuel tank filler port as far as it goes.
5. When the nozzle stops automatically, donot add more fuel.6. To re-install, turn the fuel tank filler pipecap slowly clockwise until you hear click-ing sounds, then gently push the fuel tankfiller door closed.
N00301601205
This vehicle should not be modified withnon-Mitsubishi Motors
genuine parts. Mit-
subishi Motors desi
gns and manufactures
high quality vehicles
with an emphasis on
safety and durability.
Modifications using
non-Mitsubishi Motors genuine parts mayaffect the performance,
safety and/or durabil-
ity of your vehicle, a
nd may violate applica-
ble state and/or fe
deral regulations.
DAMAGE OR PERFORMANCE PROB-LEMS RESULTING FROM MODIFICA-TIONS TO OR RACING OF YOUR
NOTE
While filling with fuel, hang the fuel cap onthe hook (A) located on the inside surface ofthe fuel tank filler door.CAUTIONYour vehicle can only be operated usingunleaded gasoline. Seri
ous engine and cata-
lytic converter damage will result if leadedgasoline is filled into these vehicles, andconsequently, this must
never be attempted.
CAUTIONTo avoid fuel spillage and overfilling, do not“top-off” the fuel tank.
Spilled fuel could
discolor, stain, or crack the vehicle’s paint-work. If fuel spills on the paintwork, wipe itoff with a soft cloth.WA R N I N GMake sure the fuel tank filler cap issecurely closed. If the fuel cap were loose,fuel could leak, re
sulting in a fire.
CAUTIONIf you need to replace th
e fuel tank filler cap,
use only the cap specified for your modelvehicle.
NOTE
If the fuel tank filler
cap is not tight while
driving, the engine malfunction indicator(

5
Features and controlsBreak-in recommendations ..............................................................5-3Keys .................................................................................................5-3Electronic immobilizer (Anti-theft starting system) ........................5-4Keyless entry system (if so equipped) ..............................................5-7Free-hand Advanced Security
Transmitter (F.A.S.T.-key)
(if so equipped) ..........................................................................5-13Door locks ......................................................................................5-34Power door locks ......
...........
...........
...........
...........
...........
.........
.....5-36
Child safety locks for rear door ..........
...........
.........
.........
.........
.....5-37
Liftgate (except for vehi
cles equipped with the
power liftgate) ....5-38
Power liftgate (if so equipped) .......................................................5-39Inside liftgate release .....................................................................5-46Theft-alarm system ........................................................................5-46Power window control ...................................................................5-49Sunroof (if so equipped) .................................................................5-51Parking brake .................................................................................5-53Steering wheel height and reach adjustment ..................................5-57Inside rearview mirror ...................................................................5-57Outside rearview mirrors ...............................................................5-60Ignition switch (if so equipped) ......................................................5-63Steering wheel lock (if so equipped) ..............................................5-65Starting the engine .........................................................................5-66Automatic transaxle (if so equipped)..............................................5-68Continuously variable transmission
(CVT) (if so equipped)..........5-75
Electronically controlled
4WD system (if so equipped).................5-82
S-AWC (Super-All Wheel Control) (if
so equipped) .....................5-85
4-wheel drive operation .................................................................5-88Inspection and maintenance followi
ng rough road operation ........5-91
Cautions on the handling of 4-wheel dr
ive vehicles ..................... 5-91
Service brake ................................................................................. 5-92Brake auto hold (if so equipped) .................................................... 5-93Hill start assist (if so equipped) ...................................................... 5-95Brake assist system ........................................................................ 5-96Anti-lock braking system .............................................................. 5-97Electric power steering system (EPS) ........................................... 5-99Active stability control (ASC) ..................................................... 5-100Cruise control (if so equipped) ..................................................... 5-103Adaptive Cruise Control System (ACC)
(if so equipped) ............ 5-107
Forward Collision Mitigation System
(FCM) (if so equipped) .... 5-118
Blind Spot Warning (BSW) (w
ith Lane Change Assist)
(if so equipped) ........................................................................ 5-126Rear Cross Traffic Alert (RCTA) (if so equipped) ....................... 5-131Lane Departure Warning System (LDW
) (if so equipped)........... 5-134
Tire pressure monitoring system ................................................. 5-137Rear-view camera (if so equipped)............................................... 5-142Multi Around Monitor (if so
equipped)..................
...........
........... 5-144
Instrument cluster ........................................................................ 5-154Multi Information display - Type 1 ............................................. 5-155Multi Information display - Type 2 ............................................. 5-173Indicator light, warning light, and information screen display list (multi informati
on display - Type 1) .......... 5-181
Indicator and warning light package (multi information display - Type 2) ....................................... 5-201Indicators ..................................................................................... 5-202Warning lights .............................................................................. 5-203
BK0249100US.book 1 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Keyless entry system (if so equipped)
Features and controls 5-11
5
5. To register the ID codes of additionalremote control transmitters, repeat step 4within 60 seconds after step 4.6. If no ID code of a remote control trans-mitter is registered within 60 secondsafter step 4, the regi
stration mode is can-
celed and the normal mode returns.
N00546101124
Your keyless entry system operates on a radiofrequency subject to
Federal Communica-
tions Commission (FCC)
Rules (For vehicles
sold in U.S.A.) and Industry Canada Rules
(For vehicles sold in Canada). This devicecomplies with Part 15 of FCC Rules andIndustry Canada licenc
e-exempt RSS stan-
dard(s).Operation is subject to the following two con-ditions.This device may not
cause harmful inter-
ference.This device must ac
cept any interference
received, including interference that maycause undesired operation.
N00544101205
1. Before replacing the battery, remove staticelectricity from your body by touching ametal grounded object.
NOTE
For verification purposes, try to lock andunlock the doors after the registration iscompleted.The indicator light (4)
comes on each time a
button is pressed.The keyless entry system does not work ifthe key is in the ignition switch.The remote control tr
ansmitter can be used
from approximately 40
feet (12 m) away.
However, this distan
ce may change if your
vehicle is near a TV transmitting tower, apower station, or a radio station.If the UNLOCK button (2) is pressed whenall doors and the liftgate are locked and nodoors or the liftgate are opened withinapproximately 30 seconds, the doors and theliftgate will automatically re-lock.On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.
If the following conditi
ons are observed after
pressing the LOCK (1) or UNLOCK (2) but-ton on the remote control transmitter, thebattery in the remote control transmitter mayneed to be replaced.• The doors and the lift
gate cannot be locked
or unlocked.• The panic alarm cannot be operated.• The indicator light
(4) is dim or does not
come on.
If you lose your remote control transmitter,please contact an au
thorized Mitsubishi
Motors dealer for a replacement.If you wish to obtain
an additional remote
control transmitter, please contact an autho-rized Mitsubishi Moto
rs dealer. A maximum
of 8 remote control tr
ansmitters can be pro-
grammed for your vehicle.To use the new remote control transmitters, itis necessary to register
the key with both the
electronic immobilizer and keyless entry sys-tem.Also refer to “Electronic immobilizer (Anti-theft starting system): Customer key pro-gramming” on page 5-6.
General information

NOTE
CAUTIONChanges or modifica
tions not expressly
approved by the manufacturer for compli-ance could void the user
’s authority to oper-
ate the equipment.
Procedure for replacing the remote control transmitter bat-tery

BK0249100US.book 11 ページ ２０１７年５月１０日　水曜日　午前８時４９分

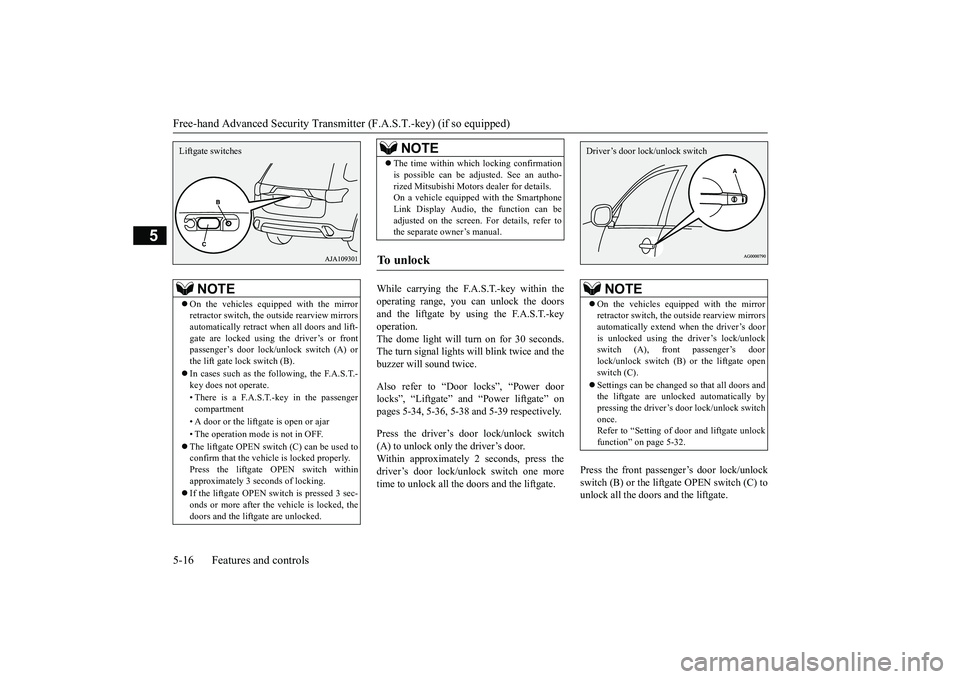

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
While carrying the F.A.S.T.-key within theoperating range, you can unlock the doorsand the liftgate by using the F.A.S.T.-keyoperation.The dome light will turn on for 30 seconds.The turn signal lights will blink twice and thebuzzer will
sound twice.
Also refer to “Door locks”, “Power doorlocks”, “Liftgate” and “Power liftgate” onpages 5-34, 5-36, 5-38 and 5-39 respectively.Press the driver’s door lock/unlock switch(A) to unlock only the driver’s door.Within approximately 2 seconds, press thedriver’s door lock/unlock switch one moretime to unlock all the
doors and the liftgate.
Press the front passenger’s door lock/unlockswitch (B) or the liftgate OPEN switch (C) tounlock all the doors and the liftgate.
NOTE
On the vehicles equipped with the mirrorretractor switch, the out
side rearview mirrors
automatically retract when all doors and lift-gate are locked using the driver’s or frontpassenger

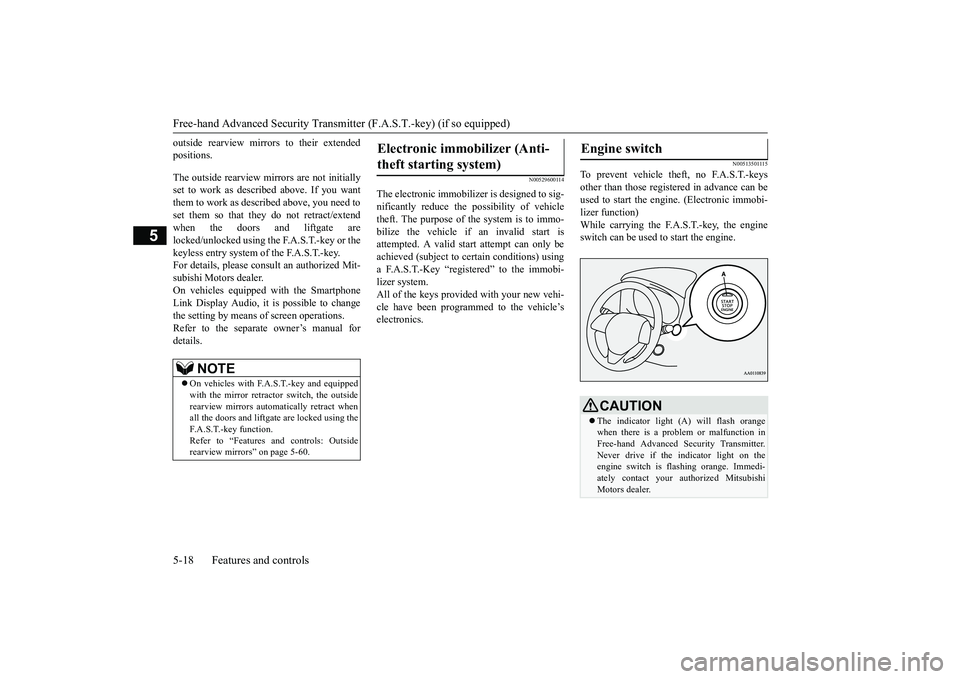

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5
outside rearview mirro
rs to their extended
positions.The outside rearview mirrors are not initiallyset to work as described above. If you wantthem to work as described above, you need toset them so that they do not retract/extendwhen the doors and liftgate arelocked/unlocked using the F.A.S.T.-key or thekeyless entry system of the F.A.S.T.-key.For details, please cons
ult an authorized Mit-
subishi Motors dealer.On vehicles equipped
with the Smartphone
Link Display Audio, it is
possible to change
the setting by means of
screen operations.
Refer to the separate owner’s manual fordetails.
N00529600114
The electronic immobilize
r is designed to sig-
nificantly reduce the
possibility of vehicle
theft. The purpose of the system is to immo-bilize the vehicle if an invalid start isattempted. A valid start attempt can only beachieved (subject to ce
rtain conditions) using
a F.A.S.T.-Key “registered” to the immobi-lizer system.All of the keys provided with your new vehi-cle have been program
med to the vehicle’s
electronics.
N00513501115
To prevent vehicle theft, no F.A.S.T.-keysother than those regist
ered in advance can be
used to start the engine. (Electronic immobi-lizer function)While carrying the F.A.S.T.-key, the engineswitch can be used
to start the engine.
NOTE
On vehicles with F.A.
S.T.-key and equipped
with the mirror retractor switch, the outsiderearview mirrors automatically retract whenall the doors and liftgate are locked using theF.A.S.T.-key function.Refer to “Features a
nd controls: Outside
rearview mirrors” on page 5-60.
Electronic immobilizer (Anti-theft starting system)

Engine switch

CAUTIONThe indicator light (A) will flash orangewhen there is a problem or malfunction inFree-hand Advanced Se
curity Transmitter.
Never drive if the i
ndicator light on the
engine switch is fl
ashing orange. Immedi-
ately contact your authorized MitsubishiMotors dealer.
BK0249100US.book 18 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-33
5
N00562001062
N00562101076
1. Before replacing the battery, remove staticelectricity from your body by touching ametal grounded object.2. With the Mitsubishi mark facing you,insert the cloth-covered tip of a flat bladescrewdriver into the notch in the case anduse it to open the case.3. Remove the old battery.
If the UNLOCK button (2) is pressed whenall doors and the liftgate are locked and nodoors or the liftgate are opened withinapproximately 30 seconds, the doors and theliftgate will automatically re-lock.On a vehicle equipped with the SmartphoneLink Display Audio, the functions can beadjusted on the screen. For details, refer tothe separate owner’s manual.If the following conditions are observed afterpressing the LOCK (1) or UNLOCK (2) but-ton on the remote control transmitter, thebattery in the F.A.S.T.-key may need to bereplaced.• The doors and the liftgate cannot be lockedor unlocked.• The panic alarm
cannot be operated.
• The indicator light
(5) is dim or does not
come on.
If you lose your F.A.S.T.-key, please contactan authorized Mitsubishi Motors dealer for areplacement.If you wish to obtain an additional F.A.S.T.-key, please contact an
authorized Mitsubishi
Motors dealer. A maximum of four F.A.S.T.-key can be programmed for your vehicle.To use the new remote control transmitters, itis necessary to register the key with both theelectronic immobilizer
and keyless entry sys-
tem.Also refer to “Electr
onic immobilizer (Anti-
theft starting system): Customer F.A.S.T.-key programming” on page 5-29.NOTE
General information

Your F.A.S.T.-key operates on a radio fre-quency subject to Fe
deral Communications
Commission (FCC) Rules (For vehicles soldin U.S.A.) and Industr
y Canada Rules (For
vehicles sold in Canada). This device com-plies with Part 15 of FCC Rules and IndustryCanada licence-exem
pt RSS standard(s).
Operation is subject to
the following two con-
ditions.
•This device may
not cause harmful
interference.•This device must ac
cept any interference
received, including interference thatmay cause undesired operation.CAUTIONChanges or modifica
tions not expressly
approved by the manufacturer for compli-ance could void the user’s authority to oper-ate the equipment.
Procedure for replacing the remote control transmitter bat-tery
NOTE
Be sure to perform the procedure with theMitsubishi mark facing you. If the Mitsubi-shi mark is not facing you when you open thecase, the transmitter may come out.
BK0249100US.book 33 ページ ２０１７年５月１０日　水曜日　午前８時４９分

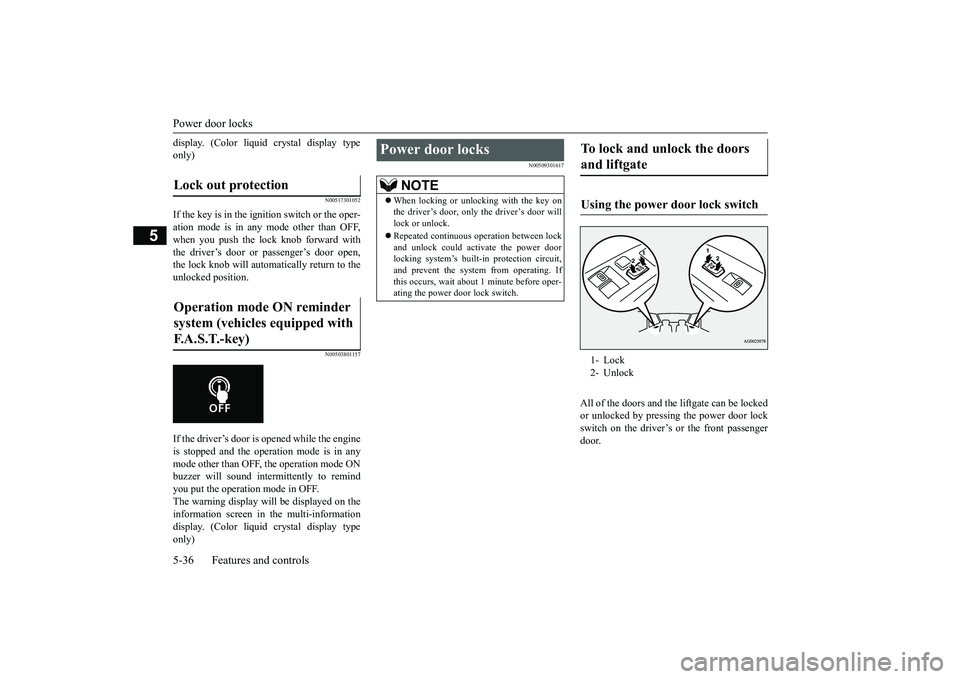

Power door locks5-36 Features and controls
5
display. (Color liquid crystal display typeonly)
N00517301052
If the key is in the ignition switch or the oper-ation mode is in any mode other than OFF,when you push the lock knob forward withthe driver’s door or passenger’s door open,the lock knob will automatically return to theunlocked position.
N00503801157
If the driver’s door is opened while the engineis stopped and the operation mode is in anymode other than OFF, the operation mode ONbuzzer will sound interm
ittently to remind
you put the operation mode in OFF.The warning display will be displayed on theinformation screen in the multi-informationdisplay. (Color liquid crystal display typeonly)
N00509301617
All of the doors and the liftgate can be lockedor unlocked by pressing the power door lockswitch on the driver’s or the front passengerdoor.
Lock out protection Operation mode ON reminder system (vehicles equipped with F.A.S.T.-key)
Power door locks
NOTE
When locking or unlocking with the key onthe driver’s door, only the driver’s door willlock or unlock.Repeated continuous
operation between lock
and unlock could activate the power doorlocking system’s built
-in protection circuit,
and prevent the system from operating. Ifthis occurs, wait about 1 minute before oper-ating the power door lock switch.
To lock and unlock the doors and liftgate Using the power door lock switch 1- Lock2- Unlock
BK0249100US.book 36 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Power liftgate (if so equipped)Features and controls 5-43
5
If the driver’s side po
wer liftgate switch is
pressed once while the
power liftgate is oper-
ating, the warning buz
zer will sound and the
power liftgate will move in the directionopposite to the one in which it was operating.The power liftgate can
be opened by pressing
the open switch (C).If the open switch is pressed while the powerliftgate and all doors are unlocked, the power
liftgate will open after the warning buzzersounds and the hazard wa
rning flasher blinks.
The power liftgate can
be closed by pressing
the close switch (D) on the power liftgate.
If the close switch on the power liftgate ispressed, the power liftgate will close after thewarning buzzer sounds 3 times and the hazardwarning flasher
blinks 2 times.
If the close switch is pressed once while thepower liftgate is clos
ing, the warning buzzer
sounds once and the power liftgate opens.
N00576200026
If the auto reverse sensors (A) on either sideof the power liftgate de
tect that something is
being trapped by the cl
osing power liftgate,
the warning buzzer will sound once and theliftgate will automatically reverse directionand return to the full open position.
WA R N I N GWhen operating the
power liftgate, make
sure that there are no people near thepower liftgate and that there is sufficientspace behind and ab
ove the vehicle.
Opening the power liftgate using the open switch

NOTE
When you are carrying the F.A.S.T.-key withthe power liftgate is locked, the power lift-gate can be opened by pressing the openswitch even if the power liftgate is locked.For vehicles equipped w
ith the mirror retrac-
tor switch, the outside rearview mirrors auto-matically extend when the power liftgate andall doors are unlocked using the liftgate openswitch (C).
Closing the power liftgate using the close switch

NOTE
If the close switch is again pressed oncewhile the power liftgate is operating in theopening direction, th
e warning buzzer will
sound once and the power
liftgate will close.
Auto reverse

BK0249100US.book 43 ページ ２０１７年５月１０日　水曜日　午前８時４９分
