For cold and snowy weather
Vehicle care and maintenance 9-25
9
The underside or rear of the vehicle isdamaged
Also check the exhaust system each time thevehicle is raised for l
ubrication, oil changes,
or required service. A
ny open seams or loose
connections could le
t dangerous exhaust
fumes seep into the luggage and passengercompartments.Check for holes or exhaust gas leakscaused by corrosion or damage.Check the joints and connections forlooseness or exhaust gas leaks.Check the rubber hangers and brackets fordamage.
N00942300079
The timing belt should be replaced with anew one at the mileage listed in the “WAR-RANTY AND MAINTENANCE MAN-UAL”.
N00942501124
The hood lock release mechanism and hoodsafety catch should be checked, cleaned, andoiled when needed for easy movement and toprevent rust and wear. Use MultipurposeGrease NLGI Grade 2 sparingly for all slidingparts of the hood latch and release lever.Work the grease into the hood lock mecha-nism until all the movable surfaces are cov-ered.Also, put a light coat
of the same grease on
the safety catch wherever moving parts touch.
N00942600102
The ventilation slots in
front of the wind-
shield should be brushed clear after a heavysnowfall so that the operation of the heatingand ventilation systems will not be impaired.
To prevent freezing of the weatherstrippingon the doors, engine hood, etc., they shouldbe treated with
silicone grease.
It is a good idea to carry a shovel or a short-handled spade in the vehicle during the win-ter so that you can clear away snow if you getstranded. A small hand-brush for sweepingsnow off the vehicle a
nd a plastic scraper for
the windshield, side a
nd rear window are also
useful.
N00942700291
The fusible links will melt to prevent a fire ifa large current attempts to flow through cer-tain electrical systems.In case of a melted fusible link, see yourauthorized Mitsubishi Motors dealer or arepair facility of your choice for inspectionand replacement.For the fusible links, please refer to “Fuseload capacities” on page 9-27.
Check for any of the following conditions: Timing belt
Hood lock release mechanism and safety catch For cold and snowy weather Ventilation slots
Weatherstripping Additional equipment (For regions where snow is encoun-tered) Fusible links
BK0249100US.book 25 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Fuses9-26 Vehicle care and maintenance
9
N00942801954
To prevent damage to the electrical systemfrom short-circuiting or overloading, eachindividual circuit is e
quipped with a fuse. The
fuse blocks are located in the passenger com-partment and in the engine compartment.
The fuse blocks in the passenger compart-ment are located behind the fuse lid in frontof the driver’s seat at the position shown inthe illustration.Pull the fuse lid to remove it.
In the engine compartment, the fuse blocksare located as shown in the illustration. Whilepressing the tab (C), pull up the cover.
WA R N I N GFusible links must not be replaced by anyother device. Failing to fit the correct fus-ible link may result in fire in the vehicle,property destruction and serious or fatalinjuries at any time.
Fuses Fuse block location
Passenger compartment A- Main fuse blockB- Sub fuse block
Engine compartment A- Main fuse blockB- Sub fuse block
BK0249100US.book 26 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Fuses
Vehicle care and maintenance 9-27
9
N00954801430
This fuse list shows the names of the elec
trical systems and their fuse capacities.
There are spare fuses in the main fuse block cover in the engine
compartment. Always replace a bl
own fuse with one of the same
capacity as the
original.Fuse load capacities Passenger compartment
fuse location table
Main fuse block
Sub fuse block
No.
Sym-bol
Electrical system
Capacity
1
Power window con-
trol
30 A*
2 Defogger 30 A*
3 Heater 30 A4 Windshield wipers 30 ANo.
Sym-bol
Electrical system
Capacity
5 Door locks 20 A6 Rear fog light 10 ANo.
Sym-bol
Electrical system
Capacity
BK0249100US.book 27 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Fuses9-28 Vehicle care and maintenance
9
*: Fusible linkSome fuses may not be installed on yourvehicle, depending on
the vehicle model
or specifications.The table above show
s the main equip-
ment corresponding to each fuse.
7 12 V power outlet 15 A8 Rear window wiper 15 A9 Sunroof 20 A10 Ignition switch 10 A11 Option 10 A12
Hazard warning
flasher
15 A
13 4-wheel drive system 10 A14
Stop lights (Brake lights)
15 A
15 Gauges 10 A16 SRS airbag 7.5 A17 Radio 15 A18 Control unit relay 7.5 A19
Interior lights(Room lights)
15 A
20 Back-up lights 7.5 A21
Heated outside rearview mirrors
7.5 A
22
Outside rearview
mirrors
10 A
No.
Sym-bol
Electrical system
Capacity
23
Cigarette lighter/12 V power outlet
15 A
24
Charge 7.5 A
Heated steering
wheel
15 A
25
Power seat(Driver seat)
30 A*
26 Heated seats 30 A27
Power seat(Passenger seat)
No.
Sym-bol
Electrical system
Capacity
Engine compartment fuse location table No.
Sym-bol
Electrical sys-
tem
Capacity
SBF1
Air condition-ing condenser fan motor
30 A*
VLC 40 A*
Behind the fuse block coverMain fuse block
BK0249100US.book 28 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Fuses
Vehicle care and maintenance 9-29
9
*: Fusible link
SBF2 Starter 30 A*SBF3
Air condition-ing condenser fan motor
30 A*
SBF4
Radiator fan
motor
40 A*
SBF5
Anti-lock brak-ing system
40 A*
SBF6
Electric parking
brake
50 A*
SBF7
Anti-lock brak-ing system
30 A*
BF1 Power liftgate 30 ABF2
Audio system amplifier
30 A
BF3 IOD IOD 30 ABF4 Diesel 30 AF1
Automatic transaxle
20 A
F2 Wiper de-icer 15AF3
Electric parking
brake
7.5 A
F4
Daytime run-ning lights
10 A
No.
Sym-bol
Electrical sys-
tem
Capacity
F5 Front fog lights 15 AF6 Air conditioner 10 AF7
Headlight washer
20 A
F8 Security horn 20 AF9 Horn 10 AF10 ETV 15 AF11 Alternator 7.5 AF12 Engine 7.5 AF13
ENG/POWER 20 AFuel line heater 25 A
F14 Fuel pump 15 AF15 Ignition coil 10 AF16 ENG/POWER 10 AF17
Headlight (high beam) (left)
10 A
F18
Headlight (high beam) (right)
10 A
No.
Sym-bol
Electrical sys-
tem
Capacity
F19
Head-light (low beam) (left)
LED 20 A
F20
Head-light (low beam) (right)
LED 20 A
F21
Head-light (low beam) (left)
Halo-gen
10 A
F22
Head-light (low beam) (right)
Halo-gen
10 A
F23
Battery current
sensor
7.5 A
#1 — Spare fuse 10 A#2 — Spare fuse 15 A#3 — Spare fuse 20 ANo.
Sym-bol
Electrical sys-
tem
Capacity
BK0249100US.book 29 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Fuses9-30 Vehicle care and maintenance
9
Some fuses may not be installed on yourvehicle, depending on the vehicle modelor specifications.The table above shows the main equip-ment corresponding to each fuse.
*: Fusible linkSome fuses may not be installed on yourvehicle, depending on the vehicle modelor specifications.The table above shows the main equip-ment corresponding to each fuse.
The fuse block does not contain spare 7.5 A,25 A or 30 A fuses. If one of these fusesburns out, substitute w
ith the following fuse.
7.5 A: 10 A spare fuse25 A: 20 A spare fuse30 A: 30 A audio system amplifier fuseWhen using a substitute
fuse, replace with a
fuse of the correct capa
city as soon as possi-
ble.
N00954901141
1. Before replacing a fuse, always turn offthe electrical item
connected to the fuse
and turn the ignition switch to the“LOCK” or “OFF” position or put theoperation mode in OFF.2. There is a fuse remover (A) in the enginecompartment fuse block.3. Clamp it on the fuse you wish to remove,and pull the fuse straight out from the fuseblock.
No.
Sym-bol
Electrical sys-
tem
Capacity
SBF1
Electric parking
brake
30 A*
SBF2
Electric parking
brake
30 A*
Sub fuse block
Identification of fuse Capacity
Color
7.5 A Brown10 A Red15 A Blue20 A Yellow25 A Natural (white)30 A
Green (fuse type) /Pink (fusible link type)
40 A Green (fusible link type)50 A Red (fusible link type)
Fuse replacement
BK0249100US.book 30 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Replacement of light bulbs
Vehicle care and maintenance 9-31
9

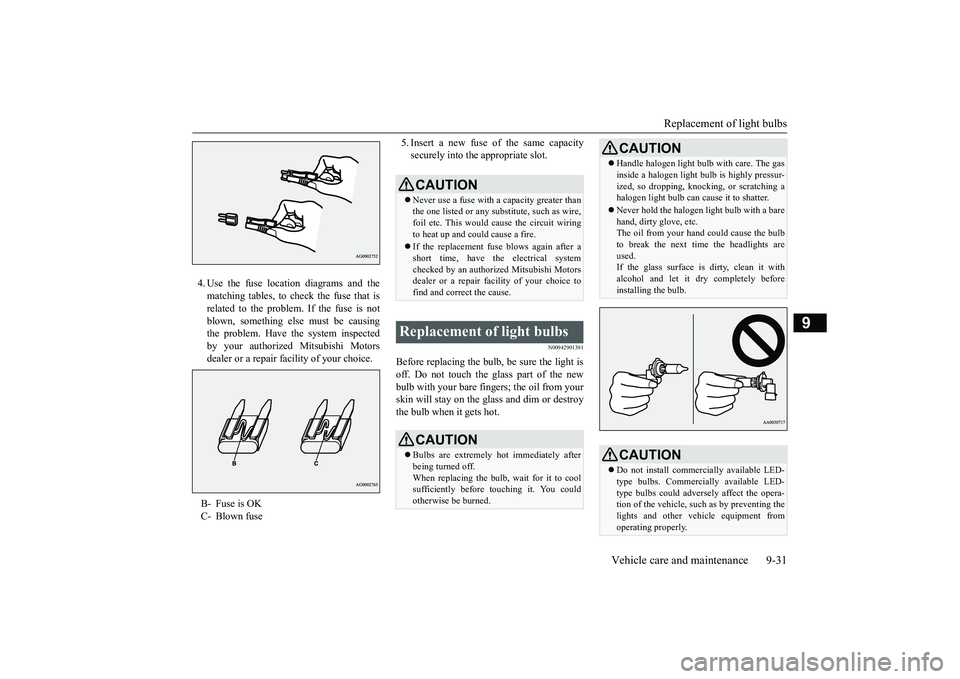

4. Use the fuse location diagrams and thematching tables, to check the fuse that isrelated to the problem. If the fuse is notblown, something else must be causingthe problem. Have the system inspectedby your authorized Mitsubishi Motorsdealer or a repair facility of your choice.
5. Insert a new fuse
of the same capacity
securely into the appropriate slot.
N00942901391
Before replacing the bulb, be sure the light isoff. Do not touch the glass part of the newbulb with your bare fingers; the oil from yourskin will stay on the glass and dim or destroythe bulb when it gets hot.
B- Fuse is OKC- Blown fuse
CAUTIONNever use a fuse with a capacity greater thanthe one listed or any s
ubstitute, such as wire,
foil etc. This would
cause the circuit wiring
to heat up and could cause a fire.If the replacement fuse blows again after ashort time, have the electrical systemchecked by an authorized Mitsubishi Motorsdealer or a repair faci
lity of your choice to
find and correct
the cause.
Replacement of light bulbs
CAUTIONBulbs are extremely hot immediately afterbeing turned off.When replacing the bulb, wait for it to coolsufficiently before
touching it. You could
otherwise be burned.
Handle halogen light bul
b with care. The gas
inside a halogen light
bulb is highly pressur-
ized, so dropping, knocki
ng, or scratching a
halogen light bulb can
cause it to shatter.
Never hold the halogen
light bulb with a bare
hand, dirty glove, etc.The oil from your hand could cause the bulbto break the next time the headlights areused.If the glass surface is dirty, clean it withalcohol and let it dry completely beforeinstalling the bulb.CAUTIONDo not install commercially available LED-type bulbs. Commercia
lly available LED-
type bulbs could adversely affect the opera-tion of the vehicle, such as by preventing thelights and other vehicle equipment fromoperating properly.CAUTION
BK0249100US.book 31 ページ ２０１７年５月１０日　水曜日　午前８時４９分

Replacement of light bulbs9-34 Vehicle care and maintenance
9
N00901801216
1. When replacing the bulb on the left sideof the vehicle, remove the bolts (A) hold-ing down the relay box and the sub fuseblock, and then move them toward therear of the vehicle. (if so equipped)
2. Turn the cap (B) counterclockwise toremove it.3. Turn the socket (C) counterclockwise toremove it, and then pull the bulb out ofthe socket.
4. To install the bulb, perform the removalsteps in reverse.
N00900301171
• Front foot lights• Floor console box light
Headlights (low beam, halogen bulb type) *- Front of the vehicle
NOTE
*- Front of the vehicle
NOTE
When installing the bulb, align the tab (D)with the notch (E) of the socket.
Headlights (low beam, LED type)
NOTE
The headlights use an LED instead of thebulb.Check with an authorized Mitsubishi Motorsdealer or a repair fa
cility of your choice
when the light needs to be repaired orreplaced.
BK0249100US.book 34 ページ ２０１７年５月１０日　水曜日　午前８時４９分
