2018 MINI Hardtop 2 Door Owner's Manual

Settings are stored for the profile currently
used.
Depending on the light conditions, the bright~ ness settings may not be clearly visible.
LED
ring
on
the
central
instrument
cluster
ConceptThe LED ring displays light animations to repre~sent specific functions.
Basic
displays
Basic functions, for instance the tachometer, can be set to be displayed continually if so de~sired.
Event
displays
Functions that are only displayed temporarily,
for instance the volume or temperature set~
tings, can be set as event displays.
Several vehicle assistance functions can also be displayed on the LED ring. This display corre~sponds with the displays of the function in therespective display.
Example:
tachometer
Like the tachometer in the instrument cluster, the light animations of the tachometer's basic
display show the current RPMs and the respec~
tive RPM warning thresholds.

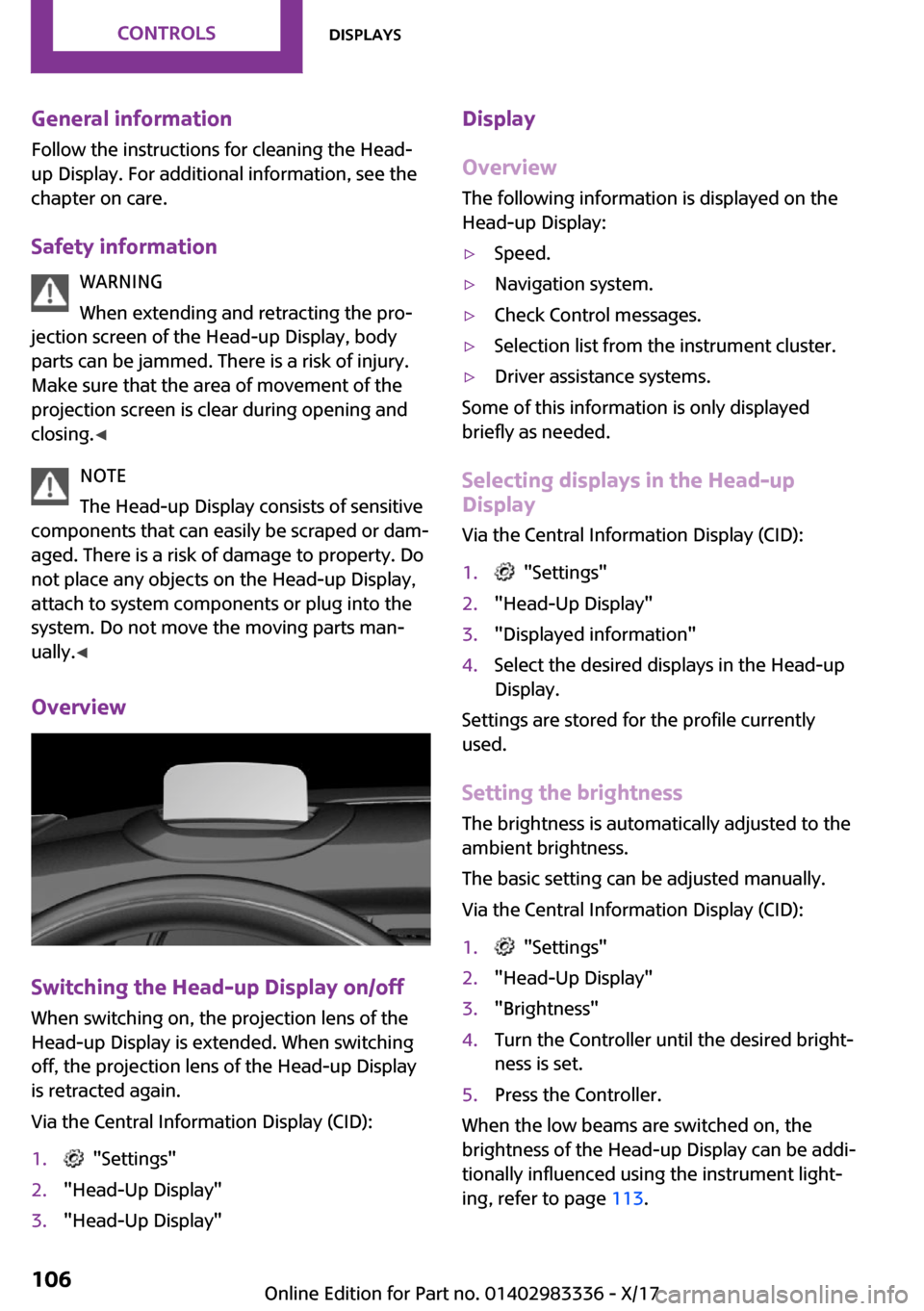

Display'

General
information
Follow the instructions for cleaning the Head-
up Display. For additional information, see the
chapter on care.
Safety
information WARNING
When extending and retracting the pro~
jection screen of the Head-up Display, body parts can be jammed. There is a risk of injury.
Make sure that the area of movement of the projection screen is clear during opening and
closing. '

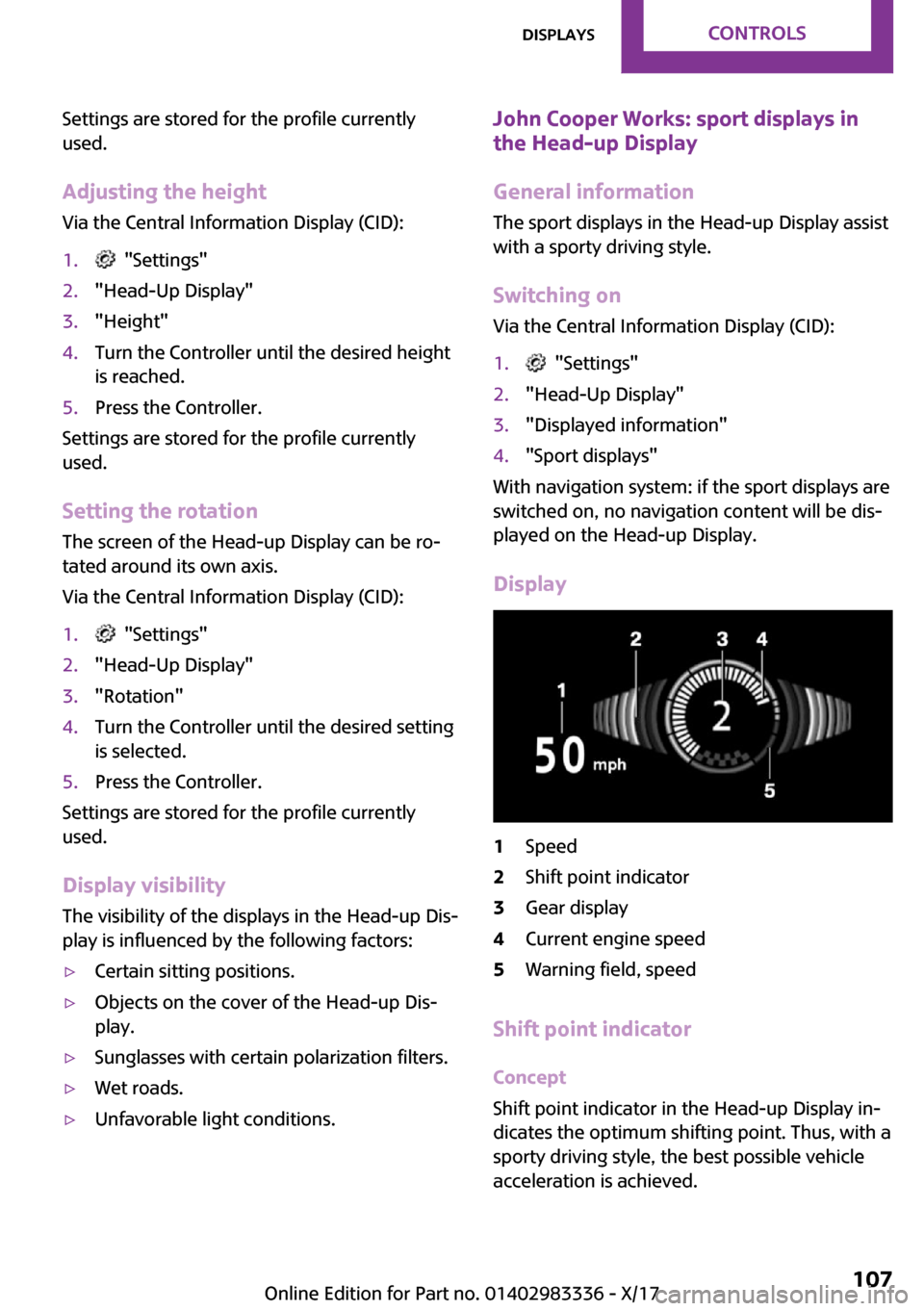

Settings are stored for the profile currently
used.
Adjusting
the
height Via the Central Information Display (CID):1. "Settings"2."Head-Up Display"3."Height"4.Turn the Controller until the desired heightis reached.5.Press the Controller.
Settings are stored for the profile currently
used.
Setting
the
rotation The screen of the Head-up Display can be ro~
tated around its own axis.
Via the Central Information Display (CID):
1. "Settings"2."Head-Up Display"3."Rotation"4.Turn the Controller until the desired setting
is selected.5.Press the Controller.
Settings are stored for the profile currently
used.
Display
visibility The visibility of the displays in the Head-up Dis~play is influenced by the following factors:
'

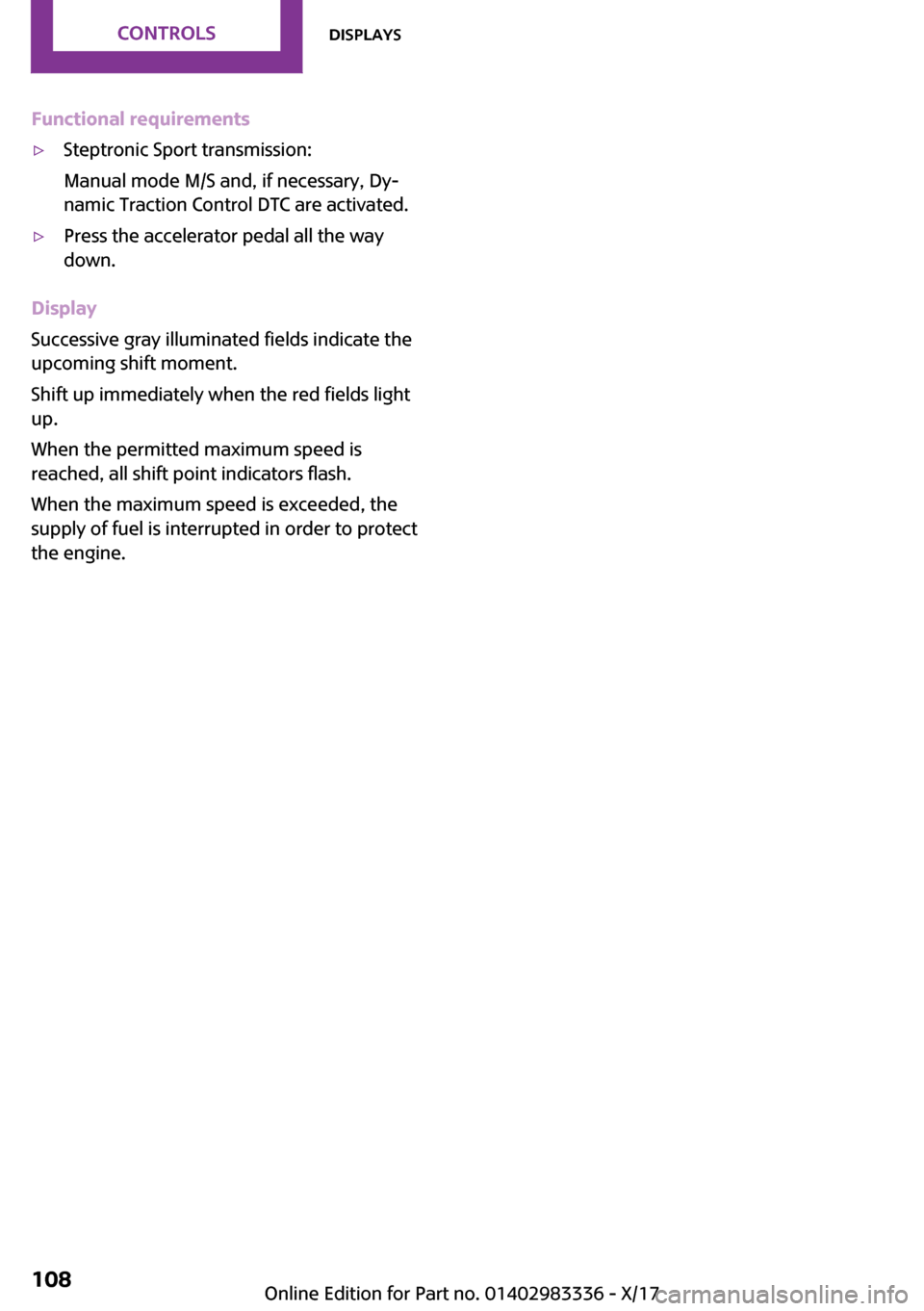

Functional
requirements'

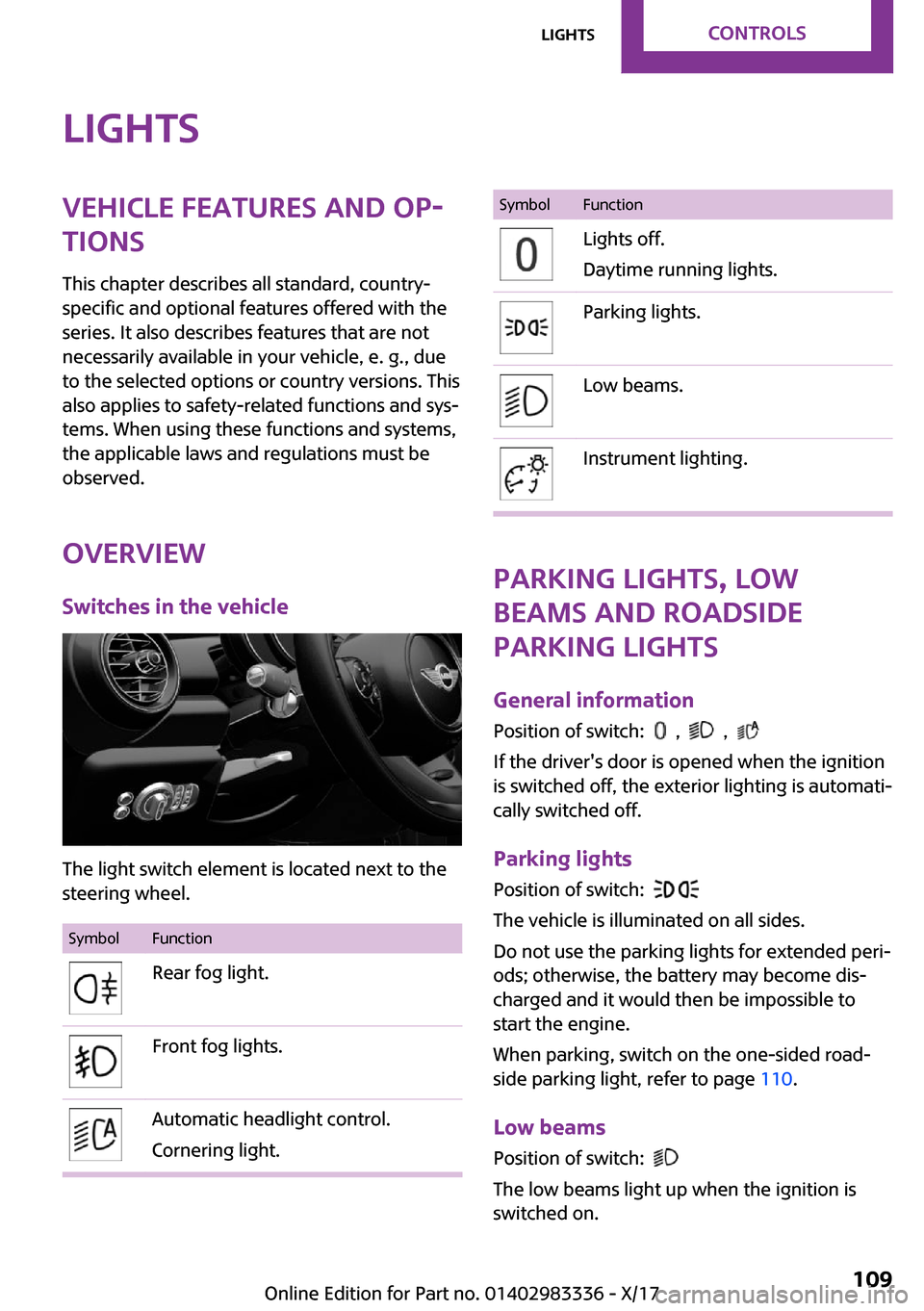

LightsVehicle
features
and
op

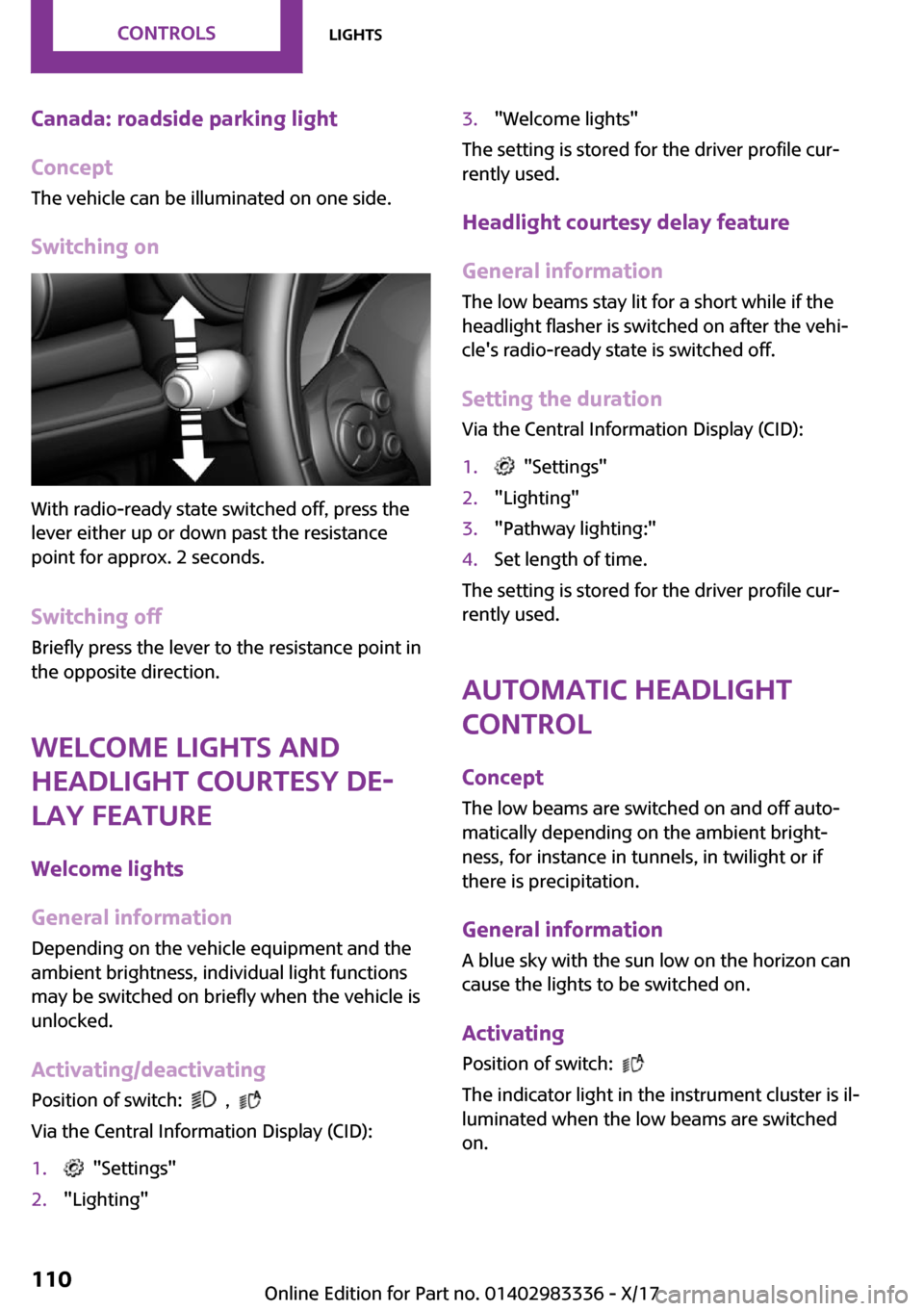

Canada:
roadside
parking
light
Concept The vehicle can be illuminated on one side.
Switching
on
With radio-ready state switched off, press the
lever either up or down past the resistance point for approx. 2 seconds.
Switching
off
Briefly press the lever to the resistance point in
the opposite direction.
Welcome
lights
and
headlight
courtesy
de

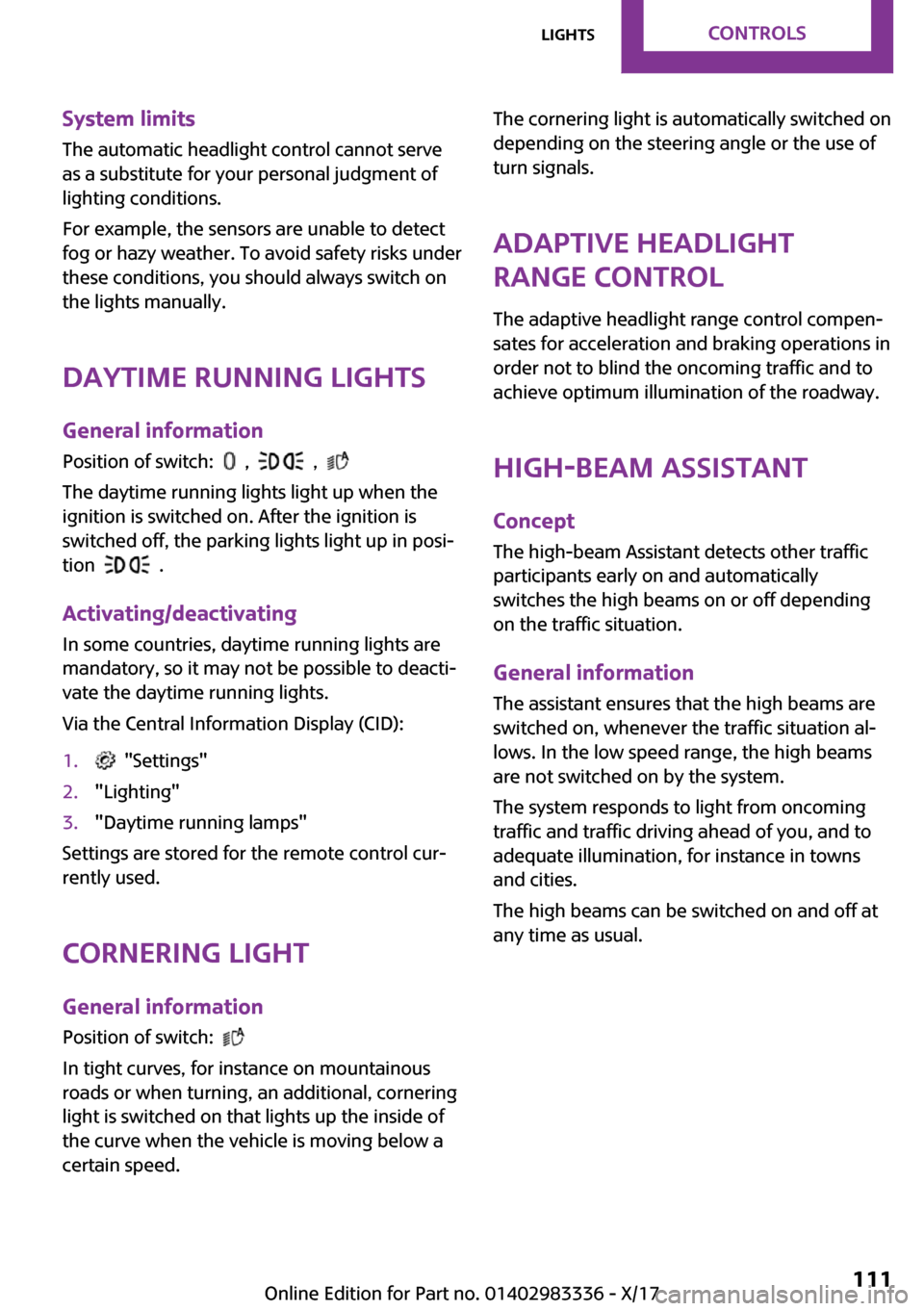

System
limits
The automatic headlight control cannot serve
as a substitute for your personal judgment of lighting conditions.
For example, the sensors are unable to detect
fog or hazy weather. To avoid safety risks under
these conditions, you should always switch on
the lights manually.
Daytime
running
lights General
information
Position of switch:
, ,
The daytime running lights light up when the ignition is switched on. After the ignition isswitched off, the parking lights light up in posi~tion
.
Activating/deactivating
In some countries, daytime running lights are
mandatory, so it may not be possible to deacti~ vate the daytime running lights.
Via the Central Information Display (CID):
1. "Settings"2."Lighting"3."Daytime running lamps"
Settings are stored for the remote control cur~
rently used.
Cornering
light General
information Position of switch:

In tight curves, for instance on mountainous
roads or when turning, an additional, cornering light is switched on that lights up the inside of
the curve when the vehicle is moving below a certain speed.
The cornering light is automatically switched ondepending on the steering angle or the use of
turn signals.
Adaptive
headlight
range
control
The adaptive headlight range control compen~
sates for acceleration and braking operations in order not to blind the oncoming traffic and to
achieve optimum illumination of the roadway.
High-beam
Assistant
Concept The high-beam Assistant detects other trafficparticipants early on and automatically
switches the high beams on or off depending on the traffic situation.
General
information The assistant ensures that the high beams areswitched on, whenever the traffic situation al~lows. In the low speed range, the high beams
are not switched on by the system.
The system responds to light from oncoming traffic and traffic driving ahead of you, and toadequate illumination, for instance in townsand cities.
The high beams can be switched on and off at
any time as usual.Seite 111LightsCONTROLS111
Online Edition for Part no. 01402983336 - X/17

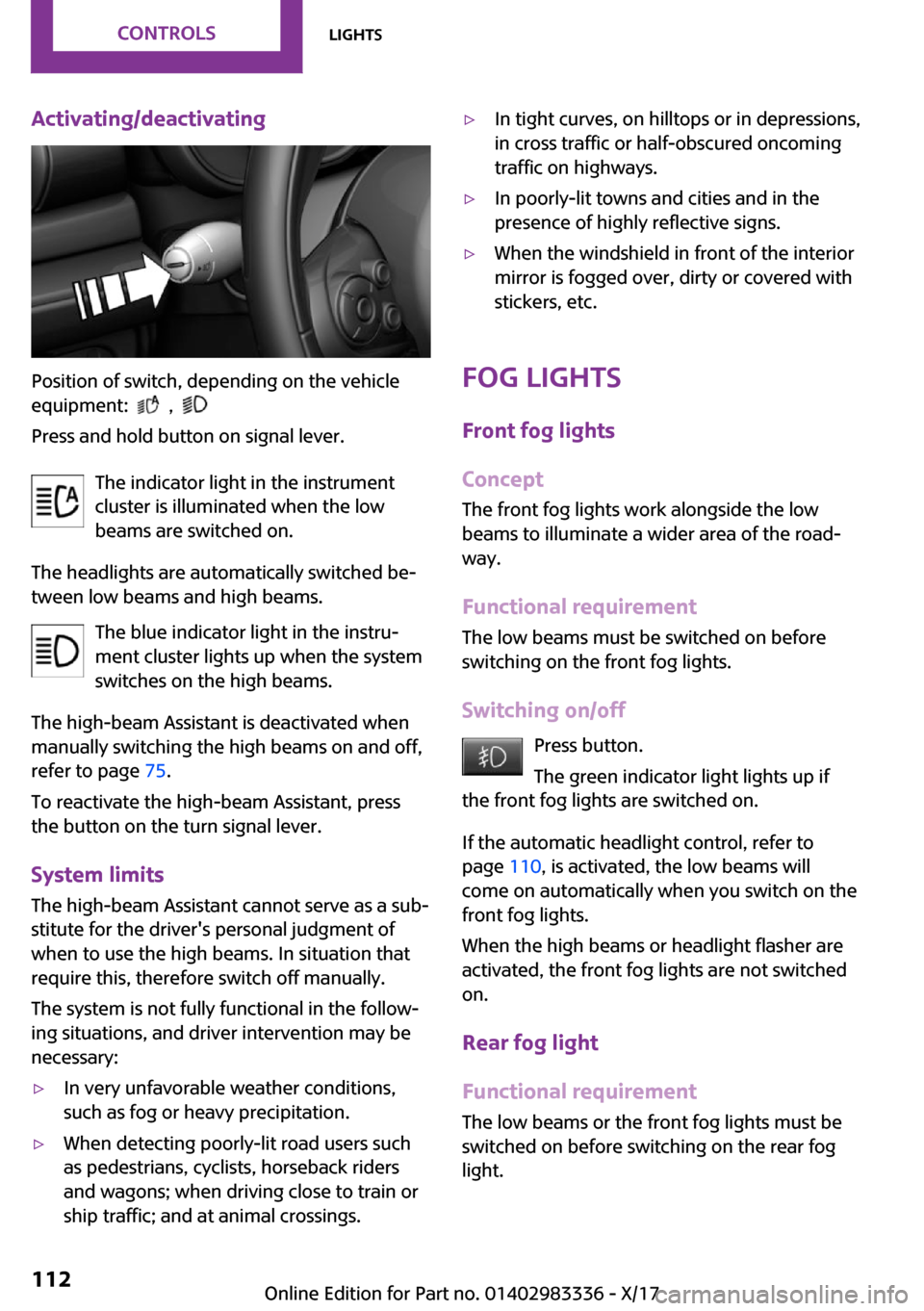

Activating/deactivating
Position of switch, depending on the vehicle
equipment:
,
Press and hold button on signal lever.
The indicator light in the instrument
cluster is illuminated when the low
beams are switched on.
The headlights are automatically switched be~ tween low beams and high beams.
The blue indicator light in the instru~
ment cluster lights up when the system
switches on the high beams.
The high-beam Assistant is deactivated when
manually switching the high beams on and off,
refer to page 75.
To reactivate the high-beam Assistant, press the button on the turn signal lever.
System
limits
The high-beam Assistant cannot serve as a sub~
stitute for the driver's personal judgment of
when to use the high beams. In situation that
require this, therefore switch off manually.
The system is not fully functional in the follow~ing situations, and driver intervention may benecessary:
'
