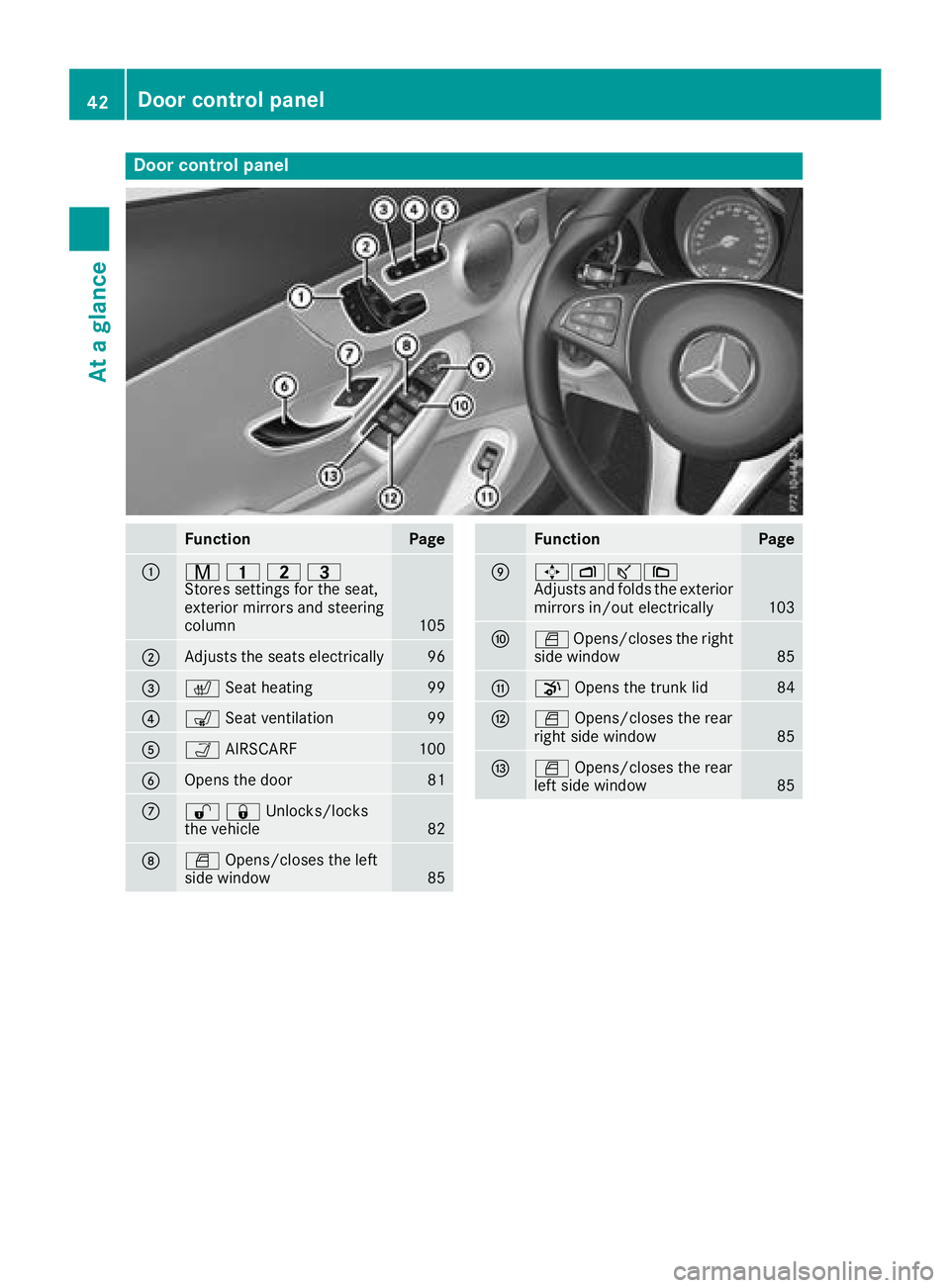

Door controlpanel
FunctionPage
:r 45=
Stores settings for the seat,
exterior mirrors and steering
column
105
;Adjusts the seats electrically96
=c Seat heating99
?sSeat ventilation99
AÒAIRSCARF100
BOpens the door81
C%&Unlocks/locks
the vehicle82
DWOpens/closes the left
side window85
FunctionPage
E7Zª\
Adjusts and folds the exterior
mirrors in/out electrically
103
FW Opens/closes the right
side window85
Gp Opens the trunk lid84
HWOpens/closes the rear
right side window85
IW Opens/closes the rear
left side window85
42Door control panel
At a glance

the vehicle seat belt. Also secure the child
restraint system with the Top Tether belt, if
available.
Always comply with the manufacturer's instal-
lation and operating instructions for the child
restraint system used.
Before every trip, make sure that the LATCH-
type (ISOFIX) child restraint system is engaged
correctly in both LATCH-type (ISOFIX) securing
rings
XInstall the LATCH-type (ISOFIX) child restraint system on both LATCH-type (ISOFIX) securing
rings :.
ISOFIX is a standardized securing system for
specially designed child restraint systems on
the rear seats. LATCH-type (ISOFIX) securing
rings for two LATCH-type (ISOFIX) child restraint
systems are installed on the left and right of the
rear seats.
Non-LATCH-type (ISOFIX) child seats may also
be used and can be installed using the vehicle's
seat belt system. Install the child seat according
to the manufacturer's instructions.
Top Tether
Introduction
Top Tether provides an additional connection
between the LATCH-type (ISOFIX) child restraint system secured with a LATCH-type (ISOFIX) sys-
tem and the vehicle. This helps reduce the risk of
injury even further. If the child restraint system
is equipped with a Top Tether belt, this should
always be used.
Important safety notes
GWARNING
If the rear seat backrests are not locked, they
could fold forwards in the event of an acci-
dent, heavy braking or sudden changes of
direction. As a result, child restraint systems
cannot perform their intended protective
function. Rear seat backrests that are not
locked can also cause additional injuries, e.g.
in the event of an accident. This poses an
increased risk of injury or even fatal injury.
Always lock rear seat backrests after instal-
ling a Top Tether belt. Observe the lock veri-
fication indicator.
If the rear seat backrest is not engaged and
locked, this will be shown in the multifunction
display in the instrument cluster.
Top Tether anchorages
Top Tether anchorage points :are located on
the rear side of the backrests on both outer rear
seats.
XPut the LATCH-type (ISOFIX) child restraint
system with Top Tether on the rear seat.
Always comply with the child restraint system
manufacturer's installation instructions when
doing so.
62Children in the vehicle
Safety

XFold the rear seat backrest forwards
(Ypage 265).
XHook Top Tether hook;on Top Tether
anchorage :.
XFold back the rear seat backrest
(Ypage 265).
XMake sure that the Top Tether belt =is not
twisted and that the rear seat backrest is
locked.
XSecure the child restraint system with LATCH-
type (ISOFIX) (Ypage 61).
XTension Top Tether belt =from the trunk.
XMake sure there is sufficient belt strap avail-
able to tighten it.
XAlways comply with the child restraint system
manufacturer's installation instructions when
doing so.
Child restraint system on the front-
passenger seat
General notes
Accident statistics show that children secured
in the rear seats are safer than children secured
in the front-passenger seat. For this reason,
Mercedes-Benz strongly advises that you install
the child restraint system on a rear seat.
If it is absolutely necessary to install a child
restraint system on the front-passenger seat,
always observe the instructions and safety
notes on the "Occupant Classification System
(OCS)" (
Ypage 51). You can thus avoid the risks that could arise as
a result of:
Ran incorrectly categorized person in the front-
passenger seat
Rthe unintentional deactivation of the front-
passenger front air bag
Rthe unsuitable positioning of the child
restraint system, e.g. too close to the dash-
board
Rearward-facing child restraint system
If it is absolutely necessary to install a rearward-
facing child restraint system on the front-
passenger seat, always make sure that the
front-passenger front air bag is deactivated.
Only if the PASSENGER AIR BAG OFF indicator
lamp is permanently lit (
Ypage 44 )is the front-
passenger front air bag deactivated.
Always observe the child restraint system man-
ufacturer's installation and operating instruc-
tions.
Forward-facing child restraint system
If it is absolutely necessary to install a forward-
facing child restraint system on the front-
passenger seat, always move the front-
passenger seat as far back as possible. Fully
retract the seat cushion length. The entire base of the child restraint system must always rest on
the seat cushion of the front-passenger seat.
The backrest of the child restraint system must
lie as flat as possible against the backrest of thefront-passenger seat. The child restraint system
must not touch the roof or be subjected to a load
by the head restraint. Adjust the angle of the
seat backrest and the head restraint position
accordingly. Always make sure that the shoul-
der belt strap is correctly routed from the vehi-
cle belt outlet to the shoulder belt guide on the
child restraint system. The shoulder belt strap
must be routed forward and down from the vehi-
cle belt outlet. If necessary, adjust the vehicle
belt outlet and the front-passenger seat accord-
ingly.
Always observe the child restraint system man-
ufacturer's installation and operating instruc-
tions.
Children in the vehicle63
Safety
Z

GWARNING
If the wind screen is incorrectly installed, it
could detach itself during a journey and
endanger other road users. There is a risk of
an accident and injury.
Install the wind screen as described.
!Install or remove the wind screen only when
the soft top is open. You could otherwise
damage the wind screen or the vehicle inte-
rior.
!Observe the backrest position of the front
seats if the wind screen is installed, since the
backrest could collide with the wind screen
here.
!Mercedes-Benz recommends that you only
use wind screens which have been tested and
approved for Mercedes-Benz vehicles. This
helps to prevent damage to the vehicle.
The folding wind screen protects against wind
when driving with the soft top open. It is secured
above the rear bench seats. For this reason, only
the driver and the front passenger can travel in
the vehicle when the folding wind screen is
installed.
The folding wind screen can be installed or
removed from the driver's side or passenger
side.
For operations involving the folding wind screen, it is preferable to be positioned on the side of the
vehicle facing away from the traffic, after stop-
ping the vehicle in accordance with the traffic
conditions.
Installing/removing the folding wind
screen
Installing
The folding wind screen is stowed in a bag. The
bag is attached with a lashing strap to the
through-loading facility behind the rear seats.
If you wish to use the through-loading facility,
loosen the lashing strap attached to the
through-loading facility and stow the folding
wind screen in the trunk. Use the lashing strap
to fasten the bag to one of the luggage hooks in
the trunk.
XOpen all side windows and the soft top.
XFold the rear seats forward (Ypage 265) and
remove the bag containing the folding wind
screen.
XRemove the folding wind screen from the bag.
XFold out folding wind screen :as shown.
XFold out the two brackets ;to the left and
right.
XAlign brackets ;of folding wind screen :
with both rear fixtures =on the vehicle.
92Soft top
Opening and closing

Perform the following steps in sequence on both
sides of the vehicle:
XPull the handle?in the direction of the
arrow.
XAlign folding wind screen :with side fixture
A on the vehicle from above and insert.
XPush handle ?on folding wind screen :
back as far as it will go.
Folding wind screen :is locked.
Removing
XPull handles ?on the left and right one after
the other and slide folding wind screen :out
of fixture Afrom above.
Folding wind screen :is unlocked.
XPull folding wind screen :out of both rear
fixtures =.
XFold in both brackets ;on folding wind
screen :.
XFold folding wind screen :together and
stow it in the bag.
XUse the lashing strap to attach the bag con-
taining the folding wind screen to the through- loading facility behind the rear seats.
Problems with the soft top
ProblemPossible causes/consequences and MSolutions
The soft top will not open
or close.The ignition is not switched on.
XMake sure that the SmartKey is in position 2in the ignition lock.
The trunk lid is open.
XClose the trunk lid (Ypage 83).
The trunk partition is not closed.
XClose the trunk partition (Ypage 90).
The roll bars have been deployed.
XVisit a qualified specialist workshop.
The soft-top mechanism or control system is defective.
XVisit a qualified specialist workshop.
The soft top has been opened and closed several times in a row. The
soft-top drive has been deactivated automatically for safety reasons.
You can open and close the soft top again after approximately ten
minutes.
XSwitch off the ignition and turn it back on.
XRepeat the opening or closing procedure.
Soft top93
Opening and closing
Z

XReleaseth erelease butto nonce th ehead
restrain tis in th edesired position .
XEnsurethat th ehead restrain thas engage d
properly.
Using th efore-and-af tadjustment, adjust th e
head restrain tso that it is as close as possibl eto
your head.
Adjusting the height of the head
restraints electrically
XTo adjust th ehea drestrain theight :slid e
th eswitch for th ehead restrain tadjustmen t
(
Ypage 96) up or down in th edirection of th e
arrow.
Vehicles wit hAM GPerformance seat :th eheight
of th ehead restraints canno tbe adjusted.
Installing and removing rear head
restraints
XReleas eth erear seat backrest and fol dit
slightly forward (Ypage 265).
XTo remove:press thecatch :in th edirec-
tion of th earrow and keep depressed.
XRemove th ehead restrain tfrom th eguide s
and release th ecatch :.
XTo install :insert th ehead restrain tint oth e
guide so that th enotches on th ebar appear
on th eleft-han dside when viewed in th e
direction of travel .
XPush thehead restrain tall th eway down until
it engages.
XEnsur ethat th ehead restrain thas engage d
properly.
XFold bac kth erear backrest until it engages.
Folding the front seat backrests
forward/back
Important safety notes
GWARNIN G
The seat belt does no toffer th eintended level
of protection if you hav eno tmoved th eback-
res tto an almost vertical position .When brak -
ing or in th eevent of an accident, you could
slid eunderneat hth eseat belt and sustain
abdomen or neck injuries, for example. This
poses an increased ris kof injury or eve nfatal
injury.
Adjus tth eseat properly before beginning
your journey. Always ensur ethat th ebackrest
is in an almost vertical position and that th e
shoulder section of your seat belt is routed
across th ecenter of your shoulder .
GWARNING
When you adjust aseat ,you or other vehicl e
occupant scould become trapped ,e.g. on th e
seat guide rail. There is aris kof injury.
Mak esur ewhen adjusting aseat that no on e
has any body part sin th eswee pof th eseat .
Observ eth esafet ynote son "Ai rbags "
(
Ypage 49 )and "Children in th evehicle"
(Ypage 59) .
Folding the seat backrest forward
EASY-ENTRY System :th eseat moves forwards
as soo nas you fol dth ebackrest forwards and
pull th eseat forwards horizontally. This makes it
easie rfor passenger sto get int oand out of th e
rear compartment.
Seats97
Seats, steering wheel and mirrors
Z

The head restraint also lowers on vehicles with
electric seat adjustment.
XPull the seat release handle:and fold the
backrest forwards as far as it will go.
The seat moves automatically to the foremost position.
Folding the seat backrest back
XSwing back the seat backrest.
If the rear seat backrest is not engaged, this
will be shown in the multifunction display in
the instrument cluster. A warning tone also
sounds.
The seat moves automatically to the stored
position.
If the previous position can no longer be set, e.g.
because of luggage in the rear-compartment
footwell or after occupants have entered the
rear-compartment:
XPull seat release handle :again and return
the seat backrest to an upright position.
The seat locks in the new seat fore-and-aft
adjustment position.
GWARNING
If the backrest is not engaged, it could fold
forwards during a braking maneuver or in the
event of an accident, for example. The seat
backrest will then push the vehicle occupant
against the seat belt. The seat belt can no
longer offer the intended level of protection
and could even cause injuries. There is an
increased risk of injury.
Before each journey, make sure that the back-
rest engages fully as described.
Adjusting the 4-way lumbar support
:Raises the backrest contour
;Softens the backrest contour
=Lowers the backrest contour
?Hardens the backrest contour
You can adjust the contour of the front seat
backrests individually to provide optimum sup-
port for your back.
Adjusting the AMG Performance Seat
To adjust the contour of the seat and for
improved lateral support, you can individually
adjust the front seats.
Adjusting the side bolsters of the seat cush-
ion
XTo set narrower: press button:.
XTo set wider: press button;.
To adjust the side bolsters of the seat back- rest
XTo set narrower: press button=.
XTo set wider: press button?.
98Seats
Seats, steering wheel and mirrors

Mirrors
Exterior mirrors
Important safety notes
GWARNING
You could lose control of your vehicle if you do the following while driving:
Radjust the driver's seat, head restraint,
steering wheel or mirrors
Rfasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint, steer-
ing wheel and mirror and fasten your seat belt before starting the engine.
GWARNING
The exterior mirror on the front-passenger
side reduces the size of the image. Visible
objects are actually closer than they appear.
This means that you could misjudge the dis-
tance from road users traveling behind, e.g.
when changing lane. There is a risk of an acci-
dent.
For this reason, always make sure of the
actual distance from the road users traveling
behind by glancing over your shoulder.
Adjusting the exterior mirrors
XTurn the SmartKey to position 1or2 in the
ignition lock (Ypage 123).
XExterior mirror on the front-passenger side:
press button ;. Exterior mirror on the driver's side: press but-
ton
=.
The indicator lamp lights up in the button that
has been pressed.
The indicator lamp goes out again after some
time. You can adjust the selected exterior
mirror using button :as long as the indicator
lamp is lit.
XPress button :up, down, or to the left or
right until you have adjusted the exterior mir-
ror to the correct position. You should have a
good overview of traffic conditions.
The convex exterior mirrors provide a larger field of vision.
After the engine has been started, the exterior
mirrors are automatically heated if the rear win-
dow defroster is switched on and the outside
temperature is low.
Folding the exterior mirrors in or out
electrically
XTurn the SmartKey to position 1or2 in the
ignition lock (Ypage 123).
XBriefly press :.
Both exterior mirrors fold in or out.
iMake sure that the exterior mirrors are
always folded out fully while driving. They
could otherwise vibrate.
iIf you are driving faster than 30 mph
(47 km/h), you can no longer fold in the exte-
rior mirrors.
Resetting the exterior mirrors
If the battery has been disconnected or com-
pletely discharged, the exterior mirrors must be
reset. The exterior mirrors will otherwise not
fold in if you have activated the Automatic
Mirrors103
Seats, steering wheel and mirrors
Z
