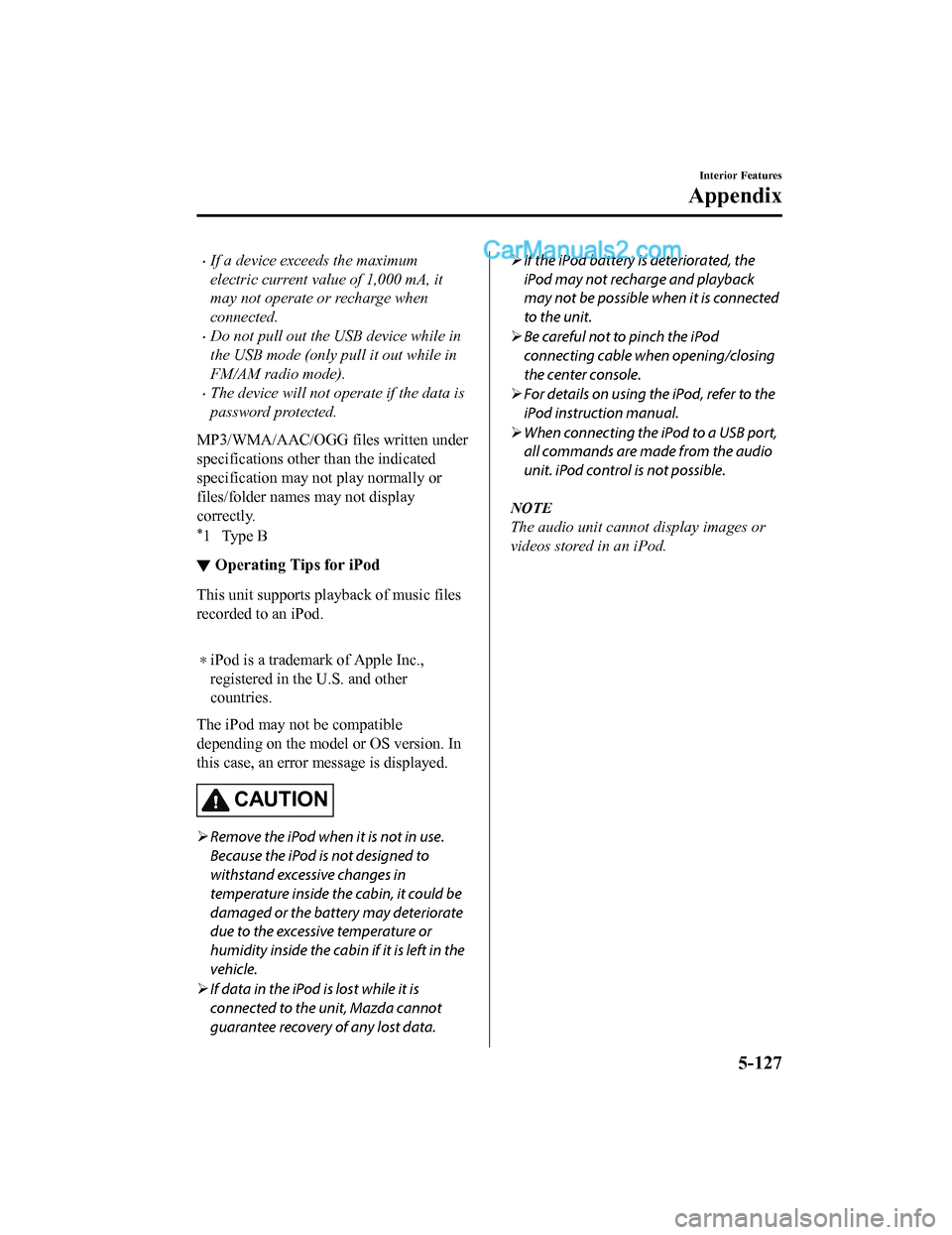

•If a device exceeds the maximum
electric current value of 1,000 mA, it
may not operate or recharge when
connected.
•Do not pull out the USB device while in
the USB mode (only pull it out while in
FM/AM radio mode).
•The device will not operate if the data is
password protected.
MP3/WMA/AAC/OGG files written under
specifications other than the indicated
specification may not play normally or
files/folder names may not display
correctly.
*1Type B
▼ Operating Tips for iPod
This unit supports playback of music files
recorded to an iPod.

∗ iPod is a trademark of Apple Inc.,
registered in the U.S. and other
countries.
The iPod may not be compatible
depending on the model or OS version. In
this case, an error message is displayed.
CAUTION
Remove the iPod when it is not in use.
Because the iPod is not designed to
withstand excessive changes in
temperature inside the cabin, it could be
damaged or the battery may deteriorate
due to the excessive temperature or
humidity inside the cabin if it is left in the
vehicle.
 If data in the iPod is lost while it is
connected to the unit, Mazda cannot
guarantee recovery of any lost data.
If the iPod battery is deteriorated, the
iPod may not recharge and playback
may not be possible when it is connected
to the unit.
 Be careful not to pinch the iPod
connecting cable when opening/closing
the center console.
 For details on using the iPod, refer to the
iPod instruction manual.
 When connecting the iPod to a USB port,
all commands are made from the audio
unit. iPod control is not possible.
NOTE
The audio unit cannot display images or
videos stored in an iPod.
Interior Features
Appendix
5-127
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Introduction
Be careful not to hurt yourself when inspecting your vehicle, replacing a tire, or doing some
kind of maintenance such as car washing.
In particular, wear thick work gloves such as cotton gloves when touching areas that are
difficult to see while inspecting or working on your vehicle. D oing inspections or
procedures with your bare hands could cause injury.

If you are unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.

Factory-trained Mazda technicians and genuine Mazda parts are b est for your vehicle.
Without this expertise and the parts that have been designed an d made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may r esult in problems. This
could lead to vehicle damage or an accident and injuries.

For expert advice and quality service, consult an Authorized Ma zda Dealer.

To continue warranty eligibility and to protect your investment , it is your responsibility to
properly maintain your vehicle according to factory recommended schedules outlined in this
manual. As part of this you mu st keep your maintenance records, receipts, repair orders and
any other documents as evidence this maintenance was performed. You must present these
documents, should any warranty coverage disagreement occur. Fai lure to do so can result in
your warranty being voided ei ther in whole or in part.

This evidence may consist of the following:
•The Mazda Scheduled Maintenance Record, refer to the Warranty B ooklet, must be
completely filled out showing mileage, repair order number, dat e for each service, and
signed by a qualified automotive service technician who service vehicles.
•Original copies of repair orders or other receipts that include the mileage and date the
vehicle was serviced. Each receipt should be signed by a qualified automotive service
technician.
•For self maintenance, a statement that you completed the mainte nance yourself,
displaying mileage and the date t he work was performed. Also, receipts for the
replacement parts (fluid, filters , etc.) indicating the date and mileage must accompany this
statement.

Maintenance and Care
Essential Information
6-2
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Remarks:
*1 The engine oil and filter must be changed at least once a year or within 12,000 km (7,500 miles) since last
engine oil and filter change. Re set the engine oil data whenever replacing the engine oil regardless of the
message/wrench indicator light display.
*2 Use of FL-22 is recommended when replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*3 According to state/provincial and federal regulations, failure to perform maintenance on these items will not
void your emissions warranties. H owever, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/kilometer period to ensure long -term reliability.
*4 If this component has been submerged in water, the oil should be replaced.*5 Check the tire repair fluid expiration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with ne w one before the expiration dat e.
▼Schedule 2
U.S.A. and Puerto Rico residents - Severe driving conditions ma
intenance interval
Maintenance IntervalNumber of months or kilometers (miles), whichever comes first.
Months 6 1218243036424854606672
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Spark plugs Replace every 120,000 km (75,000 miles).
Air filter
*1RR
Drive belts I I I
Engine oil & filter Flexible
*2Replace when wrench indicator light is ON. (Max interval: 12
months or 12,000 km (7,500 miles))
Fixed RRRRRRRRRRRR
Engine coolant
*3Replace at first 192,000 km (120, 000 miles) or 10 years; after
that, every 96,000 km (60,000 miles) or 5 years.
Engine coolant level IIIIIIIIIIII
Fuel lines and hoses
*4IIII
Hoses and tubes for emission
*4II
Function of all lights IIIIIIIIIIII
Brake lines, hoses and connections II II
Brake and clutch fluid level I I I I I I I I I I I I
Disc brakes IIIIIIIIIIII
Tire (Rotation) Rotate every 8,000 km (5,000 miles).
Tire inflation pressure and tire wear IIIIIIIIIIII
Steering operation and linkages II II
Front and rear suspensi on, ball joints and wheel
bearing axial play IIII
Rear differential oil
*5
Transfer oil*5
Maintenance and Care
Scheduled Maintenance
6-6
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Maintenance IntervalNumber of months or kilometers (miles), whichever comes first.
Months 6 1218243036424854606672
×1000 km 8 1624324048566472808896
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Driveshaft dust boots III I
Bolts and nuts on chassis and body TTTT
Exhaust system and heat shields I
All locks and hinges LLLLLLLLLLLL
Washer fluid level IIIIIIIIIIII
Emergency flat tire repair kit (if installed)
*6Inspect annually.
Cabin air filter Replace every 48,000 km (30,000 miles) or 2 yea rs.
Chart symbols:
I: Inspect: Inspect and clean, re pair, adjust, fill up, or replac e if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain
Remarks:
*1 If the vehicle is operated in v ery dusty or sandy areas, clean and if necessary, replace the air filter more often
than the recommended intervals.
*2 Engine oil flexible maintenance i s available for U.S.A. and Puerto Rico residents whose vehicle is operated
mainly where none of the following conditions apply.
•Extended periods of idling or low-speed operation such as polic e car, taxi or driving school car•Driving in dusty conditions
If any do apply, follo w fixed maintenance.
The engine oil and filter must be changed at least once a year or within 12,000 km (7,500 miles) since last
engine oil and filter change. Res et the engine oil data whenever replacing the engine oil regardless of the
message/wrench indicator light display.
*3 Use of FL-22 is recommended wh en replacing engine coolant. Using engine coolant other than FL-22 may
cause serious damage to the engine and cooling system.
*4 According to state/provincial and federal regulations, failure to perform maintenance on these items will not void your emissions warranties. However, Mazda recommends that all maintenance services be performed at
the recommended time or mileage/ kilometer period to ensure long-term reliability.
*5 If this component has been subm erged in water, the oil should be replaced.*6 Check the tire repair fluid exp iration date every year when performing the periodic maintenance. Replace the
tire repair fluid bottle with new one before the expiration date.

Maintenance and Care
Scheduled Maintenance
6-7
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Maintenance Monitor
▼Maintenance Monitor (Type A)
Based on the engine operating conditions, the onboard computer
in your vehicle calculates
the remaining oil life in the Un ited States and Puerto Rico. Th e wrench indicator light in the
instrument cluster will be illuminated when remaining oil life becomes less than 1,000 km
(600 mile), or remaining days are less than 15 (whichever comes first).
The system must be reset whenever replacing the engine oil.
Reset method
Press and hold the dashboard illumination knob with the ignitio n switched off, then switch it
on. Keep pressing the dashboard il lumination knob for more than 5 seconds. The master
warning light will flash for a few seconds when the reset is completed.
Dashboard illumination knob
▼Maintenance Monitor (Type B)
1. Select the icon on the home screen to display the “Applications” screen.
2. Select “Vehicle Status Monitor”.
3. Select “Maintenance” to display the maintenance list screen.
4. Switch the tab and select the setting item you want to change .
You can customize settings in the setup display as follows:
Ta b I t e m E x p l a n a t i o n
Scheduled Setting
Notification can be switched on/off.
Time (months) Displays the time or distance until maintenance is due.
Select this item to set the maintenance period.
The wrench indication/indicator light in the instrument cluster will be illu-
minated when the remaining dista nce is less than 1,000 km or 600 mile, or
the remaining number of days is less than 15 (whichever comes f irst).
Distance (km or
mile)
Reset
Resets the time and distance to the initial values.
Once the system turns on, it needs to be reset whenever carrying out
maintenance.
Maintenance and Care
Scheduled Maintenance
6-10
CX-5_8GN5-EA-17J_Edition1
2017-8-18 12:58:27

Ta bI t e m E x p l a n a t i o n
Tire Rotation Setting
Notification can be switched on/off.
Distance (km or
mile) Displays the distance until tire rotation is due.
Select this item to set the tire rotation distance.
The wrench indication/indicator
light in the instrument cluster will be illu-
minated when the remaining dista nce is less than 1,000 km or 600 mile.
Reset Resets the remaining distance to the initial value.
Once the system turns on, it need
s to be reset whenever rotating the tires.
Oil Change Setting Interval
Oil replacement period can be se
lected from the flexible setting or fixed
setting, or it can be set to non-display.
The flexible setting is availabl e only in the United States and Puerto Rico.
Once engine oil flexible maintenance is selected, the vehicle c alculates
the remaining oil life based on the engine operating conditions. The vehi-
cle lets you know when an oil change is due by illuminating the wrench
indicator light in the instrument cluster.
Distance (km or
mile)
(Displays only in
fixed setting) Displays the distance until the oil replacement is due.
Select this item to set the oil replacement distance.
The wrench indication/indicator
light in the instrument cluster will be illu-
minated when the remaining dista nce is less than 1,000 km or 600 mile.
Oil life (km or
mile)
(Displays only in
flexible setting) Displays the engine oil life unt
il the oil replacement is due.
The wrench indication/indicator light in the instrument cluster will be illu-
minated when the remaining oil li fe distance is less than 1,000 km or 600
mile.
Reset Resets the remaining distance to the initial value.
Once the system turns on, it need
s to be reset whenever replacing the en-
gine oil.
Maintenance and Care
Scheduled Maintenance
6-11
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

Key Battery Replacement
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
 Make sure the battery is installed
correctly. Battery leakage could occur if it
is not installed correctly.
 When replacing the battery, be careful
not to touch any of the internal circuitry
and electrical terminals, bend the
electrical terminals, or get dirt in the
transmitter as the transmitter could be
damaged.
 There is the danger of explosion if the
battery is not correctly replaced.
 Dispose of used batteries according to
the following instructions.
 Insulate the plus and minus terminals
of the battery using cellophane or
equivalent tape.
 Never disassemble.
 Never throw the battery into fire or
water.
 Never deform or crush.
 Replace only with the same type battery
(CR2025 or equivalent).
The following conditions indicate that the
battery power is low:
•The KEY indicator light (green) flashes
in the instrument cluster for about 30
seconds after the engine is turned off
(for vehicles with a type A instrument
cluster (page 4-30), messages are
displayed in the instrument cluster).
•The system does not operate and the
operation indicator light on the
transmitter does not flash when the
buttons are pressed.
•The system's operational range is
reduced.
Replacing the battery at an Authorized
Mazda Dealer is recommended to prevent
damage to the key. If replacing the battery
by yourself, follow the instruction.
Replacing the key battery
1. Press the knob and pull out the auxiliary key.
Knob
Maintenance and Care
Owner Maintenance
6-29
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27

▼Instrument Panel Top (Soft pad)
Maintenance
Extremely soft material
is used for the soft
pad surface. If the soft pad surface is
rubbed harshly with a dry cloth, it could
result in the surface being damaged and
leaving white scratch marks.
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5%) diluted with water.
2. Wipe off the remaining detergent using
a cloth soaked in clean water and
wrung out well.
▼Panel Maintenance
If a panel becomes soiled, wipe it off with
a soft cloth soaked in clean water and
thoroughly wrung out.
If some areas require further cleaning, use
the following procedure:
1. Wipe the soiled area with a soft cloth
soaked in a mild detergent (approx.
5 %) diluted with water.
2. Wipe off the remaining detergent using a cloth soaked in clean water and
wrung out well.
NOTE
Be particularly careful when cleaning
shiny surface panels and metallic parts
such as plating as they can be scratched
easily.
▼Active Driving Display
Maintenance*
The dust-proof sheet has a coating. When
cleaning, do not use a hard or
rough-surface cloth, o
r cleaning detergent.
In addition, if a chemical solvent gets on
the active driving d isplay, wipe it off
immediately. The dust-proof sheet could
be damaged and the surface coating could
be scratched. Use a fine, soft cloth such as
those used for cleaning eyeglasses.
NOTE
Use of compressed air when cleaning the
dust-proof sheet is recommended.
Maintenance and Care
Appearance Care
6-56*Some models.
CX-5_8GN5-EA-17J_Edition1 2017-8-18 12:58:27
