2018 LINCOLN MKZ Owners Manual

GENERAL INFORMATION
Have your vehicle serviced regularly to helpmaintain its roadworthiness and resale value.There is a large network of authorizeddealers that are there to help you with theirprofessional servicing expertise. We believethat their specially trained technicians arebest qualified to service your vehicle properlyand expertly. They are supported by a widerange of highly specialized tools developedspecifically for servicing your vehicle.
If your vehicle requires professional service,an authorized dealer can provide thenecessary parts and service. Check yourwarranty information to find out which partsand services are covered.
Use only recommended fuels, lubricants,fluids and service parts conforming tospecifications. Motorcraft® parts aredesigned and built to provide the bestperformance in your vehicle.
Precautions
•Do not work on a hot engine.
•Make sure that nothing gets caught inmoving parts.
•Do not work on a vehicle with the enginerunning in an enclosed space, unless youare sure you have enough ventilation.
•Keep all open flames and other burningmaterial (such as cigarettes) away fromthe battery and all fuel related parts.
Working with the Engine Off
1. Set the parking brake and shift to park(P).
2. Switch off the engine.
3. Block the wheels.
Working with the Engine On
WARNING
To reduce the risk of vehicle damageand/or personal burn injuries, do notstart your engine with the air cleanerremoved and do not remove it while theengine is running.
1. Set the parking brake and shift to park(P).
2. Block the wheels.
OPENING AND CLOSING THE
HOOD
1. To open the hood, go inside the vehicleand pull the hood release handle locatedunder the left-hand side of the instrumentpanel.
302
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
MaintenanceE142457

2.Go to the front of the vehicle and find thesecondary release lever, which is locatedunder the front of the hood, near theLincoln badge.
3. Release the hood latch by pushing thesecondary release lever to your left,toward the passenger side of the vehicle.
4. Raise the hood. A gas strut will supportthe hood.
5. To close the hood, lower the hood andapply closing force to the hood as itdrops the last 8 to 11 inches (20 to 30centimeters).
Note:Make sure that the hood is closed fullybefore operating your vehicle. A warningindicator will appear in the informationdisplay if not closed properly.
303
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Maintenance

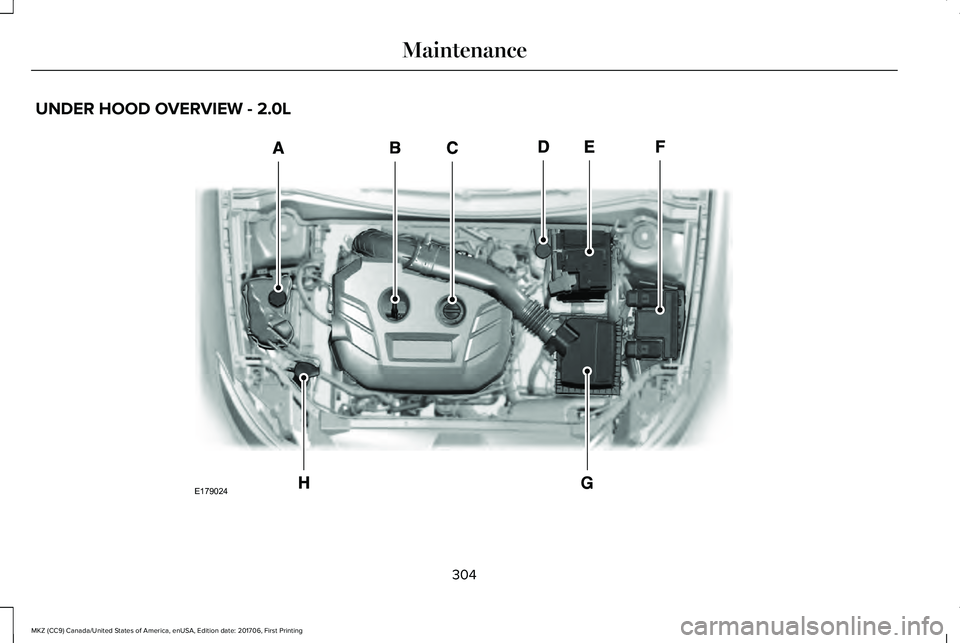

UNDER HOOD OVERVIEW - 2.0L
304
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
MaintenanceE179024

Engine coolant reservoir. See Engine Coolant Check (page 310).A
Engine oil dipstick. See Engine Oil Dipstick (page 308).B
Engine oil filler cap. See Engine Oil Check (page 308).C
Brake fluid reservoir. See Brake Fluid Check (page 318).D
Battery. See Changing the 12V Battery (page 319).E
Engine compartment fuse box. See Fuses (page 282).F
Air filter. See Changing the Engine Air Filter (page 325).G
Washer system fluid reservoir. See Washer Fluid Check (page 319).H
305
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Maintenance

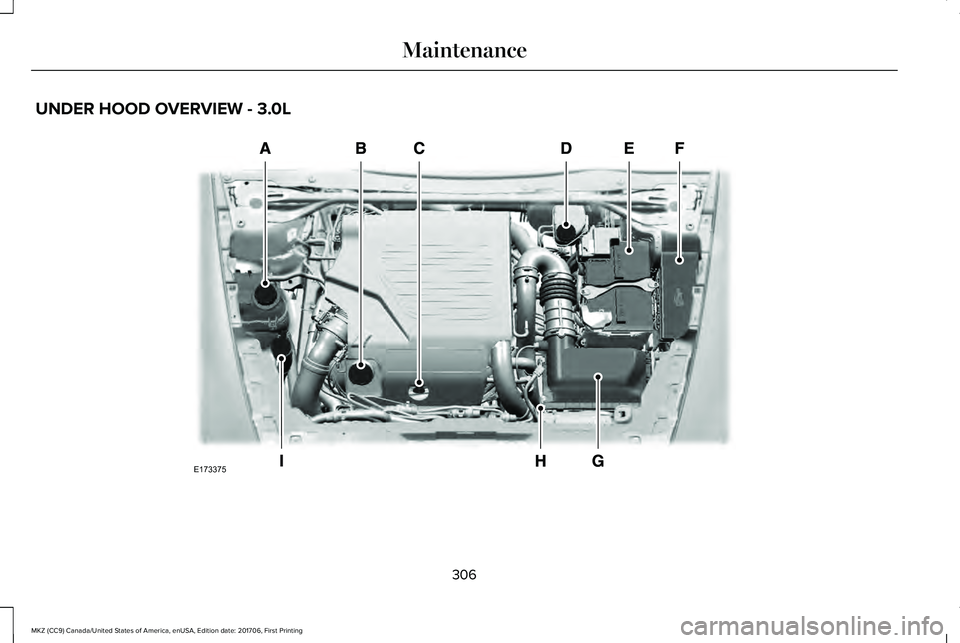

UNDER HOOD OVERVIEW - 3.0L
306
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
MaintenanceE173375

Engine coolant reservoir. See Engine Coolant Check (page 310).A.
Engine oil filler cap. See Engine Oil Check (page 308).B.
Engine oil dipstick. See Engine Oil Dipstick (page 308).C.
Brake fluid reservoir. See Brake Fluid Check (page 318).D.
Battery. See Changing the 12V Battery (page 319).E.
Engine compartment fuse box. See Fuses (page 282).F.
Air filter assembly. See Changing the Engine Air Filter (page 325).G.
Automatic transmission dipstick. See Automatic Transmission Fluid Check (page 314).H.
Washer fluid reservoir. See Washer Fluid Check (page 319).I.
307
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
Maintenance

ENGINE OIL DIPSTICK - 2.0L
MINA
MAXB
ENGINE OIL DIPSTICK - 3.0L
MINA
MAXB
ENGINE OIL CHECK
To check the engine oil level consistentlyand accurately, do the following:
1.Make sure the parking brake is on. Makesure the transmission is in park (P) orneutral (N).
2. Run the engine until it reaches normaloperating temperature.
3. Make sure that your vehicle is on levelground.
4.Switch the engine off and wait 15 minutesfor the oil to drain into the oil pan. Checking the engine oil level too soonafter you switch the engine off may resultin an inaccurate reading.
5. Open the hood. See Opening andClosing the Hood (page 302).
6. Remove the dipstick and wipe it with aclean, lint-free cloth. See Under HoodOverview (page 304).
7.Replace the dipstick and remove it againto check the oil level. See Under HoodOverview (page 304).
8. Make sure that the oil level is betweenthe maximum and minimum marks. If theoil level is at the minimum mark, add oilimmediately. See Capacities andSpecifications (page 380).
9. If the oil level is correct, replace thedipstick and make sure it is fully seated.
308
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
MaintenanceE142462 E170468
AB

Note:Do not remove the dipstick when theengine is running.
Note: If the oil level is between themaximum and minimum marks, the oil levelis acceptable. Do not add oil.
Note:The oil consumption of new enginesreaches its normal level after approximately3,000 mi (5,000 km).
Adding Engine Oil
WARNING
Do not remove the filler cap when theengine is running.
Do not use supplemental engine oil additivesbecause they are unnecessary and couldlead to engine damage that may not becovered by the vehicle Warranty.
Only use oils certified for gasoline enginesby the American Petroleum Institute (API). An oil with this trademark symbol conformsto the current engine and emission systemprotection standards and fuel economyrequirements of the International LubricantsSpecification Advisory Committee (ILSAC).
To top up the engine oil level do thefollowing:
1. Clean the area surrounding the engineoil filler cap before you remove it.
2. Remove the engine oil filler cap. SeeUnder Hood Overview (page 304). Turnit counterclockwise and remove it.
3. Add engine oil that meets Fordspecifications. See Capacities andSpecifications (page 380). You may haveto use a funnel to pour the engine oil intothe opening.
4. Recheck the oil level.
5. If the oil level is correct, replace thedipstick and make sure it is fully seated.
6. Replace the engine oil filler cap. Turn itclockwise until you feel a strongresistance.
Note: Do not add oil further than themaximum mark. Oil levels above themaximum mark may cause engine damage.
Note:Make sure you install the oil filler capcorrectly.
Note:Soak up any spillage with anabsorbent cloth immediately.
OIL CHANGE INDICATOR RESET
Use the information display controls on thesteering wheel to reset the oil changeindicator.
309
MKZ (CC9) Canada/United States of America, enUSA, Edition date: 201706, First Printing
MaintenanceE142732
