TOWING A TRAILER
WARNINGS
Do not exceed the GVWR or theGAWR specified on the certificationlabel.
Towing trailers beyond themaximum recommended grosstrailer weight exceeds the limit of yourvehicle and could result in enginedamage, transmission damage,structural damage, loss of vehiclecontrol, vehicle rollover and personalinjury.
Note:Your vehicle may have electricalitems, such as fuses or relays, related
to towing. See Fuses (page 288).
Your vehicle's load capacity designationis by weight, not by volume, so youcannot necessarily use all availablespace when loading a vehicle or trailer.
Towing a trailer places an extra load onyour vehicle's engine, transmission, axle,brakes, tires and suspension. Inspectthese components periodically during,and after, any towing operation.
Load Placement
To help minimize how trailer movementaffects your vehicle when driving:
•Load the heaviest items closest tothe trailer floor.
•Load the heaviest items centeredbetween the left and right side trailertires.
•Load the heaviest items above thetrailer axles or just slightly forwardtoward the trailer tongue. Do notallow the final trailer tongue weightto go above or below 10-15% of theloaded trailer weight.
•Select a ball mount with the correctrise or drop. When both the loadedvehicle and trailer are connected, thetrailer frame should be level, orslightly angled down toward yourvehicle, when viewed from the side.
When driving with a trailer or payload, aslight takeoff vibration or shudder maybe present due to the increased payloadweight. Additional information regardingproper trailer loading and setting yourvehicle up for towing is located in theLoad Carrying chapter. See Load Limit(page 259).
You can also find information in the RV& Trailer Towing Guide available at yourauthorized dealer, or online.
264
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Towing

Protected ComponentsFuse RatingFuse or Relay Number
Power fold 2nd row seats.30A 11
Starter relay.—2
Rear wiper.15A 13Rain sensor
Blower motor relay.—4
Power point 3 - back of console.20A 25
Not used.—6
Powertrain control module - vehicle power 1.20A 17
Powertrain control module - vehicle power 2.20A 18
Powertrain control module relay.—9
Power point 5-main bin.20A 210
Powertrain control module - vehicle power 4.15A 311
Powertrain control module - vehicle power 3.15A 312
Not used.—13
290
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

Protected ComponentsFuse RatingFuse or Relay Number
Not used.—14
Run-start relay.—15
Power point 2 - console bin.20A 216
Power point 4 - luggage compartment.20A 217
RH HID headlamp.20A 118
Run-start electronic power assist steering.10A 119
Run/start lighting.10A 120
Transmission oil pump logic power (start/stop).15A 121
Air conditioner clutch solenoid.10A 122
Front split view camera.15A 123Rear view camera.Front split view camera module.Gear shift actuator.
Not used (spare).10A 124
291
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

Protected ComponentsFuse RatingFuse or Relay Number
Run-start anti-lock brake system.10A 325
Run-start powertrain control module.10A 326
Not used.—27
Rear washer pump.10A 128
Not used.—29
Not used.—30
Not used.—31
Electronic fan 1 relay.—32
A/C clutch relay.—33
Glove box release.15A 134
Not used.—35
Not used.—36
Power transfer unit fan.10A 137
Electronic fan 2 relay.—38
292
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

Protected ComponentsFuse RatingFuse or Relay Number
Electric fan 3 relay.—39
Horn relay.—40
Not used.—41
Fuel pump relay.—42
2nd row easy fold seat release.10A 143
LH HID headlamp.20A 144
Not used.—45
Not used.—46
Not used.—47
Not used.—48
Not used.—49
Horn.20A 150
Not used.—51
Not used.—52
Not used (spare).10A 153
293
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

Protected ComponentsFuse RatingFuse or Relay Number
Brake on off switch.10A 354
ALT sensor.10A 355
Not used.—86
1 Micro 2 fuse.2 M case fuse.3 Micro 3 fuse.
Power Distribution Box - Bottom
There are fuses located on the bottom of thefuse box. To access the bottom of the fusebox, do the following:
294
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

Protected ComponentsFuse RatingFuse or Relay Number
Not used.—56
Power Point 1 - Driver Front.20A257
Fuel pump feed.30A 158
Electronic fan 3.40A 259
Electronic fan 1.40A 260
Not used.—61
Body control module 1.50A 262
Electronic fan 2.25A 163
Headlamp washer.20A 164
Front heated seat.20A 165
Heated wiper park.15A 166
Body control module 2.50A 267
297
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses

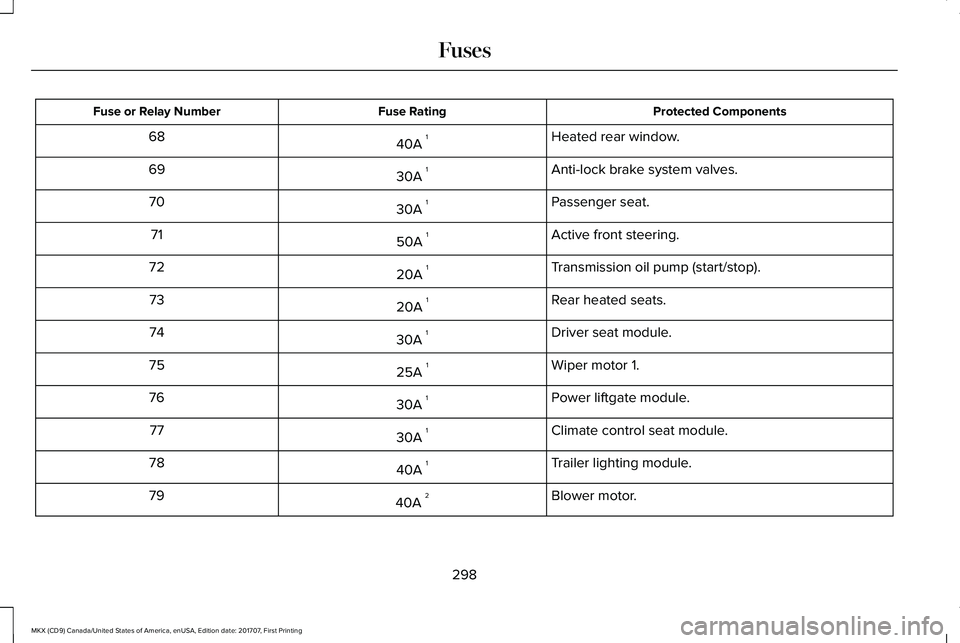

Protected ComponentsFuse RatingFuse or Relay Number
Heated rear window.40A 168
Anti-lock brake system valves.30A 169
Passenger seat.30A 170
Active front steering.50A 171
Transmission oil pump (start/stop).20A 172
Rear heated seats.20A 173
Driver seat module.30A 174
Wiper motor 1.25A 175
Power liftgate module.30A 176
Climate control seat module.30A 177
Trailer lighting module.40A 178
Blower motor.40A 279
298
MKX (CD9) Canada/United States of America, enUSA, Edition date: 201707, First Printing
Fuses
