TOWING A TRAILER
WARNING: Do not exceed theGVWR or the GAWR specified on thecertification label.
WARNING: Towing trailers beyondthe maximum recommended grosstrailer weight exceeds the limit of yourvehicle and could result in enginedamage, transmission damage,structural damage, loss of vehiclecontrol, vehicle rollover and personalinjury.
Note:There may be electrical itemssuch as fuses or relays that can affecttrailer towing operation. See Fuses(page 294).
The load capacity of your vehicle isdesignated by weight not volume. Youmay not necessarily be able to use allavailable space when loading yourvehicle or trailer.
Towing a trailer places extra load on theengine, transmission, axle, brakes, tires,and suspension. Inspect thesecomponents before, during and aftertowing.
Load Placement
To help minimize how trailer movementaffects the vehicle when driving:
•Load the heaviest items closest tothe trailer floor.
•Load the heaviest items in the centerof the left and right side trailer tires.
•Load the heaviest items above thetrailer axles or just slightly forwardtoward the trailer tongue. Do notallow the final trailer tongue weightto go above or below 10-15% of theloaded trailer weight.
•Select a ball mount with the correctrise or drop. When both the loadedvehicle and trailer are connected, thetrailer frame should be level, orslightly angled down toward thevehicle, when viewed from the side.
When driving with a trailer or payload, aslight takeoff vibration or shudder maybe present due to the increased payloadweight. Additional information regardingproper trailer loading and setting yourvehicle up for towing is located in theLoad Carrying chapter. See Load Limit(page 266).
You can also find information in the RV& Trailer Towing Guide available at yourauthorized dealer, or online.
271
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Towing

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Powertrain control module power.20A 11
Engine emissions (MIL).20A 12
A/C clutch control relay coil.20A 13VACC.Active grill shutters.Cooling fan relays.All-wheel drive module (2.7L and 3.7Lengines).
Ignition coils.20A 14
Not used.—5
Fuel injectors (3.7L engine).15A 16
Rear recline relay box.5A 17
Not used.—8
Not used.—9
Not used.—10
Torque vectoring relay (3.0L engine).—11
296
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Not used.—12
Rear seat recline.40A 213
Powertrain control module relay.—14
Horn.20A 115
A/C clutch.10A 116
Not used.—17
Not used.—18
Heated rear window relay.—19
Electric cooling fan relay.—20
Electric cooling fan relay.—21
Electric cooling fan.30A 222
Not used.—23
Not used.—24
Blower motor relay.—25
297
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

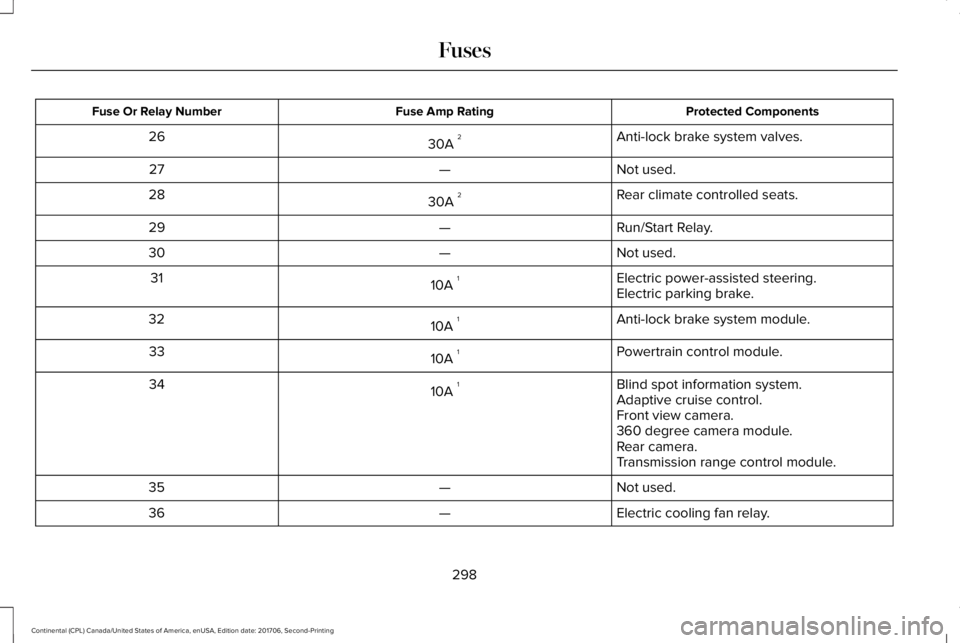

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Anti-lock brake system valves.30A 226
Not used.—27
Rear climate controlled seats.30A 228
Run/Start Relay.—29
Not used.—30
Electric power-assisted steering.10A 131Electric parking brake.
Anti-lock brake system module.10A 132
Powertrain control module.10A 133
Blind spot information system.10A 134Adaptive cruise control.Front view camera.360 degree camera module.Rear camera.Transmission range control module.
Not used.—35
Electric cooling fan relay.—36
298
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Rear seat recline relay.—37
A/C compressor clutch relay.—38
Horn relay.—39
Not used.—40
Not used.—41
Blower motor.40A 242
Not used.—43
Body control module/voltage quality modulebus.50A 344
Not used.—45
Electric cooling fan.50A 346
Electric cooling fan.50A 347
Body control module RP1 bus.50A 348
Torque vectoring (3.0L engine).40A 349
Body control module RP2 bus.50A 350
299
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Not used.—51
Anti-lock brake system pump.60A 352
Adaptive front steering.40A 353
Heated windshield.40A 254
Heated rear window.40A 255
Power inverter.40A 256
Power deck lid module.30A 257Manual deck lid latch.
Not used.—58
Not used.—59
Fuel pump.30A 260
Not used.—61
Power point 2A.20A 262
Power seat control module.30A 263Front heated seats.
300
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Not used.—64
Fuel pump 2.30A 265
Passenger power seat.30A 266
Power point 1B.20A 267
Auxiliary blower.15A 268
Power point 1A.20A 269
Not used.—70
Not used.—71
Driver power seat module.30A 272
Not used.—73
Wiper motor.25A 274
Not used.—75
Not used (spare).20A 276
Not used.—77
301
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Starter.30A 278
Auxiliary transmission pump (2.0L engine withstart-stop).20A 279
Not used.—80
USB smart charge -- passenger side.5A 181
USB smart charge -- console.5A 182
Electronic door latch (left rear).20A 183
USB smart charge -- driver side.5A 184
Electronic door latch (right front).20A 185
Electronic door latch (right rear).20A 186
Transmission range control module.15A 187
Rear recline.5A 188
Electronic door latch (left front).20A 189
302
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses
