Protected ComponentsFuse Amp RatingFuse Or Relay Number
Powertrain control module relay.10A 190
Brake on/off switch.10A 191
Front multi-contour seat module.15A 192
Rear multi-contour seats.15A 193
Right hand side high intensity dischargeheadlamp.20A 194
Left hand side high intensity dischargeheadlamp.20A 195
Wiper park heater.10A 196
Alternator sense line.10A 197
Rain sensor.5A 198
Not used.—99
1 Micro fuse.2 M-type fuse.3 J-type fuse.
303
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

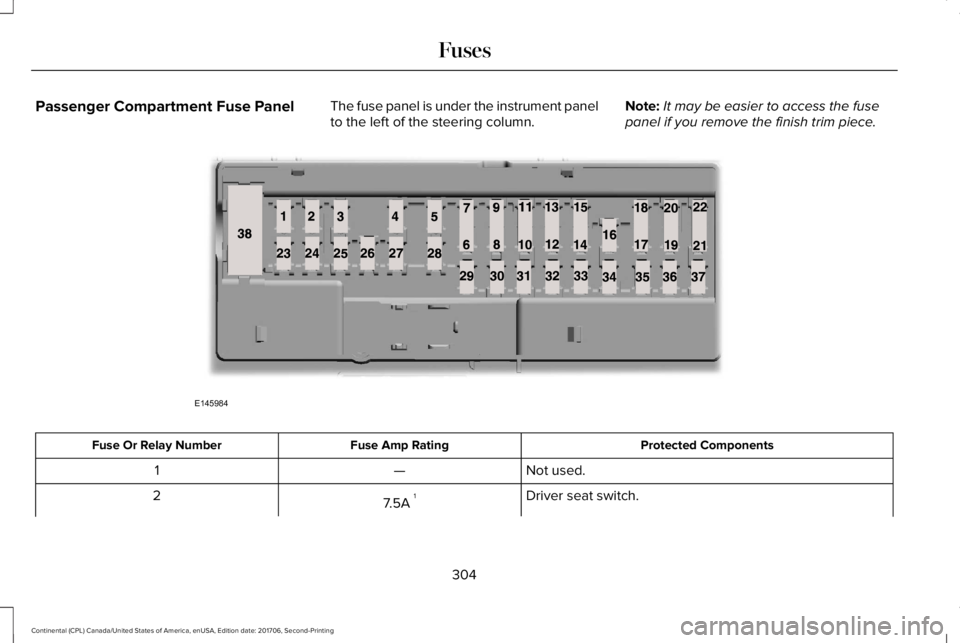

Passenger Compartment Fuse PanelThe fuse panel is under the instrument panelto the left of the steering column.Note:It may be easier to access the fusepanel if you remove the finish trim piece.
Protected ComponentsFuse Amp RatingFuse Or Relay Number
Not used.—1
Driver seat switch.7.5A 12
304
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
FusesE145984

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Passenger seat switch.
Driver unlock relay.20A 13
Not used (spare).5A 14
Subwoofer amplifier.20A 15Revel digital signal processing amplifier.
Not used.—6
Not used.—7
Security horn.10A 18
Not used.10A 19
Telematics module.5A 210Power decklid module.
Keypad.5A 211Outside lock switch.Combined security sensor module.
Front control interface module (climate control).7.5A 212Gear shift module.Rear climate control module.
305
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Instrument cluster.7.5A 213Smart data link.Steering column control module.
Restraints control module.10A 114
Smart datalink connector power.10A 215
Decklid release relay.5A216
Not used (spare).5A 217
Push button start switch.5A218
Not used.7.5A 219
Headlamp control module.7.5A 120
Humidity sensor.5A 221
Not used.5A 222
Delayed accessory power.10A 123Left front window switch.Moonroof.
306
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Rear window power sunshade module.DC inverter.
Central lock relay.30A 124
Left front door zone module.30A 125
Right front door zone module.30A26
Moonroof.30A 127
Revel digital signal processing amplifier.20A 128
Left rear door zone module.30A 129
Right rear door zone module.30A 130
Column memory module. Adv. Heads Up Display15A 131
SYNC.10A 132Radio frequency receiver. Rear Seat Entertainment
Radio.20A 133Remote CD mechanism.
Run/Start Relay.30A 134
307
Continental (CPL) Canada/United States of America, enUSA, Edition date: 201706, Second-Printing
Fuses

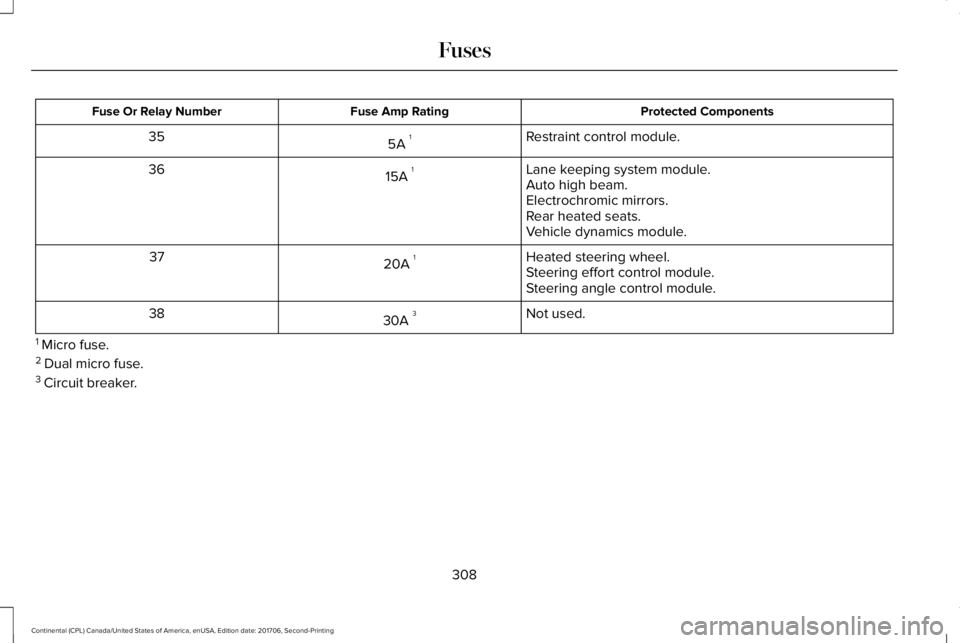

Protected ComponentsFuse Amp RatingFuse Or Relay Number
Restraint control module.5A 135
Lane keeping system module.15A 136Auto high beam.Electrochromic mirrors.Rear heated seats.Vehicle dynamics module.
Heated steering wheel.20A 137Steering effort control module.Steering angle control module.
Not used.30A 338
1 Micro fuse.2 Dual micro fuse.3 Circuit breaker.
