2018 LEXUS LX570 engine

LX570_OM_OM60Q78U_(U) 5878-2. Customization
8
Vehicle specifications ■
Rear window wiper and washer ( → P. 235)
■
Driving position memory ( → P. 151)
■
Outside rear view mirrors ( → P. 162)Function Default setting Customized
setting
Drip prevention function On Off — — O
Rear window wiper opera-
tion linked with washer On Off — — O
Linked operation when the
shift lever in R position On Off — — O
Times of the linked opera-
tion when the shift lever in R
position Once Continuously — — O 1 2 3
Function Default setting Customized
setting
Driver’s seat movement
when exiting the vehicle Standard Off
O — O
Partial
Selection the door linking
driving position memory
with door unlock operation Driver’s door All doors — — O 1 2 3
Function Default setting Customized
setting
Automatic folding/extend-
ing operation Linked to locking/
unlocking of the
doors Off
— — O
Linked to engine
switch operation
Linked mirror function
when reversing On Off — — O 1 2 3

592
LX570_OM_OM60Q78U_(U) 8-2. Customization■
HUD (Head-up Display)
* ( → P. 100)
* : If equipped ■
Vehicle customization ●
When smart access system with push-button start is turned off, unlock door cannot be
selected. ●
When doors are not opened after unlocking and are then automatically re-locked, a
signal will be given if Operation signal (Emergency flashers) or Operation signal
(Buzzer) are set to on. ■
When setting using the multi-information display
When using the vehicle switches to set an item that can also be set using the touch
screen, the item displayed on the Remote Touch will not change immediately.
If the engine switch is first turned to off, the screen display will change once the engine
switch is turned to IGNITION ON mode again. ■
When customizing usin g the Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent battery discharge, leave the engine running while customizing the features. Function Default
setting Customized
setting
Driving support display
(Navigation system
* ) On Off — O —
Driving support display
(Driving assist
* ) On Off — O —
Driving support display
(compass
* ) On Off — O —
Driving support display
(audio
* ) On Off — O —
WARNING ■
During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.
NOTICE ■
During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures. 1 2 3

593
LX570_OM_OM60Q78U_(U) 8-3. Initialization
8
Vehicle specifications

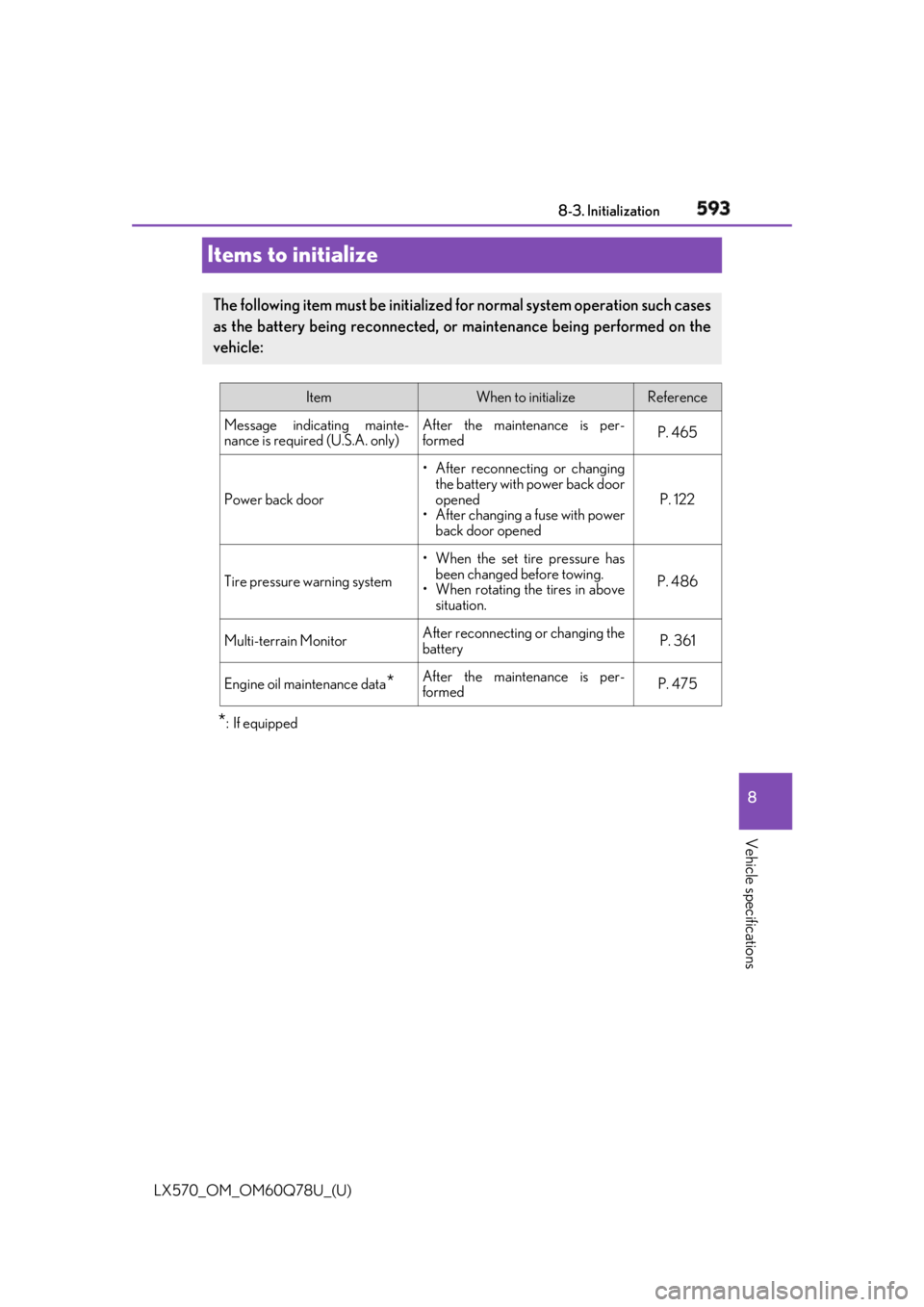

Items to initialize
* : If equippedThe following item must be initialized for normal system operation such cases
as the battery being reconnected, or maintenance being performed on the
vehicle: Item When to initialize Reference
Message indicating mainte-
nance is required (U.S.A. only) After the maintenance is per-
formed P. 465
Power back door • After reconnecting or changing
the battery with power back door
opened
• After changing a fuse with power
back door opened P. 122
Tire pressure warning system • When the set tire pressure has
been changed before towing.
• When rotating the tires in above
situation. P. 486
Multi-terrain Monitor After reconnecting or changing the
battery P. 361
Engine oil maintenance data
* After the maintenance is per-
formed P. 475

608 What to do if... (Troubleshooting)
LX570_OM_OM60Q78U_(U)What to do if... (Troubleshooting) ●
If you lose your mechanical keys, ne w genuine mechanical keys can be made
by your Lexus dealer. ( → P. 112)●
If you lose your electronic keys, the risk of vehicle theft increases significantly.
Contact your Lexus dealer immediately. ( → P. 114)●
Is the electronic key battery weak or depleted? ( → P. 503)●
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( → P. 206)●
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on your
person. ●
The function may not operate properly du e to the condition of the radio wave.
( → P. 134)
●
Is the child-protector lock set?
The rear door cannot be opened from in side the vehicle when the lock is set.
Open the rear door from outside and then unlock the child-protector lock.
( → P. 118)If you have a problem, check the foll owing before contacting your Lexus
dealer.
The doors cannot be locked, unlocked, opened or closed You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

609What to do if... (Troubleshooting)
LX570_OM_OM60Q78U_(U) ●
Did you press the engine switch while firmly depressing the brake pedal?
( → P. 205)●
Is the shift lever in P? ( → P. 205)●
Is the electronic key anywhere detectable inside the vehicle? ( → P. 133)●
Is the steering wheel unlocked? ( → P. 208)●
Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( → P. 547)●
Is the battery discharged? ( → P. 549)●
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode ( → P. 215)If you think something is wrong The engine does not start
The shift lever cannot be shifted from P even if you depress the brake
pedal

610 What to do if... (Troubleshooting)
LX570_OM_OM60Q78U_(U) ●
It is locked automatically to prevent theft of the vehicle. ( → P. 207)●
Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. ( → P. 165)●
The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. ( → P. 207)●
The seat belt reminder light is flashing
Are the driver and the front passe nger wearing the seat belts?
( → P. 522)●
The parking brake indicator is on
Is the parking brake released? ( → P. 218)
Depending on the situation, other type s of warning buzzer may also sound.
( → P. 520, 528)
●
Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( → P. 77)
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine. The steering wheel cannot be turned after the engine is stopped
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically
A warning buzzer sounds during driving
An alarm is activated and the horn sounds

615Alphabetical index
LX570_OM_OM60Q78U_(U) Coolant..................................................... 562
Capacity .................................................562
Checking................................................478
Preparing and checking
before winter ................................... 382
Cooling system
Engine overheating.......................... 552
Crawl Control ....................................... 307
Cruise control
Cruise control....................................... 281
Dynamic radar cruise control
with full-speed range ....................269
Cup holders ............................................ 423
Curtain shield airbags ........................... 38
Customizable features .......................580
Daytime running light system .......... 222
Defogger
Outside rear view mirrors ............ 405
Rear window ....................................... 405
Windshield ........................................... 405
Differential ............................................... 563
Dimension ...............................................558
Dinghy towing........................................ 204 Display
Crawl Control..................................... 307
Drive information.................................. 94
Dynamic radar cruise control
with full-speed range ................... 269
Fuel consumption information ..... 106
Head-up display ................................. 100
Intuitive parking assist......................288
LDA (Lane Departure Alert)....... 264
Multi-information display.................... 91
Multi-terrain Monitor .........................316
Multi-terrain Select ............................. 312
Warning messages ..........................528
Do-it-yourself maintenance..............470
Door courtesy lights
Location ................................................... 417
Doors
Automatic door locking and
unlocking system............................... 119
Back door................................................ 122
Door glasses ..........................................165
Door lock.................................................. 115
Open door warning buzzer ........ 522
Open door warning light .............. 522
Outside rear view mirrors .............. 162
Rear door child-protectors ............. 118
Side doors ................................................ 115D
* : Refer to
the “NAVIGATION SYSTEM OWNER’S MANUAL”.

616 Alphabetical index
LX570_OM_OM60Q78U_(U) Drive information .................................... 94
Driver’s seat belt reminder light ..... 522
Driver’s seat position memory ........... 151
Driving......................................................... 174
Break-in tips .......................................... 175
Correct posture..................................... 28
Driving in the rain................................ 175
Driving mode select switch ..........284
Off-road precautions...................... 386
Procedures .............................................174
Winter drive tips ................................ 382
Driving position memory...................... 151
Driving position memory .................. 151
Memory recall function.................... 152
Power easy access system .............. 151
DVD player
* Dynamic radar cruise control
with full-speed range
Function ..................................................269
Eco Driving Indicator Light ................. 87
EDR (Event data recorder) ...................10
Electronic key ........................................... 110
Battery-saving function .................... 134
If the electronic key does not
operate properly............................ 546
Replacing the battery ...................... 503 Emergency, in case of
If a warning buzzer sounds ..........520
If a warning light turns on ..............520
If a warning message is
displayed ............................................528
If the electronic key does not
operate properly ............................546
If the engine will not start ............... 544
If the vehicle battery is
discharged......................................... 549
If you have a flat tire .......................... 532
If you lose your keys.................... 112, 114
If you think something is
wrong.................................................... 518
If your vehicle becomes stuck.....555
If your vehicle has to be stopped
in an emergency................................ 511
If your vehicle needs to be
towed ..................................................... 512
If your vehicle overheats ................ 552
Emergency flashers ..............................510
E
