772-1. Instrument cluster
LS500h_OM_OM50F42U_(U) 2
Vehicle status information and indicators ■
Locations of gauges and meters
The units of measure may differ depending on the intended destination of the vehicle.
Engine coolant temperature gaugeDisplays the engine coolant temperature
Odometer and trip meter display ( → P.79)
Outside temperatureDisplays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Hybrid System IndicatorDisplays hybrid system outp ut or regeneration level ( → P.78)
This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. ( → P.90, 298)
Speedometer
ClockTime displayed is linked to the analog clock on the center panel. ( → P.353)
Shift position indicator ( → P.176)
Shift range/gear position ( → P.174)
Fuel gaugeDisplays the quantity of fuel remaining in the tank
Multi-information displayPresents the driver with a variety of vehicle data ( → P.86)Gauges and meters (except F SPORT models)
Meter display
A
B
C
D
E
F
G
H
I
J

78 2-1. Instrument cluster
LS500h_OM_OM50F42U_(U) Displays warning messages if a malfunction occurs ( → P.437)■
Hybrid System Indicator
Charge areaShows regeneration *
status.
Regenerated energy will be used to charge
the hybrid battery (traction battery).
Hybrid Eco areaShows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.

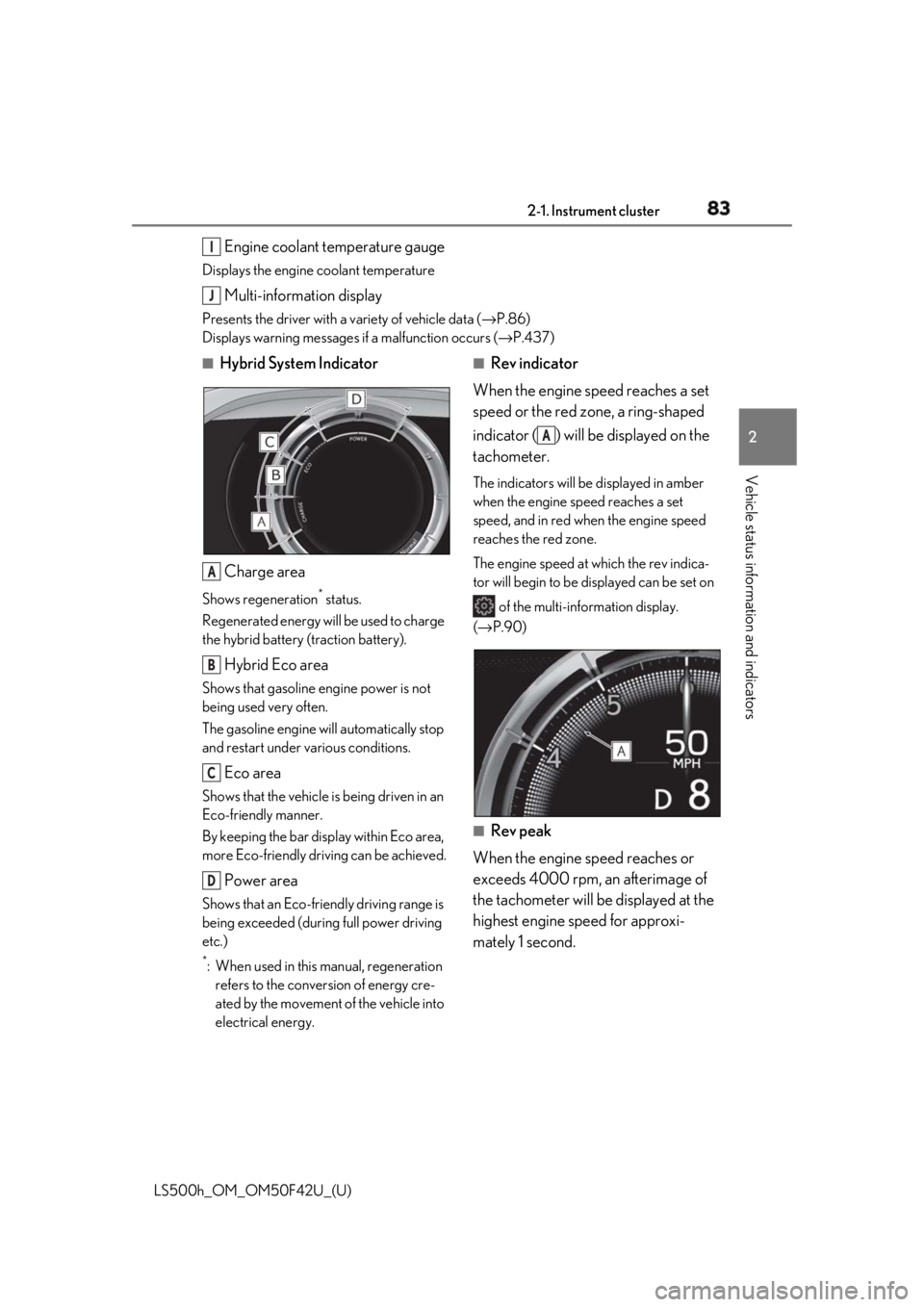

Eco areaShows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the bar display within Eco area,
more Eco-friendly driv ing can be achieved.
Power areaShows that an Eco-friendly driving range is
being exceeded (durin g full power driving
etc.) *
: When used in this manual, regeneration
refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.
■
Engine speed
On hybrid vehicles, engine speed is pre-
cisely controlled in order to help improve
fuel efficiency and reduce exhaust emis-
sions etc.
There are times when the engine speed that
is displayed may differ even when vehicle operation and driving conditions are the
same. ■
Hybrid System Indicator is displayed
when
The Hybrid System Indicator is displayed in
the following situations: ●
The shift position is in D or M. ●
The driving mode is other than sport
mode.
However, the Hybrid System Indicator will
not be displayed when the analog and digi-
tal speedometers are both enabled on
of the multi-information display. ( → P.90)■
Outside temperature display ●
In the following situations, the correct
outside temperature may not be dis-
played, or the display may take longer
than normal to change:
• When stopped, or driving at low speeds
(less than 12 mph [20 km/h])
• When the outside temperature has
changed suddenly (at the entrance/exit of
a garage, tunnel, etc.) ●
When “--” or “E” is displayed, the system
may be malfunctioning. Take your vehicle
to your Lexus dealer. ■
Liquid crystal display
→ P.87 ■
Customization
The gauges and meters can be customized
on of the multi-information display.
( → P.90)A
B
C
D
WARNING
■
The information display at low tem-
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal infor-
mation display. At extremely low tem-
peratures, the information display
monitor may respond slowly, and display
changes may be delayed.

792-1. Instrument cluster
LS500h_OM_OM50F42U_(U) 2
Vehicle status information and indicators
■
Display items
 Odometer Displays the total distance the vehicle has
been driven.
 Trip meter A/trip meter B Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.
 Distance until next engine oil
change Displays the distance the vehicle can be
driven until an oil change is necessary.
■
Changing the display
Each time the “ODO TRIP” switch is
pressed, the displayed item will be changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.
■
Pop-up display
Distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.
The brightness of the instrument panel
lights can be adjusted.
1 Darker
2 Brighter ■
Brightness of the meters (day mode and
night mode)
The brightness of the meters changes
between day mode and night mode.
●
Day mode: When the tail lights are off or WARNING
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine brak-
ing and possibly an accident resulting in
death or injury.
NOTICE■
To prevent damage to the engine and
its components●
Do not let the indicator needle of the
tachometer enter the red zone, which
indicates the maximum engine speed.●
The engine may be overheating if the
engine coolant temperature gauge is
in the red zone (H). In this case, imme-
diately stop the vehicle in a safe place,
and check the engine after it has
cooled completely. ( → P.453)
Odometer and trip meter dis-
play Changing the instrument panel
light brightness

812-1. Instrument cluster
LS500h_OM_OM50F42U_(U) 2
Vehicle status information and indicators ■
Locations of gauges and meters
When the main meter is moved to the righ t, some of the meter displays and the
gauge layout will change. ( → P.85)
Main meter in center position
The units of measure may differ depending on the intended destination of the vehicle.
Odometer and trip meter display ( → P.84)
Engine coolant temperature gaugeDisplays the engine coolant temperature
Outside temperatureDisplays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)
Hybrid System IndicatorDisplays hybrid system outp ut or regeneration level ( → P.78)
This display changes to a tachometer depending on the driving mode, and can be set to
show the tachometer in any driving mode on the settings display. ( → P.90, 298)
• Rev indicator ( →
P.83 )
•Rev peak ( →
P.83 )
Shift position/shift range/gear position ( → P.174)
Speedometer
ClockTime displayed is linked to the analog clock on the center panel. ( → P.353)Gauges and meters (F SPORT models)
Meter display
A
B
C
D
E
F
G

832-1. Instrument cluster
LS500h_OM_OM50F42U_(U) 2
Vehicle status information and indicators Engine coolant temperature gaugeDisplays the engine coolant temperature
Multi-information displayPresents the driver with a variety of vehicle data ( → P.86)
Displays warning messages if a malfunction occurs ( → P.437)■
Hybrid System Indicator
Charge areaShows regeneration *
status.
Regenerated energy will be used to charge
the hybrid battery (traction battery).
Hybrid Eco areaShows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.
Eco areaShows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the bar display within Eco area,
more Eco-friendly driv ing can be achieved.
Power areaShows that an Eco-friendly driving range is
being exceeded (durin g full power driving
etc.) *
: When used in this manual, regeneration
refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy. ■
Rev indicator
When the engine speed reaches a set
speed or the red zone, a ring-shaped
indicator ( ) will be displayed on the
tachometer. The indicators will be displayed in amber
when the engine speed reaches a set
speed, and in red when the engine speed
reaches the red zone.
The engine speed at which the rev indica-
tor will begin to be displayed can be set on
of the multi-information display.
( → P.90)
■
Rev peak
When the engine speed reaches or
exceeds 4000 rpm, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.I
J
A
B
C
D A

84 2-1. Instrument cluster
LS500h_OM_OM50F42U_(U) ■
Engine speed
On hybrid vehicles, engine speed is pre-
cisely controlled in order to help improve
fuel efficiency and reduce exhaust emis-
sions etc.
There are times when the engine speed that
is displayed may differ even when vehicle
operation and driving conditions are the
same. ■
Hybrid System Indicator is displayed
when
The Hybrid System Indicator is displayed in
the following situations: ●
The shift position is in D or M.●
The driving mode is other than sport
mode.■
Outside temperature display●
In the following situations, the correct
outside temperature may not be dis-
played, or the display may take longer
than normal to change:
• When stopped, or driving at low speeds
(less than 12 mph [20 km/h])
• When the outside temperature has
changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
●
When “--” or “E” is displayed, the system
may be malfunctioning. Take your vehicle
to your Lexus dealer.
■
Liquid crystal display
→ P.87
■
Customization
The gauges and meters can be customized
on of the multi-information display.
( → P.90) ■
Display items
 Odometer Displays the total distance the vehicle has
been driven.
 Trip meter A/trip meter B Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.
 Distance until next engine oil WARNING■
The information display at low tem-
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal infor-
mation display. At extremely low tem-
peratures, the information display
monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine brak-
ing and possibly an accident resulting in
death or injury.
NOTICE■
To prevent damage to the engine and
its components ●
Do not let the indicator needle of the
tachometer enter the red zone, which
indicates the maximum engine speed. ●
The engine may be overheating if the
engine coolant temperature gauge is
in the red zone (H). In this case, imme-
diately stop the vehicle in a safe place,
and check the engine after it has
cooled completely. ( → P.453)
Odometer and trip meter dis-
play

852-1. Instrument cluster
LS500h_OM_OM50F42U_(U) 2
Vehicle status information and indicators change Displays the distance the vehicle can be
driven until an oil change is necessary.■
Changing the display
Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.
■
Pop-up display
The distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.
The brightness of the instrument panel
lights can be adjusted. 1 Darker
2 Brighter ■
Brightness of the meters (day mode and
night mode)
The brightness of the meters changes
between day mode and night mode. ●
Day mode: When the tail lights are off or
when the tail lights are on but the sur-
rounding area is bright ●
Night mode: When the tail lights are on
and the surrounding area is dark
The display can be switched between
the center and side positions.
Changing the instrument panel
light brightness Changing the main meter loca-
tion

90 2-1. Instrument cluster
LS500h_OM_OM50F42U_(U) will not be displayed on the multi-informa-
tion display. ( → P.94)
Select to enable selection of an audio
source or track on the meter using the
meter control switches.
Select to display the operational status
of the following systems:
 LTA (Lane Tracing Assist) (if
equipped) ( → P.230)
 LKA (Lane-Keeping Assist) (if
equipped) ( → P.240)
 Dynamic radar cruise control with
full-speed range ( → P.250)
 RSA (Road Sign Assist) (if
equipped) ( → P.247)■
Meter display settings that can be
changed
 Language Select to change th e language displayed.
 Units Select to change the units of measure dis-
played.
 Speedometer display (except F
SPORT models) Select to set the display of the speedome-
ter to digital/analog/both digital and ana-
log.
 Drive information 1/Drive informa- tion 2 Select to select up to 2 items ( → P.88) that
will be displayed on each Drive information
screen (Drive information 1 screen and
Drive information 2 sc reen) respectively.
 Clock Select to switch between 12-hour display
and 24-hour display.
 Pop-up display Select to enable/disable pop-up displays
for each relevant system.
 Accent color Select to change the accent color on the
screen, such as the cursor color.
 Tachometer setting Select to set the display of the Hybrid Sys-
tem Indicator or tachometer for each driv-
ing mode.
 Rev indicator (F SPORT models) • Select to enable/disable the rev indica-
tor.
• Select to set the engine speed at which
the rev indicator (amber) will begin to be
displayed.
 Rev peak (F SPORT models) Select to enable/disable the rev peak.
 EV indicator Select to enable/disable the EV indicator.
 Default setting Select to reset the meter display settings to
the default setting.
■
Vehicle functions and settings that
can be changed
→ P.481
■
Suspension of the settings display
●
Some settings cannot be changed while Audio system-linked display
Driving support system informa-
tion display
Settings display
