2-1. Instrument cluster
Vehicle status information and indicators
Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the indicator needle within Eco
area, more Eco-friendly driving can be
achieved.
Power area
Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)
In the following situation, the Hybrid System Indicator does not operate.
●The shift position is in other than D or M.
●The driving mode is other than Eco
mode.*: When used in this manual, “regeneration”
refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.
■Motor power display (LC500h)
Motor power area
Shows that the power of the motor assists
the engine.
Charge area
Shows regeneration* status. Regenerated
energy will be used to charge the hybrid
battery (traction battery).
*: When used in this manual, “regeneration”
refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.
D
A
B

88
-$@-$I@0.@0.&@ &&

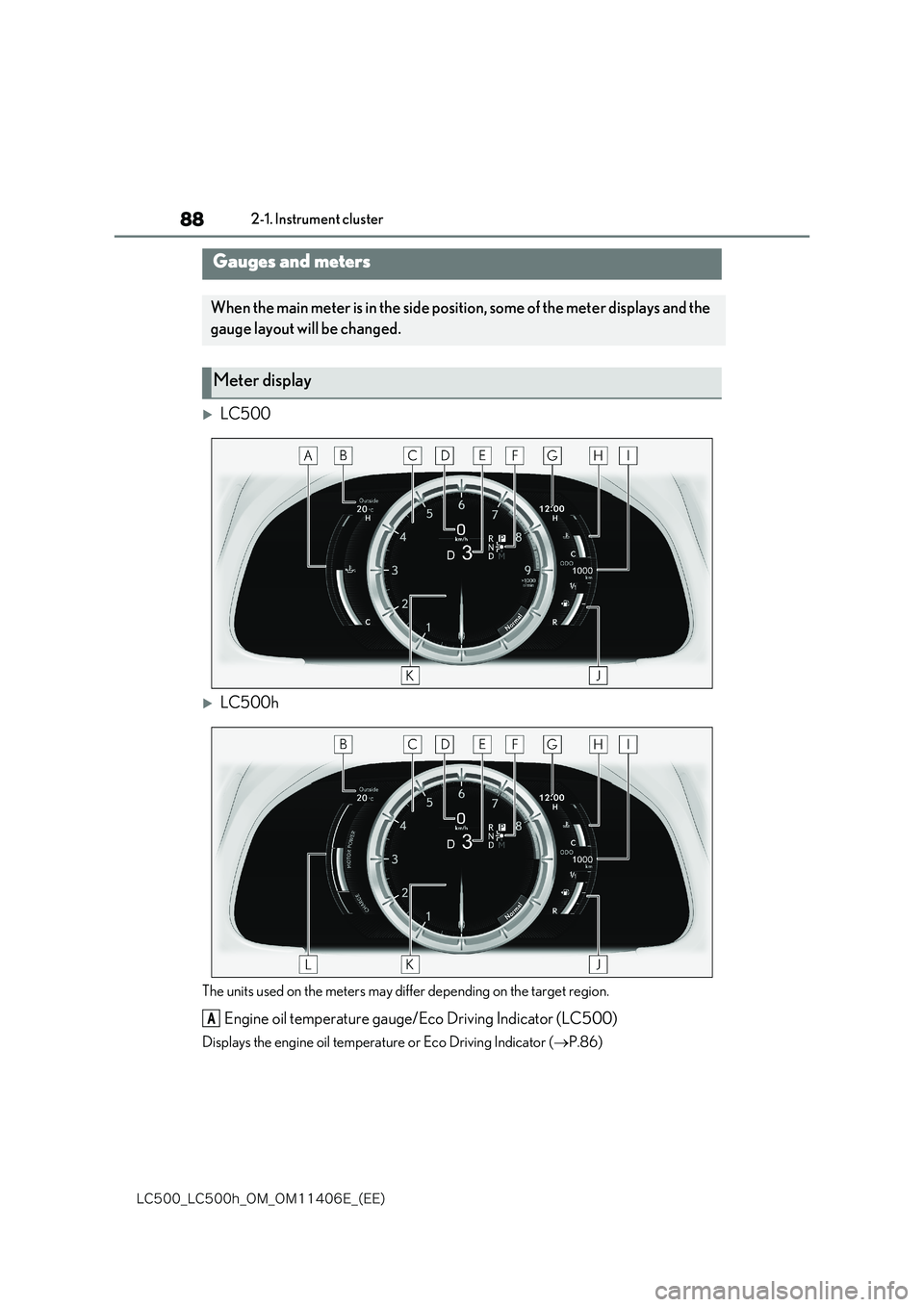

2-1. Instrument cluster
LC500
LC500h
The units used on the meters may differ depending on the target region.
Engine oil temperature gauge/Eco Driving Indicator (LC500)
Displays the engine oil temperature or Eco Driving Indicator (P.86)
Gauges and meters
When the main meter is in the side position, some of the meter displays and the
gauge layout will be changed.
Meter display
A

89
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F)
Low outside temperature indicator comes on when the ambient temperature is 3°C (37°F)
or lower
Tachometer
Displays the engine speed in revolutions per minute
Speedometer
Shift position/shift range/gear position ( P.173, 179)
Shift position indicator ( P.175, 181)
Clock
Time displayed is linked to the analog clock on the instrument panel. (P.297)
Engine coolant temperature gauge
Displays the engine coolant temperature
If the engine coolant temperature gauge indi cator enters the red zone, a buzzer sounds
and the high coolant temperature warning light comes on
Odometer and trip meter display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset
Trip meters “A” and “B” can be used to record and display different distances independently
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of vehicle data (P.92)
Displays warning messages in case of a malfunction (P.378)
Motor power display/Hybrid System Indicator (LC500h)
Displays the motor power display (P.87) or Hybrid System Indicator (P.86)
■Speed warning
When the vehicle reaches the set
speed, the speed warning display will
flash.
This setting can be enabled on the
multi-information display. ( P.92)
Always observe the legal speed limit when
driving on public roads.
■Rev indicator
When the engine reaches a set speed
or the red zone, a ring-shaped indica-
tor will be displayed on the tachometer.
B
C
D
E
F
G
H
I
J
K
L

90
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
The indicators will be displayed in
amber ( ) when the engine speed
reaches a set speed, and in red ( )
when the engine speed reaches the
red zone. This setting can be enabled
on the multi-information display.
( P.97)
■Rev peak
When the engine speed reaches or
exceeds the following, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.
LC500: 3600 r/min
LC500h: 4000 r/min
■The meters and display illuminate when
The engine switch

is in
IGNITION ON mode .
■Variable red zone (LC500)
To help protect the engine, the engine
speed is controlled by starting the red zone of the tachometer at different engine speeds ranging from 3700 r/min to 7300
r/min depending on the engine coolant temperature.
Before driving under extremely high load conditions, make sure to sufficiently warm up the engine.
■Instrument panel brightness adjustment
The brightness of the instrument panel lights is automatically adjusted based on the light sensor detecting how bright the sur-
roundings are.
■Outside temperature display
●In the following situations, the correct
outside temperature may not be dis- played, or the display may take longer
than normal to change. • When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/exit of a garage, tunnel, etc.)
●When “- -” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer.
■Pop-up display
●In some situations, such as when a switch operation is performed, a pop-up display
will be temporarily displayed on the multi-information display.
●Some pop-up displays can be set on/off. ( P.97)
A
B

91
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators
■Liquid crystal display
Small spots or light spots may appear on the
display. This phenomen on is characteristic of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
The meter display can be customized on the multi-information display. ( P.423)
The odometer and trip meter displays
can be switched. When the trip meter
is displayed, pressing and holding the
button will reset the trip meter.
The brightness of the instrument panel
lights can be adjusted.
1 Darker
2 Brighter
■Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be adjusted individually. However, when the
surroundings are bright (daytime, etc.), turning on the tail lights will not change the instrument panel brightness.
The display can be switched between
the center and side positions.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator of the tachom-eter enter the red zone, as it rep-
resents the engine speed range which exceeds the maximum safe engine speed.
●In the following situations, the engine
may be overheating. In this case, immediately stop the vehicle in a safe place, and check the engine after it has
cooled completely. ( P.400, 403)
• The engine coolant temperature gauge is in the red zone (H).
• LC500: The engine oil temperature gauge is in the red zone (H).
Changing between the odome-
ter and trip meter
Changing the instrument panel
light brightness
Changing the display

92
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
■Display
When the main meter is in the cen-
ter position
Displays various drive information on
the main meter.
Some of the content which are displayed
when the main meter is in the side position
cannot be displayed.
When the main meter is in the side
position
Selecting a menu icon displays a vari-
ety of vehicle data or allows vehicle
settings to be customized.
■Menu icons
Multi-information display
Display and menu icons
Drive information
Navigation system-linked dis-
play (if equipped)
Audio system-linked display
Driving assist system informa-
tion

93
2
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
Vehicle status information and indicators
■Opening image display
When the engine switch is in ACCESSORY mode or IGNITION ON mode , the opening image is
displayed on the multi-information display. While the opening im age is being dis- played, the meter display cannot be
changed even if the drive mode is changed. When the opening image is finished, the meter display for the currently selected
mode will be displayed.
■When disconnecting and reconnecting 12-volt battery terminals
Record of the maximum G-forces will be reset.
■Liquid crystal display
 P.91
The multi-information display is oper-
ated using the meter control switches.
/: Switch menu
/ : Change displayed con-
tent, scroll up/down the screen and
move the cursor up/down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen and
move the main meter
Warning message display
Settings display
WARNING
■Caution for use while driving
●When operating the multi-information display while driving, pay extra atten-tion to the safety of the area around the
vehicle.
●Do not look continuously at the multi- information display while driving as you may fail to see pedestrians, objects
on the road, etc. ahead of the vehicle.
■The information display at low tem- peratures
Allow the interior of the vehicle to warm up before using the liquid crystal infor-
mation display. At extremely low tem- peratures, the information display monitor may respond slowly, and display
changes may be delayed. For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing rapid and excessive engine brak-
ing and possibly an accident resulting in death or injury.
Changing the meter display
A
B
C

94
-$@-$I@0.@0.&@ &&

2-1. Instrument cluster
■Content of drive information
Select to display various drive data.
Up to 2 of the following items can be
selected.
Items displayed can be switched by
pressing or of the meter con-
trol switches to select and pressing
or .
 Current fuel consumption*1
Displays the current rate of fuel consump-
tion
 Average fuel economy (after
reset*2/after start/after refuel)*1
Displays the average fuel consumption
since the function was reset, the engine
was started, and the vehi-
cle was refueled, respectively
Use the displayed average fuel consump-
tion as a reference.
 Average speed (after reset*2/after
start)*1
Displays the average vehicle speed since
the function was reset and the engine
was started, respectively
 Elapsed time (after reset*2/after
start)*1
Displays the elapsed time since the func-
tion was reset and the engine tem> was started, respectively
 Distance (range/after start)*1
Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining and the distance driven after the
engine was started
respectively.
• This distance is computed based on your
average fuel consumption. As a result,
the actual distance that can be driven
may differ from that displayed.
• When only a small amount of fuel is
added to the tank, the display may not be
updated.
When refueling, turn the engine switch
off. If the vehicle is refu-
eled without turning the engine switch
off, the display may not
be updated.
*1: Displayed when the item is set in “Drive
Info 1” and “Drive Info 2”.
*2: The function can be reset by pressing
“OK” of the meter control switches for
longer than 1 second when the item to
reset is displayed.
If there is more than one item that can
be reset, the item selection screen will
appear.
■Eco Driving Indicator/engine oil
temperature gauge (LC500)
 P.86, 88
■Hybrid System Indicator/motor
power display (LC500h)
 P.86
■Energy monitor (LC500h)
 P.104
■Tire pressure
 P.329
■Gear positions
Displays the current shift range or gear
position when the shift position is in D
Drive information
