2018 Lexus GS300 steering wheel

3
1
8 7
6
5
4
3
2
GS350_300_GS F_OM_OM30G34U_(U)
9
3-4. Adjusting the steering wheel and mirrors
Steering wheel ............................. 168
Inside rear view mirror ..............169
Outside rear view mirrors ........ 171
3-5. Opening, closing the windows and moon roof
Power windows ............................175
Moon roof .......................................178
4-1. Before driving Driving the vehicle ..................... 182
Cargo and luggage ..................... 191
Vehicle load limits .......................194
Trailer towing ............................... 195
Dinghy towing ...............................196
4-2. Driving procedures Engine (ign ition) switch ............. 197
Automatic transmission .......... 202
Turn signal lever .......................... 210
Parking brake ................................. 211
Brake Hold .....................................213
ASC (Active Sound Control) (GS F) ............................................215
4-3. Operating the lights and wipers
Headlight switch ..........................216
Automatic High Beam...............219
Windshield wipers and washer ................................ 223 4-4. Refueling
Opening the fuel tank cap ..... 228
4-5. Using the driving support systems
Lexus Safety System+ .............. 232
PCS (Pre-Collision System) ....................................... 238
LKA (Lane-Keeping Assist) .......................................... 249
Dynamic radar cr uise control
with full-speed range............. 258
Cruise control ............................. 270
Driving mode select switch ........................................... 273
BSM (Blind Spot Monitor) ............. 278
• The Blind Spot Monitor
function ..................................... 281
• The Rear Cross Traffic Alert function......................... 283
TVD (Torque Vectoring Differential) (GS F) ................ 286
Driving assist systems ..............288
4-6. Driving tips Winter driving tips..................... 296
4Driving

TABLE OF CONTENTS4
GS350_300_GS F_OM_OM30G34U_(U)
5-1. Remote Touch screenRemote Touch/12.3-inch display.......................................... 302
5-2. Using the air conditioning system and defogger
Front automatic air conditioning system ........308
Rear air conditioning system............................................319
Heated steering wheel/ seat heaters/seat
ventilators................................... 322
5-3. Using the interior lights Interior lights list ......................... 327• Interior lights .......................... 328
• Personal lights....................... 328
5-4. Using the storage features List of storage features ............ 330• Glove box .................................331
• Console box ............................331
• Cup holders ........................... 332
• Auxiliary boxes ..................... 333
Trunk features ............................. 334 5-5. Using the other interior
features
Other interior features ............ 338 • Sun visors ................................ 338
• Vanity mirrors ....................... 338
• Clock ........................................ 339
• Ashtrays................................... 339
• Power outlets ........................ 340
• Armrest.................................... 340
•Rear sunshade/
rear door sunshades ............341
•Trunk storage extension ................................. 343
• Coat hooks............................. 344
• Assist grips ............................. 344
Garage door opener ............... 345
LEXUS Enform Safety Connect...................................... 352
6-1. Maintenance and care Cleaning and protecting the vehicle exterior ................358
Cleaning and protecting the vehicle interior.................. 362
6-2. Maintenance Maintenance requirements... 365
General maintenance.............. 367
Emission inspection and maintenance (I/M)
programs.................................... 370
5Interior features
6Maintenance and care

21Pictorial index
GS350_300_GS F_OM_OM30G34U_(U)
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Heated steering wheel switch
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Automatic High Beam switch
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 219
Instrument panel light control sw itches . . . . . . . . . . . . . . . . . . . . . . . . . . P. 89, 97
Odometer/trip meter and trip meter reset button . . . . . . . . . . . . . . P. 89, 96
HUD (Head-up display) switches
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 120
Brake hold switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 213
ASC switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 215
*: If equipped
1
2
3
4
5
6
7
8

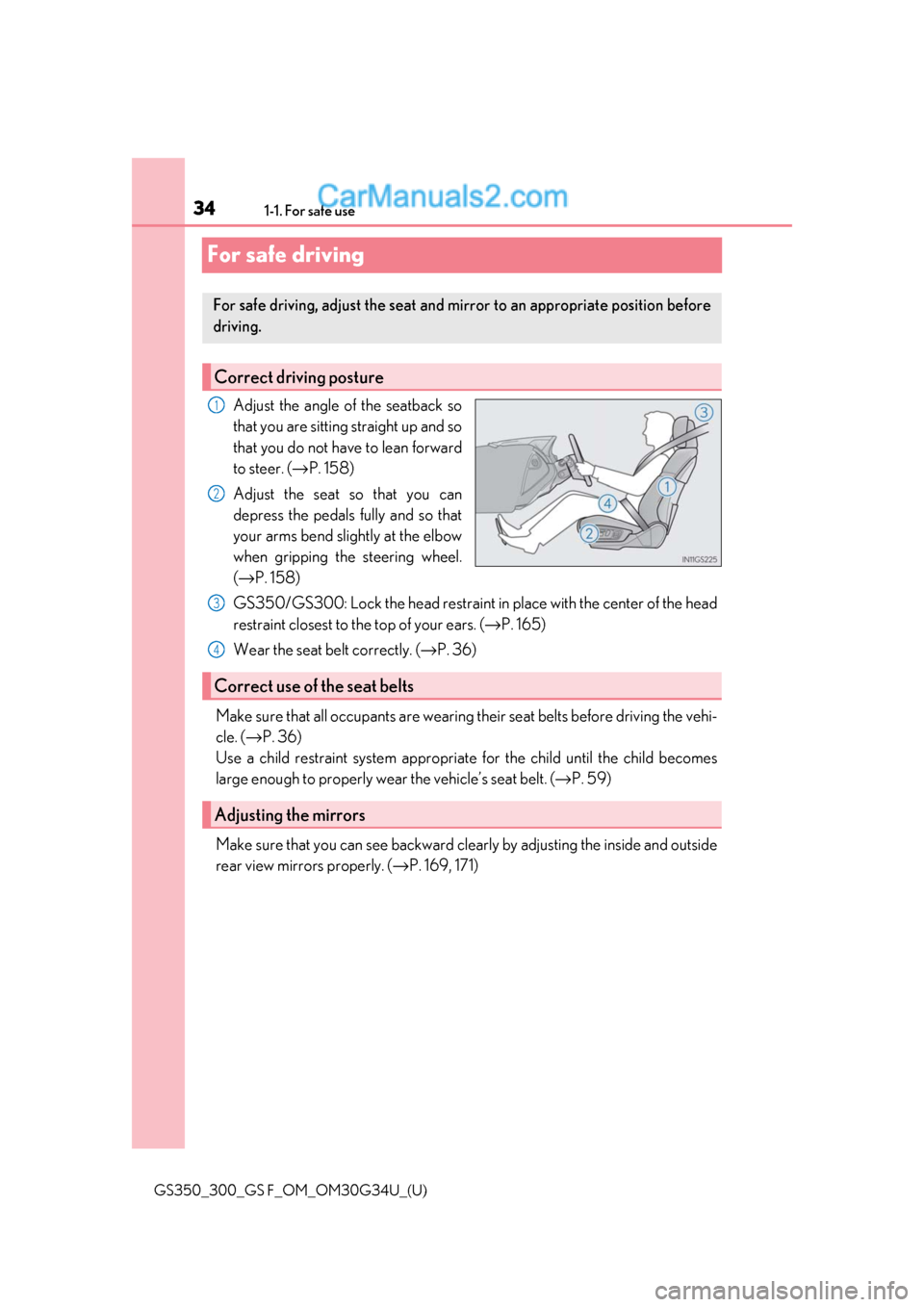

341-1. For safe use
GS350_300_GS F_OM_OM30G34U_(U)
For safe driving
Adjust the angle of the seatback so
that you are sitting straight up and so
that you do not have to lean forward
to steer. (→P. 158)
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the elbow
when gripping the steering wheel.
(→ P. 158)
GS350/GS300: Lock the head restraint in place with the center of the head
restraint closest to the top of your ears. ( →P. 165)
Wear the seat belt correctly. ( →P. 36)
Make sure that all occupants are wearing their seat belts before driving the vehi-
cle. ( →P. 36)
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt. ( →P. 59)
Make sure that you can see backward clearly by adjusting the inside and outside
rear view mirrors properly. ( →P. 169, 171)
For safe driving, adjust the seat and mirror to an appropriate position before
driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4

441-1. For safe use
GS350_300_GS F_OM_OM30G34U_(U)
WARNING
■SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
●The driver and all passengers in the vehicle must wear their seat belts properly.
The SRS airbags are supplemental devices to be us ed with the seat belts.
●The SRS driver airbag deploys with considerable force, and can cause death or seri-
ous injury especially if the driver is very close to the airbag. The National Highway
Traffic Safety Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm) of inflation,
placing yourself 10 in. (250 mm) from your driver airbag provides you with a clear
margin of safety. This distance is measured from the center of the steering wheel to
your breastbone. If you sit less than 10 in . (250 mm) away now, you can change your
driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals com-
fortably.
• Slightly recline the back of the seat. Although vehicle designs vary, many drivers can achieve the 10 in. (250 mm) dis-
tance, even with the driver seat all the wa y forward, simply by reclining the back of
the seat somewhat. If reclining the back of your seat makes it hard to see the road,
raise yourself by using a firm , non-slippery cushion, or raise the seat if your vehicle
has that feature.
• If your steering wheel is ad justable, tilt it downward. This points the airbag toward
your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA ab ove, while still maintain-
ing control of the foot pedals, steering whee l, and your view of the instrument panel
controls.

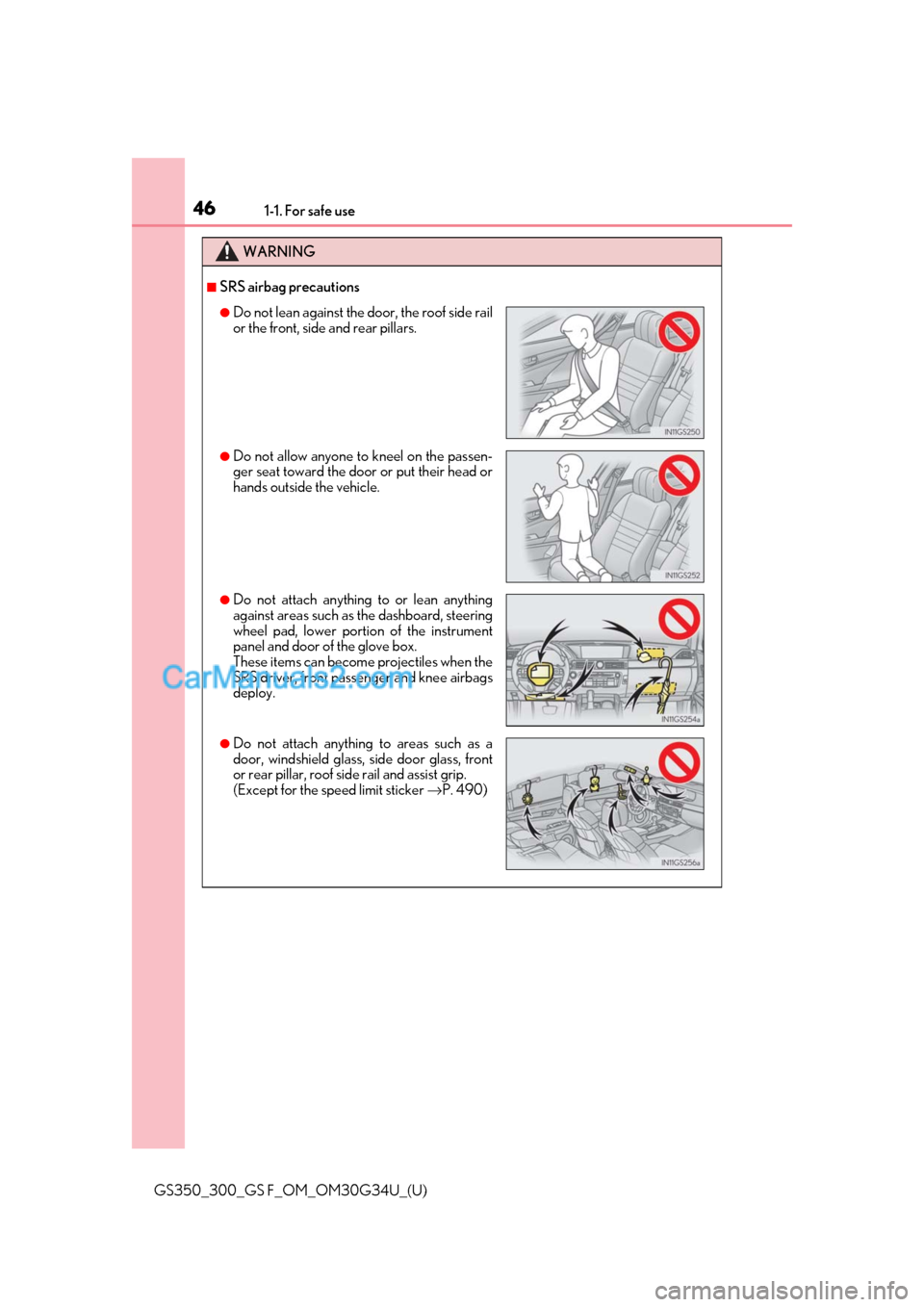

461-1. For safe use
GS350_300_GS F_OM_OM30G34U_(U)
WARNING
■SRS airbag precautions
●Do not lean against the door, the roof side rail
or the front, side and rear pillars.
●Do not allow anyone to kneel on the passen-
ger seat toward the door or put their head or
hands outside the vehicle.
●Do not attach anything to or lean anything
against areas such as the dashboard, steering
wheel pad, lower portion of the instrument
panel and door of the glove box.
These items can become projectiles when the
SRS driver, front passenger and knee airbags
deploy.
●Do not attach anything to areas such as a
door, windshield glass, side door glass, front
or rear pillar, roof side rail and assist grip.
(Except for the sp eed limit sticker →P. 490)

471-1. For safe use
GS350_300_GS F_OM_OM30G34U_(U)
1
For safety and security
WARNING
■SRS airbag precautions
●Do not hang coat hangers or other hard obje cts on the coat hooks. All of these items
could become projectiles and may cause deat h or serious injury, should the SRS cur-
tain shield airbags deploy.
●If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to
remove it.
●Do not use seat accessories which cover th e parts where the SRS side airbags inflate
as they may interfere with inflation of th e airbags. Such accessories may prevent the
side airbags from activating correctly, disable the system or cause the side airbags to
inflate accidentally, resulting in death or serious injury.
●Do not strike or apply signif icant levels of force to the area of the SRS airbag compo-
nents.
Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component part s immediately after the SRS airbags have
deployed (inflated) as they may be hot.
●If breathing becomes difficult after the SR S airbags have deployed, open a door or
window to allow fresh air in, or leave the vehicl e if it is safe to do so. Wash off any resi-
due as soon as possible to prevent skin irritation.
●If the areas where the SRS airbags are stored, such as the steering wheel pad, door of
the glove box and front and rear pillar garnishes are damaged or cracked, have them
replaced by your Lexus dealer.
●Do not place anything, such as a cushion, on the front passenger’s seat. Doing so will
disperse the passenger’s weight, which prevents the sensor from detecting the pas-
senger’s weight properly. As a result, the SRS front airb ags for the front passenger
may not deploy in the event of a collision.
■Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications without
consulting your Lexus dealer. The SRS airb ags may malfunction or deploy (inflate)
accidentally, causing death or serious injury.
●Installation, removal, disassembly and repair of the SRS airbags
●Repairs, modifications, removal or replacement of the steering wheel, instrument
panel, dashboard, glove box, seats or seat upholstery, front, side and rear pillars or
roof side rails
●Repairs or modifications of the front fend er, front bumper, or side of the occupant
compartment
●Installation of a grille guard (bull bars, ka ngaroo bar, etc.), snow plows, winches or
roof luggage carrier
●Modifications to the vehicle’s suspension system
●Installation of electronic devices such as mobile two-way radios and CD players
●Modifications to your vehicle for a person with a physical disability

481-1. For safe use
GS350_300_GS F_OM_OM30G34U_(U)
■If the SRS airbags deploy (inflate)
●Slight abrasions, burns, bruising etc., may be sustained from SRS airbags, due to the
extremely high speed deployment (inflation) by hot gases.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as the
seats, the glove box, parts of the front and re ar pillars, and roof side rails may be hot for
several minutes. The airbag itself may also be hot.
●The windshield may crack.
●For Lexus Enform Safety Connect subscribers, if the SRS airbags deploy or in the event
of a severe rear-end collision, the system is designed to send an emergency call to the
response center, notifying them of the vehicle’s location (without needing to push the
“SOS” button) and an agent will attempt to speak with the occupants to ascertain the
level of emergency and assistance required . If the occupants are unable to communi-
cate, the agent automatically treats the call as an emergency and helps to dispatch the
necessary emergency services. ( →P. 352)
■SRS airbag deployment cond itions (SRS front airbags)
●The SRS front airbags will deploy in the event of an impact that exceeds the set thresh-
old level (the level of force correspondin g to an approximately 12 - 18 mph [20 -
30 km/h] frontal collision with a fixed wall that does not move or deform).
However, this threshold velocity will be cons iderably higher in the following situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can move
or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which the
front of the vehicle “underrides”, or goes under, the bed of a truck
●Depending on the type of collision, it is possi ble that only the seat belt pretensioners will
activate.
●The SRS front airbags for the fr ont passenger will not activate if there is no passenger
sitting in the front passenger seat. However, the SRS front airbags for the front passen-
ger may deploy if luggage is put in the seat, even if the seat is unoccupied. ( →P. 52)
■SRS airbag deployment conditions (S RS side and curtain shield airbags)
●The SRS side and curtain shield airbags w ill deploy in the event of an impact that
exceeds the set threshold level (the level of force corresponding to the impact force
produced by an approximately 3300 lb. [15 00 kg] vehicle colliding with the vehicle
cabin from a direction perpendicular to the vehicle orientation at an approximate
speed of 12 - 18 mph [20 - 30 km/h]).
●The SRS curtain shield airbags will deploy in the event of vehicle rollover.
●The SRS side and curtain shield airbags may al so deploy in the event of a severe frontal
collision.
