TABLE OF CONTENTS4
GS350_300_GS F_OM_OM30G34U_(U)
5-1. Remote Touch screenRemote Touch/12.3-inch display.......................................... 302
5-2. Using the air conditioning system and defogger
Front automatic air conditioning system ........308
Rear air conditioning system............................................319
Heated steering wheel/ seat heaters/seat
ventilators................................... 322
5-3. Using the interior lights Interior lights list ......................... 327• Interior lights .......................... 328
• Personal lights....................... 328
5-4. Using the storage features List of storage features ............ 330• Glove box .................................331
• Console box ............................331
• Cup holders ........................... 332
• Auxiliary boxes ..................... 333
Trunk features ............................. 334 5-5. Using the other interior
features
Other interior features ............ 338 • Sun visors ................................ 338
• Vanity mirrors ....................... 338
• Clock ........................................ 339
• Ashtrays................................... 339
• Power outlets ........................ 340
• Armrest.................................... 340
•Rear sunshade/
rear door sunshades ............341
•Trunk storage extension ................................. 343
• Coat hooks............................. 344
• Assist grips ............................. 344
Garage door opener ............... 345
LEXUS Enform Safety Connect...................................... 352
6-1. Maintenance and care Cleaning and protecting the vehicle exterior ................358
Cleaning and protecting the vehicle interior.................. 362
6-2. Maintenance Maintenance requirements... 365
General maintenance.............. 367
Emission inspection and maintenance (I/M)
programs.................................... 370
5Interior features
6Maintenance and care

5
1
8 7
6
5
4
3
2
GS350_300_GS F_OM_OM30G34U_(U)
9
6-3. Do-it-yourself maintenance Do-it-yourself service precautions.................................. 371
Hood ............................................... 373
Positioning a floor jack ............ 374
Engine compartment ............... 376
Tires ................................................. 393
Tire inflation pressure .............. 403
Wheels ........................................... 406
Air conditioning filter ...............408
Electronic key battery............... 410
Checking and replacing fuses................................................412
Headlight aim (vehicles with single-beam head lights) ........416
Light bulbs ..................................... 418
7-1. Essential information Emergency flashers .................. 424
If your vehicle has to be stopped in an
emergency ................................ 425 7-2. Steps to take in an
emergency
If your vehicle needs to be towed ............................... 426
If you think something is wrong................ 432
Fuel pump shut off system...... 433
If a warning light turns on or a warning buzzer
sounds ......................................... 434
If a warning message is displayed ......................................441
If you have a flat tire (vehicles with spare tire) ..........................472
If you have a flat tire (vehicles without spare tire) .................. 483
If the engine will not start ........ 497
If the parking brake cannot be released................................ 499
If the electronic key does not operate properly...................... 501
If the vehicle battery is discharged................................. 504
If your vehicle overheats......... 509
If the vehicle becomes stuck .............................................. 515
7When trouble arises

10
GS350_300_GS F_OM_OM30G34U_(U)This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR
is to record, in certain crash or near crash-
like situations, such as an air bag deployment
or hitting a road obstacle, data that will a ssist in understanding how a vehicle’s systems
performed. The EDR is designed to record data related to vehicle dynamics and safety
systems for a short period of ti me, typically 30 seconds or less.
The EDR in this vehicle is desi gned to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenge r safety belts were buckled/fastened;
• How far (if at all) the driver was depressi ng the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs;
no data are recorded by the EDR under norm al driving conditions and no personal data
(e.g., name, gender, age, and crash location) are recorded. However, other parties, such
as law enforcement, could combine the EDR data with the type of personally identifying
data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the vehi-
cle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as
law enforcement, that have the special equipm ent, can read the information if they have
access to the vehicle or the EDR.
●Disclosure of the EDR data
Lexus will not disclose the data recorded in an EDR to a third party except when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehicle) is obtained
• In response to an official request by the police, a court of law or a government
agency
• For use by Lexus in a lawsuit
However, if necessary, Lexus may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for rese arch purposes without disclosing informa-
tion about the specific vehicle or vehicle owner
Event data recorder

19Pictorial index
GS350_300_GS F_OM_OM30G34U_(U)
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 100, 108
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 100, 108
When the warning messages are displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 441
Parking brake switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 211
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 211
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 297
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 436, 455
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
Headlights/parking lights/tail lights/daytime running lights . . . . . . . . . . . . . P. 216
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 392
Headlight cleaners
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 224
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 462
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 424
Trunk opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 143
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 373
Tilt and telescopic steering contro l switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Driving position memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 160
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 314
Audio system*2
Trunk opener main switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 145
*1: If equipped
*2: Refer to “NAVIGATION AND MULT IMEDIA SYSTEM OWNER’S MANUAL”.
4
5
6
7
8
9
10
11
12
13
14

481-1. For safe use
GS350_300_GS F_OM_OM30G34U_(U)
■If the SRS airbags deploy (inflate)
●Slight abrasions, burns, bruising etc., may be sustained from SRS airbags, due to the
extremely high speed deployment (inflation) by hot gases.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as the
seats, the glove box, parts of the front and re ar pillars, and roof side rails may be hot for
several minutes. The airbag itself may also be hot.
●The windshield may crack.
●For Lexus Enform Safety Connect subscribers, if the SRS airbags deploy or in the event
of a severe rear-end collision, the system is designed to send an emergency call to the
response center, notifying them of the vehicle’s location (without needing to push the
“SOS” button) and an agent will attempt to speak with the occupants to ascertain the
level of emergency and assistance required . If the occupants are unable to communi-
cate, the agent automatically treats the call as an emergency and helps to dispatch the
necessary emergency services. ( →P. 352)
■SRS airbag deployment cond itions (SRS front airbags)
●The SRS front airbags will deploy in the event of an impact that exceeds the set thresh-
old level (the level of force correspondin g to an approximately 12 - 18 mph [20 -
30 km/h] frontal collision with a fixed wall that does not move or deform).
However, this threshold velocity will be cons iderably higher in the following situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can move
or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which the
front of the vehicle “underrides”, or goes under, the bed of a truck
●Depending on the type of collision, it is possi ble that only the seat belt pretensioners will
activate.
●The SRS front airbags for the fr ont passenger will not activate if there is no passenger
sitting in the front passenger seat. However, the SRS front airbags for the front passen-
ger may deploy if luggage is put in the seat, even if the seat is unoccupied. ( →P. 52)
■SRS airbag deployment conditions (S RS side and curtain shield airbags)
●The SRS side and curtain shield airbags w ill deploy in the event of an impact that
exceeds the set threshold level (the level of force corresponding to the impact force
produced by an approximately 3300 lb. [15 00 kg] vehicle colliding with the vehicle
cabin from a direction perpendicular to the vehicle orientation at an approximate
speed of 12 - 18 mph [20 - 30 km/h]).
●The SRS curtain shield airbags will deploy in the event of vehicle rollover.
●The SRS side and curtain shield airbags may al so deploy in the event of a severe frontal
collision.

491-1. For safe use
GS350_300_GS F_OM_OM30G34U_(U)
1
For safety and security

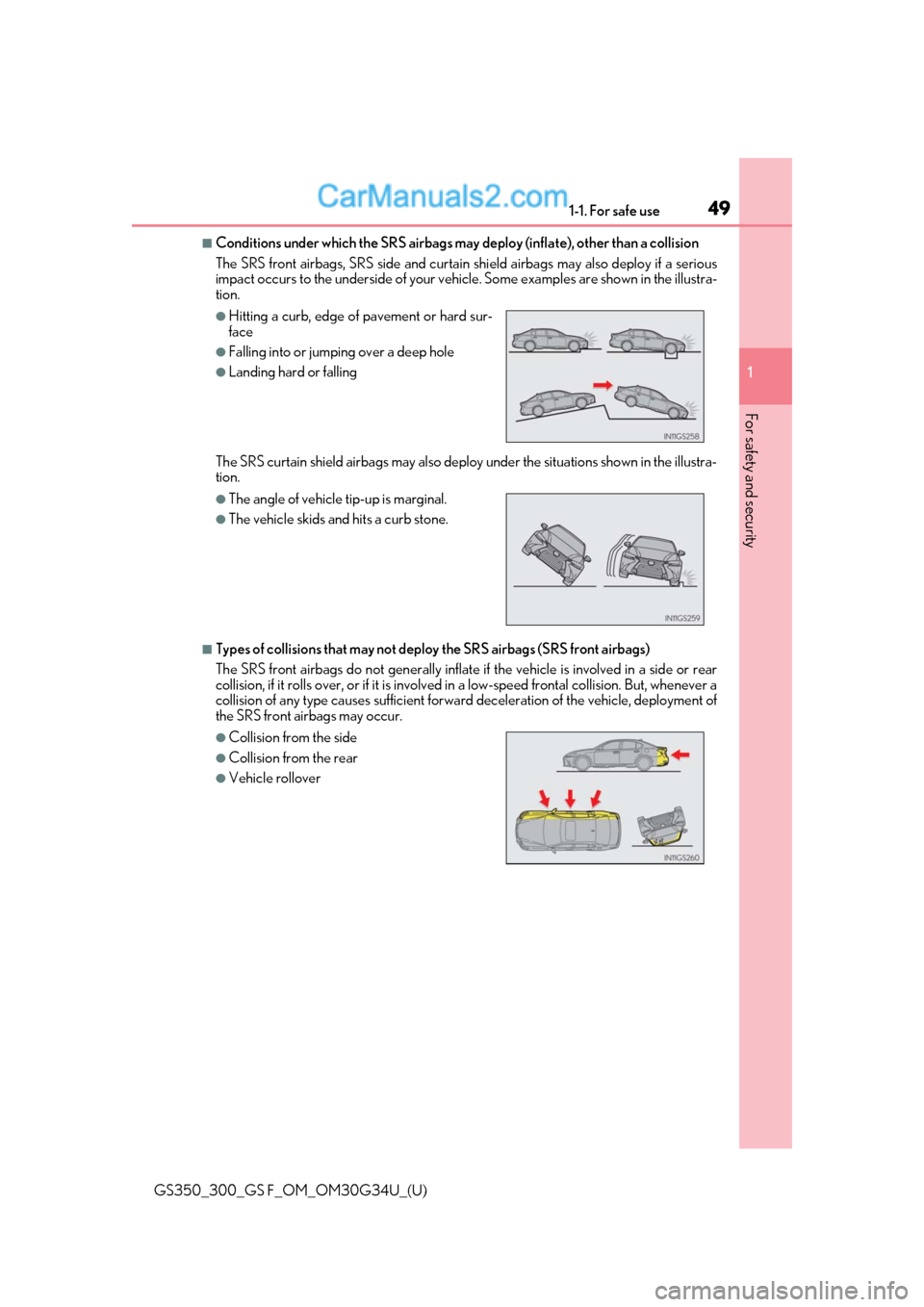

■Conditions under which the SRS airbags may deploy (inflate), other than a collision
The SRS front airbags, SRS side and curtain sh ield airbags may also deploy if a serious
impact occurs to the undersid e of your vehicle. Some exampl es are shown in the illustra-
tion.
The SRS curtain shield airbags may also deploy under the situations shown in the illustra-
tion.
■Types of collisions that may not deploy the SRS airbags (SRS front airbags)
The SRS front airbags do not gene rally inflate if the vehicle is involved in a side or rear
collision, if it rolls over, or if it is involved in a low-speed frontal collision. But, whenever a
collision of any type causes sufficient forward deceleration of the vehicle, deployment of
the SRS front airbags may occur.
●Hitting a curb, edge of pavement or hard sur-
face
●Falling into or jumping over a deep hole
●Landing hard or falling
●The angle of vehicle tip-up is marginal.
●The vehicle skids and hits a curb stone.
●Collision from the side
●Collision from the rear
●Vehicle rollover

521-1. For safe use
GS350_300_GS F_OM_OM30G34U_(U)

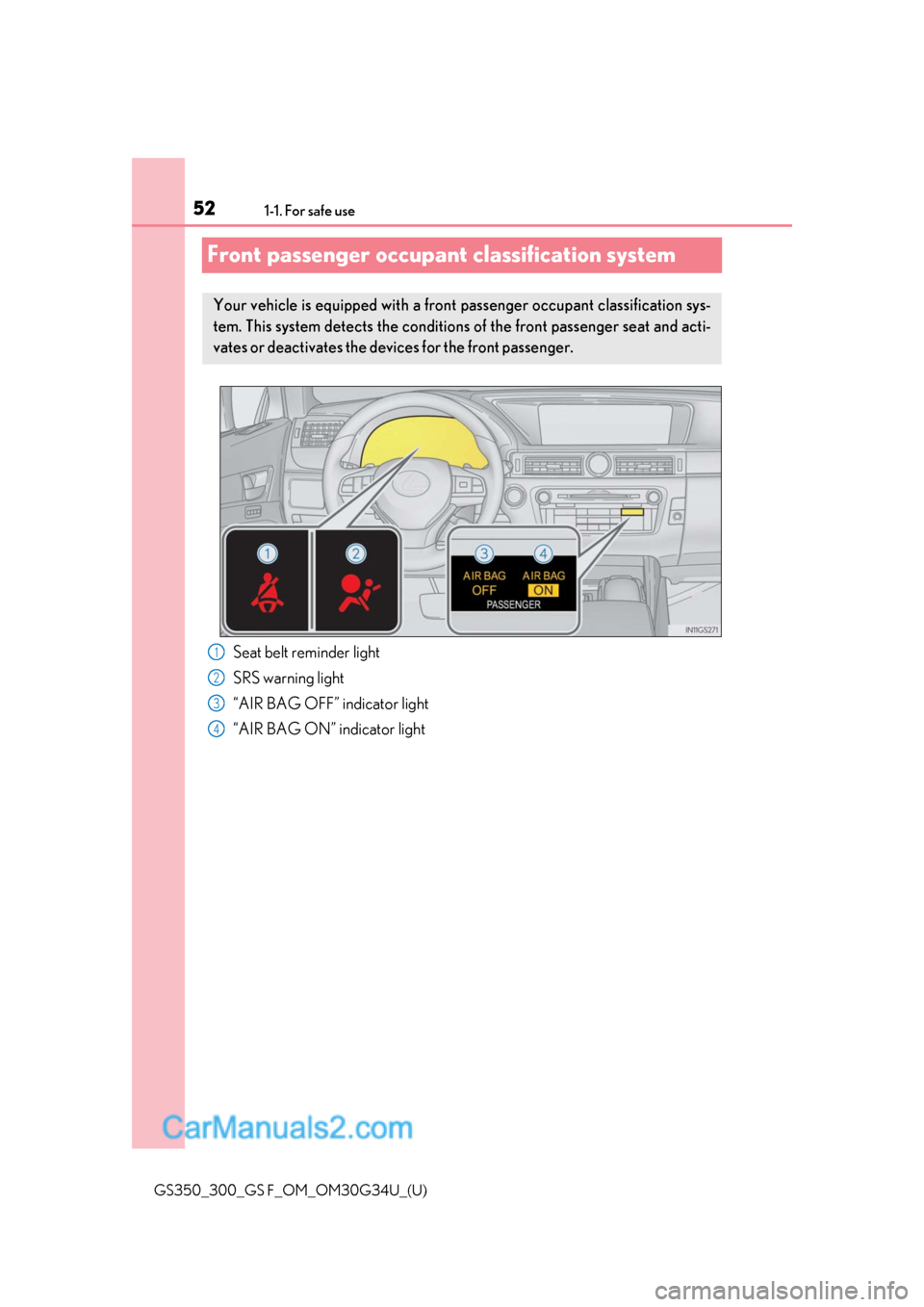

Front passenger occupant classification system
Seat belt reminder light
SRS warning light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
Your vehicle is equipped with a front passenger occupant classification sys-
tem. This system detects the conditions of the front passenger seat and acti-
vates or deactivates the devices for the front passenger.
1
2
3
4

531-1. For safe use
GS350_300_GS F_OM_OM30G34U_(U)
1
For safety and security
■Adult*1
■Child*4

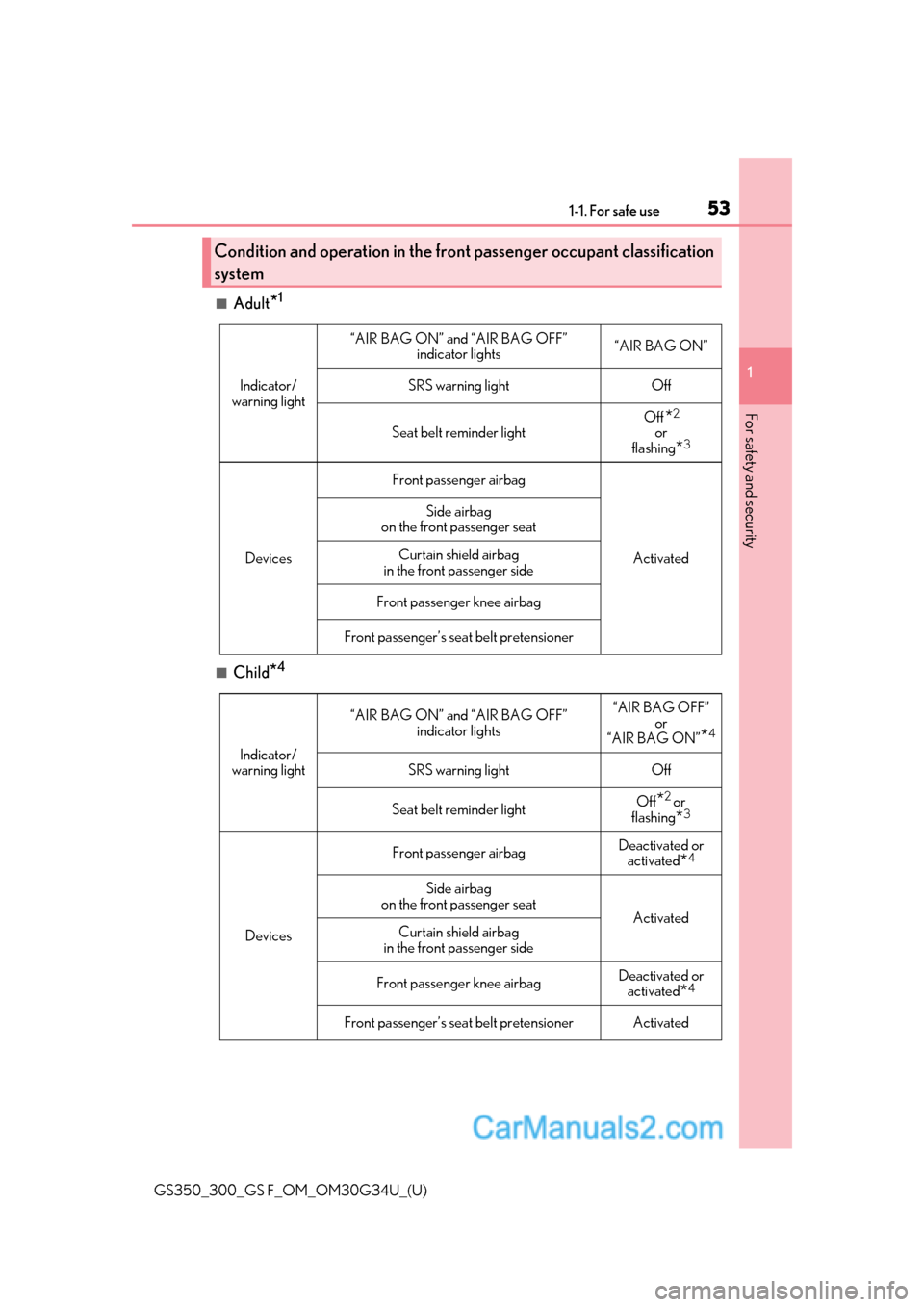

Condition and operation in the front passenger occupant classification
system
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights“AIR BAG ON”
SRS warning lightOff
Seat belt reminder lightOff*2
or
flashing
*3
Devices
Front passenger airbag
Activated
Side airbag
on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Indicator/
warning light
“AIR BAG ON” and “AIR BAG OFF”
indicator lights“AIR BAG OFF” or
“AIR BAG ON”
*4
SRS warning lightOff
Seat belt reminder lightOff*2 or
flashing
*3
Devices
Front passenger airbagDeactivated or activated
*4
Side airbag
on the front passenger seat
ActivatedCurtain shield airbag
in the front passenger side
Front passenger knee airbagDeactivated or activated
*4
Front passenger’s seat belt pretensionerActivated
