2018 KIA SOUL Features and Functions Guide

39ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
OTHER KEY FEATURES
Child-Protector Rear Door Lock
Located on the rear edge of the rear passenger doors,
adjust switch A to the LOCK position to disable the inner
door handles from opening the rear doors
REMINDER: Child-Protector Rear Door Lock is located on rear passenger door jamb
With Liftgate unlocked, press the Liftgate Release button A and pull
the Liftgate lid up by the handle to open
Liftgate Release Button
•
•The Liftgate must be unlocked before it can be opened by the Liftgate Release Button •The Liftgate unlocks automatically and then can be opened manually when the Smart Key* is within close proximity to the vehicle
A
A
QUICK TIPS
(Button is located underneath the Liftgate lid)

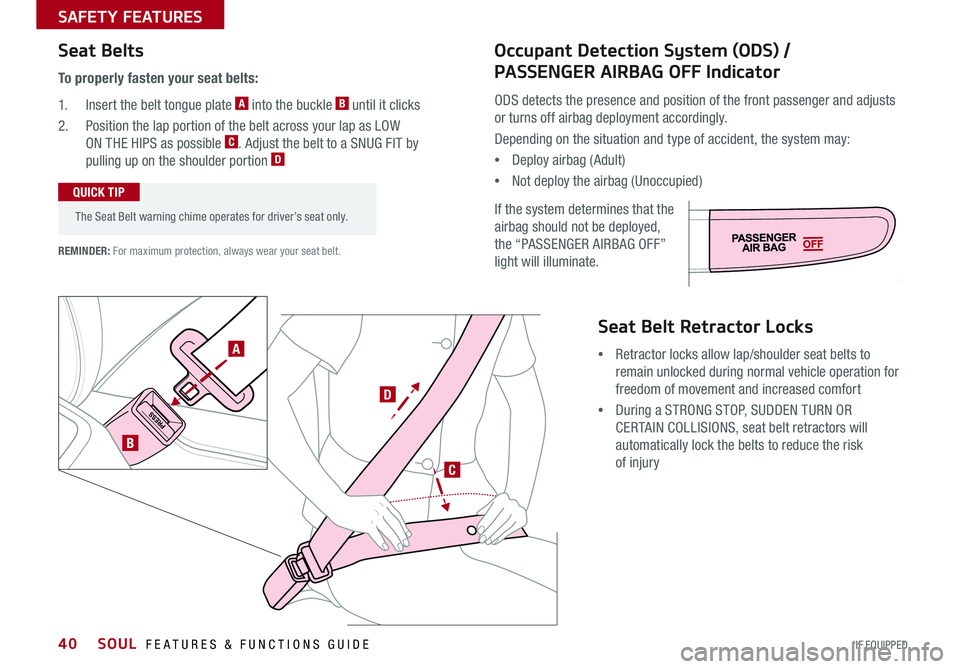

SOUL FEATURES & FUNCTIONS GUIDE40*IF EQUIPPED
SAFETY FEATURES
ODS detects the presence and position of the front passenger and adjusts
or turns off airbag deployment accordingly
Depending on the situation and type of accident, the system may:
•Deploy airbag (Adult)
•Not deploy the airbag (Unoccupied)
If the system determines that the
airbag should not be deployed,
the “PASSENGER AIRBAG OFF”
light will illuminate
A
B
C
Seat Belts
To properly fasten your seat belts:
1
Insert the belt tongue plate A into the buckle B until it clicks
2
Position the lap portion of the belt across your lap as LOW
ON THE HIPS as possible C Adjust the belt to a SNUG FIT by
pulling up on the shoulder portion D
Seat Belt Retractor Locks
•Retractor locks allow lap/shoulder seat belts to
remain unlocked during normal vehicle operation for
freedom of movement and increased comfort
•During a STRONG STOP, SUDDEN TURN OR
CERTAIN COLLISIONS, seat belt retractors will
automatically lock the belts to reduce the risk
of injury
Occupant Detection System (ODS) /
PASSENGER AIRBAG OFF Indicator
The Seat Belt warning chime operates for driver’s seat only
QUICK TIP
REMINDER: For maximum protection, always wear your seat belt
D

41ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
MAINTENANCE
QUICK TIP
Normal Maintenance Schedule
When your vehicle requires service, remember that your dealer knows your vehicle best Your dealer has factory-trained technicians, recommended special
tools, genuine Kia replacement parts and is dedicated to your complete satisfaction For expert advice and quality service, see your authorized Kia dealer
•Check your Maintenance Schedule or schedule an appointment with a dealer using your UVO eServices account by logging into your UVO App or your account on MyUVO com ( Vehicles equipped with UVO eServices only - See page 22 for setup information)
*And, if necessary, adjust, correct, clean or replace **If equipped1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives 2 Inspect “Water Pump” when replacing the drive belt or timing belt
7,500 miles
PERFORM
•Rotate tire - including tire pressure and tread wear
•Add fuel additive1
REPLACE
•Engine oil and filter (1 6L /2 0L, every 7,500 miles; 1 6L Turbo-GDI, every 6,500 miles)
INSPECT*
•Air cleaner filter
•Air conditioning compressor, air conditioner refrigerant and performance**
•Battery condition
•Brake fluid / clutch fluid**
•Brake pedal and operation
•Chassis/body, nuts and bolts
•Cooling system2
•Disc brakes and pads**
•Drive shaft and boots
•Drum brake and linings**
•Fuel lines, hoses and connections
•Intercooler, in/out hose, air intake hose (1 6L Turbo GDI)
•Exhaust pipe and muffler
•Front suspension ball joints
•Fuel tank, cap, lines and hoses
•Lubricate all locks and hinges
•Parking brakes
•Steering operation and linkage
•Suspension mounting bolts
15,000 miles
PERFORM
•Rotate tire - including tire pressure and tread wear
•Add fuel additive1
REPLACE
•Climate control air filter**
•Engine oil and filter (1 6L /2 0L, every 7,500 miles;
1 6L Turbo-GDI, every 6,500 miles)
INSPECT*
•Air cleaner filter
•Air conditioning compressor, air conditioner refrigerant and performance**
•Battery condition
•Brake fluid / clutch fluid**
•Brake pedal and operation
•Chassis/body, nuts and bolts
•Cooling system2
•Disc brakes and pads**
•Drive shaft and boots
•Drum brake and linings**
•Exhaust pipe and muffler
•Front suspension ball joints
•Fuel lines, hoses and connections
•Fuel tank, cap, lines and hoses
•Intercooler, in/out hose, air intake hose (1 6L Turbo GDI)
•Lubricate all locks and hinges
•Parking brakes
•Steering operation and linkage
•Suspension mounting bolts
*And, if necessary, adjust, correct, clean or replace **If equipped1 If TOP TIER detergent gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives 2 Inspect “Water Pump” when replacing the drive belt or timing belt

SOUL FEATURES & FUNCTIONS GUIDE42*IF EQUIPPED
MAINTENANCE
22,500 miles
PERFORM
•Rotate tire - including tire pressure and tread wear
•Add fuel additive1
REPLACE
•Engine oil and filter (1 6L /2 0L, every 7,500 miles; 1 6L Turbo-GDI, every 6,500 miles)
INSPECT*
•Air cleaner filter
•Air conditioning compressor, air conditioner refrigerant and performance**
•Battery condition
•Brake fluid / clutch fluid**
•Brake pedal and operation
•Chassis/body, nuts and bolts
•Cooling system2
•Disc brakes and pads**
•Drive shaft and boots
•Drum brake and linings**
•Fuel lines, hoses and connections
•Intercooler, in/out hose, air intake hose (1 6L Turbo GDI)
•Exhaust pipe and muffler
•Front suspension ball joints
•Fuel tank, cap, lines and hoses
•Lubricate all locks and hinges
•Parking brakes
•Steering operation and linkage
•Suspension mounting bolt
*And, if necessary, adjust, correct, clean or replace **If equipped1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives 2 Inspect “Water Pump” when replacing the drive belt or timing belt
30,000 miles
PERFORM
•Rotate tire - including tire pressure and tread wear
•Add fuel additive1
REPLACE
•Climate control air filter**
•Air cleaner filter
•Engine oil and filter (1 6L /2 0L, every 7,500 miles;
1 6L Turbo-GDI, every 6,500 miles)
INSPECT*
•Air conditioning compressor, air conditioner refrigerant and performance**
•Battery condition
•Brake fluid / clutch fluid**
•Brake pedal and operation
•Chassis/body, nuts and bolts
•Cooling system2
•Disc brakes and pads**
•Drive shaft and boots
•Drum brake and linings**
•Exhaust pipe and muffler
•Front suspension ball joints
•Fuel Filter3
•Fuel lines, hoses and connections
•Fuel tank air filter3
•Fuel tank, cap, lines and hoses
•Intercooler, in/out hose, air intake hose (1 6L Turbo GDI)
•Lubricate all locks and hinges
•Manual transaxle fluid** ( Every 37,500 miles)
•Parking brakes
•Steering operation and linkage
•Suspension mounting bolts
•Vapor hose and fuel filler cap
*And, if necessary, adjust, correct, clean or replace **If equipped 1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives 2 Inspect “Water Pump” when replacing the drive belt or timing belt 3 Fuel filter & Fuel tank air filter are considered to be maintenance free but periodic inspection is recommended for this maintenance schedule depends on fuel quality If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting problem etc, replace the fuel filter immediately regardless of maintenance schedule and consult an authorized Kia dealer for details

43ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED
MAINTENANCE
3 7, 5 0 0 miles
PERFORM
•Rotate tire - including tire pressure and tread wear
•Add fuel additive1
REPLACE
•Engine oil and filter (1 6L /2 0L, every 7,500 miles; 1 6L Turbo-GDI, every 6,500 miles)
INSPECT*
•Battery condition
•Air cleaner filter
•Air conditioning compressor, air conditioner refrigerant and performance**
•Cooling system2
•Drive shaft and boots
•Brake fluid / clutch fluid**
•Fuel lines, hoses and connections
•Brake pedal and operation
•Chassis/body, nuts and bolts
•Drum brake and linings**
•Disc brakes and pads**
•Exhaust pipe and muffler
•Front suspension ball joints
•Intercooler, in/out hose, air intake hose (1 6L Turbo GDI)
•Fuel tank, cap, lines and hoses
•Lubricate all locks and hinges
•Parking brakes
•Steering operation and linkage
•Suspension mounting bolts
*And, if necessary, adjust, correct, clean or replace **If equipped1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives 2 Inspect “Water Pump” when replacing the drive belt or timing belt
45,000 miles
PERFORM
•Rotate tire - including tire pressure and tread wear
•Fuel additive1
REPLACE
•Climate control air filter (For evaporator and blower unit)**
•Engine oil and filter (1 6L /2 0L, every 7,500 miles; 1 6L Turbo-GDI, every 6,500 miles)
•Spark plugs, iridium coated (1 6L Turbo-GDI)
INSPECT*
•Air cleaner filter
•Air conditioning compressor, air conditioner refrigerant and performance**
•Battery condition
•Brake fluid / clutch fluid**
•Brake pedal and operation
•Chassis/body, nuts and bolts
•Cooling system2
•Disc brakes and pads**
•Drive shaft and boots
•Drum brake and linings**
•Exhaust pipe and muffler
•Front suspension ball joints
•Fuel lines, hoses and connections
•Fuel tank, cap, lines and hoses
•Intercooler, in/out hose, air intake hose (1 6L Turbo GDI)
•Lubricate all locks and hinges
•Parking brakes
•Steering operation and linkage
•Suspension mounting bolts
*And, if necessary, adjust, correct, clean or replace **If equipped1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives 2 Inspect “Water Pump” when replacing the drive belt or timing belt

SOUL FEATURES & FUNCTIONS GUIDE44*IF EQUIPPED
MAINTENANCE
52,500 miles
PERFORM
•Rotate tire - including tire pressure and tread wear
•Add fuel additive1
REPLACE
•Engine oil and filter (Every 7,500 miles; 1 6L Turbo-GDI – replace every 6,500 miles)
INSPECT*
•Air cleaner filter
•Air conditioning compressor, air conditioner refrigerant and performance**
•Battery condition
•Brake fluid / clutch fluid**
•Brake pedal and operation
•Chassis/body, nuts and bolts
•Cooling system2
•Disc brakes and linings**
•Drive shaft and boots
•Drum brake and pads**
•Exhaust pipe and muffler
•Front suspension ball joints
•Fuel lines, hoses and connections
•Fuel tank, cap, lines and hoses
•Intercooler, in/out hose, air intake hose (1 6L Turbo GDI)
•Lubricate all locks and hinges
•Parking brakes
•Steering operation and linkage
•Suspension mounting bolts
60,000 miles
PERFORM
•Rotate tire - including tire pressure and tread wear
•Add fuel additive1
REPLACE
•Climate control air filter**
•Air cleaner filter
•Engine oil and filter (Every 7,500 miles; 1 6L Turbo-GDI – replace every 6,500 miles)
INSPECT*
•Air conditioning compressor, air conditioner refrigerant and performance**
•Battery condition
•Brake fluid / clutch fluid**
•Brake pedal and operation
•Chassis/body, nuts and bolts
•Cooling system2
•Disc brakes and pads**
•Drive belt4 (First, 60,000 miles, after every 15,000 miles)
•Drive shaft and boots
•Drum brake and linings**
•Exhaust pipe and muffler
•Front suspension ball joints
•Fuel filter3
•Fuel lines, fuel hoses and connections
•Fuel tank air filter3
•Fuel tank, cap, lines and hoses
•Intercooler, in/out hose, air intake hose (1 6L Turbo GDI)
•Lubricate all locks and hinges
•Parking brakes
•Steering operation and linkage
•Suspension mounting bolts
•Valve clearance (1 6L GDI)*5 (every 60,000 miles)
•Vapor hose and fuel filler cap
*And, if necessary, adjust, correct, clean or replace * *If equipped1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives 2 Inspect “Water Pump” when replacing the drive belt or timing belt 3 Fuel filter & Fuel tank air filter are considered to be maintenance free but periodic inspection is recommended for this maintenance schedule depends on fuel quality If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting problem etc, replace the fuel filter immediately regardless of maintenance schedule and consult an authorized Kia dealer for details 4 The drive belt should be replaced when cracks occur or tension is reduced excessively 5 Inspect for excessive tappet noise and/or engine vibration and adjust if necessary
*And, if necessary, adjust, correct, clean or replace **If equipped1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended Additives are available from your authorized Kia dealer along with information on how to use them Do not mix other additives
2 Inspect “Water Pump” when replacing the drive belt or timing belt

Sales Consultant:
______________________________________________________________
Date:
____________________
Sales Manager:
________________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________
LEGAL DISCLAIMERS
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while dri\
ving.
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and use of any handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.
Safety Features: No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.
Airbags: For maximum protection, always wear your seat belt.Android Auto™: Android Auto is a trademark of Google, Inc. Android™ is a registered trademark of Google, Inc. Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.Apple CarPlay®: Apple CarPlay® a registered trademark of Apple Inc. Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.Apps: All information contained herein was based upon the latest available information at the time of appstore registration. Descriptions are believed to be correct, and Kia makes every effort to ensure accuracy, however, accuracy cannot be guaranteed. From time to time, Kia may need to update or make changes to the vehicle features and other vehicle information reported in this app. Kia, by the publication and dissemination of this material, does not create any warranties, either express or implied, to any Kia products. Contact your local Kia dealer for the most current information.Bluetooth® Wireless Technology: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG Inc., and any use of such marks by Kia is pursuant to license. A Bluetooth® enabled cell phone is required to use Bluetooth® wireless technology.Driver Assist Features - Blind Spot Detection (BSD) with Lane Change Assist, Rear Cross Traffic Alert (RCTA), Lane Departure Warning System, Rear-Camera Display: These features are not substitutes for safe driving, and may not detect all objects surrounding vehicle. Always drive safely and use caution.Electronic Stability Control (ESC)/ Traction Control System (TCS)/Hill-start Assist Control (HAC): No system, no matter how advanced, can compensate for all driver error and/or driving conditions. Always drive responsibly.Engine Start/Stop Button with Smart Key: Always come to a complete stop before turning the engine on or off. However, if you have an emergency while the vehicle is in motion and must turn the engine off, you can turn the engine off to the ACC position by pressing the Start/Stop button for more than 3 seconds o\
r 3 times in succession. If the vehicle is still moving, you can restart the engine by pressing the Start/Stop button with the s\
hift lever in Neutral (N). With the engine off, hydraulic power assist for steering and braking will be disabled and the vehicle will be more difficult to control.Forward Collision Warning System: These systems are not substitutes for safe driving, and may not detect all objects in front of vehicle. Always drive safely and use caution.Front Seat Headrest Adjustment: Never attempt to adjust headrests when vehicle is in motion.Google Play™ Store is a trademark of Google, Inc. © 2012 Google Inc. All rights reserved. Google and the Google Logo are registered trademarks of Google Inc.iPhone® is a registered trademark of Apple Inc. The iPhone® mobile digital device is sold separately.iPod® is a registered trademark of Apple Inc. iPod® mobile digital device sold separately, and connectivity requires the Kia accessory cable.Navigation: Distracted driving can result in a loss of vehicle control. When operating a vehicle, never use a vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.Occupant Detection System (ODS): Kia vehicles use a number of different ODS types that vary by model.
Roadside Assist: 24-hour Enhanced Roadside Assistance is a service plan provided by Kia Motors America, Inc. Certain limitations apply. Coverage details are available in the Kia Warranty and Consumer Information Manual. For access to Enhanced Roadside Assistance, a connected mobile phone via Bluetooth® within the cellular service coverage area is required.Seat adjustments: Reclining the passenger seats can reduce the effectiveness of the safety restraint system and may lead to additional injury in an accident.Seat belts: For maximum protection, always wear your seatbelt.Seat warmers: Use extreme caution when using the seat warmers to avoid burns. Refer to the Owner’s Manual for more information.SiriusXM®: SiriusXM Satellite Radio, SiriusXM Traffic and SiriusXM Travel Link each require a subscription sold separately, or as a package, by SiriusXM Radio Inc. If you decide to continue your service at the end of your trial subscription, the plan you choose will automatically renew and bill at then-current r\
ates until you call 1-866-635-2349 to cancel. See SiriusXM Customer Agreement for complete terms at www.siriusxm.com. Other fees and taxes will apply. All fees and programming are subject to change. Not all vehicles or devices are capable of receiving all services offered by SiriusXM. Data displays and individual product availability vary by vehicle hardware. Current information and features may not be available in all locations, or on all receivers. Weather Forecast, Current Conditions may not be available in all locations. Images above are for representative purposes only and are not real products. For actual features and images of real products, consult the vehicle manufacturer. SiriusXM is not responsible for any errors or inaccuracies in the data services or their use in the vehicle. Travel Link Stocks displays current price and daily delta of around 7,000 actively reported securities traded on t\
he NYSE®, NASDAQ® and AMEX®. The service is delayed approximately 20 minutes. SiriusXM satellite service is available only to those at least 18 years of age in the 48 contiguous USA, DC, and Puerto Rico (with coverage limitations). SiriusXM Internet Radio service is available throughout our satellite service area and in AK and HI. © 2017 SiriusXM Radio Inc. Sirius, XM and all related marks and logos are trademarks of SiriusXM Radio Inc.Sportmatic® is a registered trademark of Kia Motors America.Steering-wheel-mounted controls: Driving while distracted is dangerous and should be avoided. Remain attentive to driving and be cautious when using steering-wheel-mounted controls while\
driving.Sunvisors: Sunvisor may not shield all direct light. Do not operate the vehicle if sunvisor is impairing your visibility.Tilt/Telescoping Steering Wheel: Never attempt to adjust steering wheel position when vehicle is in motion.Tire Pressure Monitoring System (TPMS): Even with Tire Pressure Monitoring System, check tire pressure on a regular basis.UVO eServices: Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation.UVO eServices app: App uses your smartphone data service. Normal cellular service rates will apply.UVO eServices with Premium Navigation: Distracted driving can result in a loss of vehicle control. Never use a handheld device or vehicle system that takes your focus away from safe vehicle operation. Navigation is for information purposes only, and Kia does not make any warranties about the accuracy of the information.

ECO Mode (Active ECO)* – page 8 Aux/USB/iPod
® Port – page 25
Digital Clock – page 25 Engine Start /Stop Button* – page 13 Folding Rear Seatback – page 32 Panoramic Sunroof Operation* – page 36 Passenger Airbag Off Indicator – page 40
Rear-Camera Display* – page 37 Seat Warmers / Ventilated Seats* – page 30 Smart Key* – page 33 Tire Mobility Kit – page 38 Tire Pressure Monitoring System ( TPMS) – page 5
*IF EQUIPPED
Explain first service process and schedule first service appointment Tour Parts & Service departments, introduce staff & explain value of Kia Parts and Service Review recommended maintenance schedule and maintenance requirements to validate warranty Review business hours & Customer 360° Care Review the Kia 10-year/100,000-mile warranty program Ensure 100% satisfaction with sales and delivery process and no problems with the vehicle Confirm time and best contact number for initial dealer follow-up Standard Audio System*
– page 21

For more information, refer to the

Car Multimedia System User’s Manual.Sales Consultant:
______________________________________________________________
Date:
____________________
Sales Manager:
________________________________________________________________
Date:
____________________
Customer:
_____________________________________________________________________
Date:
____________________
Cruise Control*
– page 17
Demonstrate operation
UVO eServices with
Premium
Navigation*
– page 24

For further system operation, refer to the Car Multimedia System User’s Manual.
Bluetooth
® Wireless

Technology
– page 18
Demonstrate operation UVO eServices* – page 23

For more information, refer to the

Car Multimedia System User’s Manual.
SOUL
CUSTOMER DELIVERY CHECKLIST
KEY FEATURE WALKTHROUGHDURING DELIVERY
Demonstrate UVO eServices features and functions with the customer. Discuss UVO eServices setup.
SETUPCLOCK
RADIO APPS/
PHONE
UVO
SETUP
MEDIA
SEEK
TRACKPOWER ENTER
TUNE/FILE
VOLPUSH
UVO eServices / Android Auto
™ /
Apple CarPlay
® Setup* – page 22

For further UVO eServices operations,

refer to the Car Multimedia System

User’s Manual. For other audio system information, refer to pages 20-23
