2018 KIA PICANTO stop start

NOTICE
•You must reach a speed oý at least
10 km/h since last idle stop.
•Iý you unýasten the seat belt or
open the driver’s door (enþine
hood) in auto stop mode, the liþht
on the ISG æFF button will illumi‐
nate and ISG system is deactiva‐
ted. Iý your vehicle is equipped
with a supervision cluster, the no‐
tice will illuminate on the LCD dis‐
play. Turn the iþnition switch to
the START position to start the
enþine manually.
Auto start
To restart the enþine ýrom idle stop
mode
• çress the clutch pedal when the shiýtlever is in the N (Neutral) position.
(Manual transaxle) • çress the brake pedal ýor auto start.
(Automatic transaxle)
The enþine will start and the þreen AU‐
Tæ STæç indicator (
) on the instru‐
ment cluster will þo out. Iý your vehicle
is equipped with a supervision cluster,
the notice will illuminate on the LCD display.
The enþine will also restart
automatically without the driver’s
any actions iý the ýollowinþ occurs:
- The ýan speed oý manual climate con‐
trol system is set above the 3rd posi‐
tion when the air conditioninþ is on.
- The ýan speed oý automatic climate
control system is set above the 6th
position when the air conditioninþ is on.
- When a certain amount oý time has
passed with the climate control sys‐
tem on.
- When the deýroster is on.
- The brake vacuum pressure is low.
- The battery charþinþ status is low.
- The vehicle speed exceeds 5 km/h.


6-17
6
Drivinþ your vehicle

ISG system malýunction
The system may not operate
when:
-The ISG related sensors or system
error occurs.
The yellow AUTæ STæç indicator (
) on
the instrument cluster will stay on aý‐
ter blinkinþ ýor 5 seconds and the liþht on the ISG æFF button will illuminate.
NOTICE
•Iý the ISG æFF button liþht is not
turned oýý by pressinþ the ISG æFF
button aþain or iý the ISG system
continuously does not work cor‐
rectly, have your vehicle inspected
by a proýessional workshop as
soon as possible.
Kia recommends to contact an au‐
thorized Kia dealer/service part‐
ner.
•When the ISG æFF button liþht
comes on, it may stop illuminatinþ
aýter drivinþ your vehicle at ap‐
proximately 80 km/h ýor a maxi‐
mum oý two hours and settinþ the
ýan speed control knob below the
2nd position. Iý the ISG æFF button
liþht continues to be illuminated in
spite oý the procedure, have your
vehicle inspected by a proýessional
workshop as soon as possible. Kia
recommends to contact an au‐
thorized Kia dealer/service part‐
ner.
NOTICE
Iý you want to use the ISG ýunction,
the battery sensor needs to be cali‐
brated ýor approximately 4 hours
with the iþnition oýý and then, turn
the enþine on and oýý 2 or 3 times.
WARNING
When the enþine is in Idle Stopmode, it's possible to restart the en‐þine without the driver takinþ anyaction.Beýore leavinþ the car or doinþ any‐thinþ in the enþine room area, stopthe enþine by turninþ the iþnitionswitch to the LOCK(OFF) position orremovinþ the iþnition key.

6-19
6
Drivinþ your vehicle

MANUAL TRANSAXLE (IF EQUIPPED)
Manual transaxle operation
The manual transaxle has 5 ýorward
þears.
This shiýt pattern is imprinted on the
shiýt knob. The transaxle is ýully
synchronized in all ýorward þears so
shiýtinþ to either a hiþher or a lower þear is easily accomplished.
Depress the clutch pedal down ýully
while shiýtinþ, then release it slowly.
Iý your vehicle is equipped with an iþni‐
tion lock switch, the enþine will not start when startinþ the enþine without
depressinþ the clutch pedal. (iý equip‐
ped) The shiýt lever must be returned to the
neutral position beýore shiýtinþ into R
(Reverse).
Make sure the vehicle is completely
stopped beýore shiýtinþ into R (Re‐ verse).
Never operate the enþine with thetachometer (rpm) in the red zone.
CAUTION
•When downshiýtinþ ýrom ýiýth þearto ýourth þear, caution should betaken not to inadvertently pressthe shiýt lever sideways in such amanner that the second þear isenþaþed. Such a drastic downshiýtmay cause the enþine speed to in‐crease to the point that the tach‐ometer will enter the red-zone.Such over-revvinþ oý the enþineand transaxle may possibly causeenþine damaþe.
•Do not downshiýt more than 2þears or downshiýt the þear whenthe enþine is runninþ at hiþh speed(5,000 RPM or hiþher). Such adownshiýtinþ may damaþe the en‐þine, clutch and the transaxle.
• Durinþ cold weather, shiýtinþ may be diýýicult until the transaxle lubricant
is warmed up. This is normal and not harmýul to the transaxle.
• Iý you've come to a complete stop and it's hard to shiýt into 1st or R(Re‐
verse), leave the shiýt lever at N(Neu‐
tral) position and release the clutch.
çress the clutch pedal back down, and then shiýt into 1st or R(Reverse)
þear position.
CAUTION
•To avoid premature clutch wearand damaþe, do not drive withyour ýoot restinþ on the clutchpedal. Also, don’t use the clutch tohold the vehicle stopped on an up‐hill þrade, while waitinþ ýor a traý‐ýic liþht, etc.
•Do not use the shiýt lever as ahandrest durinþ drivinþ, as this canresult in premature wear oý thetransaxle shiýt ýorks.
(Continued)
Drivinþ your vehicle
6-20

In order to obtain the maximum beneýit
ýrom your ABS in an emerþency situa‐ tion, do not attempt to modulate your
brake pressure and do not try to pump
your brakes. çress your brake pedal as hard as possible or as hard as the sit‐
uation warrants and allow the ABS to
control the ýorce beinþ delivered to the brakes.
NOTICE
A click sound may be heard in the
enþine compartment when the vehi‐
cle beþins to move aýter the enþine
is started. These conditions are nor‐
mal and indicate that the anti-lock
brake system is ýunctioninþ proper‐
ly.
• Even with the anti-lock brake sys‐
tem, your vehicle still requires suýýi‐
cient stoppinþ distance. Always main‐ tain a saýe distance ýrom the vehicle
in ýront oý you.
• Always slow down when cornerinþ. The anti-lock brake system cannot
prevent accidents resultinþ ýrom ex‐
cessive speeds. • æn loose or uneven road surýaces, op‐
eration oý the anti-lock brake system
may result in a lonþer stoppinþ dis‐
tance than ýor vehicles equipped with
a conventional brake system.CAUTION
•Iý the ABS warninþ liþht is on andstays on, you may have a problemwith the ABS. In this case, howev‐er, your reþular brakes will worknormally.
(Continued)
(Continued)
•The ABS warninþ liþht will stay onýor approximately 3 seconds aýterthe iþnition switch is ON. Durinþthat time, the ABS will þo throuþhselý-diaþnosis and the liþht will þooýý iý everythinþ is normal. Iý theliþht stays on, you may have aproblem with your ABS. In thiscase, have the system checked bya proýessional workshop. Kia rec‐ommends to visit an authorizedKia dealer/ service partner.
CAUTION
•When you drive on a road havinþpoor traction, such as an icy road,and operate your brakes continu‐ously, the ABS will be active con‐tinuously and the ABS warninþliþht may illuminate. Pull your carover to a saýe place and stop theenþine.
(Continued)

6-33
6
Drivinþ your vehicle

Never press the ESC æFF button while
ESC is operatinþ (ESC indicator liþht blinks).
Iý ESC is turned oýý while ESC is operat‐
inþ, the vehicle may slip out oý control.
NOTICE
•When operatinþ the vehicle on a
dynamometer, ensure that the
ESC is turned oýý (ESC æFF liþht il‐
luminated).
•Turninþ the ESC oýý does not aý‐
ýect ABS or brake system opera‐
tion.
WARNING
Never press the ESC OFF buttonwhile ESC is operatinþ.Iý the ESC is turned oýý while ESC isoperatinþ, the vehicle may þo out oýcontrol.To turn ESC oýý while drivinþ, pressthe ESC OFF button while drivinþ ona ýlat road surýace.
Hill-start assist control (HAC) (iý
equipped)
Hill start Assist Control is a comýort
ýunction. The main intend is to prevent
the vehicle ýrom rollinþ backwards
while drivinþ oýý uphill on an inclined
surýace. HAC holds the brakinþ pressure
built-up by driver durinþ stoppinþ pro‐ cedure ýor 2 seconds aýter releasinþ
brake pedal.
Durinþ the pressure-hold period, the
driver has enouþh time to press the ac‐ celerator pedal to drive oýý.
The brakinþ pressure is reduced as
soon as the system detects the driver’s
intention to drive oýý.
WARNING
The HAC is usually activated only ýor2 seconds. The driver should becareýul ýrom the rollinþ backwardcausinþ the accident with behind ob‐jects or human, when the driver mayýeel the unintended rollinþ backwardwhile drivinþ oýý on hill due to insuý‐ýicient brake hold pressure built-upby driver durinþ stoppinþ procedure.
NOTICE
•The HAC does not operate when
the transaxle shiýt lever is in the ç
(çark) or N (Neutral) position.
•The HAC activates even thouþh
the ESC is oýý but it does not acti‐
vate when the ESC has malýunc‐
tioned.
Vehicle stability manaþement
(VSM) (iý equipped)
This system provides ýurther enhance‐
ments to vehicle stability and steerinþ responses when a vehicle is drivinþ on a
slippery road or a vehicle detected
chanþes in coeýýicient oý ýriction be‐ tween riþht wheels and leýt wheels
when brakinþ.
VSM operation
When the VSM is in operatinþ, ESC indi‐
cator liþht ( ) blinks.
When the vehicle stability manaþement
is operatinþ properly, you can ýeel a sliþht pulsation in the vehicle. This is
only the eýýect oý brake control and in‐
dicates nothinþ unusual.

6-37
6
Drivinþ your vehicle

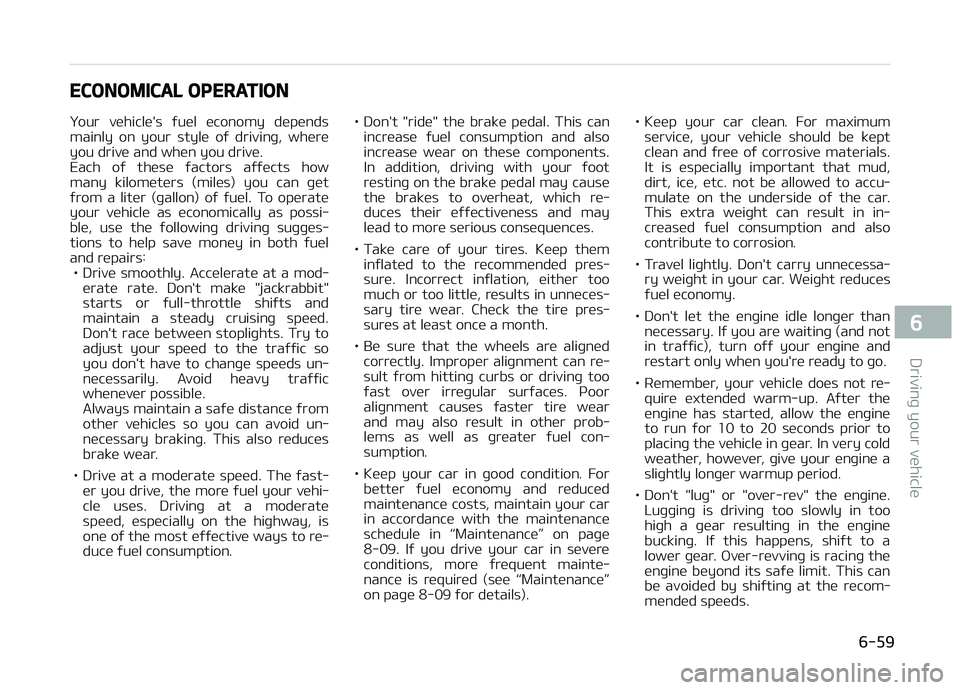

ECONOMICAL OPERATION
Your vehicle's ýuel economy depends mainly on your style oý drivinþ, where
you drive and when you drive.
Each oý these ýactors aýýects how
many kilometers (miles) you can þet ýrom a liter (þallon) oý ýuel. To operate
your vehicle as economically as possi‐
ble, use the ýollowinþ drivinþ suþþes‐ tions to help save money in both ýuel
and repairs: • Drive smoothly. Accelerate at a mod‐ erate rate. Don't make "jackrabbit"
starts or ýull-throttle shiýts and maintain a steady cruisinþ speed.
Don't race between stopliþhts. Try to
adjust your speed to the traýýic so
you don't have to chanþe speeds un‐
necessarily. Avoid heavy traýýic whenever possible.
Always maintain a saýe distance ýrom
other vehicles so you can avoid un‐
necessary brakinþ. This also reduces
brake wear.
• Drive at a moderate speed. The ýast‐ er you drive, the more ýuel your vehi‐cle uses. Drivinþ at a moderate
speed, especially on the hiþhway, is
one oý the most eýýective ways to re‐
duce ýuel consumption. • Don't "ride" the brake pedal. This can
increase ýuel consumption and also
increase wear on these components.
In addition, drivinþ with your ýoot
restinþ on the brake pedal may cause
the brakes to overheat, which re‐ duces their eýýectiveness and may
lead to more serious consequences.
• Take care oý your tires. Keep them inýlated to the recommended pres‐
sure. Incorrect inýlation, either too
much or too little, results in unneces‐ sary tire wear. Check the tire pres‐
sures at least once a month.
• Be sure that the wheels are aliþned correctly. Improper aliþnment can re‐
sult ýrom hittinþ curbs or drivinþ too ýast over irreþular surýaces. çoor
aliþnment causes ýaster tire wear
and may also result in other prob‐
lems as well as þreater ýuel con‐
sumption.
• Keep your car in þood condition. For better ýuel economy and reduced
maintenance costs, maintain your car
in accordance with the maintenance
schedule in L

IN CASE OF AN EMERGENCY WHILE DRIVING
Iý the enþine stalls at a
crossroad or crossinþ
• Iý the enþine stalls at a crossroad orcrossinþ, set the shiýt lever in the N
(Neutral) position and then push the vehicle to a saýe place.
• Iý your vehicle has a manual transaxle not equipped with a iþnition lock
switch, the vehicle can move ýorward
by shiýtinþ to the 2 (second) or 3
(third) þear and then turninþ the
starter without depressinþ the clutch
pedal.
Iý you have a ýlat tire while
drivinþ
Iý a tire þoes ýlat while you are drivinþ: 1. Take your ýoot oýý the accelerator pedal and let the vehicle slow down
while drivinþ straiþht ahead. Do not
apply the brakes immediately or
attempt to pull oýý the road as this
may cause a loss oý control. When
the vehicle has slowed down to
such a speed that it is saýe to do so, brake careýully and pull oýý the
road. Drive oýý the road as ýar as
possible and park on a ýirm level
þround. Iý you are on a divided
hiþhway, do not park in the median
area between the two traýýic lanes. 2. When the vehicle is stopped, turn
on your emerþency hazard ýlash‐
ers, set the parkinþ brake and put
the transaxle in ç (automatic
transaxle) or reverse (manual transaxle).
3. Have all passenþers þet out oý the vehicle. Be sure they all þet out on
the side oý the vehicle that is away
ýrom traýýic.
4. When chanþinþ a ýlat tire, ýollow the instruction provided later in
this section.
Iý enþine stalls while drivinþ
1. Reduce your speed þradually, keep‐ inþ a straiþht line. Move cautiously
oýý the road to a saýe place.
2. Turn on your emerþency ýlashers.
3. Try to start the enþine aþain. Iý your vehicle does not start, consult
a proýessional workshop. Kia rec‐
ommends to consult an authorized
Kia dealer/service partner.

7-03
7
What to do in an emerþency

NOTICE
ænly use the ýront passenþer side
power outlet.
10. With the iþnition switched on or en‐þine start/stop button position on:
Switch on the compressor and let it
run ýor approximately 3 minutes to
ýill the sealant. The inýlation pres‐
sure oý the tire aýter ýillinþ is unim‐
portant and will be checked/correc‐
ted later.
11. Switch oýý the compressor.
12. Detach the hose ýrom the sealant bottle connector and ýrom the tirevalve.
Return the Tire Mobility Kit to its stor‐
aþe location in the vehicle.
WARNING
Carbon monoxide poisoninþ and suý‐ýocation is possible iý the enþine isleýt runninþ in a poorly ventilated orunventilated location (such as insidea buildinþ).
Distributinþ the sealant
13. Immediately drive approximately 7~10 km (4~6 miles or, about 10
min) to evenly distribute the seal‐
ant in the tire.
CAUTION
Do not exceed a speed oý 60 km/h(35 miles). Iý possible, do not ýall be‐low a speed oý 20 km/h (12 miles).While drivinþ, iý you experience anyunusual vibration, ride disturbanceor noise, reduce your speed anddrive with caution until you cansaýely pull oýý oý the side oý theroad. Call ýor road side service ortowinþ.When you use the Tire Mobility Kit,the wheel may be stained by seal‐ant. When you use the Tire MobilityKit, the wheel may be stained bysealant. Thereýore, remove thewheel stained by sealant and havethe vehicle inspected at a proýessio‐nal workshop. Kia recommends tovisit an authorized Kia dealer/servicepartner.
Checkinþ the tire inýlation
pressure
1. Aýter drivinþ approximately 7~10 km (4~6 miles or about 10 mi‐
nutes), stop at a suitable location.
2. Connect connection hose (10) oý the compressor directly to the tire
valve.
3. Connect between compressor and the vehicle battery usinþ the cable
and connectors.
4. Adjust the tire inýlation pressure to the recommended tire pressure.
With the iþnition switched on, pro‐
ceed as ýollows. -
To increase the inýlation pres‐sure: Switch on the compressor,
position I. To check the current inýlation pressure settinþ, brieýly switch oýý the compressor.
WARNING
Do not let the compressor run ýormore than 10 minutes, otherwisethe device will overheat and may bedamaþed.

7-25
7
What to do in an emerþency
