2018 KIA OPTIMA PHEV bulb

Maintenance
92
8
Room lamp bulb replacement
1. Using a flat-blade screwdriver,
gently pry the lens cover from
lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens cover tabs with the lamp housing notches and snap
the lens into place.
✽ ✽NOTICE
Be careful not to dirty or damage the
lens, lens tab, and plastic housings.
Personal lamp bulb replace-
ment
If the personal lamp (LED) does not
operate, have the vehicle checked by
an authorized Kia dealer.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit. A skilled tech-
nician should check or repair the map
lamp (bulb and LED type), for it may
damage related parts of the vehicle.
OJF075087
OJF075133L
■ Type A
■Type B
WARNING- Interior lamps
Prior to working on the Interior
lamps, ensure that the “OFF”
button is depressed to avoid
burning your fingers or receiv-
ing an electric shock.
OJF075088

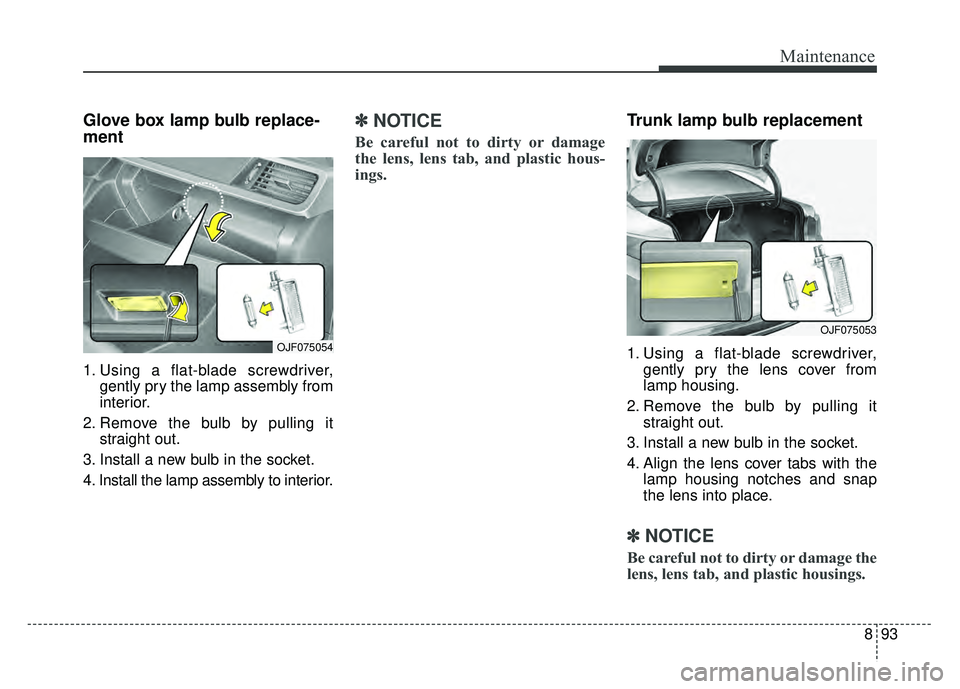

893
Maintenance
Glove box lamp bulb replace-
ment
1. Using a flat-blade screwdriver,gently pry the lamp assembly from
interior.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Install the lamp assembly to interior.
✽ ✽ NOTICE
Be careful not to dirty or damage
the lens, lens tab, and plastic hous-
ings.
Trunk lamp bulb replacement
1. Using a flat-blade screwdriver,
gently pry the lens cover from
lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens cover tabs with the lamp housing notches and snap
the lens into place.
✽ ✽NOTICE
Be careful not to dirty or damage the
lens, lens tab, and plastic housings.
OJF075054
OJF075053

Specifications, Consumer information and Reporting safety defects
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
9-2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-4
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 9-5
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 9-5
Recommended lubricants and capacities . . . . . . . . 9-6
• Recommended SAE viscosity number. . . . . . . . . . . . . 9-7
Vehicle identification number (VIN) . . . . . . . . . . . 9-8
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 9-8
Tire specification and pressure label . . . . . . . . . . . 9-9
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-9
Air conditioner compressor label . . . . . . . . . . . . . . 9-9
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . 9-10 Consumer assistance (U.S. only) . . . . . . . . . . . . . . 9-11
•
Toll free consumer assistance . . . . . . . . . . . . . . . . . . . 9-11
• Emergency roadside assistance . . . . . . . . . . . . . . . . . 9-11
• Trip interruption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-12
• Registering your vehicle in a foreign country . . . . . 9-13
Electrical Equipment (U.S. only) . . . . . . . . . . . . . 9-14
• Installation of a mobile two-way radio system . . . . . 9-14
Reporting Safety Defects (U.S. only) . . . . . . . . . . 9-15
Online factory authorized manuals (U.S. only) . . 9-15
• Service manual: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-15
• Electrical troubleshooting manual: . . . . . . . . . . . . . . 9-15
• Owner's manual: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-
15
9

93
Specifications, Consumer information, Reporting safety defects
BULB WATTAGE
Light BulbWattage (W)Bulb type
Front Headlamps (Low)
55WH7SL
Headlamps (Low) – LED type 25WLED
Headlamps (High) 65W HB3 HYPER L/L(9005HL)
Headlamps (High) – LED type 17WLED
Front turn signal lamps 28/8WAMBER L/L
Front position lamps 0.7WLED
Daytime running light LED type 6.5W LED
Side Repeater lamps LED type 0.5W LED
Rear Rear Stop/Tail lamps (outside)
LED type12W
LED
Rear tail lamps (Inside) 6WLED
Rear turn signal lamps 21WPY21W
Back-up lamps 16WW16W
High mounted stop lamp* 3WLED
License plate lamps 5WW5W
Interior Map lamps
Bulb type 10W
FESTOON BULB
LED type 1W LED
Room lamps 10WFESTOON BULB
Personal lamps 1WLED
Vanity mirror lamps 5WFESTOON BULB
Glove box lamp 5WFESTOON BULB
Trunk lamp 5WFESTOON BULB
