2018 KIA OPTIMA PHEV turn signal bulb

4105
Features of your vehicle
✽
✽NOTICE
• Do not place any accessories,
stickers or tint the windshield.
• Have the windshield glass replaced from an authorized dealer.
• Do not remove or damage related parts of the High Beam Assist sys-
tem.
• Be careful that water doesn’t get into the High Beam Assist unit.
• Do not place objects on the dash- board that reflect light such as
mirrors, white paper, etc. The sys-
tem may malfunction if sunlight is
reflected.
• At times, the High Beam Assist system may not work properly,
always check the road conditions
for your safety. When the system
does not operate normally, manu-
ally change between the high
beam and low beam.
Turn signals and lane change
signals
The ignition switch must be on for the
turn signals to function. To turn on
the turn signals, move the lever up or
down (A). The green arrow indicators
on the instrument panel indicate
which turn signal is operating.
They will self-cancel after a turn is
completed. If the indicator continues
to flash after a turn, manually return
the lever to the OFF position.
To signal a lane change, move the
turn signal lever slightly and hold it in
position (B). The lever will return to
the OFF position when released. If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement.
✽ ✽
NOTICE
If an indicator flash is abnormally
quick or slow, a bulb may be burned
out or have a poor electrical connec-
tion in the circuit.
OJF045057

• All season tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-57
• Summer tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-57
• Snow tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
57
• Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-57\
• Radial-ply tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-58
• Low aspect ratio tire(if equipped) . . . . . . . . . . . . . . . 8-58
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-60
• Inner panel fuse replacement . . . . . . . . . . . . . . . . . . . 8-61
• Engine compartment fuse replacement. . . . . . . . . . . 8-63
• Fuse/relay panel description. . . . . . . . . . . . . . . . . . . . 8-66
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-80
• Bulb replacement precaution . . . . . . . . . . . . . . . . . . 8-80
• Light bulb position (Front). . . . . . . . . . . . . . . . . . . . . 8-81
• Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . . 8-81
• Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . . . 8-82
• Headlamp (HID type) bulb replacement(For Hybrid) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-82
• Headlamp (Low beam) bulb replacement (For Hybrid) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-83
• Headlamp (High beam) bulb replacement (For Hybrid) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-84
• Headlamp (Low/High beam,LED type) bulb replacement (For Plug-in Hybrid) . . . . . . . . . 8-85
• Front turn signal lamp bulb replacement . . . . . . . . 8-85
• Position lamp + DRL (LED type) bulb replacement . . 8-86• Side repeater lamp bulb replacement . . . . . . . . . . . . 8-87
• Rear turn signal lamp bulb replacement . . . . . . . . . 8-87
• Stop and tail lamp (LED type) bulb replacement . . 8-88
• Back-up lamp bulb replacement . . . . . . . . . . . . . . . . 8-89
• License plate lamp bulb replacement . . . . . . . . . . . . 8-90
• High mounted stop lamp bulb replacement . . . . . . . 8-90
• Map lamp bulb replacement . . . . . . . . . . . . . . . . . . . 8-91
• Vanity mirror lamp bulb replacement . . . . . . . . . . . 8-91
• Room lamp bulb replacement . . . . . . . . . . . . . . . . . . 8-92
• Personal lamp bulb replacement . . . . . . . . . . . . . . . . 8-92
• Glove box lamp bulb replacement . . . . . . . . . . . . . . 8-93
• Trunk lamp bulb replacement . . . . . . . . . . . . . . . . . 8-93Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-94
• Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-94
• Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-99
Emission control system . . . . . . . . . . . . . . . . . . . 8-102
• Crankcase emission control system . . . . . . . . . . . . . 8-102
• Evaporative emission control (including ORVR:
Onboard Refueling Vapor Recovery) system . . . . 8-102
• Exhaust emission control system . . . . . . . . . . . . . . . 8-103
California perchlorate notice . . . . . . . . . . . . . . . 8-1058

881
Maintenance
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.Light bulb position (Front)
(1) Front turn signal lamp
(2) Headlamp (Low)
(3) Headlamp (High)
(4) Day time running lamp/Positionlamp (LED type)
(5) Side marker
Light bulb position (Rear)
OJFH076040N
OJFH075180L
OJFH075181L
■Rear combination lamp
■License plate lamp
■High mounted stop lamp
OJFA076135
OJFHP076190N
■ Type A
■Type B

Maintenance
82
8
(1) Rear turn signal lamp
(2) Stop lamp (LED type)
(3) Tail lamp (LED type)
(4) Back-up lamp
(5) Side marker
(6) License plate lamp
(7) High mounted stop lampLight bulb position (Side)
(1) Side repeater lamp (LED type)
Headlamp (HID type) bulb
replacement (For Hybrid)
If the light bulb does not operate,
have the vehicle checked by an
authorized Kia dealer.
OJF075039L
WARNING- HID
Headlamp (if equipped)
Do not attempt to replace or
inspect the HID headlamp
(XENON bulb) due to electric
shock danger. If the light bulb
does not operate, have your
vehicle checked by an author-
ized Kia dealer.

885
Maintenance
5. Install a new bulb-socket assem-bly in the headlamp assembly by
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.
6. Install the headlamp bulb cover by turning it clockwise.Headlamp (Low/High
beam,LED type) bulb replace-
ment (For Plug-in Hybrid)
If the head lamp (LED) (1,2) does not
operate, have the vehicle checked by
an authorized Kia dealer. The LED
lamps cannot be replaced as a sin-
gle unit because it is an inte grated
unit. The LED lamps has to be
replaced with the unit. A skilled tech-
nician should check or repair the
head lamp (LED), for it may damage
related parts of the vehicle.
Front turn signal lamp bulb
replacement
1. Open the hood.
2. Remove the bulb-socket from theheadlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket
OJFA075079OJFHP076231N

887
Maintenance

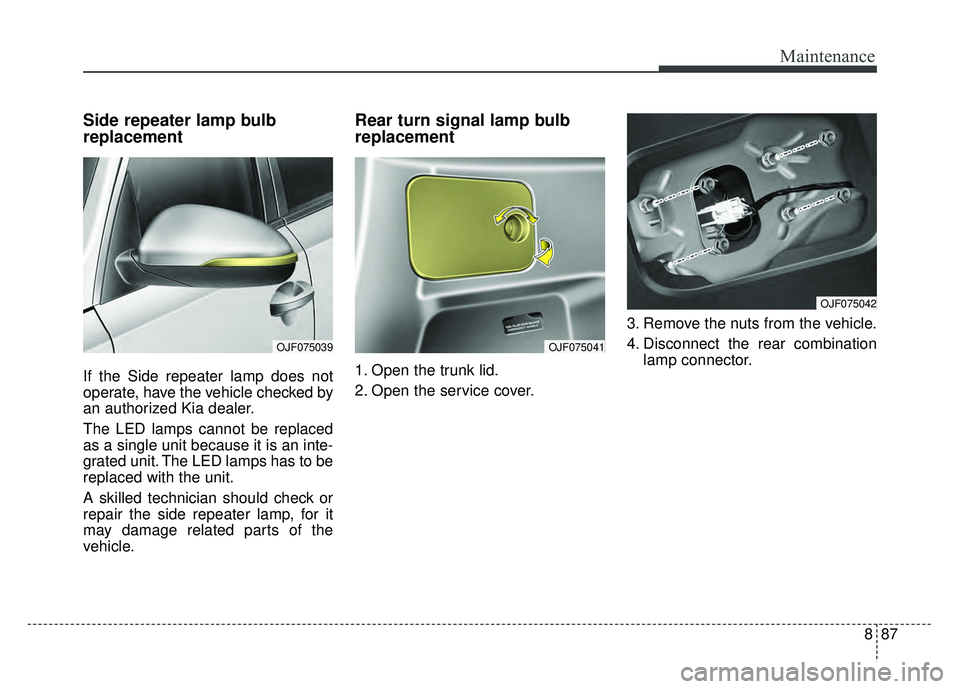

Side repeater lamp bulb
replacement
If the Side repeater lamp does not
operate, have the vehicle checked by
an authorized Kia dealer.
The LED lamps cannot be replaced
as a single unit because it is an inte-
grated unit. The LED lamps has to be
replaced with the unit.
A skilled technician should check or
repair the side repeater lamp, for it
may damage related parts of the
vehicle.
Rear turn signal lamp bulb
replacement
1. Open the trunk lid.
2. Open the service cover.3. Remove the nuts from the vehicle.
4. Disconnect the rear combination
lamp connector.
OJF075039OJF075041
OJF075042

93
Specifications, Consumer information, Reporting safety defects
BULB WATTAGE
Light BulbWattage (W)Bulb type
Front Headlamps (Low)
55WH7SL
Headlamps (Low) – LED type 25WLED
Headlamps (High) 65W HB3 HYPER L/L(9005HL)
Headlamps (High) – LED type 17WLED
Front turn signal lamps 28/8WAMBER L/L
Front position lamps 0.7WLED
Daytime running light LED type 6.5W LED
Side Repeater lamps LED type 0.5W LED
Rear Rear Stop/Tail lamps (outside)
LED type12W
LED
Rear tail lamps (Inside) 6WLED
Rear turn signal lamps 21WPY21W
Back-up lamps 16WW16W
High mounted stop lamp* 3WLED
License plate lamps 5WW5W
Interior Map lamps
Bulb type 10W
FESTOON BULB
LED type 1W LED
Room lamps 10WFESTOON BULB
Personal lamps 1WLED
Vanity mirror lamps 5WFESTOON BULB
Glove box lamp 5WFESTOON BULB
Trunk lamp 5WFESTOON BULB

Index
6I
Engine start/stop button . . . . . . . . . . . . . . . . . . . . . . . . . 6-6Illuminated engine start/stop button. . . . . . . . . . . . . . 6-6
Engine start/stop button position . . . . . . . . . . . . . . . . 6-6
Starting the hybrid system . . . . . . . . . . . . . . . . . . . . . 6-8
Engine start/stop button illumination . . . . . . . . . . . . . . . 6-6
Engine start/stop button position . . . . . . . . . . . . . . . . . . 6-6
Engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-4
Evaporative emission control (including ORVR: Onboard Refueling Vapor Recovery) system . . . . . 8-102
Exhaust emission control system . . . . . . . . . . . . . . . . 8-103
Explanation of scheduled maintenance items . . . . . . . 8-20 Engine oil and filter . . . . . . . . . . . . . . . . . . . . . . . . . 8-20
Hybrid starter & generator belt . . . . . . . . . . . . . . . . 8-20
Fuel filter (for gasoline) . . . . . . . . . . . . . . . . . . . . . . 8-20
Fuel lines, fuel hoses and connections . . . . . . . . . . . 8-20
Vapor hose and fuel filler cap . . . . . . . . . . . . . . . . . 8-20
Vacuum crankcase ventilation hoses . . . . . . . . . . . . 8-20
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21
Spark plugs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21
Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-21
Coolant (Engine / Inverter) . . . . . . . . . . . . . . . . . . . 8-21
Automatic transaxle fluid . . . . . . . . . . . . . . . . . . . . . 8-21
Brake hoses and lines . . . . . . . . . . . . . . . . . . . . . . . . 8-21
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-22
Brake discs, pads, calipers and rotors . . . . . . . . . . . 8-22
Exhaust pipe and muffler . . . . . . . . . . . . . . . . . . . . . 8-23
Suspension mounting bolts . . . . . . . . . . . . . . . . . . . 8-23 Steering gear box, linkage & boots/
lower arm ball joint . . . . . . . . . . . . . . . . . . . . . . . . 8-23
Drive shafts and boots . . . . . . . . . . . . . . . . . . . . . . . 8-23
Air conditioning refrigerant . . . . . . . . . . . . . . . . . . . 8-23
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-94
Exterior overview (Front) . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Exterior overview (Rear) . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Flat tires, see tire mobility kit. . . . . . . . . . . . . . . . . . . . 7-16
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-140
Fluid Checking fluid levels . . . . . . . . . . . . . . . . . . . . . . . . 8-23
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-31
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-32
Folding the outside rearview mirror . . . . . . . . . . . . . . . 4-50
"Front passenger andrear seat 3-point system withcombination locking retractor" . . . . . . . . . . . . . 3-25
Front passenger's seat belt warning . . . . . . . . . . . . . . . 3-23
Front seat adjustment (manual) . . . . . . . . . . . . . . . . . . . 3-7
Front seat adjustment (power) . . . . . . . . . . . . . . . . . . . . 3-8
Front turn signal lamp bulb replacement . . . . . . . . . . . 8-85
Fuel filler lid (Hybrid) . . . . . . . . . . . . . . . . . . . . . . . . . 4-29 Emergency fuel filler lid release . . . . . . . . . . . . . . . 4-32
Fuel filler lid (Plug-in Hybrid) . . . . . . . . . . . . . . . . . . . 4-33 Emergency fuel filler lid release . . . . . . . . . . . . . . . 4-35
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-55\
F
