2018 KIA K900 window

ii
1
2
3
4
5 6
7
8 I
IntroductionHow to use this manual / Fuel requirements / Vehicle break-in process /Vehicle data collection and event data recorders
Your vehicle at a glance
Exterior overview / Interior overview / Instrument panel overview / Engine compartment
Seat and safety features of your vehicle
Seats / Seat belts / Child restraint system / Air bag
Features of your vehicleSmart key / Door locks / Trunk / Windows / Hood / Fuel filler lid / Panoramic sunroof / Steering wheel / Mirrors /
Instrument cluster / Lighting / Wipers & Washers / Climate control system / Audio system / Etc.
Driving your vehicleBefore driving / Engine start/stop button / Transmission / Brake system /
Cruise control system / Advanced Smart Cruise Control system / Winter driving / Vehicle load limit / Etc.
What to do in an emergencyRoad warning / Emergency while driving / Emergency starting / Engine overheat / TPMS / Flat tire / Towing / Etc.
MaintenanceEngine compartment / Maintenance service / Engine oil / Engine coolant / Brake flui\
d / Washer fluid / Parking
brake / Air cleaner / Wiper blades / Battery / Tire and wheels / Fuses / Light bulbs / Etc.
Specifications, Consumer information and Reporting safety defects
Index
Table of contents
KH USA FOREWORD:2016 12/28/2016 3:34 PM Page 3

2-2
Your vehicle at a glance
EXTERIOR OVERVIEW
1. Hood ......................................................4-35
2. Head lamp ...........................................4-131
3. Fog lamp .............................................4-135
4. Tire and wheel ..............................7-54, 8-5
5. Outside rearview mirror .........................4-63
6. Panoramic Sunroof................................4-40
7. Front windshield wiper blades....4-136, 7-47
8. Windows ................................................4-31
OKH015001N
■Front view
❈ The actual shape may differ from the illustration.
KH USA 2:2016 4/21/2017 1:32 PM Page 2

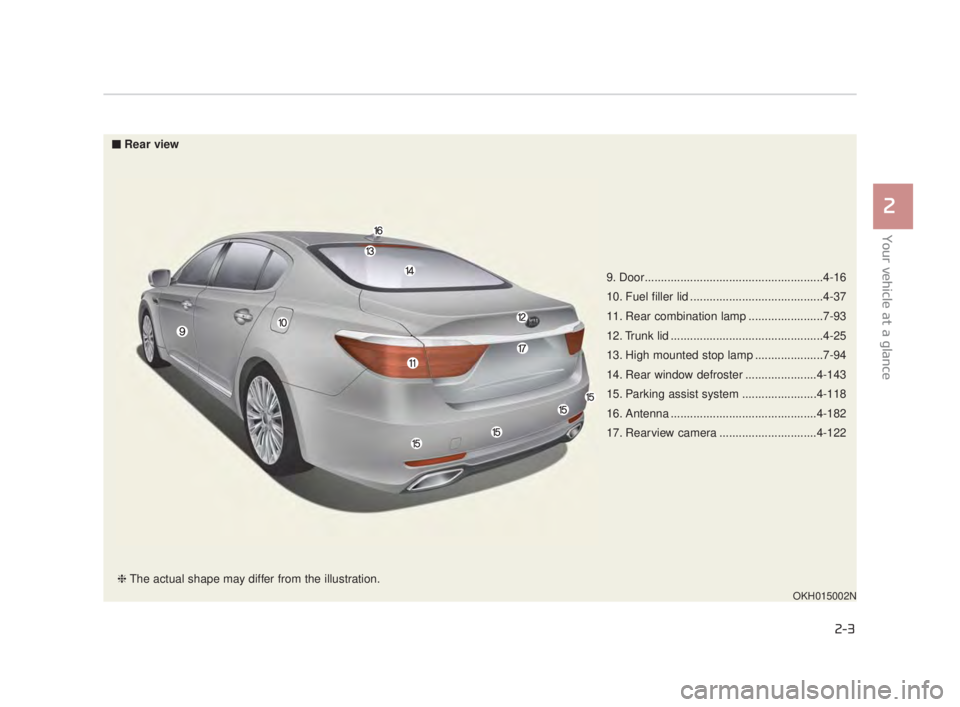

Your vehicle at a glance
2
2-3
9. Door.......................................................4-16
10. Fuel filler lid .........................................4-37
11. Rear combination lamp .......................7-93
12. Trunk lid ...............................................4-25
13. High mounted stop lamp .....................7-94
14. Rear window defroster ......................4-143
15. Parking assist system .......................4-118
16. Antenna .............................................4-182
17. Rearview camera ..............................4-122
OKH015002N
■Rear view
❈ The actual shape may differ from the illustration.
KH USA 2:2016 4/21/2017 1:32 PM Page 3

INTERIOR OVERVIEW
2-4
Your vehicle at a glance
1. Inside door handle ...................................4-17
2. Front power seat adjust switch ..................3-5
3. Outside rearview mirror folding ...............4-65
4. Outside rearview mirror control ...............4-64
5. Power window lock switch .......................4-34
6. Central door lock switch ..........................4-18
7. Power window switch ...............................4-32
8. BSD On/OFF button ................................5-87
9. HUD On/OFF button..............................4-116
10. Parking Assist button ...........................4-118
11. ESC Off button ......................................5-43
12. Trunk lid open button .......................4-21, 22
13. Trunk lid close button .......................4-21, 22
14. Trunk lid open / close button..................4-22
15. Instrument panel illumination controllever........................................................4-68
16. Electric parking brake switch .................5-31
17. Fuel filler lid open switch .......................4-37
18. Hood release lever.................................4-35
19. Steering wheel .......................................4-45
20. Tilt and telescopic steering control lever ...4-45
21. Brake pedal ............................................5-28
22. Accelerator pedal ....................................5-9
OKH013003N
❈ The actual shape may differ from the illustration.
KH USA 2:2016 4/21/2017 1:32 PM Page 4

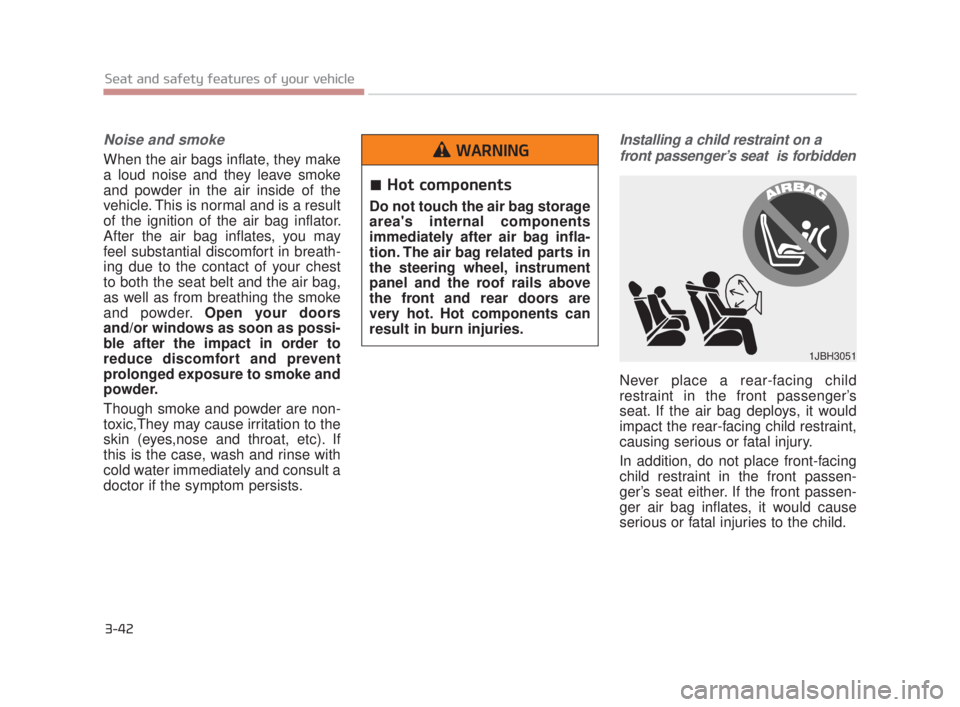

3-42
Seat and safety features of your vehicle
Noise and smoke
When the air bags inflate, they make
a loud noise and they leave smoke
and powder in the air inside of the
vehicle. This is normal and is a result
of the ignition of the air bag inflator.
After the air bag inflates, you may
feel substantial discomfort in breath-
ing due to the contact of your chest
to both the seat belt and the air bag,
as well as from breathing the smoke
and powder. Open your doors
and/or windows as soon as possi-
ble after the impact in order to
reduce discomfort and prevent
prolonged exposure to smoke and
powder.
Though smoke and powder are non-
toxic,They may cause irritation to the
skin (eyes,nose and throat, etc). If
this is the case, wash and rinse with
cold water immediately and consult a
doctor if the symptom persists.
Installing a child restraint on afront passenger’s seat is forbidden
Never place a rear-facing child
restraint in the front passenger’s
seat. If the air bag deploys, it would
impact the rear-facing child restraint,
causing serious or fatal injury.
In addition, do not place front-facing
child restraint in the front passen-
ger’s seat either. If the front passen-
ger air bag inflates, it would cause
serious or fatal injuries to the child.
1JBH3051
Hot components
Do not touch the air bag storage
area's internal components
immediately after air bag infla-
tion. The air bag related parts in
the steering wheel, instrument
panel and the roof rails above
the front and rear doors are
very hot. Hot components can
result in burn injuries.
WARNING
KH USA 3:2018 4/18/2017 9:35 AM Page 42

3-56
Seat and safety features of your vehicle
Curtain air bag
❈The actual air bags in the vehicle may differ
from the illustration.
Curtain air bags are located along
both sides of the roof rails above the
front and rear doors. They are designed to help protect
the heads of the front seat occupants
and the rear outboard seat occu-
pants in certain side impact colli-
sions.
The curtain air bags are designed to
deploy only during certain side
impact collisions, depending on the
crash severity, angle, speed and
impact.
For vehicles equipped with a rollover
sensor the side and curtain air bags
on both sides of the vehicle may
deploy if a rollover or possible
rollover is detected.
The curtain air bags are not
designed to deploy in all side impact
or rollover situations.
Do not allow the passengers to lean
their heads or bodies onto doors, put
their arms on the doors, stretch their
arms out of the window, or place
objects between the doors and pas-
sengers when they are seated on
seats equipped with side and/or cur-
tain air bags.
✽
NOTICE
Never try to open or repair any com-
ponents of the side curtain air bag
system. This should only be done by
an authorized K900 Kia dealer.
OKH033082N
OKH033090N
No attaching objects
Do not place any objects over
the air bag. Also, do not attach
any objects around the area
the air bag inflates such as
the door, side door glass,
front and rear pillar, roof side
rail.
Do not hang hard or breakable objects on the coat hook.
WARNING
KH USA 3:2018 4/18/2017 9:36 AM Page 56

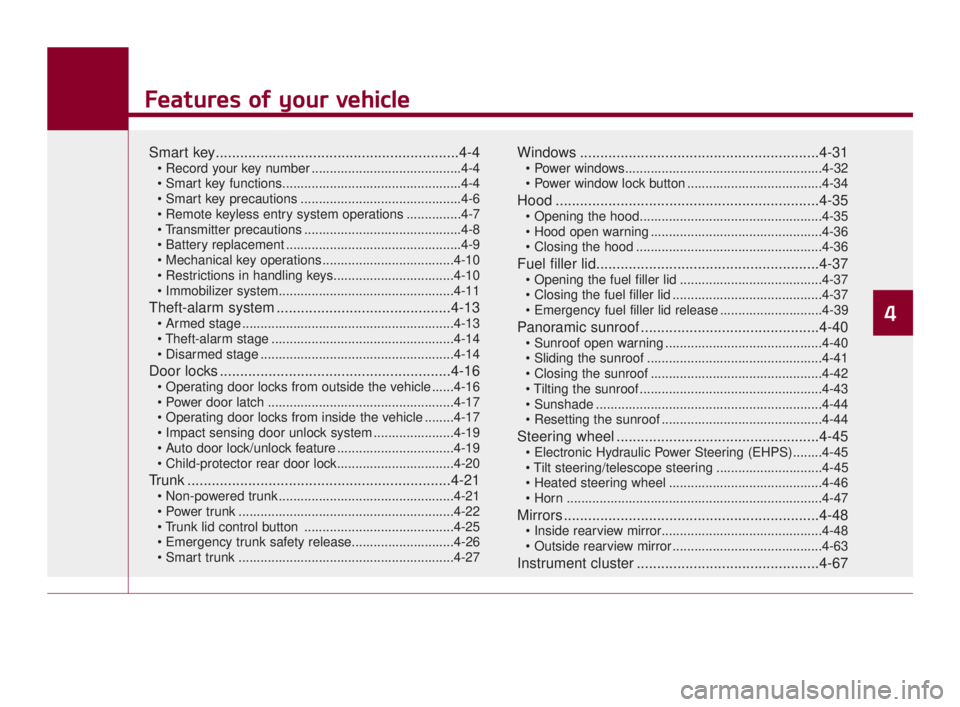

Features of your vehicle
4
Features of your vehicle
Smart key............................................................4-4
.........................................4-4

............................................4-6
...............4-7
...........................................4-8
................................................4-9
....................................4-10


Theft-alarm system ...........................................4-13
..........................................................4-13
..................................................4-14
.....................................................4-14
Door locks .........................................................4-16
......4-16
...................................................4-17
........4-17
......................4-19
................................4-19

Trunk .................................................................4-21
................................................4-21
...........................................................4-22
.........................................4-25

...........................................................4-27
Windows ...........................................................4-31

.....................................4-34
Hood .................................................................4-35

...............................................4-36
...................................................4-36
Fuel filler lid.......................................................4-37
.......................................4-37
.........................................4-37
............................4-39
Panoramic sunroof ............................................4-40
...........................................4-40
................................................4-41
...............................................4-42
..................................................4-43
..............................................................4-44
............................................4-44
Steering wheel ..................................................4-45

.............................4-45
..........................................4-46
......................................................................4-\
47
Mirrors ...............................................................4-48

.........................................4-63
Instrument cluster .............................................4-67
4
KH USA 4:2018 4/18/2017 5:55 PM Page 1

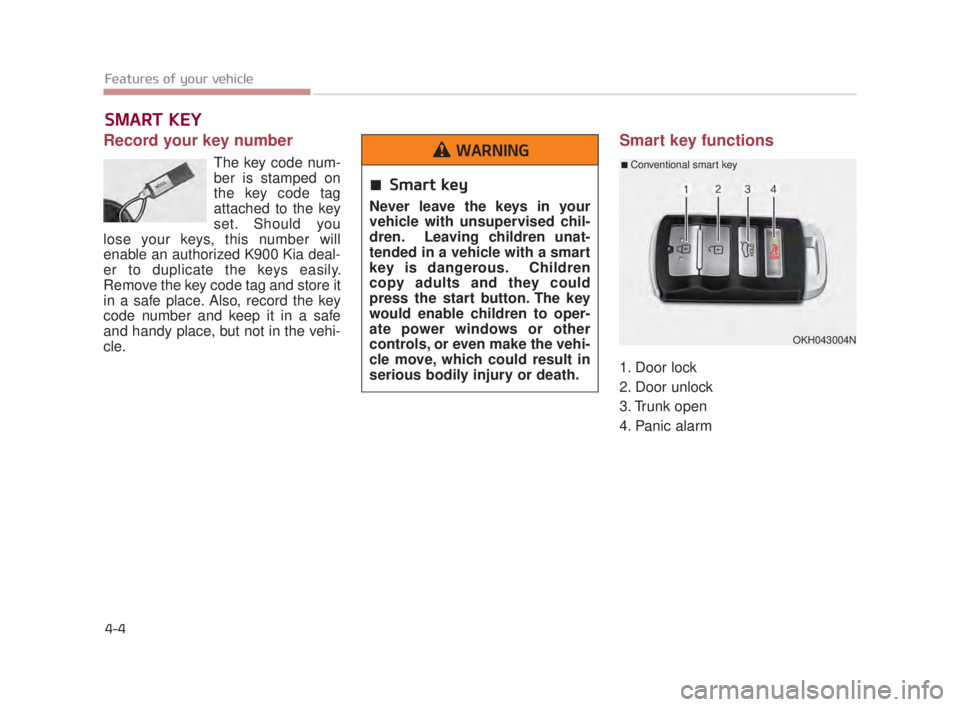

Record your key number
The key code num-
ber is stamped on
the key code tag
attached to the key
set. Should you
lose your keys, this number will
enable an authorized K900 Kia deal-
er to duplicate the keys easily.
Remove the key code tag and store it
in a safe place. Also, record the key
code number and keep it in a safe
and handy place, but not in the vehi-
cle.
Smart key functions
1. Door lock
2. Door unlock
3. Trunk open
4. Panic alarm
SMART KEY
Features of your vehicle
4-4
OKH043004N
■ Conventional smart key
Smart key
Never leave the keys in your
vehicle with unsupervised chil-
dren. Leaving children unat-
tended in a vehicle with a smart
key is dangerous. Children
copy adults and they could
press the start button. The key
would enable children to oper-
ate power windows or other
controls, or even make the vehi-
cle move, which could result in
serious bodily injury or death.
WARNING
KH USA 4:2018 4/18/2017 5:55 PM Page 4
