2018 KIA K900 tow

7-34
Maintenance
ENGINE COOLANT
The high-pressure cooling system
has a reservoir filled with year-round
antifreeze coolant. The reservoir is
filled at the factory.
Check the antifreeze protection and
coolant level at least once a year, at
the beginning of the winter season,
and before traveling to a colder cli-
mate. Checking the coolant level Turn the engine off and wait until itcools down. Use extreme care
when removing the radiator cap.
Wrap a thick towel around it, and
turn it counterclockwise slowly to
the first stop. Step back while the
pressure is released from the cool-
ing system.
When you are sure all the pressure
has been released, press down on
the cap, using a thick towel, and
continue turning counterclockwise
to remove it.
Even if the engine is not operating, do not remove the radiator cap or
the drain plug while the engine and
radiator are hot. Hot coolant and
steam may still blow out under
pressure, causing serious injury.
Removing radia-
tor cap
Never attempt to remove the
radiator cap while the engine is
operating or hot. Doing so
might lead to cooling system
and engine damage and could
result in serious personal injury
from escaping hot coolant or
steam.
WARNING
KH USA 7:2018 4/14/2017 6:37 PM Page 34

Maintenance
7
7-41

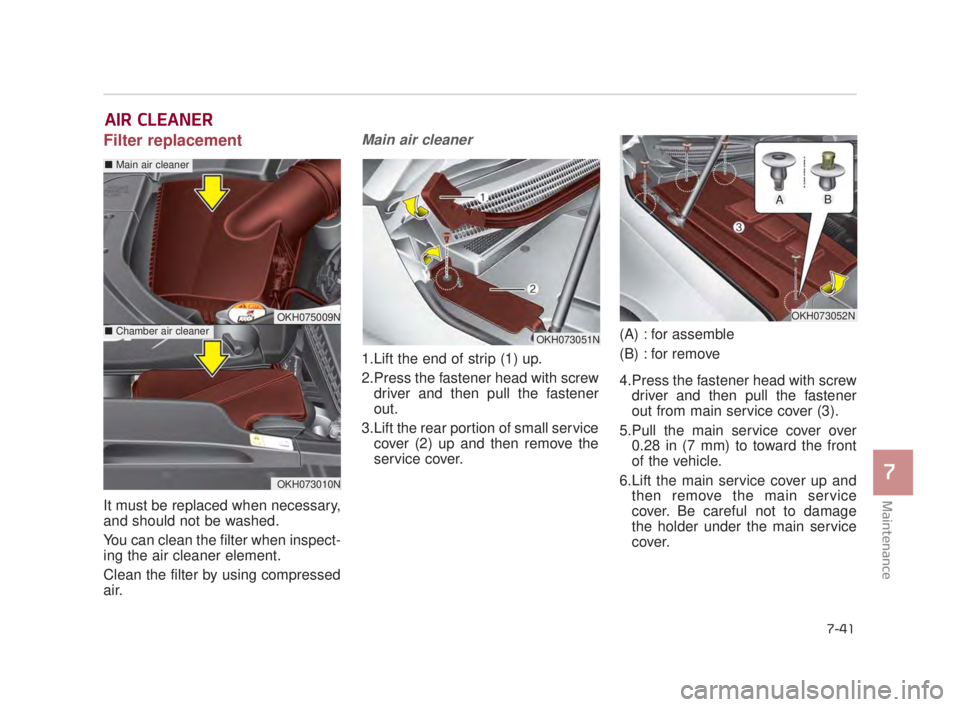

AIR CLEANER
Filter replacement
It must be replaced when necessary,
and should not be washed.
You can clean the filter when inspect-
ing the air cleaner element.
Clean the filter by using compressed
air.
Main air cleaner
1.Lift the end of strip (1) up.
2.Press the fastener head with screwdriver and then pull the fastener
out.
3.Lift the rear portion of small service cover (2) up and then remove the
service cover. (A) : for assemble
(B) : for remove
4.Press the fastener head with screw
driver and then pull the fastener
out from main service cover (3).
5.Pull the main service cover over 0.28 in (7 mm) to toward the front
of the vehicle.
6.Lift the main service cover up and then remove the main service
cover. Be careful not to damage
the holder under the main service
cover.
OKH075009N
OKH073010N
■ Main air cleaner
■ Chamber air cleaner
OKH073052N
OKH073051N
AB
KH USA 7:2018 4/14/2017 6:38 PM Page 41

7-72
Maintenance
2.Lift the end of strip (1) up.
3.Press the fastener head with screwdriver and then pull the fastener
out.
4.Lift the rear portion of small service cover (2) up and then remove the
service cover. (A) : for assemble
(B) : for remove
5.Press the fastener head with screw
driver and then pull the fastener
out from main service cover (3).
6.Pull the main service cover over 7mm (0.28 in) to toward the front of
the vehicle.
7.Lift the main service cover up and then remove the main service
cover. Be careful not to damage
the holder under the main service
cover.
8.Open the fuse panel cover. 9.Pull the suspected fuse straight
out. Use the fuse puller provided in
the engine compartment fuse
panel.
10. Check the removed fuse; replace it if it is blown.
11. Push in a new fuse of the same rating, and make sure it fits tight-
ly in the clips.
If it fits loosely, consult an authorized
K900 Kia dealer.If you do not have a spare, use a fuse of the same rating from a circuityou may not need for operating thevehicle, such as the cigarette lighterfuse.
If the headlights or other electrical
components do not work and the
fuses are OK, check the fuse panel
in the engine compartment. If a fuse
is blown, it must be replaced.
OKH073052N
AB
OKH073051N
KH USA 7:2018 4/14/2017 6:39 PM Page 72

Sunglass holder ............................................................4-166
Sunroof open warning ...................................................4-40
Sunvisor .......................................................................4\
-169
Surround View Monitoring System (SVM).................4-127
Tachometer.....................................................................4-6\
9
Tether anchorage system................................................3-\
37
Theft-alarm system ........................................................4-13
Tilt and telescopic steering ............................................4-45
Tire and loading information label ..............................5-105
Tire chains....................................................................5-10\
1
Tire pressure monitoring system ...................................6-11
Tire rotation ...................................................................7-56
Tire specification and pressure label .............................8-10
Tires and wheels ..............................................................8-5Checking tire inflation pressure ................................7-55
Compact spare tire replacement ................................7-59
Low aspect ratio tire..................................................7-64
Recommended cold tire inflation pressures ..............7-54
Tire care.....................................................................7-5\
4
Tire maintenance .......................................................7-59
Tire replacement ........................................................7-58
Tire rotation ...............................................................7-56
Tire sidewall labeling ................................................7-66
Tire traction ...............................................................7-59
Wheel alignment and tire balance .............................7-57 Wheel replacement ....................................................7-59
Towing ........................................................................\
...6-28 Emergency towing.....................................................6-31
Removable towing hook............................................6-30
Trailer Towing ...............................................................5-97
Transaxle Shift Indicator ...............................................4-72
Transmission - Automatic transmission (Shift by cable) ..........................................................5-11
Transmission - Automatic transmission (Shift by wire) ...........................................................5-16
Transmitter precautions ...................................................4-8
Trip A/B ........................................................................\
.4-98
Trip computer ................................................................4-96 Fuel Economy ...........................................................4-96
One time driving information mode .........................4-99
Trip A/B.....................................................................4-9\
8
Trip computer mode ......................................................4-74
Trunk ........................................................................\
......4-21 Emergency trunk safety release ................................4-26
Non-Powered Trunk ..................................................4-21
Power Trunk ..............................................................4-22
Smart Trumk..............................................................4-27
Trunk Lid Control Button ........................................4-25
Trunk Lid Control Button .............................................4-25
Trunk room lamp .........................................................4-141
Turn By Turn (TBT) mode ............................................4-75
Turn signals..................................................................4-134
Index
I-11
I
T
KH USA Index:2018 4/18/2017 10:39 AM Page 11
