2018 KIA K900 Owners Manual

Maintenance
7
7-41
AIR CLEANER
Filter replacement
It must be replaced when necessary,
and should not be washed.
You can clean the filter when inspect-
ing the air cleaner element.
Clean the filter by using compressed
air.
Main air cleaner
1.Lift the end of strip (1) up.
2.Press the fastener head with screwdriver and then pull the fastener
out.
3.Lift the rear portion of small service cover (2) up and then remove the
service cover. (A) : for assemble
(B) : for remove
4.Press the fastener head with screw
driver and then pull the fastener
out from main service cover (3).
5.Pull the main service cover over 0.28 in (7 mm) to toward the front
of the vehicle.
6.Lift the main service cover up and then remove the main service
cover. Be careful not to damage
the holder under the main service
cover.
OKH075009N
OKH073010N
■ Main air cleaner
■ Chamber air cleaner
OKH073052N
OKH073051N
AB
KH USA 7:2018 4/14/2017 6:38 PM Page 41

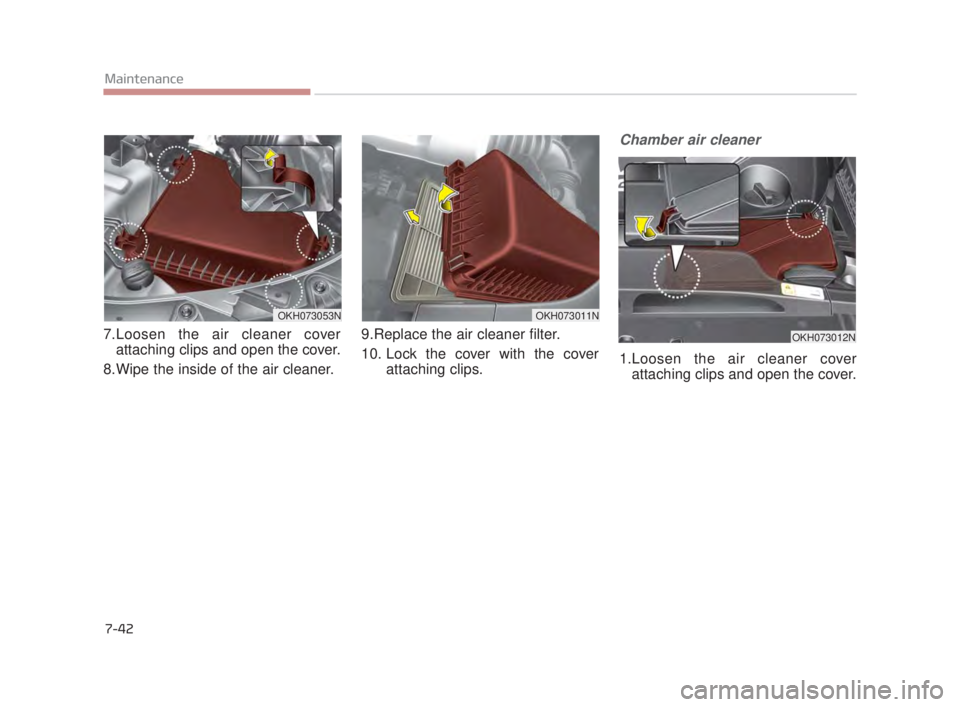

7-42
Maintenance
7.Loosen the air cleaner coverattaching clips and open the cover.
8.Wipe the inside of the air cleaner. 9.Replace the air cleaner filter.
10. Lock the cover with the cover
attaching clips.
Chamber air cleaner
1.Loosen the air cleaner coverattaching clips and open the cover.
OKH073011NOKH073053N
OKH073012N
KH USA 7:2018 4/14/2017 6:38 PM Page 42

Maintenance
7
7-43
2.Replace the air cleaner filter afterpulling up the locking tab (1).
3.Lock the cover with the cover attaching clips. Replace the filter according to the
Maintenance Schedule.
If the vehicle is operated in extreme-
ly dusty or sandy areas, replace theelement more often than the usualrecommended intervals. (Refer to“Maintenance under severe usageconditions” in this section.)
OKH073013NAir Filter Maintenance
Do not drive with the air clean- er removed; this will result in
excessive engine wear.
When removing the air clean- er filter, be careful that dust or
dirt does not enter the air
intake, or damage may result.
Use a Kia genuine part. Use of non-genuine parts could dam-
age the air flow sensor.
CAUTION
KH USA 7:2018 4/14/2017 6:38 PM Page 43

7-44
Maintenance
CLIMATE CONTROL AIR FILTER
Filter inspection
The climate control air filter should
be replaced every 15,000 miles
(24,000 km). If the vehicle is operat-
ed in severely air-polluted cities or on
dusty rough roads for a long period,
it should be inspected more fre-
quently and replaced earlier. When
you replace the climate control air fil-
ter, replace it performing the follow-
ing procedure, and be careful to
avoid damaging other components.
Filter replacement
1.With the glove box open, removethe stoppers on both sides to allow
the glove box to hang freely on the
hinges. 2.Open the glove box and remove
the support strap.
OKH073015N
OKH073016N
KH USA 7:2018 4/14/2017 6:38 PM Page 44

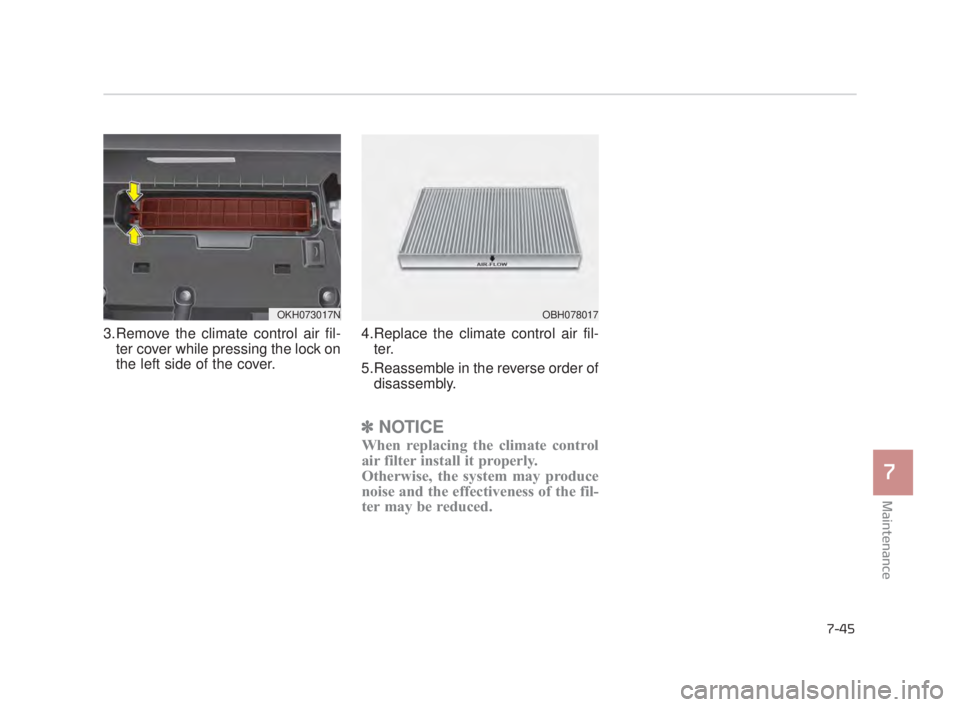

Maintenance
7
7-45
3.Remove the climate control air fil-ter cover while pressing the lock on
the left side of the cover. 4.Replace the climate control air fil-
ter.
5.Reassemble in the reverse order of disassembly.
✽ NOTICE
When replacing the climate control
air filter install it properly.
Otherwise, the system may produce
noise and the effectiveness of the fil-
ter may be reduced.
OKH073017NOBH078017
KH USA 7:2018 4/14/2017 6:38 PM Page 45

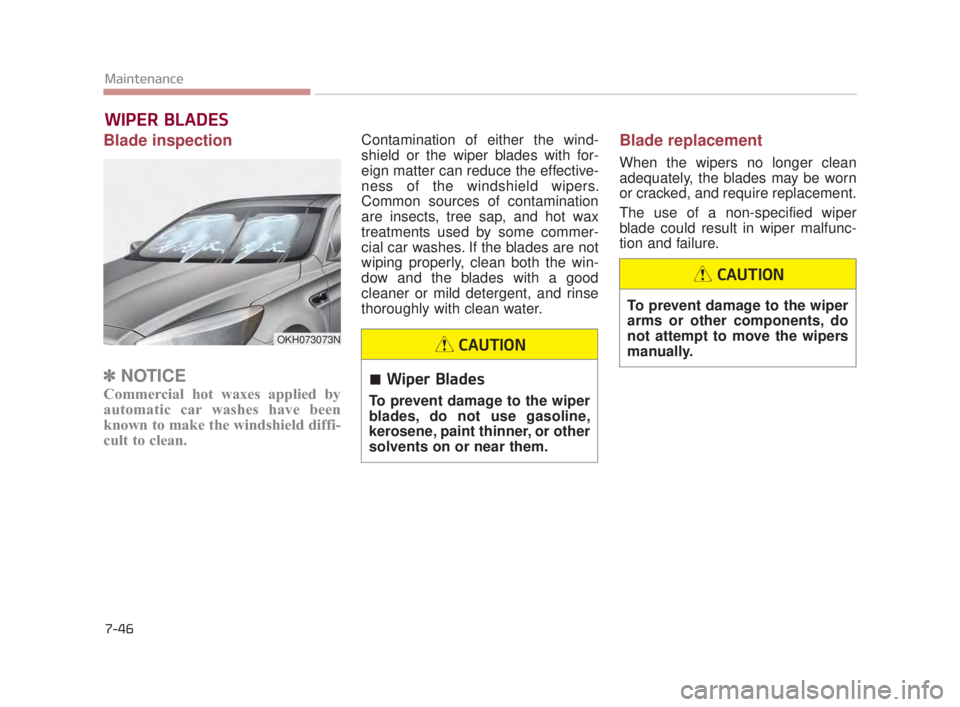

7-46
Maintenance
WIPER BLADES
Blade inspection
✽NOTICE
Commercial hot waxes applied by
automatic car washes have been
known to make the windshield diffi-
cult to clean.
Contamination of either the wind-
shield or the wiper blades with for-
eign matter can reduce the effective-
ness of the windshield wipers.
Common sources of contamination
are insects, tree sap, and hot wax
treatments used by some commer-
cial car washes. If the blades are not
wiping properly, clean both the win-
dow and the blades with a good
cleaner or mild detergent, and rinse
thoroughly with clean water. Blade replacement
When the wipers no longer clean
adequately, the blades may be worn
or cracked, and require replacement.
The use of a non-specified wiper
blade could result in wiper malfunc-
tion and failure.
OKH073073N
Wiper Blades
To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
CAUTION
To prevent damage to the wiper
arms or other components, do
not attempt to move the wipers
manually.
CAUTION
KH USA 7:2018 4/14/2017 6:38 PM Page 46

Maintenance
7
7-47
Front windshield wiper blade
For your convenience, move the
windshield wiper blades to the serv-
ice position as follows;
Turn off the engine.
Move the wiper switch to the single
wiping (MIST) position within 20 sec-
onds and hold the switch until the
wiper blade is in the fully up position.1.Raise the wiper arm.
2.Turn the wiper blade clip. Then liftup the blade clip.
3.Push the clip (1) and push up the wiper arm (2).
OKH073040N
OKH073074N
OKH073075N
OKH073076N
Wiper Arms
Do not allow the wiper arm to
fall against the windshield,
since it may chip or crack the
windshield.
CAUTION
KH USA 7:2018 4/14/2017 6:38 PM Page 47

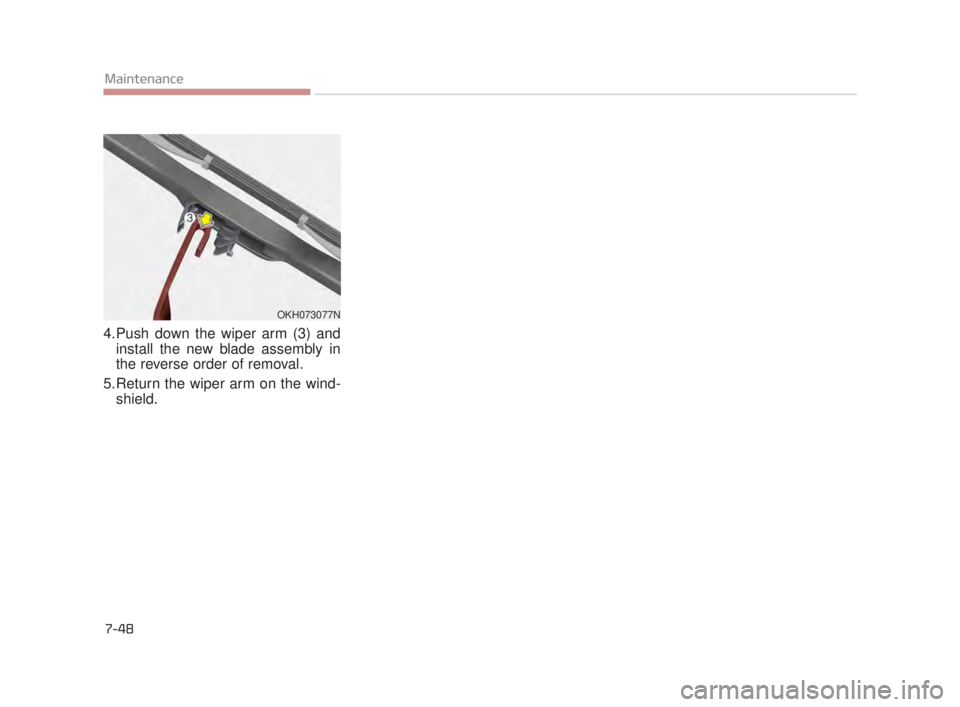

7-48
Maintenance
4.Push down the wiper arm (3) andinstall the new blade assembly in
the reverse order of removal.
5.Return the wiper arm on the wind- shield.
OKH073077N
