2018 KIA K900 navigation

Maintenance
7
7-77
Fuse NameFuse rastingCircuit Protected
AUDIO 210AA/V & Navigation Head Unit, TMU
MODULE 310AA/C Control Module, Electro Chromic Mirror, Rear Seat Console Switch, Driver Haptic Control Module, Rear
CCS Control Module LH/RH, Driver/Passenger IMS Control Module, Driver Power Seat Module, Rear Seat
Warmer Control Module LH/RH, Rear Smart Junction Box (IPS Control Module)
MODULE 210ASteering Tilt & Telescopic Module, LDWS Camera Module, Crash Pad Switch, Stop Lamp Switch, A/T Console
Switch, Electric Parking Brake Switch, Console Switch, Smart Cruse Control Radar, Air Sus, TPMS, PAS
SPARE10ASpare
WIPER10AAuto Light & Rain Sensor
MODULE 110ABCM, Trunk Lid Main Switch, Low Panel Switch
MEMORY 210AExternal Buzzer, Driver Smart Connector, Passenger Smart Connector
DRV HEAT15ADriver Haptic Control Module, Driver CCS Module
PASS HEAT15APassenger CCS Module
WINDOW LH30ARear Power Window Module LH, Rear Power Window Module LH
HEADREST15AActive Headrest Sensor
BCM10ABCM, Multifunction Switch, Driver/Passenger Power Seat Switch, Rear Door Module LH/RH
EPB 215AElectric Parking Brake Module
P/HANDLE15ASteering Tilt & Telescopic Module
KH USA 7:2018 4/14/2017 6:39 PM Page 77

Maintenance
7
7-79
Fuse NameFuse rastingCircuit Protected
MODULE 610ASmart Key Control Module, BCM
A/BAG15ADriver Seat Belt Pretensioner, Passenger Seat Belt Pretensioner, SRS Control Module
A/BAG IND10AInstrument Cluster
IGN 120AE/R Fuse & Relay Box LH (FUSE : F20, F21, F23, F25, F26, F27)
MEMORY 110APassenger IMS Control Module, Driver/Passenger Door Module, Driver/Passenger Power Seat Switch, Rear
Door Module LH/RH, Power Trunk Module, Instrument Cluster, BCM, Security Sensor, Analogue Clock, A/C
Control Module, Head-Up Display
MULTI MEDIA10AKeyboard, A/V Navigation Head Unit, Front Monitor, TMU
ROOM LAMP10ARear Seat Foot Lamp LH/RH, Trunk Room Lamp LH/RH, Driver/Passenger Foot Lamp, Room Lamp, Overhead
Console Lamp, Front Vanity Lamp Switch LH/RH, Rear Vanity Lamp Switch LH/RH, Garnish Lamp LH/RH,
Garnish Center Lamp, Glove Box Lamp
MEMORY 310ARF Receiver
EPB 115AElectric Parking Brake Module
SPARE15ASpare
IGN 220AE/R Fuse & Relay Box LH (Fuse : F29, F30)
A/CON 110AA/C Control Module, Ionizer, Metal Core Block (PCB #2) (Blower Relay)
AFLS15AAdaptive Front Lighting Module, HEAD LAMP LH/RH
SPARE10ASpare
P/OUTLET FR20AFront Cigarette Lighter
KH USA 7:2018 4/14/2017 6:39 PM Page 79

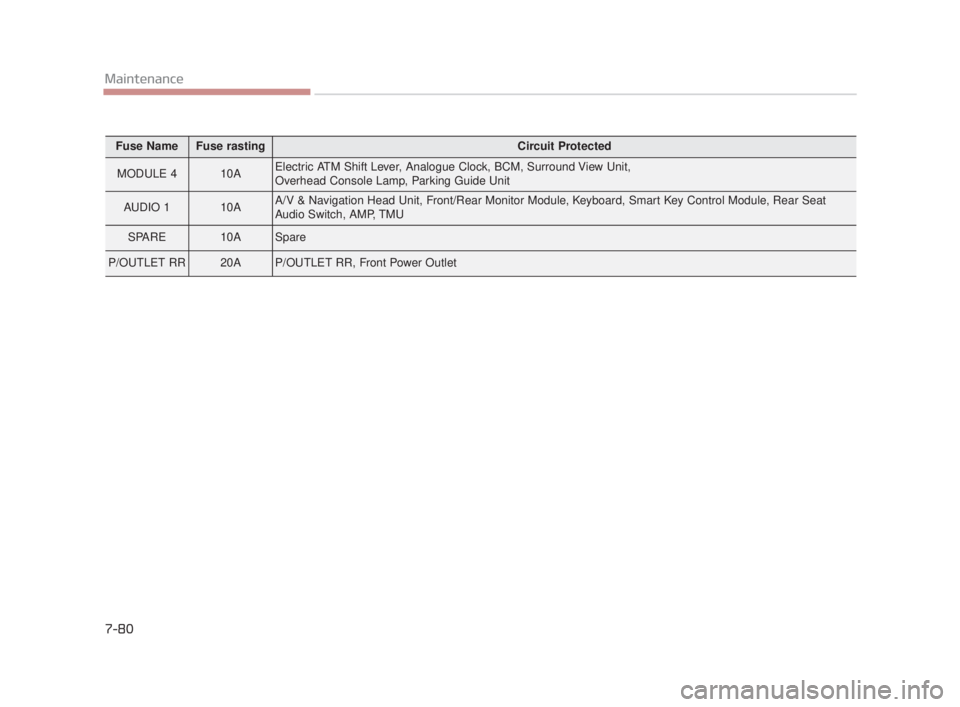

7-80
Maintenance
Fuse NameFuse rastingCircuit Protected
MODULE 410AElectric ATM Shift Lever, Analogue Clock, BCM, Surround View Unit,
Overhead Console Lamp, Parking Guide Unit
AUDIO 110AA/V & Navigation Head Unit, Front/Rear Monitor Module, Keyboard, Smart Key Control Module, Rear Seat
Audio Switch, AMP, TMU
SPARE10ASpare
P/OUTLET RR20AP/OUTLET RR, Front Power Outlet
KH USA 7:2018 4/14/2017 6:39 PM Page 80

Maintenance
7
7-83
Fuse NameFuse rastingCircuit Protected
Vaccum Pump 110AE/R Fuse & Relay Box LH (RLY.10), Vaccum Pump Switch
Vaccum Pump 220AE/R Fuse & Relay Box LH (RLY.10)
ECU 110AECU
EHPS 110AEHPS Module
Inhibitor 210AA/T Console Switch, Electric ATM Shift Lever
Washer15AE/R Fuse & Relay Box LH (RLY.8)
Wiper 210AE/R Fuse & Relay Box LH (RLY.1)
B/UP Lamp 210ABack View Camera & Back-Up Lamp, A/T Console Switch, Electro Chromic Mirror, A/V & Navigation Head
Unit
KH USA 7:2018 4/14/2017 6:39 PM Page 83

A/V mode.......................................................................4\
-75
Advanced Smart Cruise Control System (ASCC).........5-67Speed setting (ASCC) ...............................................5-68
To convert to cruise control mode.............................5-76
Vehicle to vehicle distance setting (ASCC) .............5-72
AFLS (Adaptive Front Lighting System) ....................4-132
Air bag warning label ....................................................3-63
Air bag warning light.....................................................3-43
Air bags........................................................................\
..3-40 Air bag warning label................................................3-63
Air bag warning light ................................................3-43
Curtain air bag...........................................................3-56
Driver's and passenger's front air bag .......................3-52
Occupant detection system........................................3-46
Side air bag................................................................3-54
SRS Care ...................................................................3-62
Adding equipment to or modifying your
air bag-equipped Vehicle ...........................................3-62
SRS components and functions ................................3-43
Air cleaner .....................................................................7-4\
1
Air ventilation seat ......................................................4-\
172
Airconditioning system Automatic climate control system ..........................4-144
Alarm system .................................................................4-13
Antenna ........................................................................\
4-181
Anti-lock brake system (ABS) ......................................5-41 Appearance care.............................................................7-95
Exterior care ..............................................................7-95
Interior care .............................................................7-102
Armrest (rear) ................................................................3-19
ASCC/LDWS mode.......................................................4-75
Audio / Video / Navigation system (AVN)..................4-181
Auto door lock/unlock feature .......................................4-20
Auto Hold ......................................................................5-\
36
Auto light/AFLS position ............................................4-131
Automatic climate control system ...............................4-144 Air conditioning ......................................................4-153
Automatic heating and air conditioning..................4-145
Manual heating and air conditioning ......................4-146
Automatic transmission (Shift by cable) .......................5-11 Manual mode.............................................................5-13
Shift-lock override.....................................................5-15
Automatic transmission (Shift by wire) ........................5-16 Manual mode.............................................................5-20
When the battery is discharged .................................5-22
Automatic turn off function ........................................4-139
Autonomus Emergency Braking (AEB) ........................5-49 AEB Operation ..........................................................5-49
To cancel the AEB.....................................................5-51
Warning light and message .......................................5-52
Aux, USB and iPod® port ...........................................4-180
Bag hanger ...................................................................4-177\
I-2
Index
A
B
KH USA Index:2018 4/18/2017 10:39 AM Page 2

I-8
Index
Parking light position ..............................................4-131
Lubricants and capacities.................................................8-6
Luggage net (holder) ...................................................4-177
Luggage volume ..............................................................8-4
Main fuse .......................................................................7\
-74
Maintenance .....................................................................7-5\
Explanation of scheduled maintenance items ...........7-29
Maintenance services ..................................................7-5
Normal maintenance schedule ..................................7-11
Owner maintenance.....................................................7-8
Tire maintenance .......................................................7-59
Maintenance schedule....................................................7-11
Manual mode - Automatic transmission (Shift by cable) ..........................................................5-13
Manual mode - Automatic transmission (Shift by wire) ...........................................................5-20
Map pocket ..................................................................4-167
Mechanical key operations ............................................4-10
Mirrors ........................................................................\
...4-48 Electric chromic mirror (ECM) ................................4-48
HomeLink
®system ...................................................4-48
Inside rearview mirror ...............................................4-48
Inside rearview mirror with compass ........................4-48
Outside rearview mirror ............................................4-63
Moonroof, see Panoramic sunroof.................................4-40 Multi fuse .......................................................................7\
-75
Multimedia system.......................................................4-180
Antenna ...................................................................4-182\
Audio / Video / Navigation system (AVN) .............4-181
Aux, USB and iPod
®port .......................................4-180
Bluetooth®Wireless Technology hands-free ..........4-182
Driver Information System (DIS) ...........................4-181
Steering wheel audio control .................................4-183
USB charger ...........................................................4-180
Non-Powered Trunk.......................................................4-21
Normal maintenance schedule .......................................7-11
Occupant detection system ............................................3-45
Odometer .......................................................................4\
-72
ODS see the Occupant detection system .......................3-45
Oil (Engine) ...................................................................7-32
One time driving information mode ..............................4-99
Outside rearview mirror.................................................4-63 Adjusting outside rearview mirror ............................4-64
Folding the outside rearview mirror..........................4-65
Reverse parking aid function ....................................4-65
Outside Temperature Gauge ..........................................4-72
Overheats ........................................................................\
.6-9M
N
O
KH USA Index:2018 4/18/2017 10:39 AM Page 8
