3-22
Seat and safety features of your vehicle
Seat belt warning (for driver’s seat)
The driver's seat belt warning light
and chime will activate to the follow-
ing table when the Engine Start/Stop
button is in "ON" position. The driver seat belt warning light and
chime will activate during following
situations.
The warning light and chime will
activate for 6 seconds when the
seat belt is not buckled and the
Engine Start/Stop button is in ON.
The warning light will activate for 6 seconds when the seat belt is
buckled and the Engine Start/Stop
button is in ON.
If the driver seat belt is buckled and then unbuckled during driving
- If the vehicle speed is below 3mph (5 km/h), the warning light
will illuminate for 6 seconds.
- If the vehicle speed is between 3 mph (5 km/h) ~ 6 mph (10 km/h),
the warning light and sound will
activate for 6 seconds.
- If the vehicle speed is over 6 mph (10 km/h), the warning light and
sound will activate for 6 seconds.
And repeat 11 times with 24 sec-
onds of interval. If the driver seat belt has not been
buckled at all during driving
- If the vehicle speed is over 6 mph(10 km/h), the warning light and
sound will activate for 6 seconds.
And repeat 11 times with 24 sec-
onds of interval.
- If the vehicle speed is below 3 mph (5 km/h), the warning light
and sound will turn off within
6seconds.
- If the seat belt has been buckled during driving, the warning light
will turn off within 6 seconds. The
warning sound will deactivate
immediately.
WKH-001
KH USA 3:2018 4/18/2017 9:35 AM Page 22

Seat and safety features of your vehicle
3
3-23
Seat belt warning (for front passenger’s seat)
The front passenger's seat belt
warning light will activate to the fol-
lowing table when the Engine
Start/Stop button is in "ON" position. The passenger seat belt warning
light will activate during following sit-
uations.
The warning light will illuminate for
6 seconds if the Engine Start/Stop
button is in ON, regardless of
whether the seat belt is buckled or
not.
If the driver seat belt is buckled and then unbuckled during driving
- If the vehicle speed is over 6 mph(10 km/h), the warning light will
not activate.
- If the vehicle speed is less than 3 mph (5 km/h), the warning light
will turn off when speed is over 6
mph (10 km/h).
- The warning light will not activate if the vehicle speed is less than 6
mph (10 km/h) when the seatbelt
is unbuckled.
If the passenger seat belt has not been buckled at all during driving
- If the vehicle speed is over 6 mph(10 km/h), the warning light will
illuminate continuously.
✽ NOTICE
Riding in an improper position
adversely affects the front passen-
ger's seat belt warning system. It is
important for the driver to instruct
the passenger as to the proper seat-
ing instructions as contained in this
manual.
You can find the front passenger's
seat belt warning light on the cen-
ter fascia panel.
Although the front passenger seat is not occupied, the seat belt warn-
ing light will blink for 6 seconds.
The seat belt warning light can blink when a briefcase or purse is
placed on the front passenger
seat.
OKH035104N
KH USA 3:2018 4/18/2017 9:35 AM Page 23

3-24
Seat and safety features of your vehicle
Seat belt - Driver's 3-point systemwith emergency locking retractor
To fasten your seat belt:
To fasten your seat belt, pull it out of
the retractor and insert the metal tab
(1) into the buckle (2). There will be
an audible "click" when the tab locks
into the buckle.
The seat belt automatically adjusts to
the proper length only after the lap
belt portion is adjusted manually so
that it fits snugly around your hips. If
you lean forward in a slow, easy
motion, the belt will extend and let
you move around. If there is a sud-
den stop or impact, however, the belt
will lock into position. It will also lock if you try to lean for-
ward too quickly.
✽
NOTICE
If you are unable to pull out the seat
belt from the retractor, firmly pull
the belt out and release it. Then you
will be able to pull the belt out
smoothly.
Height adjustment
You can adjust the height of the
shoulder belt anchor to one of the 4
positions for maximum comfort and
safety.
The height of the adjusting seat belt
should not be too close to your neck.
The shoulder portion should be
adjusted so that it lies across your
chest and midway over your shoulder
nearest the door and not your neck.
To adjust the height of the seat belt
anchor, lower or raise the height
adjuster into an appropriate position.
OKH033113N
OKH033112N
KH USA 3:2018 4/18/2017 9:35 AM Page 24

Seat and safety features of your vehicle
3
3-25
To raise the height adjuster, pull it up
(1). To lower it, push it down (3) while
pressing the height adjuster button
(2).
Release the button to lock the
anchor into position. Try sliding the
height adjuster to make sure that it
has locked into position.
Improperly positioned seat belts can
cause serious injuries in an accident.You should place the lap belt portion
as low as possible and snugly across
your hips. If the lap belt is located too
high on your waist, it may increase
the chance of injury in the event of a
collision.
The arm closest to the seat belt
buckle should be over the belt while
the other arm should be under the
belt as shown in the illustration.Seat belts - Front passenger andrear seat 3-point system withcombination locking retractor
To fasten your seat belt
Combination retractor type seat belts
are installed in the rear seat posi-
tions to help accommodate the
installation of child restraint systems.
Although a combination retractor is
also installed in the front passenger
seat position, it is strongly recom-
mended that children always be
seated in the rear seat. NEVER
place an infant restraint system in
the front seat of the vehicle.
This type of seat belt combines the
features of both an emergency lock-
ing retractor seat belt and an auto-
matic locking retractor seat belt. To
fasten your seat belt, pull it out of the
retractor and insert the metal tab into
the buckle. There will be an audible
"click" when the tab locks into the
buckle. When not securing a child
restraint, the seat belt operates in the
same way as the driver's seat belt
(Emergency Locking Retractor
Type). It automatically adjusts to the
proper length only after the lap belt
portion of the seat belt is adjusted
OKH033114N
Shoulder belt positioning
Never position the shoulder belt
across your neck or face.
WARNING
Seat belt replacement
Replace your seat belts after
being in an accident. Failure to
replace seat belts after an acci-
dent could leave you with dam-
aged seat belts that will not pro-
vide protection in the event of
another collision.
WARNING
KH USA 3:2018 4/18/2017 9:35 AM Page 25

3-26
Seat and safety features of your vehicle

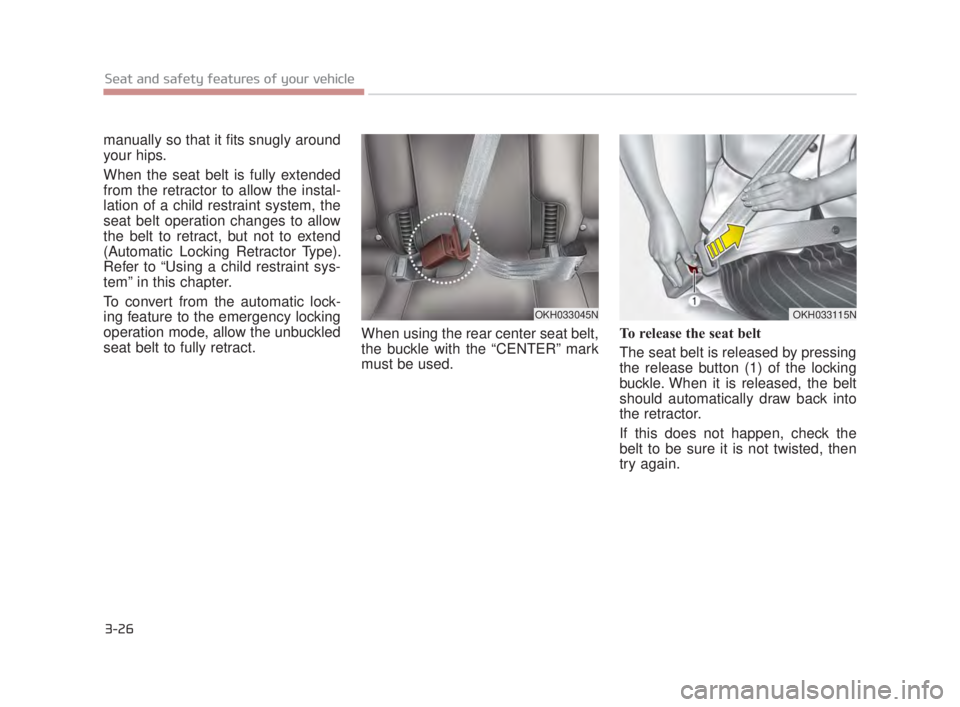

manually so that it fits snugly around
your hips.
When the seat belt is fully extended
from the retractor to allow the instal-
lation of a child restraint system, the
seat belt operation changes to allow
the belt to retract, but not to extend
(Automatic Locking Retractor Type).
Refer to “Using a child restraint sys-
tem” in this chapter.
To convert from the automatic lock-
ing feature to the emergency locking
operation mode, allow the unbuckled
seat belt to fully retract.When using the rear center seat belt,
the buckle with the “CENTER” mark
must be used.To release the seat belt
The seat belt is released by pressing
the release button (1) of the locking
buckle. When it is released, the belt
should automatically draw back into
the retractor.
If this does not happen, check the
belt to be sure it is not twisted, then
try again.
OKH033115NOKH033045N
KH USA 3:2018 4/18/2017 9:35 AM Page 26

Seat and safety features of your vehicle
3
3-27

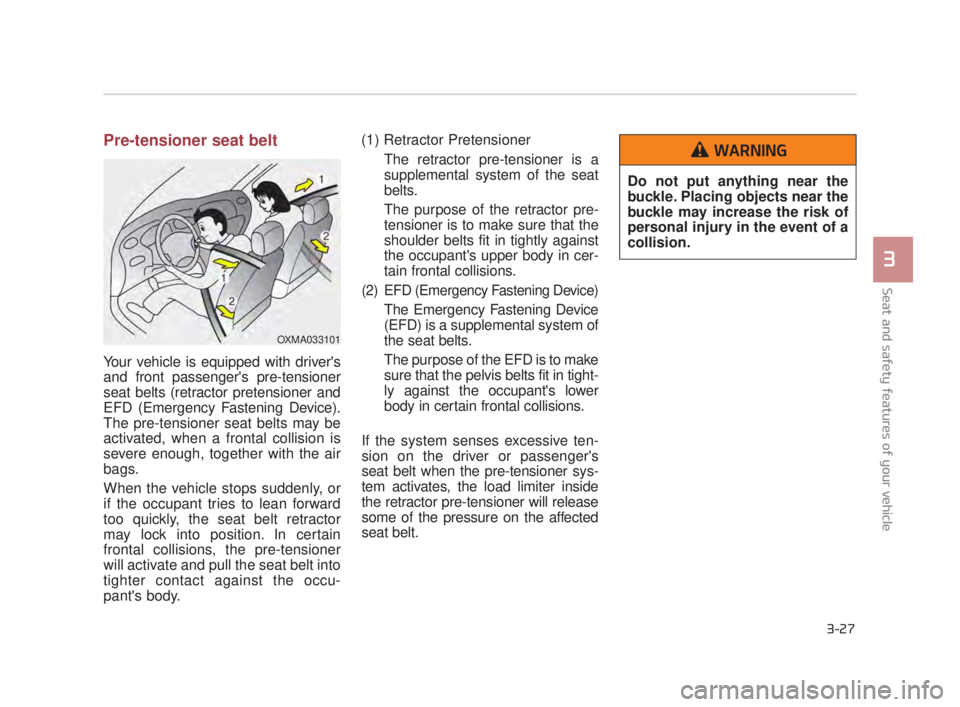

Pre-tensioner seat belt
Your vehicle is equipped with driver's
and front passenger's pre-tensioner
seat belts (retractor pretensioner and
EFD (Emergency Fastening Device).
The pre-tensioner seat belts may be
activated, when a frontal collision is
severe enough, together with the air
bags.
When the vehicle stops suddenly, or
if the occupant tries to lean forward
too quickly, the seat belt retractor
may lock into position. In certain
frontal collisions, the pre-tensioner
will activate and pull the seat belt into
tighter contact against the occu-
pant's body. (1) Retractor Pretensioner
The retractor pre-tensioner is a
supplemental system of the seat
belts.
The purpose of the retractor pre-
tensioner is to make sure that the
shoulder belts fit in tightly against
the occupant's upper body in cer-
tain frontal collisions.
(2) EFD (Emergency Fastening Device)
The Emergency Fastening Device
(EFD) is a supplemental system of
the seat belts.
The purpose of the EFD is to make
sure that the pelvis belts fit in tight-
ly against the occupant's lower
body in certain frontal collisions.
If the system senses excessive ten-
sion on the driver or passenger's
seat belt when the pre-tensioner sys-
tem activates, the load limiter inside
the retractor pre-tensioner will release
some of the pressure on the affected
seat belt.
Do not put anything near the
buckle. Placing objects near the
buckle may increase the risk of
personal injury in the event of a
collision.
WARNING
OXMA033101
KH USA 3:2018 4/18/2017 9:35 AM Page 27

3-28
Seat and safety features of your vehicle
The seat belt pre-tensioner system
consists mainly of the following com-
ponents. Their locations are shown
in the illustration:
1. SRS air bag warning light
2. Retractor pre-tensioner assembly
3. SRS control module
4. Emergency fastening device (EFD)To obtain maximum benefit from a
pre-tensioner seat belt:
1.The seat belt must be worn cor-
rectly and adjusted to the proper
position. Please read and follow all
of the important information and
precautions about your vehicle’s
occupant safety features – includ-
ing seat belts and air bags – that
are provided in this manual.
2.Be sure you and your passengers always wear seat belts properly.
✽ NOTICE
• Both the driver's and front pas-
senger's seat belt pre-tensioner
system may be activated not only
in certain frontal collision but also
in certain side collision or rollover,
if the vehicle is equipped with a
side or curtain air bag.
• When the pre-tensioner seat belts are activated, a loud noise may be
heard and fine dust, which may
appear to be smoke, may be visible
in the passenger compartment.
These are normal operating condi-
tions and are not hazardous.
• Because the sensor that activates the SRS air bag is connected with
the pre-tensioner seat belt, the
SRS air bag warning light on
the instrument panel will illumi-
nate for approximately 6 seconds
after the Engine Start/Stop button
has been turned to the ON posi-
tion, and then it should turn off.
ODMESA2024
Skin Irritation
Wash all exposed skin areas
thoroughly after an accident in
which the pre-tensioner seat
belts were activated. The fine
dust from the pre-tensioner
activation may cause skin irrita-
tion and should not be breathed
for prolonged periods.
WARNING
KH USA 3:2018 4/18/2017 9:35 AM Page 28

Seat and safety features of your vehicle
3
3-29
If the pre-tensioner seat belt system
are not working properly, this warn-
ing light will illuminate even if there is
no malfunction of the SRS air bag. If
the SRS air bag warning light does
not illuminate when the Engine
Start/Stop button is turned ON, or if it
remains illuminated after illuminating
for approximately 6 seconds, or if it
illuminates while the vehicle is being
driven, have an authorized author-
ized K900 Kia dealer inspect the pre-
tensioner seat belt and SRS air bag
system as soon as possible. Pre-tensioners are designed to
operate only one time. After activa-
tion, pre-tensioner seat belts must
be replaced. All seat belts, of any
type, should always be replaced
after they have been worn during a
collision.
Do not attempt to inspect or replace the pre-tensioner seat
belts yourself. This must be done
by an authorized K900 Kia dealer.
Do not strike the pre-tensioner seat belt assemblies.
Do not attempt to service or repair the pre-tensioner seat belt system
in any manner.Pre-active Seat belt (PSB)
(if equipped)
The pre-active seat belt activates
only when the passenger is wearing
his/her seatbelt. It will activate and
pull the seat belt into tighter contact
against the occupant's body if a colli-
sion is detected or during certain
driving maneuvers.
✽ NOTICE
The pre-active seat belt activates
only when the passenger is wearing
his/her seat belt.
OKH033116N
Hot Pre-tensioner
Do not touch the pre-tensioner
seat belt assemblies for several
minutes after they have been
activated. When the pre-tension-
er seat belt mechanism fires dur-
ing a collision the pretensioner
becomes hot and can burn you.
WARNING
KH USA 3:2018 4/18/2017 9:35 AM Page 29
