2018 KIA CADENZA Owners Manual

Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
Use only UNLEADED FUEL forgasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more).
Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia dealer.
Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter. Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Perchlorate Material-special handling
may apply, See www.dtsc.ca.gov/haz-
ardouswaste/ perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials,
such as air bag inflators, seatbelt
pretensioners and keyless remote
entry batteries, must be disposed of
according to Title 22 California Code
of Regulations Chapter 67384.10
(a).
CALIFORNIA
PERCHLORATE NOTICE
7100
Maintenance

Specifications, Consumer information and Reporting safety defects
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-4
Gross vehicle weight. . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Luggage volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-5
Recommended lubricants and capacities . . . . . . . . 8-6
• Recommended SAE viscosity number. . . . . . . . . . . . . 8-7
Vehicle identification number (VIN) . . . . . . . . . . . 8-8
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 8-8
Tire specification and pressure label . . . . . . . . . . . 8-9
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Consumer assistance (U.S. only) . . . . . . . . . . . . . . 8-10
• Toll free consumer assistance . . . . . . . . . . . . . . . . . . . 8-10
• Emergency roadside assistance . . . . . . . . . . . . . . . . . 8-10
• Trip interruption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
• Registering your vehicle in a foreign country . . . . . 8-12
Electrical Equipment (U.S. only) . . . . . . . . . . . . . 8-13
• Installation of a mobile two-way radio system . . . . . 8-13
Reporting Safety Defects (U.S. only) . . . . . . . . . . 8-14
Online factory authorized manuals (U.S. only) . . 8-14
• Service manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-14
• Electrical troubleshooting manual. . . . . . . . . . . . . . . 8-14
• Owner's manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-
14
8

Specifications, Consumer information, Reporting safety defects
28
DIMENSIONS
ENGINE
ITEMIn (mm)
Overall length 195.6 (4,970)
Overall width 73.6 (1,870)
Overall height 57.8 (1,470) (high suspension : 58.2 (1,480))
Front tread 245/45R18
63.2 (1,607)
245/40R19 63.0 (1,602)
Rear tread 245/45R18
63.5 (1,615)
245/40R19 63.3 (1,610)
Wheelbase 112.4 (2,855)
ItemGasoline Lambda II 3.3
Displacement cu. in (cc) 203.94 (3,342)
Bore x Stroke in. (mm)3.62 x 3.29 (92 x 83.8)
Firing order 1-2-3-4-5-6
No. of cylinders 6.V - type

83
Specifications, Consumer information, Reporting safety defects

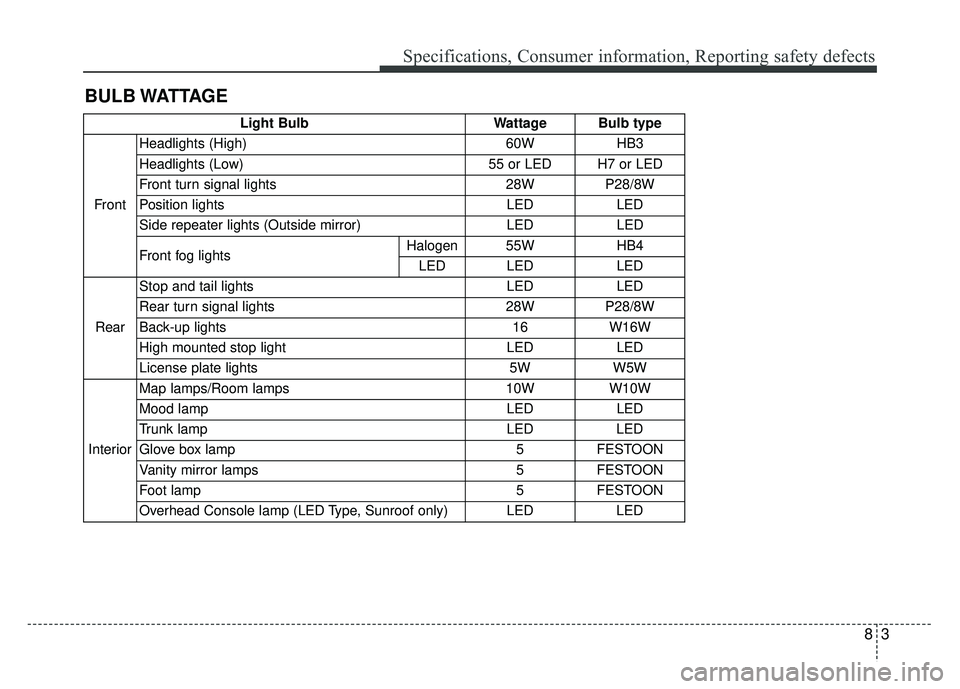

BULB WATTAGE
Light BulbWattage Bulb type
Front Headlights (High)
60WHB3
Headlights (Low) 55 or LED H7 or LED
Front turn signal lights 28WP28/8W
Position lights LEDLED
Side repeater lights (Outside mirror) LEDLED
Front fog lights Halogen 55W
HB4
LED LED LED
Rear Stop and tail lights
LEDLED
Rear turn signal lights 28WP28/8W
Back-up lights 16W16W
High mounted stop light LEDLED
License plate lights 5WW5W
Interior Map lamps/Room lamps
10WW10W
Mood lamp LEDLED
Trunk lamp LEDLED
Glove box lamp 5FESTOON
Vanity mirror lamps 5FESTOON
Foot lamp 5FESTOON
Overhead Console lamp (LED Type, Sunroof only) LED LED

Specifications, Consumer information, Reporting safety defects
48
TIRES AND WHEELS
*1: Load Index *2: Speed Symbol *3: Normal load : Up to 3 persons
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.Using tires of a different size can damage the related parts or make them work irregularly.
✽
✽ NOTICE
• It is permissible to add 3psi to the standard tire pressure specification if colder temperatures are expected soon.
Tires typically loose 1psi for every 12°F temperature drop. If extreme temperature variations are expected, re-
check your tire pressure as necessary to keep them properly inflated.
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that aff\
ects driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 1.5psi/km
Item Tire size Wheel
size Load Speed Inflation pressure [bar(psi, kPa)]
Wheel lug nut
torque Kgf·m (lb·ft, N·m)
Capacity Capacity Normal load *3Maximum load
LI *
1Kg SS *2Km/h Front Rear Front Rear
Full size tire 245/45
R18 7.5Jx18 96 710 V 240 2.3
(33, 230) 2.3
(33, 230) 2.3
(33, 230) 2.3
(33, 230)
11~13 (79 ~
94, 107 ~ 127)
245/40
R19 8.0Jx19 94 670 V 240 2.3
(33, 230) 2.3
(33, 230) 2.3
(33, 230) 2.3
(33, 230)
Compact
spare tire T135/80
D17 4.0Tx17 103 875 M 130 2.3
(33, 230) 2.3
(33, 230) 2.3
(33, 230) 2.3
(33, 230)

85
Specifications, Consumer information, Reporting safety defects

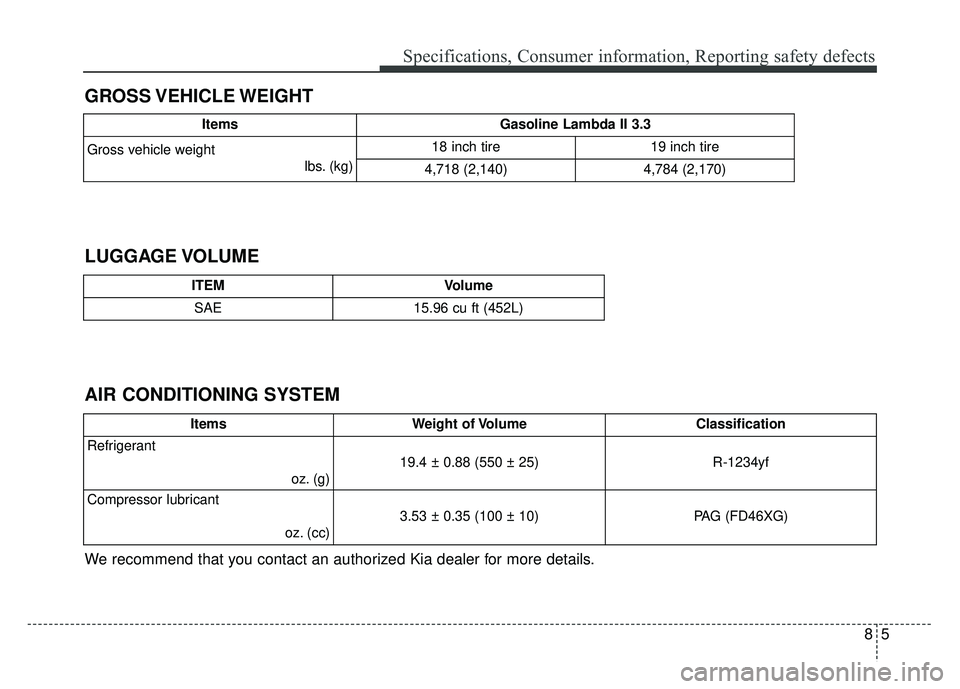

GROSS VEHICLE WEIGHT
AIR CONDITIONING SYSTEM LUGGAGE VOLUME
We recommend that you contact an authorized Kia dealer for more details.
ItemsGasoline Lambda II 3.3
Gross vehicle weightlbs. (kg)18 inch tire19 inch tire
4,718 (2,140)4,784 (2,170)
ITEMVolume
SAE15.96 cu ft (452L)
ItemsWeight of VolumeClassification
Refrigerant
oz. (g)
19.4 ± 0.88 (550 ± 25)R-1234yf
Compressor lubricantoz. (cc)
3.53 ± 0.35 (100 ± 10)PAG (FD46XG)

Specifications, Consumer information, Reporting safety defects
68
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3: If the API SM engine oil is not available, you can use API SN or above.
*4: If the ILSAC GF-4 engine oil is not available, you can use ILSAC GF-5 or above.
LubricantVolume Classification
Engine oil *1*2
(drain and refill)
Recommends
3.3L GDI6.86 US qt. (6.5 liter)API SM or above*3, ILSAC GF-4 or above*4,
ACEA-A5 or above
Automatic transmission
fluid 3.3L GDI
7.39 US qt. (7.0 liter)ATF SP-IV
(Recommended Kia genuine, Michang, SK, NOCA)
Coolant 3.3L GDI
8.98 US qt. (8.5 liter) Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)
Brake fluid
0.74 ~ 0.85 US qt. (0.7 ~ 0.8 liter) FMVSS116 DOT-3 or DOT-4
Fuel
18.5 US gal. (70l) Unleaded gasoline

87
Specifications, Consumer information, Reporting safety defects
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosity
engine oils can provide better fuel
economy and cold weather perform-
ance; however, higher viscosity
engine oils are required for satisfacto-
ry lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, con-
sider the range of temperature your
vehicle will be operated in before the
next oil change. Proceed to select the
recommended oil viscosity from the
chart.
Temperature Range for SAE Viscosity Numbers
TemperatureGasoline
Engine Oil *
1
(3.3 L)
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
20W-50
10W-30
15W-40
5W-30
An engine oil displaying this API Certification Mark con-
forms to the international Lubricant Specification
Advisory Committee (ILSAC). It is recommended to only
use engine oils that uphold this API Certification Mark.
