2018 JEEP RENEGADE display

Warning light What it means
AIRBAG FAILURE
If the warning light switches on constantly, this indicates a fault in the airbag system. The display
shows the dedicated message.
33)
SEAT BELTS NOT FASTENED
The warning light switches on constantly if the vehicle is stationary and the driver side or passenger
side seat belt, with the passenger seated, is not fastened. The warning light flashes and a buzzer will
sound if the vehicle is in motion and the driver side or passenger side seat belt, with the passenger
seated, is not correctly fastened.
In this case, fasten the seat belt.
WARNING
33)If thewarning light does not switch on when the ignition device is moved to MAR or if it stays on when driving (together with the
message on the display), there might be a fault in the restraint systems; in this case, the airbags or pretensioners may not deploy in the
event of an accident or, in a lower number of cases, they could deploy erroneously. Before continuing, contact a Jeep Dealership to have
the system immediately checked.
34)The fault of the
warning light is signalled by the switching on of theicon on the instrument panel. In this case, the warning light
may not indicate any faults with the restraint systems. Before continuing, contact a Jeep Dealership to have the system immediately
checked.
73
34)

Warning light What it means
ENGINE COOLANT TEMPERATURE TOO HIGH
The warning light (or the icon on the display) on some versions switches on when the engine is
overheated. The display shows the dedicated message.
When driving normally: stop the vehicle, switch off the engine and check that the water level in the
reservoir is not below the MIN mark. If it is, wait for the engine to cool down, then slowly and carefully
open the cap, top up with coolant and check that the level is between the MIN and MAX marks on the
reservoir. Also check visually for any fluid leaks. If, when restarting, the warning light switches on (or
the icon is displayed) again, contact a Jeep Dealership.
If the vehicle is used under demanding conditions(e.g. in high-performance driving): slow down and, if
the warning light stays on, stop the vehicle. Wait for 2 or 3 minutes with the engine running and
slightly accelerated to further favour the coolant circulation. Then stop the engine. Check the correct
coolant level as described above.
IMPORTANT Over demanding routes, it is advisable to keep the engine on and slightly accelerated for a
few minutes before switching it off.
74
KNOWING THE INSTRUMENT PANEL

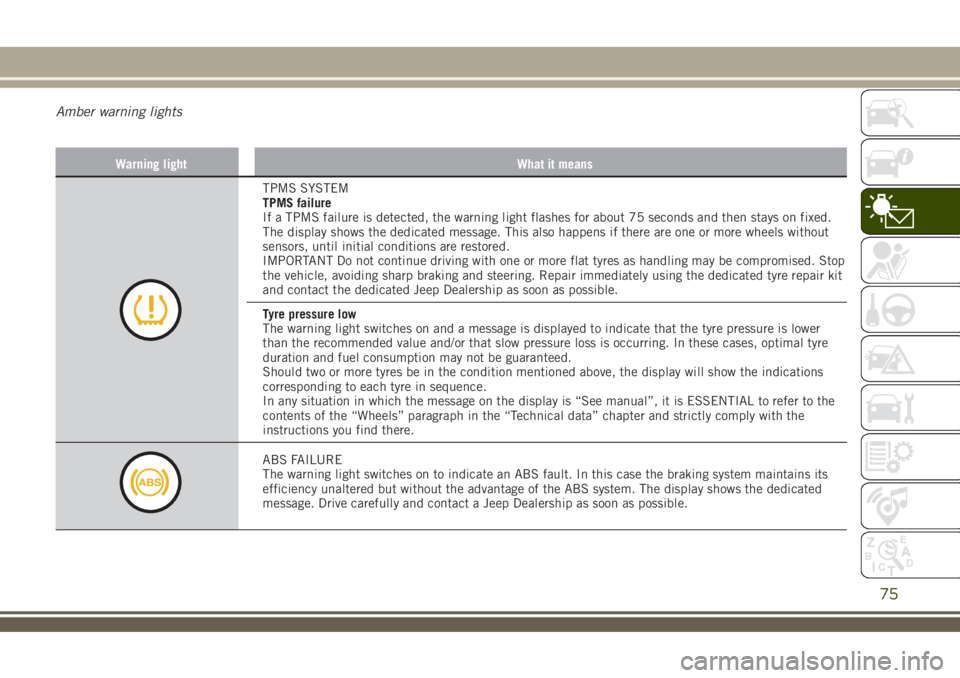

Amber warning lights
Warning light What it means
TPMS SYSTEM
TPMS failure
If a TPMS failure is detected, the warning light flashes for about 75 seconds and then stays on fixed.
The display shows the dedicated message. This also happens if there are one or more wheels without
sensors, until initial conditions are restored.
IMPORTANT Do not continue driving with one or more flat tyres as handling may be compromised. Stop
the vehicle, avoiding sharp braking and steering. Repair immediately using the dedicated tyre repair kit
and contact the dedicated Jeep Dealership as soon as possible.
Tyre pressure low
The warning light switches on and a message is displayed to indicate that the tyre pressure is lower
than the recommended value and/or that slow pressure loss is occurring. In these cases, optimal tyre
duration and fuel consumption may not be guaranteed.
Should two or more tyres be in the condition mentioned above, the display will show the indications
corresponding to each tyre in sequence.
In any situation in which the message on the display is “See manual”, it is ESSENTIAL to refer to the
contents of the “Wheels” paragraph in the “Technical data” chapter and strictly comply with the
instructions you find there.
ABS FAILURE
The warning light switches on to indicate an ABS fault. In this case the braking system maintains its
efficiency unaltered but without the advantage of the ABS system. The display shows the dedicated
message. Drive carefully and contact a Jeep Dealership as soon as possible.
75

Warning light What it means
ESC SYSTEM
ESC system activation
Intervention by the system is indicated by the flashing of the warning light: it indicates that the car is in
critical stability and grip conditions.
ESC system failure
If the warning light does not switch off, or if it stays on with the engine running, a failure was found on
the ESC system. Contact a Jeep Dealership as soon as possible.
Hill Start Assist failure
The warning light switches on and the display shows the dedicated message, informing about Hill Start
Assist system failure. Contact a Jeep Dealership as soon as possible.
PARTIAL / TOTAL DEACTIVATION OF ACTIVE SAFETY SYSTEMS
The warning light switches on to indicate that some active safety systems have been partially or totally
deactivated. When the systems are reactivated, the warning light switches off.
REAR FOG LIGHT
The warning light switches on when the rear fog light is activated.
76
KNOWING THE INSTRUMENT PANEL

Warning light What it means
ELECTRIC PARKING BRAKE FAILURE
The warning light switches on when electric parking brake failure is detected. The display shows the
dedicated message. Contact a Jeep Dealership as soon as possible.
35)
WARNING
35)If a failure is present with sharp braking, the rear wheels may lock and the vehicle may swerve.
77

Warning light What it means
INJECTION/EOBD SYSTEM FAILURE
If the warning light remains on, or it switches on whilst driving, the injection system is not working
properly.
The warning light on constantlysignals a malfunction in the supply/ignition system which could cause
high exhaust emissions, a possible loss of performance, poor driveability and high consumption.
On some versions, the display shows the dedicated message.
The warning light switches off if the malfunction disappears, but it is still stored by the system.
Under these conditions, the vehicle can continue travelling at moderate speed but without demanding
excessive effort from the engine or high speed. Prolonged use of the vehicle with the warning light on
constantly may cause damage.
Contact a Jeep Dealership as soon as possible.
If the warning light flashes, it means that the catalytic converter may be damaged. Release the
accelerator pedal to lower the speed of the engine until the warning light stops flashing.
Continue the journey at moderate speed, trying to avoid driving conditions that may cause further
flashing and contact a Jeep Dealership as soon as possible.
24)
IMPORTANT
24)If, turning the ignition device to MAR, the warning lightdoes not turn on or if it turns on steadily or flashing when travelling (on
some versions together with the message on the display), contact a Jeep Dealership as soon as possible.
78
KNOWING THE INSTRUMENT PANEL

Warning light What it means
FUEL RESERVE/LIMITED RANGE
This warning light (or the icon on the display) comes on when about 5 to 7 litres of fuel are left in the
tank. The display shows the dedicated message.
25)
GLOW PLUG PREHEATING FAILURE (Diesel versions)
The warning light will flash (a message will appear on the display, on some versions) to indicate a fault
in the glow plugs preheating system.
In this case, contact a Jeep Dealership as soon as possible.
79

Warning light What it means
LANESENSE SYSTEM
Versions with multifunction display
The warning light switches on as follows:
Warning light continuously on (white):the system is activated, but the lane limits were not detected (the
lane lines are grey).
Warning light on and flashing (amber):the vehicle has approached the lane line and is about to pass it.
Warning light switched on continuously (green):the system has detected the limits of both lanes. The
system will act on the steering wheel if the lane was passed unintentionally.
Versions with reconfigurable multifunction display
On versions equipped with reconfigurable multifunction display, the warning light shown at the side is
replaced with dedicated graphic icons, displayed in the upper left area of the display. These icons are
displayed according to the same logic described for versions equipped with multifunction display (see
previous description).
IMPORTANT
25)If the warning light (or the icon on the display) flashes whilst driving, contact a Jeep Dealership.
80
