2018 JEEP RENEGADE technical data

RIMS AND TYRES PROVIDED
194) 195)
Versions Wheels Tyres Snow tyres
1.4 T-Jet 120 HP LPG6.5J x 16 ET40 215/65 R16 98H 215/65 R16 98Q (M+S)
7J x 17 ET40 215/60 R17 96H 215/60 R17 96Q (M+S)
1.4 Turbo Multi Air6.5J x 16 ET40 215/65 R16 98H 215/65 R16 98Q (M+S)
7J x 17 ET40 215/60 R17 96H 215/60 R17 96Q (M+S)
7J x 18 ET 40 225/55 R18 98V 225/55 R18 98Q (M+S)
1.6 E.Torq6.5J x 16 ET40 215/65 R16 98H 215/65 R16 98Q (M+S)
7J x 17 ET40 215/60 R17 96H 215/60 R17 96Q (M+S)
7J x 18 ET 40 225/55 R18 98V 225/55 R18 98Q (M+S)
2.4 Tigershark
(*)
6.5J x 16 ET40 215/65 R16 98H 215/65 R16 98Q (M+S)
6.5J x 17 ET40
(**)215/60 R17 96H (M+S)(**)215/60 R17 96Q (M+S)
7J x 17 ET40 215/60 R17 96H 215/60 R17 96Q (M+S)
7J x 18 ET 40 225/55 R18 98V 225/55 R18 98Q (M+S)
(*) Where fitted
(**) Trailhawk versions
266
TECHNICAL DATA

COLD TYRE INFLATION PRESSURE
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck that
the value is correct with the tyre cold. With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
TyresUnladen/medium load Full load
Full size spare
wheel(*)Space saver
spare wheel
Front Rear Front Rear
215/65 R16 98H 2.4 2.2 2.4 2.4
2.4 4.2 215/60 R17 96H 2.4 2.2 2.4 2.4
225/55 R18 98V 2.4 2.2 2.4 2.4
(*) After using the spare wheel in an emergency, where necessary, align the pressure of the wheel to the recommended value as soon as
possible, with reference to the following table.
268
TECHNICAL DATA

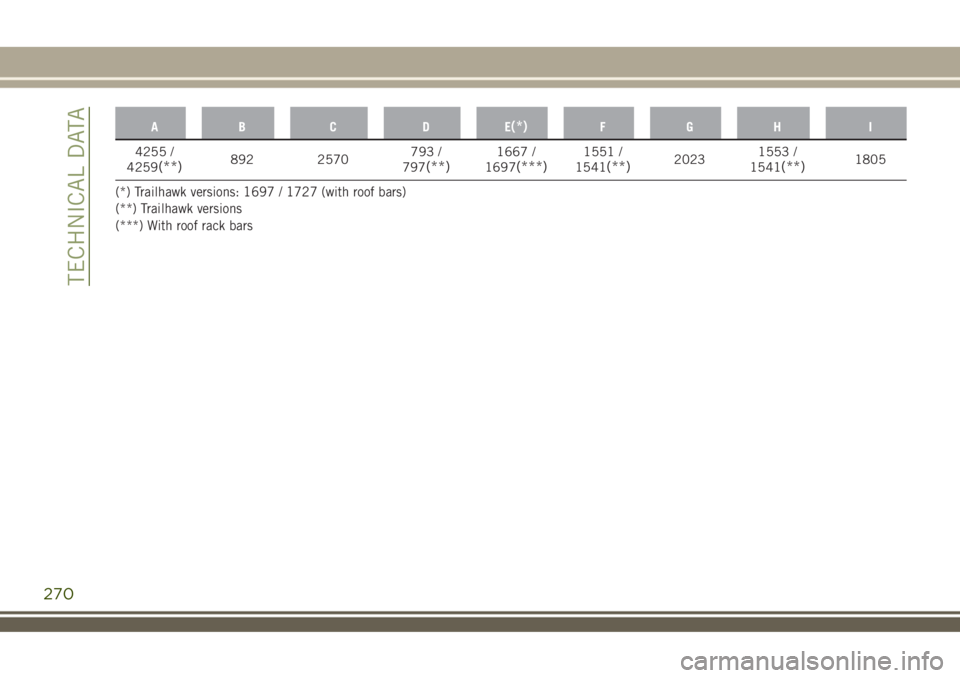

AB C DE(*)FGH I
4255 /
4259(**)892 2570793 /
797(**)1667 /
1697(***)1551 /
1541(**)20231553 /
1541(**)1805
(*) Trailhawk versions: 1697 / 1727 (with roof bars)
(**) Trailhawk versions
(***) With roof rack bars
270
TECHNICAL DATA

The wider the angle, the lower the chance to hit an obstacle with the body or chassis, climbing a steep slope or overcoming an
obstacle.
Front wheel drive (FWD) versions: 17.9°
Four-wheel drive (4WD) versions: 21°
Trailhawk versions with four wheel drive (4WD LOW): 30.5°
"Departure angle" (reference C)
The departure angle is determined by the same lines of the "Approach angle", and refers to the rear part of the car.
Front wheel drive (FWD) versions: 29.7°
Four-wheel drive (4WD) versions: 32.1°
Trailhawk versions with four wheel drive (4WD LOW): 34.3°
"Breakover angle" (reference D)
The value of the "Breakover angle" is linked to the ground clearance of the car and indicates the attitude of the car to overcome a
wedge, more or less steep, preventing the car from resting on the ground with the body or chassis after touching the wedge with its
lowest and most projecting parts (usually the underbody), because this would highly reduce wheel grip.
The wheels, without a suitable grip to the ground, will not have sufficient hold to move the car, and will surge.
The higher the ground clearance, the wider the breakover angle. Always bear in mind that the higher the ground clearance, the lower
the stability, due to a higher centre of gravity which reduces the side rollover angle.
Front wheel drive (FWD) versions: 21.2°
Four-wheel drive (4WD) versions: 24°
Trailhawk versions with four wheel drive (4WD LOW): 25.7°
272
TECHNICAL DATA

Weights (kg) 1.4 T-jet 120 HP Petrol/LPG1.4 Turbo Multi Air
136/140 HP1.4 Turbo MultiAir
170 HP(***)
Maximum load on the roof (versions
with roof rack bars)70 70 70
Maximum load on tow hitch (trailer
with brakes)60 60 60
(***) Versions with automatic transmission
WARNING Petrol/LPG versions: for some versions/markets, trailers cannot be towed so there are no provisions for fitting a tow hook.
274
TECHNICAL DATA

Weights (kg) 1.6 16V MultiJet
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1390 / 1415(**)
Payload including the driver(***)515
Maximum permitted loads
(****)1050
– front axle
– rear axle900
- total:
1905 / 1930
(**)
Towable loads
1000 / 900(**)– braked trailer
– trailer without brakes 400
Maximum load on the roof (versions
with roof rack bars)70
Maximum load on tow hitch (trailer
with brakes)60
(**) Automatic transmission versions with dual clutch
(***) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in
relation to the maximum permissible loads.
(****) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within the
maximum permitted loads.
276
TECHNICAL DATA

Weights (kg) 2.0 16V Multijet 120/140 HP 2.0 16V MultiJet 140/170 HP(*)
Maximum load on the roof (versions with roof
rack bars)70 70
Maximum load on tow hitch (trailer with
brakes)60 60
(*) Versions with automatic transmission
278
TECHNICAL DATA

1.4 T-jet 120 HP Petrol/LPG 1.4 Turbo Multi AirPrescribed fuels and original
lubricants
Gearbox/differential casing
(litres):2.0
2.0 / 2.1(**)/ 6.0(***)
TUTELA TRANSMISSION
GEARFORCE (versions with
manual transmission/dual
clutch automatic transmission)
/ TUTELA TRANSMISSION
AS8 (versions with automatic
transmission)
Hydraulic brakes circuit (kg): 0.83 0.83 TUTELA TOP 4/S
Windscreen and rear window
washer fluid reservoir (litres):2.5 2.5Mixture of water and liquid
PETRONAS DURANCE SC 35
(**) Automatic transmission versions with dual clutch
(***)Versions with automatic transmission
280
