2018 INFINITI QX80 display

Additional information about your vehicle is also available in your Owner’s Manual, InTouch™ Owner’s Manual and at www.InfinitiUSA.com.
Table of Contents
• A cellular telephone should not be used for any purpose while
driving so full attention may be
given to vehicle operation.
• Always wear your seat belt.• Supplemen tal air bags do not
replace proper seat belt usage.
• Children 12 and under
should always ride in the
rear seat properly secured
in child restraints or seat
belts according to their age
and weight.
• Do not drink and drive.
For more information, refer to the “Safety — Seats,
seat belts and supplemental restraint system (section
1)”, the “Display screen, heater and air conditioner,
and audio system (section 4)” and the “Starting and
driving (section 5)” of your Owner’s Manual.
PLEASE SEE YOUR OWNER’S MANUAL FOR IMPORTANT SAFETY INFORMATION AND SYSTEM OPERATION LIMITATIONS.
Cockpit Overview ........................................................................\
............ 1
Instrumen t Panel ........................................................................\
............ 3
Meters and Gauges
........................................................................\
....... 5
Cruise Control
........................................................................\
................. 7
Wiper and Washer Switch
................................................................... 8
Exterior Light Operation
...................................................................... 9
Parking Brake
........................................................................\
.................. 9
USB Connection Port
........................................................................\
.... 9
Infiniti Mobile Entertainment System (MES) (if so equipped)
....10
Navigation System
........................................................................\
....... 11
Clock Set/Adjustment
........................................................................\
12Voice Recognition........................................................................\
......... 12
Connecting your Cellular Phone or Device via Bluetooth® ........
13
Blue
tooth® Streaming Audio ............................................................. 13
Sun Visors

........................................................................\
....................... 14
Windows........................................................................\
......................... 14
Seat Adjustments
........................................................................\
......... 15
Head Restraint Adjustment
............................................................... 15
Fuel-filler Door


........................................................................\
.............. 16
Smart Rear View Mirror (if so equipped)........................................ 16
Infiniti InTouch™ Services (if so equipped)...................................... 17
3059068_18a_QX80_US_pQRG_101717.indd 410/17/17 1:14 PM

2
Cockpit Overview
1 Cruise control switch
2 Wiper and washer switch
3 Vehicle information display
4 Vehicle information display brightness switches/Trip odometer switch
5 Headlight/Turn signal/High Beam/Fog Light Switch
6 Navigation/Touch screen/Audio control switches
7 Bluetooth®/Voice Recognition system switches
3059068_18a_QX80_US_pQRG_101717.indd 210/17/17 1:14 PM

4
Instrument Panel
1 Multi-function touch-screen/RearView Monitor display/Around View® Monitor display
2 Infiniti multi-function controller
3 Audio system
4 Climate control panel
5 Shift lever
6 Lower center console switch panel
• 2nd row seat release buttons
• Climate-controlled seat switches (if so equipped)
• Front passenger air bag status light
7 Parking brake
8 Switch panel
• Power liftgate button
• Safety Shield OFF switch
• Blind Spo t/RCTA OFF switch (if so equipped)
• Power Liftgate ON/OFF switch
• Steering wheel heater
3059068_18a_QX80_US_pQRG_101717.indd 410/17/17 1:15 PM

6
Meters and Gauges
1 Engine coolant temperature gauge
2 Tachometer
3 Shift lever indicator
4 Vehicle information display
5 Speedometer
6 Fuel gauge
3059068_18a_QX80_US_pQRG_101717.indd 610/17/17 1:15 PM

7
4
3
2
1
5
6
Cruise Control
SETTING A CRUISING SPEED
• Press the CR UISE ON/OFF switch 1 to turn on the system.
• With the vehicle at the desired speed, push down the switch 2 to COAST/SET to
enable cruise control.
• The cruising speed c an be adjusted to a higher or lower speed by toggling the
control switch
2 up or down.
CANCELING THE PRESET SPEED
•


Push the CANCEL switch
3 or tap the brake pedal.
INTELLIGENT CRUISE CONTROL (ICC) (if so equipped)
The ICC system is designed to maintain a selected distance from the vehicle in front of
you and reduce the speed to match a slower vehicle ahead.
• To increase the distance to the vehicle ahead to be maintained by the ICC system, push the distance switch
4 until the display shows the desired set distance, which
is shown by the number of lines on the set distance indicator
5.
• When a vehicle is detected ahead, a car icon will illuminate on the vehicle ahead
detection indicator
6 and your vehicle will reduce the speed to match the
slower vehicle.
To use Conventional (fixed speed) Cruise Control mode (if so equipped):
• While cruise c ontrol is off, push and hold the CRUISE ON/OFF switch 1 for more
than 1.5 seconds. The CRUISE indicator light will illuminate.
• Accelerate to the desired speed.
• Push the swit ch 2 down toward COAST/SET and release it. The SET indicator
light will illuminate.
Please see your Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
CONVENTIONAL
CRUISE CONTROL
(if so equipped) INTELLIGENT CRUISE
CONTROL (ICC)
(if so equipped)

1
3
2
3059068_18a_QX80_US_pQRG_101717.indd 710/17/17 1:15 PM

9
Exterior Light Operation
6
7
3
4 5
1
2
1 Side lights, license plate lights and combination meter lighting
ON position
2 Headlight ON position
3 Automatic (AUTO) headlight mode ON position (headlights
switch on/off automatically depending on ambient light
conditions/daytime running light system)
4 OFF position
5 Front fog light switch
6 Push the headlight switch forward for the high beams.



F

or High Beam Auto-Dimming (Auto position):



• When the vehicle speed is less than 17 mph (27 km/h), the
headlight returns to low beam.



• To disable high beam auto-dimming, turn headlight switch
to Headlight ON position 2.
7 Pull the headligh t switch rearward to flash the high beams.
For normal headlight operation, leave the exterior light switch in the
AUTO position.
Please see your Owner’s Manual for important safety information, system limitations, and
additional operating and feature information.
To apply the parking brake, fully depress the parking brake pedal 1.
To release the parking brake:
• Firmly apply the foot brake 2.
• Depress the parking brake pedal 1 and the parking brake will
be released.
Please see your Owner’s Manual for important safety information, system limitations, and
additional operating and feature information.
Parking Brake
USB Connection Port
The USB port 1 is located on the
center console. Compatible audio and
video files stored on a USB device can
be played through the vehicle’s audio
system and front display.
Please see your InTouch™ Owner’s Manual for
important safety information, system limitations, and
additional operating and feature information.
2
1
1
3059068_18a_QX80_US_pQRG_101717.indd 910/17/17 1:16 PM

10
Infiniti Mobile Entertainment System (MES) (if so equipped)
With this entertainment system, you can play video files on
both the front and rear display screens.
Watching a DVD:
• Insert a DVD into the DVD slot 1 and the DVD will play
automatically. The front display will only work when the
vehicle is in park and the parking brake is engaged.
• Press the DISC button 2 on the control panel to bring
up the DVD menu and display settings.
Watching videos from a USB device:
• Connect your compatible device to the USB connection
port or AUX jacks located inside the tray in the center
console box.
• The source can be changed on the rear displays using the remote by pressing the HOME button
6 .

4 POWER – Turn display screen on and off

5 DISPLAY SELECT – Change display
c ontrols between right and left screen
6 HOME – Change video source
7 MENU – Change menu display

8 ENTER /Selection Buttons – Control and
select buttons
9 BACK – Previous menu button
10 SETUP – Bring up display menu
11 Video Controls – Play, stop, fast forward
and rewind buttons
12 Volume – Control audio level
REAR DISPLAYS
To turn the rear displays on and off from the
front seats:
1.

Pr
ess the AUDIO button

3 on the
control panel.
2. Select the “Rear Display” key on the display.
2
1
Please see your InTouch™ Owner’s Manual for important
safety information, system limitations, and additional
operating and feature information.
3 4
11
8
7 6
5
9
12
10
3059068_18a_QX80_US_pQRG_101717.indd 1010/17/17 1:16 PM

11

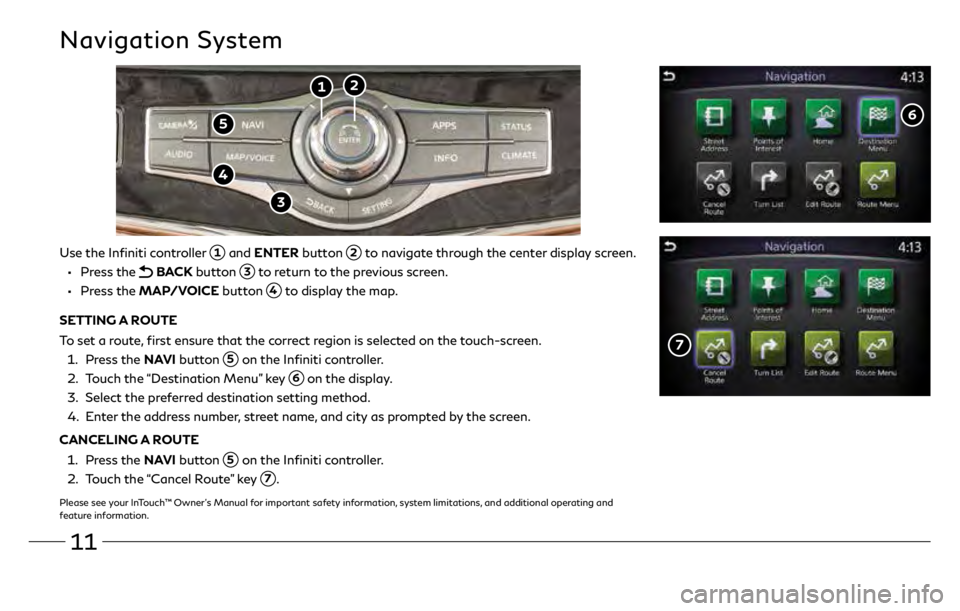

Navigation System
Use the Infiniti controller 1 and ENTER button 2 to navigate through the center display screen.
• Press the BACK button 3 to return to the previous screen.
• Press the MAP /VOICE button 4 to display the map.
SETTING A ROUTE
To set a route, first ensure that the correct region is selected on the touch-screen.
1.



Pr

ess the NAVI button
5 on the Infiniti controller.
2.



T

ouch the “Destination Menu” key
6 on the display.
3

.

Select the pr

eferred destination setting method.
4.



E

nter the address number, street name, and city as prompted by the screen.
CANCELING A ROUTE
1. Pr

ess the NAVI button
5 on the Infiniti controller.
2.



T

ouch the “Cancel Route” key
7.
Please see your InTouch™ Owner’s Manual for important safety information, system limitations, and additional operating and
feature information.
6
7
1 2
3
4
5
3059068_18a_QX80_US_pQRG_101717.indd 1110/17/17 1:16 PM
