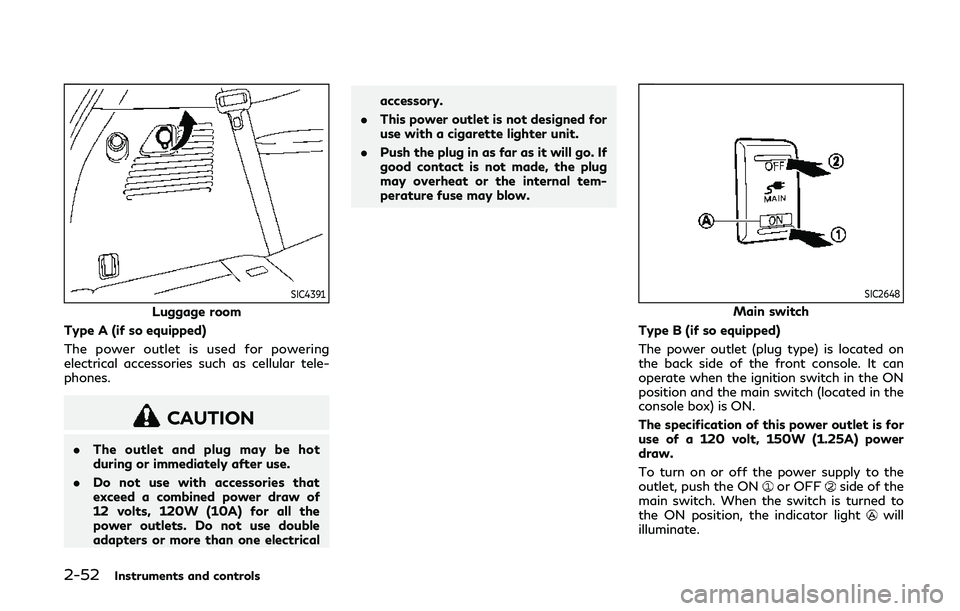

2-52Instruments and controls
SIC4391
Luggage room
Type A (if so equipped)
The power outlet is used for powering
electrical accessories such as cellular tele-
phones.
CAUTION
. The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a combined power draw of
12 volts, 120W (10A) for all the
power outlets. Do not use double
adapters or more than one electrical accessory.
. This power outlet is not designed for
use with a cigarette lighter unit.
. Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat or the internal tem-
perature fuse may blow.
SIC2648
Main switch
Type B (if so equipped)
The power outlet (plug type) is located on
the back side of the front console. It can
operate when the ignition switch in the ON
position and the main switch (located in the
console box) is ON.
The specification of this power outlet is for
use of a 120 volt, 150W (1.25A) power
draw.
To turn on or off the power supply to the
outlet, push the ON
or OFFside of the
main switch. When the switch is turned to
the ON position, the indicator light
will
illuminate.

JVI1638X
Power outlet
Pull up the cover and plug in.
After using the power outlet, be sure to turn
off the main switch.
CAUTION
. Do not use with accessories that
exceed a 120 volt, 150W (1.25A)
power draw.
. Use this power outlet with the engine
running. (If the engine is stopped, this
could result in a discharged battery.)
JVI1604X
USB (Universal Serial Bus) CHAR-
GING CONNECTOR
The USB connectorcan be used only for
charging an external device.
Open the cover to access the USB connec-
tor.
Connect a USB device into the connector.
Charging will start automatically (maximum
output up to 5 volt, 12W, 2.4A).
The external device will be charged continu-
ously while the ignition switch is in the ACC
or ON position.
Some mobile devices cannot be charged
depending on their specifications.
CAUTION
. Do not force a USB device into the
connector. Inserting the USB device
tilted or up-side-down into the con-
nector may damage the connector.
Make sure that the USB device is
connected correctly into the connec-
tor.
. Do not use a reversible USB cable.
Using the reversible USB cable may
damage the connector.
. Do not grab the USB connector cover
when pulling the USB device out of
the connector. This could damage the
connector and the cover.
Instruments and controls2-53

2-54Instruments and controls
CUP HOLDERS
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used to
prevent spilling the drink. If the liquid
is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
. Do not recline the rear seatback when
you use the cup holders on the rear
armrest. Doing so may cause the
beverages to spill over, and if they
are hot, they may scald the passen-
gers.
JVI1688X
Front
To open the cup holder, push the lid.
To close, lower the cup holder lid and push it
down lightly.
The cup holder is not designed to store
personal items.
SIC3118
Type A
2nd row seat
Type A:
To open the cup holder, push the lid
.
The flap will be folded down when inserting
a large container.
To close, lower the cup holder lid and push it
down lightly.
To clean the front cup holder, pull up the
inside tray
and remove it.
The cup holder is not designed to store
personal items.
STORAGE

SIC2915
Type B
Type B:
To open the cup holder, pull the lid.
SIC4419
3rd row seat
SIC4501
Soft bottle holder
CAUTION
. Do not use bottle holder for any other
objects that could be thrown about in
the vehicle and possibly injure people
during sudden braking or an accident.
. Do not use bottle holder for open
liquid containers.
Instruments and controls2-55

2-56Instruments and controls
SIC3246
SUNGLASSES HOLDER
To open the sunglasses holder, push.
WARNING
Keep the sunglasses holder closed while
driving to avoid obstructing the driver’s
view and to help prevent an accident.
CAUTION
.Do not use for anything other than
glasses. .
Do not leave glasses in the sunglasses
holder while parking in direct sun-
light. The heat may damage the
glasses.
SIC4393
GLOVE BOX
WARNING
Keep glove box lid closed while driving to
help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle
.
To close, push the lid in until the lock latches.
To lock
/unlockthe glove box, use the
mechanical key. For the mechanical key
usage, see “Keys” (P.3-2).

JVI1711X
CONSOLE BOX
Front
Type A (if so equipped):
To open the console box lid, push up the
knob
and pull up the lid.
To close, push the lid down until the lock
latches.
JVI1509X
Type B (if so equipped):
To open the console box lid from the front
seat, push up the knob
and pull up the lid.
To open the console box lid from the 2nd
row seat, push the knob
.
To close, push the lid down until the lock
latches.
Instruments and controls2-57

2-58Instruments and controls
SIC4422
Rear (if so equipped)
To open the lid, push the knob upand pull
up the lid.
To close, push the lid down until the lock
latches.
SIC4423
Pocket:
To open the pocket, pull the knob
.
To close, push the lid until the lock latches.
JVI1687X
TRAY
To open the tray, push the lid. To close,
push the lid down.

JVI1690X
To open the tray, push the lid. To close,
push the lid down.
SIC3505
COAT HOOKS
The coat hooks are equipped at the rear
assist grips.
CAUTION
Do not place items which are more than
2 lb (1 kg) on the hook.
SIC4446
LUGGAGE HOOKS
WARNING
. Always make sure that the cargo is
properly secured. Use the suitable
ropes and hooks.
. Unsecured cargo can become danger-
ous in an accident or sudden stop.
. Never allow anyone to ride in the
luggage area. It is extremely danger-
ous to ride in a cargo area inside of a
vehicle. In a collision, people riding in
these areas are more likely to be
seriously injured or killed.
Instruments and controls2-59
