2018 INFINITI QX60 sensor

1. Folding 3rd row bench (P. 1-2)
2. Folding 2nd row bench (P. 1-2)
3. Roof-mounted curtain side-impactand rollover supplemental air bag
(P. 1-47)
4. Head restraints (P.1-11)
5. Front seat belt with pretensioner(s)
and shoulder height adjuster
(P. 1-16, 1-47)
6. Supplemental front-impact air bags
(P.1-47)
7. Occupant classification sensor
(weight sensor) (P. 1-47)
8. Front seats (P. 1-2)
9. Front seat-mounted side-impact
supplemental air bag (P. 1-47)
10. LATCH (Lower Anchors and Tethers
for CHildren) (P. 1-26)
11. 2nd row seat top tether strap an-
chor (located on bottom of seatback)
(P. 1-26)
12. 3rd row bench seat top tether strap
anchor (located on bottom of seat-
back) (P. 1-26)
Refer to the page number indicated in paren-
theses for operating details.
LII2420
AIR BAGS, SEAT BELTS AND CHILD
RESTRAINTS
0-2Illustrated table of contents

1. Engine hood (P. 3-22)
2. Wiper and washer switch (P. 2-35)
3. Windshield (P. 8-21)
4. Power windows (P. 2-63)
5. Door locks (P. 3-4)INFINITI Intelligent Key (P. 3-7)
Keys (P. 3-2)
6. Mirrors (P. 3-33) Side view camera (P. 4-3)
7. Tire pressure (P. 8-31) Flat tire (P. 6-3)
Tire chains (P. 8-31)
8. Replacing bulbs (P. 8-28) Headlight and turn signal switch
(P. 2-39)
Daytime running lights system
(P. 2-39)
9. Fog light switch (P. 2-39)
10. Front sonar sensors (P. 5-146)
11. Front camera (P. 4-3)
Refer to the page number indicated in paren-
theses for operating details.
LII2497
EXTERIOR FRONT
Illustrated table of contents0-3

1. Rear wiper and washer switch(P. 2-35)
2. Liftgate release (P. 3-23) Rearview camera (P.4-3)
3. Rear sonar sensors (P. 5-146)
4 Replacing bulbs (P. 8-28)
5. Fuel-filler cap (P. 3-29) Fuel information (P. 9-2)
Fuel-filler door (P. 3-29)
6. Child safety rear door lock (P. 3-4)
Refer to the page number indicated in paren-
theses for operating details.
LII2418
EXTERIOR REAR
0-4Illustrated table of contents

∙ The driver and front passenger seat beltbuckles are equipped with sensors that
detect if the seat belts are fastened. The
INFINITI Advanced Air Bag System
monitors the severity of a collision and
seat belt usage then inflates the air bags
as needed. Failure to properly wear seat
belts can increase the risk or severity of
injury in an accident.
∙ The front passenger seat is equipped with an occupant classification sensor
(weight sensor) that turns the front pas-
senger air bag OFF under some condi-
tions. This sensor is only used in this seat.
Failure to be properly seated and wear-
ing the seat belt can increase the risk or
severity of injury in an accident. For addi-
tional information, refer to “Front pas-
senger air bag and status light” in this
section.
∙ Keep hands on the outside of the steering wheel. Placing them inside the steering
wheel rim could increase the risk that
they are injured when the front air bag
inflates.
ARS1133
Safety—Seats, seat belts and supplemental restraint system1-49

INFINITI Advanced Air Bag System
(front seats)
1. Roof-mounted curtain side-impact androllover supplemental air bag inflators
2. Roof-mounted curtain side-impact and rollover supplemental air bags
3. Air bag Control Unit (ACU)
4. Pressure sensors in door (driver’s side shown; front passenger side similar)
5. Supplemental front-impact air bag modules
6. Crash zone sensor
7. Occupant classification system control unit
8. Occupant classification sensor (weight sensor – located on
passenger seat frame)
9. Seat belt with pretensioner(s) (front seats)
10. Satellite sensors
11. Front seat-mounted side-impact supplemental air bag modules
LRS2534
1-54Safety—Seats, seat belts and supplemental restraint system

WARNING
To ensure proper operation of the passen-
ger’s INFINITI Advanced Air Bag System,
please observe the following items.
∙ Do not allow a passenger in the rear seatto push or pull on the seatback pocket.
∙ Do not place heavy loads heavier than 9.1 lbs. (4 kg) on the seatback, head re-
straint or in the seatback pocket.
∙ Make sure that there is nothing pressing against the rear of the seatback, such as a
child restraint installed in the rear seat or
an object stored on the floor.
∙ Make sure that there is no object placed under the front passenger seat.
∙ Make sure that there is no object placed between the seat cushion and the center
console or between the seat cushion and
the door. ∙ If a forward-facing child restraint is in-
stalled in the front passenger seat, do not
position the front passenger seat so the
child restraint contacts the instrument
panel. If the child restraint does contact
the instrument panel, the system may de-
termine the seat is occupied and the pas-
senger air bag may deploy in a collision.
Also the front passenger air bag status
light may not illuminate. For additional
information about installing and using
child restraints, refer to “Child re-
straints” in this section.
∙ Confirm the operating condition with the front passenger air bag status light.
∙ If you notice that the front passenger air bag status light is not operating as de-
scribed in this section, get the occupant
classification system checked. It is rec-
ommended that you visit an INFINITI re-
tailer for this service.
∙ Until you have confirmed with a retailer that your passenger seat occupant clas-
sification system is working properly, po-
sition the occupants in the rear seating
positions. ∙ Do not position the front passenger seat
so it contacts the rear seat. If the front
seat does contact the rear seat, the air
bag system may determine a sensor mal-
function has occurred and the front pas-
senger air bag status light may illuminate
and the supplemental air bag warning
light may flash.
This vehicle is equipped with the INFINITI
Advanced Air Bag System for the driver and
front passenger seats. This system is de-
signed to meet certification requirements un-
der U.S. regulations. It is also permitted in
Canada. All of the information, cautions and
warnings in this manual still apply and must
be followed.
The driver supplemental front-impact air bag
is located in the center of the steering wheel.
The front passenger supplemental front-
impact air bag is mounted in the dashboard
above the glove box. The front air bags are
designed to inflate in higher severity frontal
collisions, although they may inflate if the
forces in another type of collision are similar
to those of a higher severity frontal impact.
They may not inflate in certain frontal colli-
sions. Vehicle damage (or lack of it) is not
always an indication of proper front air bag
system operation.
Safety—Seats, seat belts and supplemental restraint system1-55

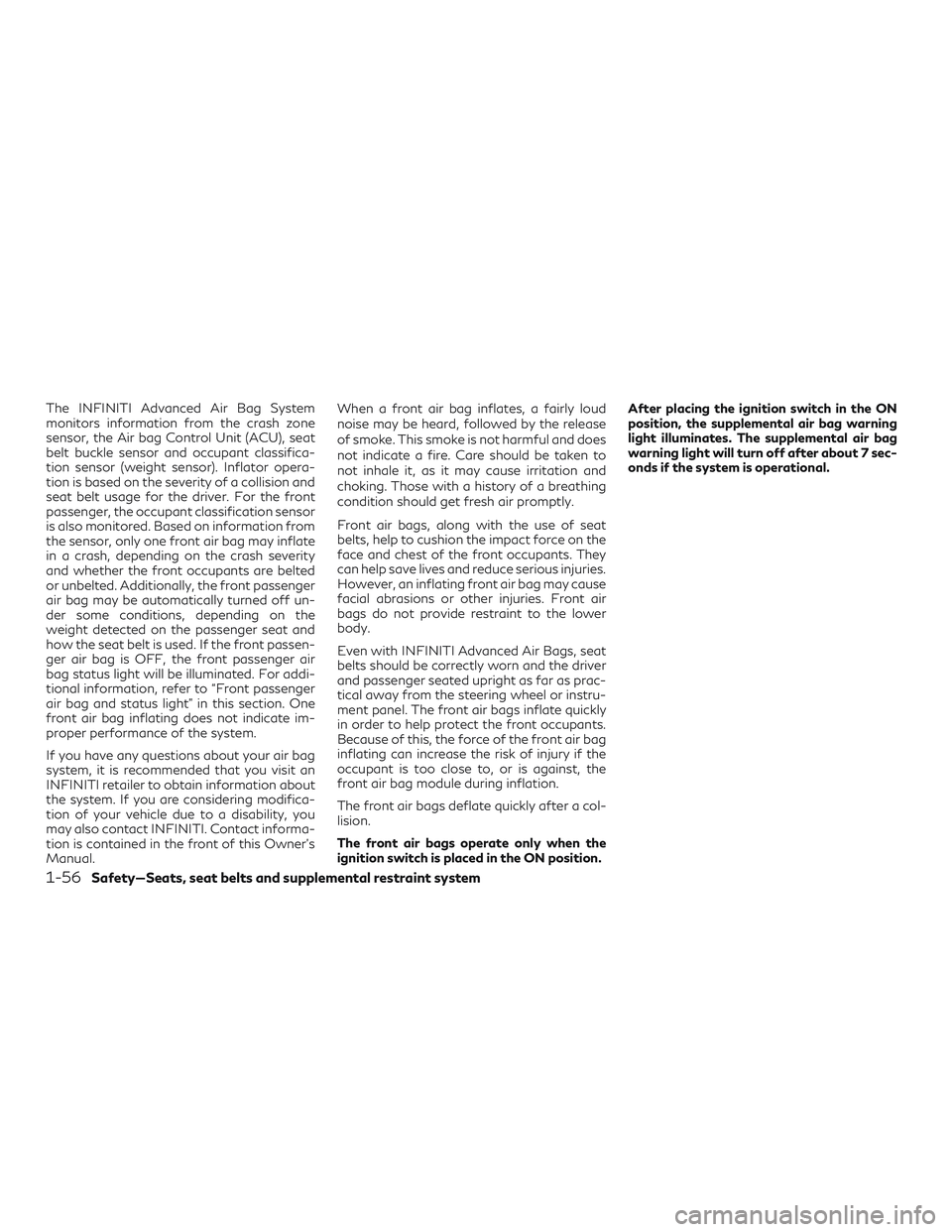

The INFINITI Advanced Air Bag System
monitors information from the crash zone
sensor, the Air bag Control Unit (ACU), seat
belt buckle sensor and occupant classifica-
tion sensor (weight sensor). Inflator opera-
tion is based on the severity of a collision and
seat belt usage for the driver. For the front
passenger, the occupant classification sensor
is also monitored. Based on information from
the sensor, only one front air bag may inflate
in a crash, depending on the crash severity
and whether the front occupants are belted
or unbelted. Additionally, the front passenger
air bag may be automatically turned off un-
der some conditions, depending on the
weight detected on the passenger seat and
how the seat belt is used. If the front passen-
ger air bag is OFF, the front passenger air
bag status light will be illuminated. For addi-
tional information, refer to “Front passenger
air bag and status light” in this section. One
front air bag inflating does not indicate im-
proper performance of the system.
If you have any questions about your air bag
system, it is recommended that you visit an
INFINITI retailer to obtain information about
the system. If you are considering modifica-
tion of your vehicle due to a disability, you
may also contact INFINITI. Contact informa-
tion is contained in the front of this Owner’s
Manual.When a front air bag inflates, a fairly loud
noise may be heard, followed by the release
of smoke. This smoke is not harmful and does
not indicate a fire. Care should be taken to
not inhale it, as it may cause irritation and
choking. Those with a history of a breathing
condition should get fresh air promptly.
Front air bags, along with the use of seat
belts, help to cushion the impact force on the
face and chest of the front occupants. They
can help save lives and reduce serious injuries.
However, an inflating front air bag may cause
facial abrasions or other injuries. Front air
bags do not provide restraint to the lower
body.
Even with INFINITI Advanced Air Bags, seat
belts should be correctly worn and the driver
and passenger seated upright as far as prac-
tical away from the steering wheel or instru-
ment panel. The front air bags inflate quickly
in order to help protect the front occupants.
Because of this, the force of the front air bag
inflating can increase the risk of injury if the
occupant is too close to, or is against, the
front air bag module during inflation.
The front air bags deflate quickly after a col-
lision.
The front air bags operate only when the
ignition switch is placed in the ON position.
After placing the ignition switch in the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7 sec-
onds if the system is operational.
1-56Safety—Seats, seat belts and supplemental restraint system

Front passenger air bag and status light
WARNING
The front passenger air bag is designed to
automatically turn OFF under some condi-
tions. Read this section carefully to learn
how it operates. Proper use of the seat,
seat belt and child restraints is necessary
for most effective protection. Failure to
follow all instructions in this manual con-
cerning the use of seats, seat belts and child
restraints can increase the risk or severity
of injury in an accident.Status light
The front passenger seat is equipped with an
occupant classification sensor (weight sen-
sor) that turns the front passenger air bag on
or off depending on the weight applied to the
front passenger seat. The status of the front
passenger air bag (ON or OFF) is indicated by
the front passenger air bag status light
which is located on the instrument panel.
After the ignition switch is placed in the "ON"
position, the front passenger air bag status
light on the instrument panel illuminates for
about 7 seconds and then turns off or re-
mains illuminated depending on the front
passenger seat occupied status.
The light operates as follows:
CONDITION DESCRIPTION PASSENGER AIR BAG
INDICATOR LIGHT () FRONT PASSENGER AIR BAG STATUS
Empty Empty front passenger seat ON (illuminated) INHIBITED
Nobody/Somebody Bag or Child or Child Restraint or
Small Adult in front passenger seat ON (illuminated)
INHIBITED
Adult Adult in the front passenger seat OFF (dark) ACTIVATED
In addition to the above, certain objects
placed on the front passenger seat may also
cause the light to operate as described above
depending on their weight.For additional information, refer to “Normal
operation” and “Troubleshooting” in this sec-
tion.
LRS0865
Safety—Seats, seat belts and supplemental restraint system1-57
