2018 INFINITI QX60 engine

∙ Do not use double adapters or more thanone electrical accessory.
∙ Use power outlets with the engine run- ning to avoid discharging the vehicle
battery.
∙ Avoid using power outlets when the air conditioner, headlights or rear window
defogger is on.
∙ Before inserting or disconnecting a plug, be sure the electrical accessory being
used is turned off. ∙ Push the plug in as far as it will go. If good
contact is not made, the plug may over-
heat or the internal temperature fuse
may open.
∙ When not in use, be sure to close the cap. Do not allow water or any other liquid to
contact the outlet.120V OUTLET (if so equipped)
CAUTION
∙ The outlet and plug may be hot during orimmediately after use.
∙ Use power outlets with the engine run- ning to avoid discharging the vehicle
battery.
∙ Do not use accessories that exceed a 120V, 150W power draw. Do not use
double adaptors or more than one elec-
trical accessory.
Cargo Area
LIC2236
2nd Row
LIC2215
Instruments and controls2-53

∙ Avoid using power outlets when the airconditioner, headlights or rear window
defogger is on.
∙ Before inserting or disconnecting a plug, be sure the electrical accessory being
used is turned off.
∙ Push the plug in as far as it will go. If good contact is not made, the plug may over-
heat or the internal temperature fuse
may open.
∙ When not in use, be sure to close the cap. Do not allow water or any other liquid to
contact the outlet.
This power outlet can be used with an acces-
sory cigarette lighter element. It is recom-
mended that you visit an INFINITI retailer for
additional information.
This power outlet can also be used for pow-
ering electrical accessories such as cellular
telephones.
The cup holder type ashtrays are for use in
the 1st and 2nd row cup holders only.
CAUTION
∙ The cigarette lighter should not be usedwhile driving so full attention may be
given to vehicle operation. ∙ The outlet and plug may be hot during or
immediately after use.
∙ Do not use any other power outlet for an accessory lighter.
∙ Do not use with accessories that exceed a 12 volt, 120W (10A) power draw. Do not
use double adapters or more than one
electrical accessory.
∙ Use power outlets with the engine run- ning to avoid discharging the vehicle
battery.
∙ Avoid using power outlets when the air conditioner, headlights or rear window
defogger is on.
∙ Before inserting or disconnecting a plug, be sure the electrical accessory being
used is turned OFF.
∙ Push the plug in as far as it will go. If good contact is not made, the plug may over-
heat or the internal temperature fuse
may open.
∙ When not in use, be sure to close the cap. Do not allow water or any other liquids to
contact the outlet.
LIC3362
CIGARETTE LIGHTER (if so equipped)
2-54Instruments and controls

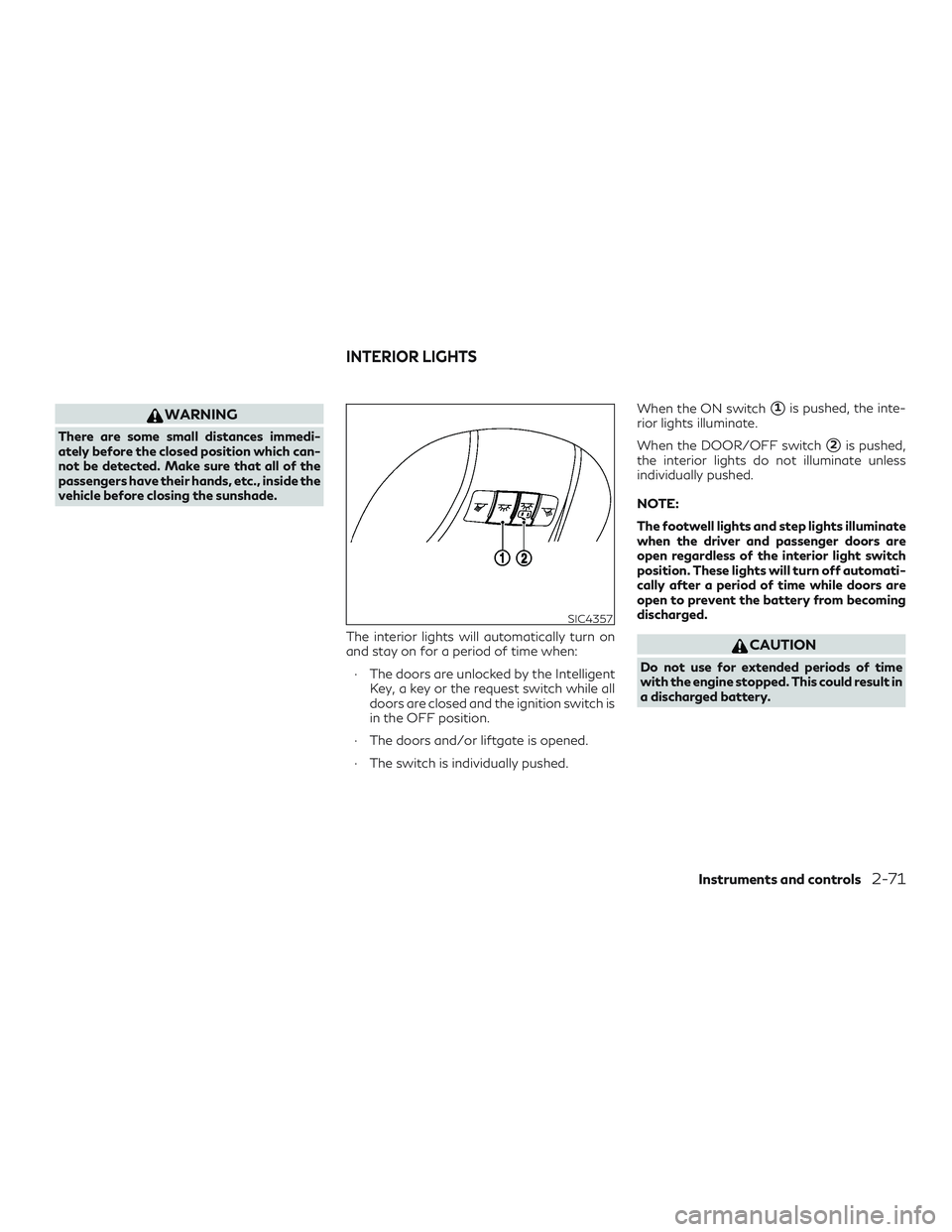

WARNING
There are some small distances immedi-
ately before the closed position which can-
not be detected. Make sure that all of the
passengers have their hands, etc., inside the
vehicle before closing the sunshade.The interior lights will automatically turn on
and stay on for a period of time when:∙ The doors are unlocked by the Intelligent Key, a key or the request switch while all
doors are closed and the ignition switch is
in the OFF position.
∙ The doors and/or liftgate is opened.
∙ The switch is individually pushed. When the ON switch
1is pushed, the inte-
rior lights illuminate.
When the DOOR/OFF switch
2is pushed,
the interior lights do not illuminate unless
individually pushed.
NOTE:
The footwell lights and step lights illuminate
when the driver and passenger doors are
open regardless of the interior light switch
position. These lights will turn off automati-
cally after a period of time while doors are
open to prevent the battery from becoming
discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result in
a discharged battery.
SIC4357
INTERIOR LIGHTS
Instruments and controls2-71

CONSOLE LIGHT
The console light1will turn on whenever
the parking lights or headlights are illumi-
nated.
The console light brightness can be adjusted
with the illumination brightness control in the
vehicle information display.
MAP LIGHTS
To turn the map lights on, push the switches.
To turn them off, push the switches again.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result in
a discharged battery.
PERSONAL LIGHTS
To turn the rear personal lights on, press the
switch. To turn them off, press the switch
again.
LIC2213SIC4356Rear personal lights
LIC1083
2-72Instruments and controls

CARGO LIGHT
The cargo light on the overhead trim has a
three-position switch. To operate, push the
switch to the desired position.
1ON: The light is illuminated.
2DOOR: The light illuminates when the
liftgate is opened. The light turns off
when the liftgate is closed.
3OFF: The light does not illuminate re-
gardless of liftgate position or lock sta-
tus.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result in
a discharged battery. The HomeLink® Universal Transceiver pro-
vides a convenient way to consolidate the
functions of up to three individual hand-held
transmitters into one built-in device.
HomeLink® Universal Transceiver:
∙ Will operate most radio frequency de- vices such as garage doors, gates, home
and office lighting, entry door locks and
security systems.
∙ Is powered by your vehicle’s battery. No separate batteries are required. If the ve-
hicle’s battery is discharged or is discon-
nected, HomeLink® will retain all pro-
gramming.
When the HomeLink® Universal Transceiver
is programmed, retain the original transmit-
ter for future programming procedures (Ex-
ample: new vehicle purchases). Upon sale of
the vehicle, the programmed HomeLink®
Universal Transceiver buttons should be
erased for security purposes. For additional
information, refer to “Programming
HomeLink®” in this section.
SIC2063A
HOMELINK® UNIVERSAL
TRANSCEIVER (if so equipped)
Instruments and controls2-73

WARNING
∙ Do not use the HomeLink® UniversalTransceiver with any garage door opener
that lacks safety stop and reverse fea-
tures as required by federal safety stan-
dards. (These standards became effec-
tive for opener models manufactured
after April 1, 1982). A garage door
opener which cannot detect an object in
the path of a closing garage door and
then automatically stop and reverse,
does not meet current federal safety
standards. Using a garage door opener
without these features increases the risk
of serious injury or death.
∙ During the programming procedure your garage door or security gate will open
and close (if the transmitter is within
range). Make sure that people or objects
are clear of the garage door, gate, etc.
that you are programming.
∙ Your vehicle’s engine should be turned off while programming the HomeLink® Uni-
versal Transceiver. Do not breathe ex-
haust gases; they contain colorless and
odorless carbon monoxide. Carbon mon-
oxide is dangerous. It can cause uncon-
sciousness or death.
PROGRAMMING HOMELINK®
If you have any questions or are having diffi-
culty programming your HomeLink® but-
tons, refer to the HomeLink® web site at:
www.homelink.com or call 1-800-355-
3515.
NOTE:
Place the ignition switch in the ACC position
when programming HomeLink®. It is also
recommended that a new battery be placed
in the hand-held transmitter of the device
being programmed to HomeLink® for
quicker programming and accurate trans-
mission of the radio frequency. 1. Position the end of your hand-held
transmitter 1–3 in (2–8 cm) away from
the HomeLink® surface, keeping the
HomeLink® indicator light
1in view.
LIC2365
2-74Instruments and controls

3 Pre-driving checks and adjustments
Keys.............................................3-2
INFINITI Intelligent Key ........................3-2
INFINITI Vehicle Immobilizer System
keys ..........................................3-4
Doors ............................................3-4
Locking with key ..............................3-5
Locking with inside lock knob — Type A
(if so equipped) ................................3-5
Locking with inside lock knob — Type B
(if so equipped) ................................3-5
Locking with power door lock switch ...........3-6
Automatic door locks ..........................3-6
Child safety rear door lock .....................3-6
INFINITI Intelligent Key System ...................3-7
Operating range ..............................3-8
Door locks/unlocks precaution .................3-9
INFINITI Intelligent Key operation ............3-10
How to use the remote keyless entry
function .................................... 3-14
Warning signals .............................. 3-17
Troubleshooting guide ........................ 3-17
Remote Engine Start (if so equipped) ............3-20
Remote Engine Start operating range ........3-20
Remote starting the vehicle ..................3-20Extending engine run time
...................3-21
Canceling a Remote Engine Start ............3-21
Conditions the Remote Engine Start will
not work .................................... 3-21
Hood .......................................... 3-22
Liftgate ........................................ 3-23
Operating the power liftgate ................3-23
Motion-Activated Liftgate (if so
equipped) ................................... 3-26
Power liftgate main switch (if so
equipped) ................................... 3-28
Liftgate release ............................. 3-28
Liftgate position setting .....................3-29
Fuel-filler door ................................. 3-29
Opening the fuel-filler door ..................3-29
Fuel-filler cap ............................... 3-30
Steering wheel ................................. 3-31
Tilt and telescopic operation .................3-31
Sun visors ...................................... 3-32
Vanity

mirrors ............................... 3-33
Mirrors ........................................ 3-33
Automatic anti-glare rearview mirror .........3-33
Outside mirrors ............................. 3-35
Automatic drive positioner ......................3-37

SymptomPossible CauseRemedy
When stopping the engine The Shift to Park warning appears on
the display and the inside warning chime
sounds continuously. The shift lever is not in the P (Park)
position.Move the shift lever to the P (Park)
position.
When shifting the shift lever to the
P (Park) position The Push ignition to OFF warning
appears in the display. The ignition switch is in the ACC or
ON position.Place the ignition switch in the OFF
position.
When opening the driver’s door to get
out of the vehicle The Door Open warning appears on the
display and the inside warning chime
sounds continuously. The ignition switch is in the ACC or
ON position.
Place the ignition switch in the OFF
position.
When closing the door after getting out
of the vehicle The No Key Detected warning appears
on the display, the outside chime sounds
three times and the inside warning
chime sounds for approximately
3 seconds.
The ignition switch is in the ACC or
ON position.
Place the ignition switch in the OFF
position.
The Rear Door Alert warning message
appears on the display, the horn sounds
three times twice, or a Check Back Seat
For All Articles warning appears on the
display. The rear door alert is activated.
Check the back seat for all articles,
press the ENTER button to clear the
Rear Door Alert warning message.
The Shift to Park warning appears on
the display and the outside chime
sounds continuously. The ignition switch is in the ACC
position and the shift lever is not in the
P (Park) position.Move the shift lever to the P (Park)
position and place the ignition switch
in the OFF position.
When closing the door with the inside
lock knob turned to LOCK The outside chime sounds for approxi-
mately 3 seconds and all the doors
unlock.
The Intelligent Key is inside the vehicle. Carry the Intelligent Key with you.
3-18Pre-driving checks and adjustments
