2018 INFINITI QX30 rear view mirror

Adjusting
The outside rear view mirror remote control
will operate only when the ignition switch is in
the ACC or ON position.
1. Move the switch to select the left
1or
right mirror
2.
2. Adjust each mirror to the desired position using the large switch
3.
Defogging
The exterior rear view mirrors will be heated
when the rear window defogger switch is
operated.
WARNING
•Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
•Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.
Folding
Manual type (if equipped):
Fold the outside rear-view mirror by pushing
it towards the rear of the vehicle.
Remote control type (if equipped):
The exterior rear view mirror remote control
operates when the ignition switch is in the
ACC or ON position.
Briefly press button
1. Both exterior mirrors
fold in or out.
Power folding outside mirrors (if so
equipped)
CAUTION
•Do not touch the mirrors while they are
moving. Your hand may be pinched, and
the mirror may malfunction.
•Do not drive with the mirrors stored.
You will be unable to see behind the
vehicle.
The exterior rear-view mirrors automatically
unfold when the ignition is switched on or
when the vehicle doors are unlocked. Use the
[Fold Mirrors in when Locking] option under
the [CONVENIENCE] menu of the Vehicle
NIC2636NIC2638
Pre-driving checks and adjustments3-19

•The RearView Monitor is a convenience
feature but it is not a substitute for
proper backing up. Always turn and look
out the windows, and check mirrors to
be sure that it is safe to move before
operating the vehicle. Always back up
slowly.
•The system is designed as an aid to the
driver in showing large stationary ob-
jects directly behind the vehicle, to help
avoid damaging the vehicle.
•The distance guide line and the vehicle
width line should be used as a reference
only when the vehicle is on a level paved
surface. The distance viewed on the
monitor is for reference only and may be
different than the actual distance be-
tween the vehicle and displayed objects.
CAUTION
Do not scratch the camera lens when clean-
ing dirt or snow from the lens.
The RearView Monitor system automatically
shows a rear view of the vehicle when the
shift lever is placed in the R (Reverse) posi-
tion.
The radio can still be heard while the Rear-
View Monitor is active. To display the rear view, the RearView Moni-
tor system uses a camera located just above
the vehicle’s rear license plate
1.
REARVIEW MONITOR SYSTEM
OPERATION
With the ignition switch in the ON position,
move the shift lever to the R (Reverse) posi-
tion to operate the RearView Monitor.
NAA1642
4-18Display screen, heater and air conditioner, and audio system

1. Push the

•The Around View Monitor is a conve-
nience feature and is not a substitute for
proper vehicle operation because it has
areas where objects cannot be viewed.
The four corners of the vehicle in par-
ticular, are areas where objects do not
always appear in the bird’s-eye, front,
or rear views. Always check your sur-
roundings to be sure that it is safe to
move before operating the vehicle. Al-
ways operate the vehicle slowly.
•The driver is always responsible for
safety during parking and other
maneuvers.
CAUTION
Do not scratch the lens when cleaning dirt
or snow from the front of the camera.
The Around View Monitor system is designed
as an aid to the driver in situations such as
slot parking or parallel parking.
The monitor displays various views of the
position of the vehicle in a split screen format.
All views are not available at all times. Available views:
•Front View
An approximately 150-degree view of the
front of the vehicle.
•Rear View
An approximately 150-degree view of the
rear of the vehicle.
•Bird's-Eye View
The surrounding view of the vehicle from
above.
•Front-Side View
The view around and ahead of the front
passenger’s side wheel. To display the multiple views, the Around
View Monitor system uses cameras1lo-
cated in the front grille, on the vehicle’s out-
side mirrors and one just above the vehicle’s
rear number plate.
AROUND VIEW MONITOR
SYSTEM OPERATION
With the ignition switch in the ON position,
move the shift lever to the R (Reverse) posi-
tion or press the button to oper-
ate the Around View Monitor.
The screen displayed on the Around View
Monitor will automatically return to the pre-
vious screen 3 minutes after the
button has been pushed while the shift lever
is in a position other than the R (Reverse)
position.
NAA1638
4-26Display screen, heater and air conditioner, and audio system

Available views
WARNING
•The distance guide lines and the vehicle
width lines should be used as a reference
only when the vehicle is on a paved, level
surface. The distance viewed on the
monitor is for reference only and may be
different than the actual distance be-
tween the vehicle and displayed objects.
•Use the displayed lines and the bird's-
eye view as a reference. The lines and the
bird's-eye view are greatly affected by
the number of occupants, fuel level, ve-
hicle position, road condition and road
grade.
•When driving the vehicle up a hill, ob-
jects viewed in the monitor are farther
than they appear. When driving the ve-
hicle down a hill, objects viewed in the
monitor are closer than they appear.
•Objects in the monitor will appear visu-
ally opposite compared to when viewed
in the rear view and outside mirrors.
•Use the mirrors or actually look to prop-
erly judge distances to other objects.
•The distance between objects viewed in
the rear view differs from actual dis-
tance because a wide-angle lens is used.
•The displayed lines on the rear view will
appear slightly off to the right because
the rear view camera is not installed in
the rear center of the vehicle.
Front view
Rear view
SAA1840Z
SAA1896Z
Display screen, heater and air conditioner, and audio system4-27

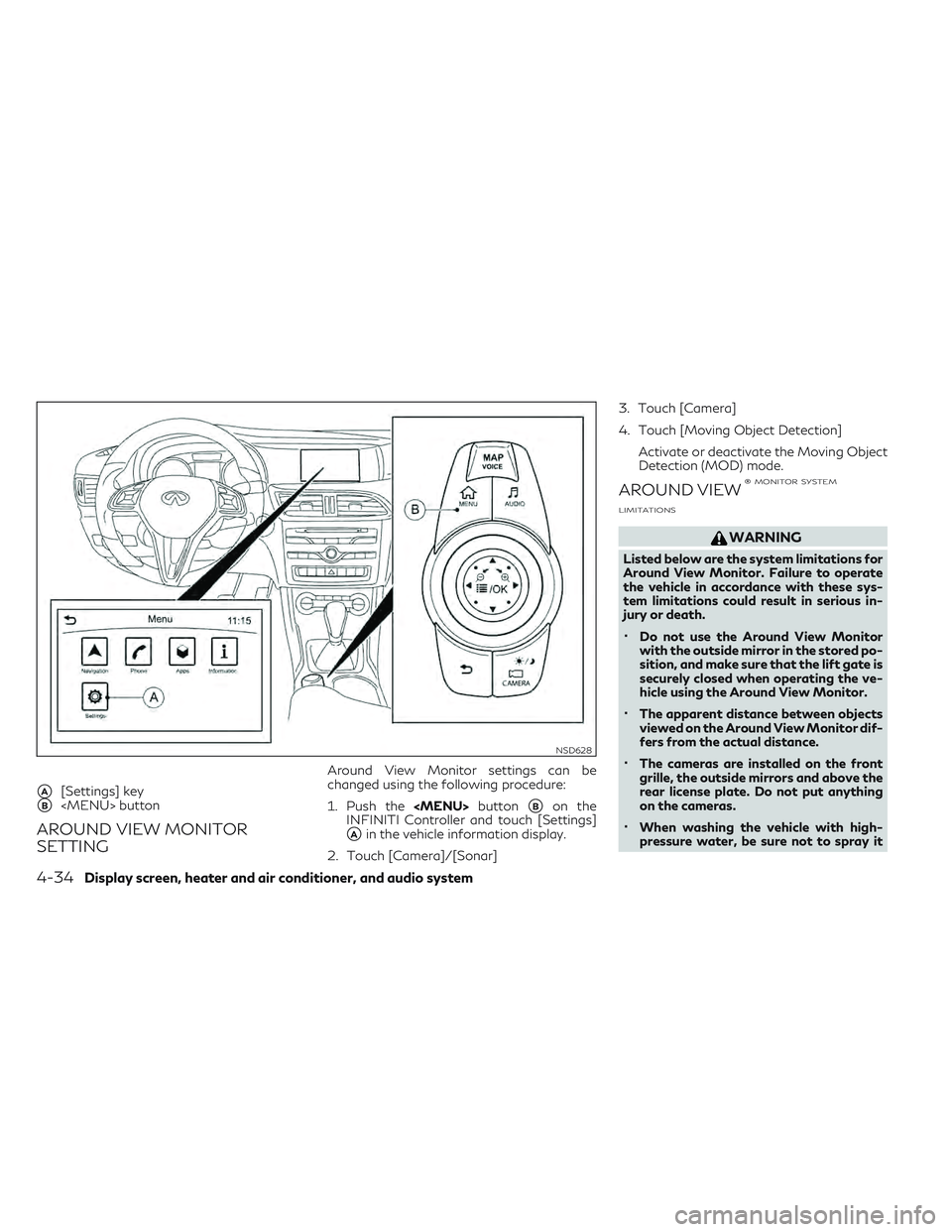

A[Settings] key
B

•The MOD system is not a substitute for
proper vehicle operation and is not de-
signed to prevent contact with objects
surrounding the vehicle. When maneu-
vering, always use the outside mirror
and rearview mirror and turn and check
the surroundings to ensure it is safe to
maneuver.
•The system is deactivated at speeds
above 5 MPH (8 km/h). It is reactivated
at lower speeds.
•The MOD system is not designed to de-
tect the surrounding stationary objects.
The Moving Object Detection (MOD) system
can inform the driver of moving objects sur-
rounding the vehicle when driving out of ga-
rages, maneuvering into parking lots and in
other such instances.
The MOD system detects moving objects by
using image processing technology on the
image shown on the display.
MOD SYSTEM OPERATION
The MOD system will activate automatically
under the following conditions:
•When the shift lever is in the R (Reverse)
position.
•When the button is pressed
to switch from a different screen to the
camera view on the display.
•When vehicle speed decreases below ap-
proximately 5 MPH (8 km/h).
•When the ignition switch is placed in the
OFF position and then back to the ON
position.
NOTE
•The MOD system does not detect moving
objects in the front-side view. The MOD
icon is not displayed on the screen when in
this view.
•While the parking sensor warning tone is
sounding, the MOD system does not
chime. The MOD system operates in the following
conditions when the camera view is dis-
played:
When the shift lever is in the R (Reverse)
position and the vehicle speed is approxi-
mately 5 MPH (8 km/h ) or less, the MOD
system detects moving objects in the camera
view. The MOD system will not operate if the
lift gate is open.
When the MOD system detects moving ob-
jects near the vehicle, a chime will be heard
and a yellow frame
1will be displayed on
the monitor.
While the MOD system continues to detect
moving objects, the yellow frame continues
to be displayed.
The yellow frame
1is displayed on each
view in the rear view modes.
NAA1781
Bird's-eye view
Display screen, heater and air conditioner, and audio system4-39

You do not have to remove the start/stop
button from the ignition lock when you leave
the vehicle. You should, however, always
take the key with you when leaving the ve-
hicle. As long as the key is in the vehicle:
•The vehicle can be started using the push-
button ignition switch.
•The electrically powered equipment can be
operated.
EMERGENCY ENGINE SHUT OFF
To shut off the engine in an emergency situ-
ation while driving, perform the following
procedure:
•Rapidly push the push-button ignition
switch 3 consecutive times in less than 1.5
seconds, or
•Push and hold the push-button ignition
switch for more than 2 seconds.
•Make sure the area around the vehicle is
clear.
•Check fluid levels such as engine oil, cool-
ant, brake fluid, and windshield-washer
fluid as frequently as possible, or at least
whenever you refuel.
•Check that all windows and lights are
clean.
•Visually inspect tires for their appearance
and condition. Measure and check the tire
pressure for proper inflation.
•Check that all doors are closed.
•Position seat and adjust head restraints/
headrests.
•Adjust the inside and outside rear view
mirrors.
•Fasten your seat belt and ask all passen-
gers to do likewise.
•Check the operation of the warning lights
when the ignition switch is pushed to the
ON position.
STARTING PROCEDURE WITH
THE KEY
0OFF position
1ACC position
2ON position
3START position
1. Apply the parking brake.
2. Shift the transmission to position P (Park) by pressing the

button.
The transmission position indicator in the
vehicle information display shows

When the transmission is in position N
(Neutral), you can also start the engine
with the brake pedal depressed.
The starter is designed not to operate if the
shift lever is in any of the driving positions.
NPA1483
BEFORE STARTING ENGINE STARTING ENGINE
5-18Starting and driving
