2-18Instruments and controls
system may not be functioning properly.
Have the system checked. It is recommended
you visit an INFINITI retailer for this service.
If a malfunction occurs in the system, the
VDC system function will be canceled but
the vehicle is still driveable. For additional
information, see “Vehicle Dynamic Control
(VDC) system” (P.5-122).
INDICATOR LIGHTS
Adaptive Front lighting Sys-
tem (AFS) off indicator light (if so
equipped)
When the ignition switch is pushed to the
ON position, the Adaptive Front lighting
System (AFS) off indicator light will illumi-
nate. The light will turn off in about 1 second
if the AFS is operational.
This light also illuminates when the AFS is
turned off using the AFS switch.
If the AFS off indicator light blinks, it may
indicate the AFS is not functioning properly.
Have the system checked. It is recommended
you visit an INFINITI retailer for this service.
See “Adaptive Front lighting System (AFS)”
(P.2-40).
Approaching Vehicle Sound for
Pedestrians (VSP) OFF indicator
light
This light comes on if there is a malfunction
in the Approaching Vehicle Sound for Pe-
destrians (VSP) system.
Automatic Transmission (AT)
position indicator light
When the ignition switch is pushed to the
ON position, the indicator shows the auto-
matic shift position.
In the manual shift mode, when the trans-
mission does not shift to the selected gear
due to a transmission protection mode, the
AT position indicator light will blink and a
chime will sound.
See “Automatic transmission” (P.5-14) for
further details.
Blind Spot Intervention®(BSI)
ON indicator light (green; if so
equipped)
The light comes on in green when the Blind
Spot Intervention®(BSI) system is turned on.
The light turns off when the system is turned
off. NOTE:
This light is common with the blind spot
warning light (orange). (See “Blind Spot
Warning (BSW)/Blind Spot Intervention
®
(BSI) system warning light” (P.2-11).)
For more details, see “Blind Spot Interven-
tion
®(BSI)” (P.5-40).
ECO drive indicator light
When the ignition switch is placed in the ON
position, the light will come on in orange,
turn green, and then turn off.
When the INFINITI Drive Mode Selector is
turned to the ECO mode, the ECO drive
indicator light will illuminate or change its
color depending on the accelerator pedal
operation to help assist the driver to drive
economically. For more details, see “Eco
mode” (P.5-19).
EV indicator light
This illuminates to indicate the vehicle is
being driven powered only by the motor.
Exterior light indicator
This indicator illuminates when the headlight
switch is turned to the AUTO,orposition and the front parking lights, instru-
ment panel lights, rear combination lights,

license plate lights or headlights are on. The
indicator turns off when these lights are
turned off.
Front fog light indicator light
The front fog light indicator light illuminates
when the front fog lights are on. (See “Fog
light switch” (P.2-43).)
Front passenger air bag status
light
The front passenger air bag status light
() will be lit and the passenger front air
bag will be OFF depending on how the front
passenger seat is being used.
For front passenger air bag status light
operation, see “INFINITI Advanced Air Bag
System (front seats)” (P.1-43).
High beam indicator light
This light comes on when the headlight high
beam is on and goes out when the low beam
is selected.
Lane Departure Prevention
(LDP) ON indicator light (green; if
so equipped)
The light comes on in green when the Lane
Departure Prevention (LDP) system is
turned on. The light turns off when the
system is turned off.
NOTE:
This light is common with the Lane Depar-
ture Warning (LDW) indicator light (or-
ange). (See “Lane Departure Warning
(LDW) indicator light” (P.2-15).)
For more details, see “Lane Departure
Warning (LDW)/Lane Departure Prevention
(LDP)” (P.5-21).
Malfunction Indicator Light
(MIL)
If the malfunction indicator light comes on
steady or blinks when the ignition switch is in
the ON position, it may indicate a potential
emission control malfunction.
The malfunction indicator light may also
come on steady if the fuel-filler cap is loose
or missing, or if the vehicle runs out of fuel.
Check to make sure the fuel-filler cap is
installed and closed tightly, and that the
vehicle has at least 3 US gallons (14 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission
control system malfunction exists.
If this indicator light remains on for 20
seconds and then blinks for 10 seconds
when the engine is not running, it indicates
that the vehicle is not ready for an emission
control system inspection/maintenance test.
(See “Readiness for Inspection/Mainte-
nance (I/M) test (US only)” (P.10-19).)
Operation:
The malfunction indicator light will come on
in one of two ways:
. Malfunction indicator light on steady —
An emission control system malfunction
has been detected. Check the fuel-filler
cap if the LOOSE FUEL CAP warning
appears in the vehicle information dis-
play. If the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
light should turn off after a few driving
trips. If thelight does not turn off
after a few driving trips, have the vehicle
inspected. It is recommended you visit an
INFINITI retailer for this service. You do
not need to have your vehicle towed to
the retailer.
. Malfunction indicator light blinking — An
engine misfire has been detected which
Instruments and controls2-19

2-20Instruments and controls
may damage the emission control sys-
tem.
To reduce or avoid emission control
system damage:
1) Do not drive at speeds above 45MPH (72 km/h).
2) Avoid hard acceleration or decelera- tion.
3) Avoid steep uphill grades.
4) If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may stop
blinking and remain on.
Have the vehicle inspected. It is recom-
mended you visit an INFINITI retailer for
this service. You do not need to have
your vehicle towed to the retailer.
CAUTION
Continued vehicle operation without
having the emission control system
checked and repaired as necessary could
lead to poor driveability, reduced fuel
economy, and possible damage to the
emission control system.
READY to drive indicator light
The READY to drive indicator light illumi-
nates when the hybrid system is powered
and the vehicle may be driven.
Security indicator light
The light blinks when the ignition switch is in
the ACC, OFF or LOCK position. This
function indicates the security system
equipped on the vehicle is operational.
If the security system is malfunctioning, this
light will remain on while the ignition switch
is in the ON position. For additional informa-
tion, see “Security systems” (P.2-32).
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control
(VDC) off indicator light
When the ignition switch is in the ON
position, the Vehicle Dynamic Control
(VDC) off indicator light illuminates and then
turns off.
The light comes on when the vehicle dynamic
control off switch is pushed to OFF. This indicates that the vehicle dynamic control
system and traction control system are not
operating.
AUDIBLE REMINDERS
Key reminder chime
A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position. Make sure the ignition
switch is pushed to the OFF position, and
take the Intelligent Key with you when
leaving the vehicle.
Light reminder chime
A chime will sound when the driver side door
is opened with the light switch in theorposition and the ignition switch in the
ACC, OFF or LOCK position.
Turn the light switch off when you leave the
vehicle.
Parking brake reminder chime
The parking brake reminder chime will sound
if the vehicle is driven at more than 4 MPH (7
km/h) with the parking brake applied. Stop
the vehicle and release the parking brake.
Brake pad wear warning
The disc brake pads have audible wear
warnings. When a brake pad requires repla-
cement, it will make a high pitched scraping

sound when the vehicle is in motion. This
scraping sound will first occur only when the
brake pedal is depressed. After more wear of
the brake pad, the sound will always be
heard even if the brake pedal is not
depressed. Have the brakes checked as soon
as possible if the warning sound is heard.
JVI0199X
The vehicle information displayis located
between the tachometer and the speed-
ometer, and it displays the indicators for the
driving systems, Intelligent Key operation
and various warnings and information:
For details about each system information,
see the following sections:
. Automatic Transmission (AT)
— “Driving the vehicle” (P.5-14)
. Intelligent Key system
— “Intelligent Key system” (P.3-7)
. INFINITI Drive Mode Selector
— “INFINITI Drive Mode Selector” (P.5- 19) .
Back-up Collision Intervention (BCI) (if so
equipped)
— “Back-up Collision Intervention (BCI)” (P.5-53)
. Cruise control (if so equipped)
— “Cruise control” (P.5-64)
. Intelligent Cruise Control (ICC) (if so
equipped)
— “Intelligent Cruise Control (ICC)” (P.5- 66)
. Distance Control Assist (DCA) (if so
equipped)
— “Distance Control Assist (DCA)” (P.5- 88)
. Forward Emergency Braking (FEB) (if so
equipped)
— “Forward Emergency Braking (FEB)” (P.5-101)
. Predictive Forward Collision Warning
(PFCW) (if so equipped)
— “Predictive Forward Collision Warning
(PFCW)” (P.5-108)
Instruments and controls2-21
VEHICLE INFORMATION DISPLAY

2-22Instruments and controls

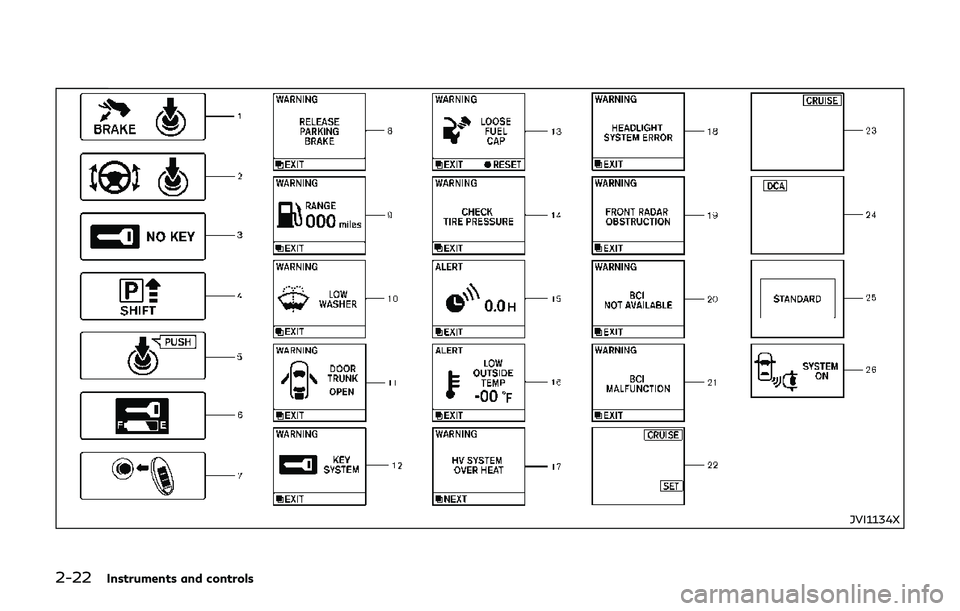

JVI1134X

OPERATIONAL INDICATORS
1. Hybrid system start operation
indicator
This indicator appears when the shift lever is
in the P (Park) position.
This indicator means that the hybrid system
will start by pushing the ignition switch with
the brake pedal depressed. You can start the
INFINITI Direct Response Hybrid
®System
directly in any position of the ignition switch.
2. Steering lock release malfunction
indicator (if so equipped)
This indicator appears when the steering
wheel cannot be released from the LOCK
position.
If this indicator appears, push the push-
button ignition switch while lightly turning
the steering wheel right and left.
3. NO KEY warning
This warning appears in either of the
following conditions.
No key inside the vehicle:
The warning appears when the door is
closed with the Intelligent Key left outside
the vehicle and the ignition switch in the
ACC or ON position. Make sure that the
Intelligent Key is inside the vehicle. Unregistered Intelligent Key:
The warning appears when the ignition
switch is pushed from the LOCK position
and the Intelligent Key cannot be recognized
by the system. You cannot start the hybrid
system with an unregistered key. Use the
registered Intelligent Key.
See “Intelligent Key system” (P.3-7) for more
details.
4. SHIFT “P” warning
This will be displayed in the following
conditions.
. When the shift lever is in any position
except P (Park) and the push button
ignition switch has been placed in the
OFF position from the ON position.
. When the shift lever is operated while the
READY to drive indicator light is flashing.
. The driver’s door is opened with the shift
lever in “N”, “D” or “R”.
. When the vehicle cannot be driven be-
cause the hybrid system temperature has
become too high.
. When the shift lever is in the “N”, “D” or
“R” position and level of remaining
charge in the Litium-ion (Li-ion) battery
is low.
. When the engine stops due to sudden
deceleration on a cold winter day. .
If a malfunction occurs in a situation
other than those described above and
the engine cannot start automatically.
When this warning appears, place the shift
lever in the P (Park) position.
When the Shift “P” warning appears, a
buzzer will sound.
This will turn off in the following conditions.
. When the shift lever has been placed in
the P (Park) position.
. When the push button ignition switch has
been pushed to ON.
5. “PUSH” warning
This warning appears when the shift lever is
moved to the P (Park) position with the
ignition switch in the ACC position after the
SHIFT “P” warning appears.
To push the ignition switch to the OFF
position, perform the following procedure:
. SHIFT “P” warning ?(Move the shift
lever to “P”) ?PUSH warning ?(Push
the ignition switch ?ignition switch
position is turned to ON) ?PUSH
warning ?(Push the ignition switch ?
ignition switch position is turned to OFF)
6. Intelligent Key battery discharge
indicator
This indicator appears when the Intelligent
Instruments and controls2-23

2-24Instruments and controls
Key battery is running out of power.
If this indicator appears, replace the battery
with a new one. (See “Intelligent Key battery
replacement” (P.8-21).)
7. Intelligent Key ignition indicator
This indicator appears when the Intelligent
Key battery is running out of power and
when the Intelligent Key System and vehicle
are not communicating normally.
If this indicator appears, touch the ignition
switch with the Intelligent Key while depres-
sing the brake pedal. (See “Intelligent Key
battery discharge” (P.5-12).)
8. Parking brake release warning
This warning appears when the vehicle
speed is above 4 MPH (7 km/h) and the
parking brake is applied.
9. Low fuel warning
This warning appears when the fuel level in
the tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (0) position.
There is a small reserve of fuel remaining in
the tank when the fuel gauge reaches the
empty (0) position.
10. Low washer fluid warning
This warning appears when the washer tank
fluid is at a low level. Add washer fluid as
necessary. (See “Window washer fluid” (P.8-
12).)
11. Door/trunk open warning (igni-
tion switch is in the ON position)
This warning appears if any of the doors
and/or the trunk lid are open or not closed
securely. The vehicle icon indicates which
door or the trunk lid is open on the display.
12. Intelligent Key system warning
This warning appears if there is a malfunc-
tion in the steering lock system or Intelligent
Key system.
If this warning appears while the hybrid
system is stopped, the steering lock (if so
equipped) cannot be released or the hybrid
system cannot be started. If this warning
appears while the hybrid system is running,
the vehicle can be driven. However, it is
recommended you contact an INFINITI
retailer for repair as soon as possible.
13. Loose fuel cap warning
This warning appears when the fuel-filler
cap is not tightened correctly after the
vehicle has been refueled. (See “Fuel-filler
cap” (P.3-22).)
14. Check tire pressure warning
This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure is detected. If
this warning appears, stop the vehicle and
adjust the pressure to the recommended
COLD tire pressure shown on the recom-
mended COLD tire pressure shown on the
Tire and Loading Information label. (See
“Low tire pressure warning light” (P.2-15)
and “Tire Pressure Monitoring System
(TPMS) ” (P.5-5).)
15. “TIMER” indicator
This indicator appears when the set “TIMER”
indicator activates. You can set the time for
up to 6 hours. (See “Trip computer” (P.2-
28).)
16. Low outside temperature
warning
This warning appears if the outside tem-
perature is below 37°F (3°C). The warning
can be set not to be displayed. (See “Trip
computer” (P.2-28).)
17. Hybrid system over heat warn-
ing
This warning appears when the temperature
of the hybrid system is too high. Stop the
vehicle in a safe location as soon as possible.

Avoid quick starting or abrupt acceleration.
When the warning turns off, the vehicle can
be driven.
If the warning appears again soon after it
turns off, it is recommended that you have
the vehicle checked by an INFINITI retailer.
Do not drive the vehicle with the warning
on. Doing so could cause a hybrid system
malfunction.
WARNING
Do not hold the vehicle in a stopped
position on an uphill grade by depressing
the accelerator or by slowly creeping
forward. This may cause damage to the
transmission or the vehicle may enter
traffic causing serious injury or death.
Always use the brake pedal when stop-
ping on an uphill grade.
CAUTION
If you continue to drive the vehicle while
the warning is displayed, the vehicle may
become undriveable. If this occurs, place
the shift lever in the “P” position and
wait for a short period of time with the
vehicle stopped until the display goesout. In this case, the warning will be
displayed alternately with the SHIFT “P”
warning. (See “4. SHIFT “P” warning”
(P.2-23).)
Do not drive the vehicle while this is
displayed. Doing so could cause a hybrid
system malfunction.
18. Headlight warning
This warning appears if the LED headlights
are malfunctioning. It is recommended you
have the system checked by an INFINITI
retailer.
19. Front radar obstruction warning
(if so equipped)
This warning appears when the sensor area
of the front bumper is covered with dirt or is
obstructed, making it impossible to detect a
vehicle ahead.
The following systems will be automatically
canceled.
. Intelligent Cruise Control (ICC) system
. Distance Control Assist (DCA) system
. Forward Emergency Braking (FEB) sys-
tem
. Predictive Forward Collision Warning
(PFCW) system For more details, see “Intelligent Cruise
Control (ICC)” (P.5-66), “Distance Control
Assist (DCA)” (P.5-88), “Forward Emer-
gency Braking (FEB)” (P.5-101) or “Predic-
tive Forward Collision Warning (PFCW)”
(P.5-108).
20. Back-up Collision Intervention
(BCI) not available warning (if so
equipped)
This warning appears when the Back-up
Collision Intervention (BCI) system is tem-
porarily not available.
For more details, see “Back-up Collision
Intervention (BCI)” (P.5-53).
21. Back-up Collision Intervention
(BCI) system malfunction warning
(if so equipped)
This warning appears when the Back-up
Collision Intervention (BCI) system is not
functioning properly.
For more details, see “Back-up Collision
Intervention (BCI)” (P.5-53).
22. Cruise indicator
Cruise main switch indicator:
The indicator is displayed when the cruise
control main switch is pushed. When the
Instruments and controls2-25
