2018 Hyundai Kona headrest

2-19
Safety system of your vehicle
2

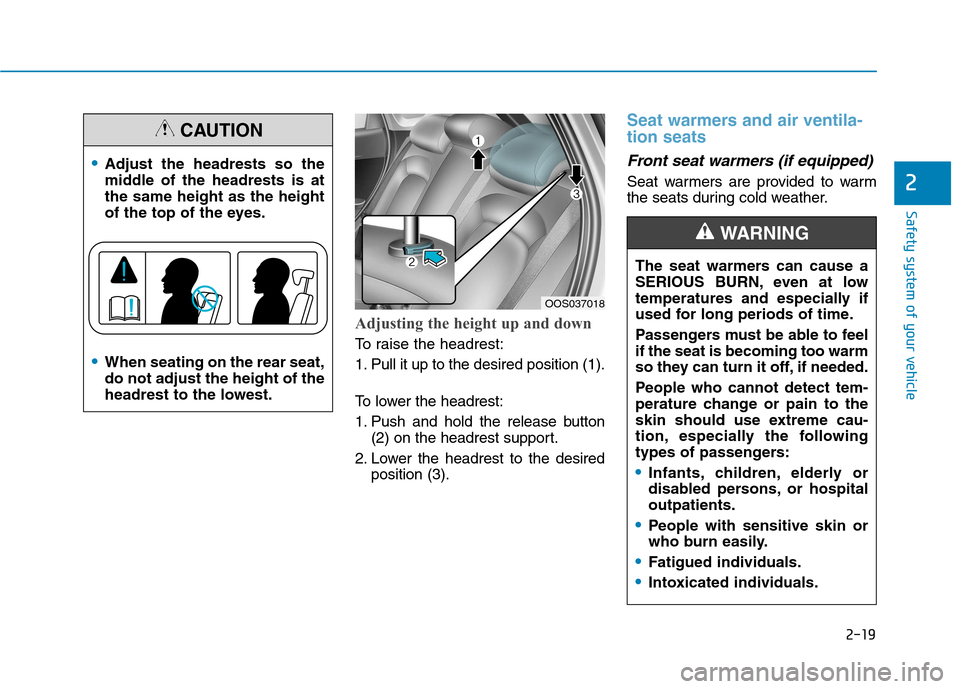

Adjusting the height up and down
To raise the headrest:
1. Pull it up to the desired position (1).
To lower the headrest:
1. Push and hold the release button(2) on the headrest support.
2. Lower the headrest to the desired position (3).
Seat warmers and air ventila- tion seats
Front seat warmers (if equipped)
Seat warmers are provided to warm
the seats during cold weather.
The seat warmers can cause a
SERIOUS BURN, even at low
temperatures and especially if
used for long periods of time.
Passengers must be able to feel if the seat is becoming too warm
so they can turn it off, if needed.
People who cannot detect tem-
perature change or pain to the
skin should use extreme cau-
tion, especially the following
types of passengers:
Infants, children, elderly or
disabled persons, or hospitaloutpatients.
People with sensitive skin or
who burn easily.
Fatigued individuals.
Intoxicated individuals.
WARNING
OOS037018
Adjust the headrests so the
middle of the headrests is atthe same height as the height
of the top of the eyes.
When seating on the rear seat, do not adjust the height of the
headrest to the lowest.
CAUTION

2-36
Safety system of your vehicle

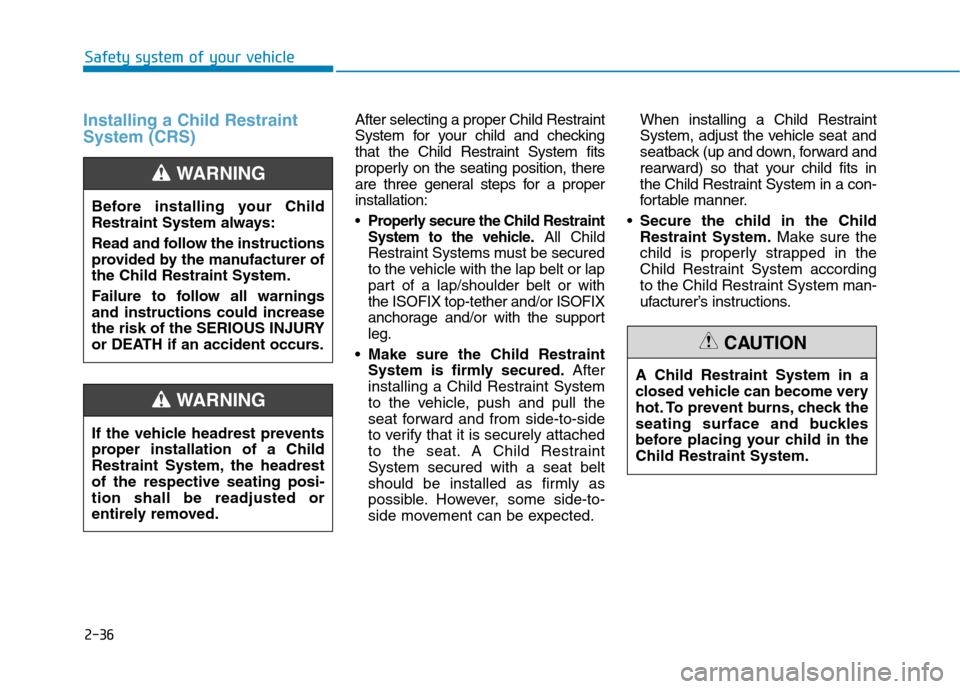

Installing a Child Restraint System (CRS)After selecting a proper Child Restraint
System for your child and checking
that the Child Restraint System fits
properly on the seating position, there
are three general steps for a properinstallation:
Properly secure the Child Restraint
System to the vehicle.
All Child
Restraint Systems must be secured
to the vehicle with the lap belt or lap
part of a lap/shoulder belt or withthe ISOFIX top-tether and/or ISOFIX
anchorage and/or with the supportleg.
Make sure the Child Restraint
System is firmly secured. After
installing a Child Restraint System
to the vehicle, push and pull the
seat forward and from side-to-side
to verify that it is securely attached
to the seat. A Child RestraintSystem secured with a seat belt
should be installed as firmly as
possible. However, some side-to-
side movement can be expected. When installing a Child Restraint
System, adjust the vehicle seat and
seatback (up and down, forward and
rearward) so that your child fits in
the Child Restraint System in a con-
fortable manner.
Secure the child in the ChildRestraint System. Make sure the
child is properly strapped in the
Child Restraint System according
to the Child Restraint System man-
ufacturer’s instructions.
Before installing your Child
Restraint System always:
Read and follow the instructions
provided by the manufacturer ofthe Child Restraint System.
Failure to follow all warnings and instructions could increase
the risk of the SERIOUS INJURY
or DEATH if an accident occurs.
WARNING
If the vehicle headrest prevents
proper installation of a Child
Restraint System, the headrestof the respective seating posi-tion shall be readjusted or
entirely removed.
WARNING
A Child Restraint System in a
closed vehicle can become very
hot. To prevent burns, check the
seating surface and buckles
before placing your child in theChild Restraint System.
CAUTION

I-6Hazard warning flasher...................................................6-3
Hazardous driving conditions .......................................5-96
Head up display (HUD)................................................3-80
Headlamp delay function..............................................3-90
Headlamp leveling device ............................................3-91
Headlamp position ........................................................3-84
Headlight bulb replacement..........................................7-64
Headrest ........................................................................2-15
Front seat headrests ..................................................2-16
Rear seat headrests ...................................................2-18
Heated steering wheel...................................................3-18
Height adjustment .........................................................2-26
High beam assist (HBA)...............................................3-85
High beam operation ....................................................3-84
Highway driving ...........................................................5-98
Hill-start assist control (HAC) .....................................5-37
Hood .............................................................................3-31
Horn ..............................................................................3-19
How to use this manual ..................................................F-5
If the engine doesn't turn over or turns over slowly ......6-4
If the engine overheats ...................................................6-8
If the engine stalls at a crossroad or crossing ................6-3
If the engine stalls while driving ....................................6-3
If the engine turns over normally but doesn't start.........6-5 If the engine will not start ..............................................6-4
If you have a flat tire (with spare tire) .........................6-20
Jack and tools ...........................................................6-20
Changing tires ..........................................................6-21
Jack label ..................................................................6-26
If you have a flat tire (with TMK) - Type A ................6-28
If you have a flat tire (with TMK) - Type B ................6-35
Ignition switch ................................................................5-6
Key ignition switch ....................................................5-6
Engine Start/Stop button ............................................5-9
Immobilizer system ......................................................3-10
Impact sensing door unlock..........................................3-15
Improtant safety precautions ..........................................2-2 Always wear your seat belt ........................................2-2
Restrain all children ...................................................2-2
Air bag hazards ..........................................................2-2
Driver distraction .......................................................2-2
Control your speed .....................................................2-3
Keep your vehicle in safe condition ..........................2-3
In case of emergency while driving ...............................6-3
Indicator light ...............................................................3-44
Inside rearview mirror ..................................................3-19
Instrument cluster .........................................................3-37 Instrument panel illumination ..................................3-38
Gauges and meters ...................................................3-38
Warning and indicator lights ....................................3-44
LCD display messages .............................................3-57
LCD display control.................................................3-64
Manual transmission shift indicator.........................3-42
Index
H
I

I-9

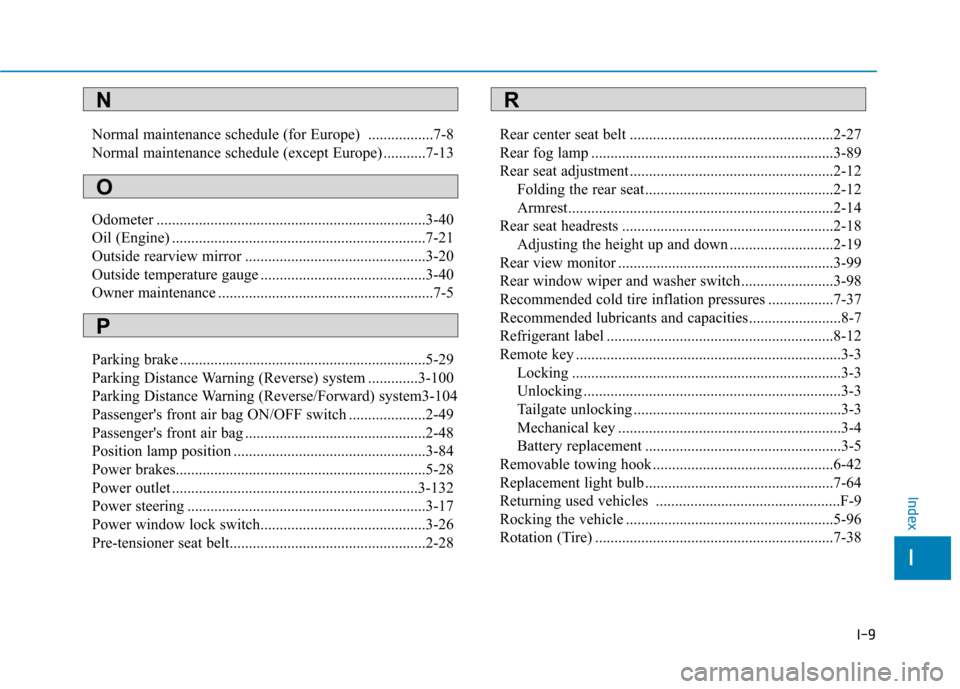

Normal maintenance schedule (for Europe) .................7-8
Normal maintenance schedule (except Europe) ...........7-13
Odometer ......................................................................3-40
Oil (Engine) ..................................................................7-21
Outside rearview mirror ...............................................3-20
Outside temperature gauge ...........................................3-40
Owner maintenance ........................................................7-5
Parking brake ................................................................5-29
Parking Distance Warning (Reverse) system .............3-100
Parking Distance Warning (Reverse/Forward) system3-104
Passenger's front air bag ON/OFF switch ....................2-49
Passenger's front air bag ...............................................2-48
Position lamp position ..................................................3-84
Power brakes.................................................................5-28
Power outlet ................................................................3-132
Power steering ..............................................................3-17
Power window lock switch...........................................3-26
Pre-tensioner seat belt...................................................2-28
Rear center seat belt .....................................................2-27
Rear fog lamp ...............................................................3-89
Rear seat adjustment .....................................................2-12
Folding the rear seat.................................................2-12
Armrest.....................................................................2-14
Rear seat headrests .......................................................2-18 Adjusting the height up and down ...........................2-19
Rear view monitor ........................................................3-99
Rear window wiper and washer switch........................3-98
Recommended cold tire inflation pressures .................7-37
Recommended lubricants and capacities........................8-7
Refrigerant label ...........................................................8-12
Remote key .....................................................................3-3 Locking ......................................................................3-3
Unlocking ...................................................................3-3
Tailgate unlocking ......................................................3-3
Mechanical key ..........................................................3-4
Battery replacement ...................................................3-5
Removable towing hook ...............................................6-42
Replacement light bulb .................................................7-64
Returning used vehicles ................................................F-9
Rocking the vehicle ......................................................5-96
Rotation (Tire) ..............................................................7-38
I
Index
N
O
P
R

I-10Safety messages..............................................................F-5
Scheduled maintenance services ....................................7-7
Seat belt warning light
Driver's seat ..............................................................2-23
Front passenger's seat ..............................................2-24
Rear passenger's seat ................................................2-25
Seat belts .......................................................................2-22 Seat belt safety precautions......................................2-22
Seat belt warning light .............................................2-23
Rear center seat belt .................................................2-27
Lap/shoulder belt......................................................2-25
Seat belt restraint system .........................................2-25
Height adjustment ....................................................2-26
Pre-tensioner seat belt ..............................................2-28
Additional seat belt safety precautions ....................2-30
Seat belt use during pregnancy ................................2-30
Seat belt use and children ........................................2-30
Seat belt use and injured people ..............................2-31
One person per belt ..................................................2-32
Do not lie down........................................................2-32
Care of seat belts ......................................................2-32
Periodic inspection ...................................................2-32
Keep belts clean and dry ..........................................2-32
When to replace seat belts .......................................2-32
Seat warmers.................................................................2-19
Seats ................................................................................2-4 Safety precautions ......................................................2-6 Front seat adjustment .................................................2-7
Rear seat adjustment ................................................2-12
Headrest....................................................................2-15
Front seat warmers ...................................................2-19
Shift lights.....................................................................3-42
Side air bags .................................................................2-51
Smart key ........................................................................3-6
Locking ......................................................................3-6
Unlocking ...................................................................3-7
Tailgate unlocking ......................................................3-7
Mechanical key ..........................................................3-8
Battery replacement ...................................................3-9
Smooth cornering .........................................................5-97
Snow tires ...................................................................5-100
Spare tire
Compact spare tire replacement...............................7-41
Special driving conditions ............................................5-96
Hazardous driving conditions ..................................5-96
Rocking the vehicle..................................................5-96
Smooth cornering .....................................................5-97
Driving at night ........................................................5-97
Driving in the rain ....................................................5-97
Driving in flooded areas ..........................................5-98
Highway driving ......................................................5-98
Speed limit control system ...........................................5-88
Speed sensing door lock ...............................................3-15
Speedometer .................................................................3-38
Starting difficulties, see engine will not start .................6-4
Index
S
