2018 Hyundai Kona headrest

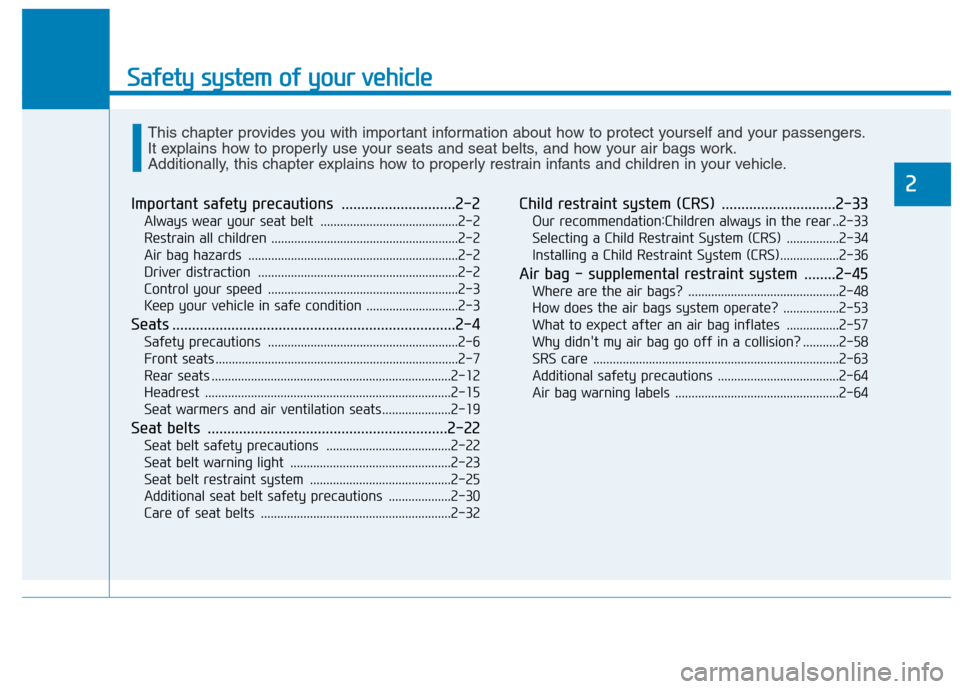

Safety system of your vehicle
2
Important safety precautions .............................2-2Always wear your seat belt ..........................................2-2
Restrain all children .........................................................2-2
Air bag hazards ................................................................2-2
Driver distraction .............................................................2-2
Control your speed ..........................................................2-3
Keep your vehicle in safe condition ............................2-3
Seats ........................................................................2-4 Safety precautions ..........................................................2-6
Front seats ..........................................................................2-7
Rear seats .........................................................................2-12
Headrest ...........................................................................2-15
Seat warmers and air ventilation seats.....................2-19
Seat belts .............................................................2-22 Seat belt safety precautions ......................................2-22
Seat belt warning light .................................................2-23
Seat belt restraint system ...........................................2-25
Additional seat belt safety precautions ...................2-30
Care of seat belts ..........................................................2-32 Child restraint system (CRS) .............................2-33
Our recommendation:Children always in the rear ..2-33
Selecting a Child Restraint System (CRS) ................2-34
Installing a Child Restraint System (CRS)..................2-36
Air bag - supplemental restraint system ........2-45 Where are the air bags? ..............................................2-48
How does the air bags system operate? .................2-53
What to expect after an air bag inflates ................2-57
Why didn't my air bag go off in a collision? ...........2-58
SRS care ...........................................................................2-63
Additional safety precautions .....................................2-64
Air bag warning labels ..................................................2-64
This chapter provides you with important information about how to protect yourself and your passengers.
It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.

2-4

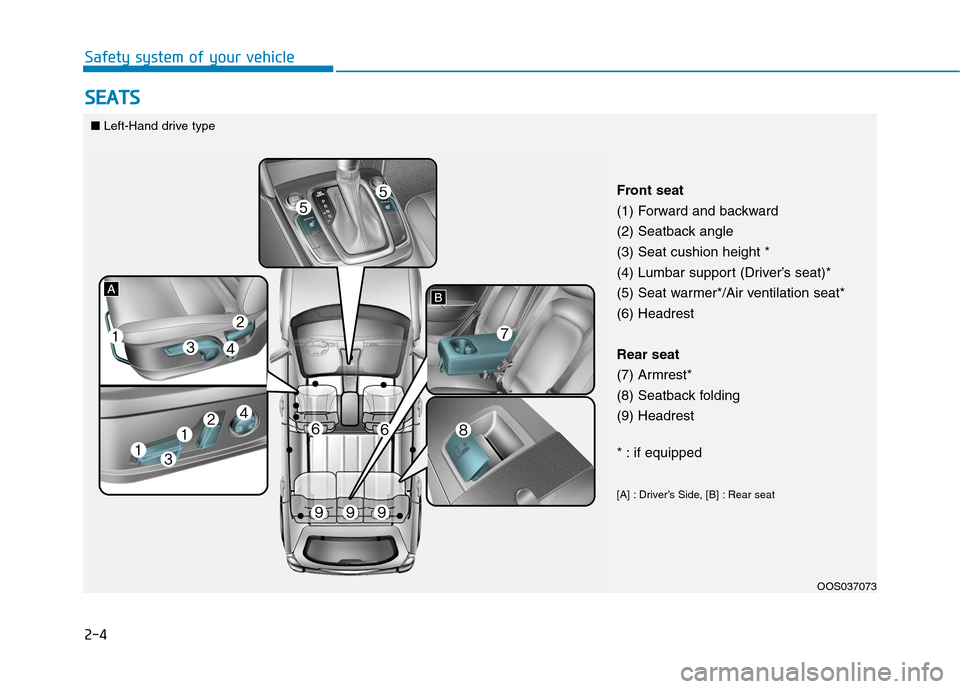

SSEE AA TTSS
Safety system of your vehicle
OOS037073
Front seat
(1) Forward and backward
(2) Seatback angle(3) Seat cushion height *
(4) Lumbar support (Driver’s seat)*
(5) Seat warmer*/Air ventilation seat*(6) Headrest Rear seat
(7) Armrest*
(8) Seatback folding(9) Headrest
* : if equipped
[A] : Driver’s Side, [B] : Rear seat
■
Left-Hand drive type

2-5
Safety system of your vehicle
2

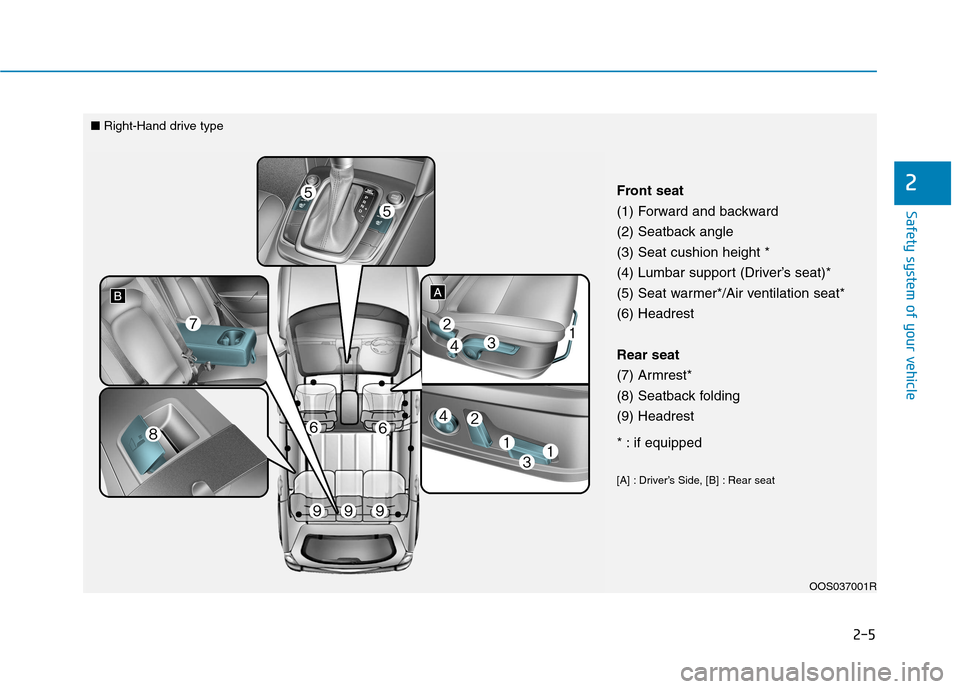

OOS037001R
Front seat
(1) Forward and backward
(2) Seatback angle(3) Seat cushion height *
(4) Lumbar support (Driver’s seat)*
(5) Seat warmer*/Air ventilation seat*(6) Headrest Rear seat
(7) Armrest*
(8) Seatback folding(9) Headrest
* : if equipped
[A] : Driver’s Side, [B] : Rear seat
■
Right-Hand drive type

2-12
Safety system of your vehicleSafety system of your vehicle

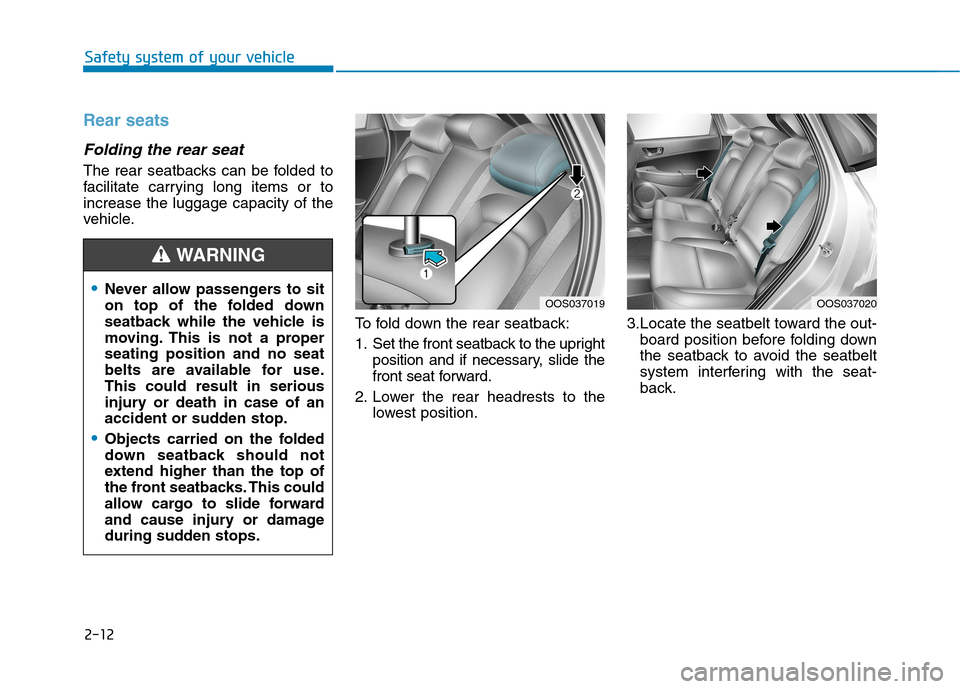

Rear seats
Folding the rear seat
The rear seatbacks can be folded to
facilitate carrying long items or toincrease the luggage capacity of the
vehicle.To fold down the rear seatback:
1. Set the front seatback to the uprightposition and if necessary, slide the
front seat forward.
2. Lower the rear headrests to the lowest position. 3.Locate the seatbelt toward the out-
board position before folding down
the seatback to avoid the seatbelt
system interfering with the seat-
back.
Never allow passengers to sit
on top of the folded down
seatback while the vehicle is
moving. This is not a properseating position and no seat
belts are available for use.This could result in serious
injury or death in case of an
accident or sudden stop.
Objects carried on the folded
down seatback should not
extend higher than the top of
the front seatbacks. This could
allow cargo to slide forward
and cause injury or damage
during sudden stops.
WARNING
OOS037019OOS037020

2-15
Safety system of your vehicle
2
Headrest
The vehicle’s front and rear seats have
adjustable headrests. The headrests
provide comfort for passengers, but
more importantly they are designed tohelp protect passengers from whiplash
and other neck and spinal injuries dur-ing an accident, especially in a rearimpact collision.To prevent damage, NEVER hit orpull on the headrests.
NOTICE
To reduce the risk of serious
injury or death in an accident,
take the following precautions
when adjusting your headrests:
Always properly adjust the
headrests for all passengers
BEFORE starting the vehicle.
NEVER let anyone ride in a seat
with the headrest removed.

Adjust the headrests so the
middle of the headrest is at thesame height as the height of
the top of the eyes.
NEVER adjust the headrest
position of the driver’s seat
when the vehicle is in motion.
Adjust the headrest as close
to the passenger’s head as
possible. Do not use a seat
cushion that holds the body
away from the seatback.
Make sure the headrest locks into position after adjusting it.
WARNING
OLF034072N
When there is no occupant in
the rear seats, adjust the height
of the headrest to the lowest
position. The rear seat headrestcan reduce the visibility of therear area.
CAUTION

2-16
Safety system of your vehicle
Front seat headrests
The driver’s and front passenger’s
seats are equipped with adjustable
headrests for the passengers safety
and comfort.
Adjusting the height up and down
To raise the headrest:
1. Pull it up to the desired position(1).
To lower the headrest:
1. Push and hold the release button (2) on the headrest support.
2. Lower the headrest to the desired position (3).
Forward and rearward adjustment
(if equipped)
The headrest may be adjusted for-
ward to 3 different positions by
pulling the headrest forward to the
desired detent. To adjust the head-
rest to it’s furthest rearwards posi-
tion, pull it fully forward to the farthestposition and release it.
OPDE036068
OOS037061OOS037010

2-17
Safety system of your vehicle
2
If you recline the seatback towards
the front with the headrest and
seat cushion raised, the headrest
may come in contact with the sun-
visor or other parts of the vehicle.

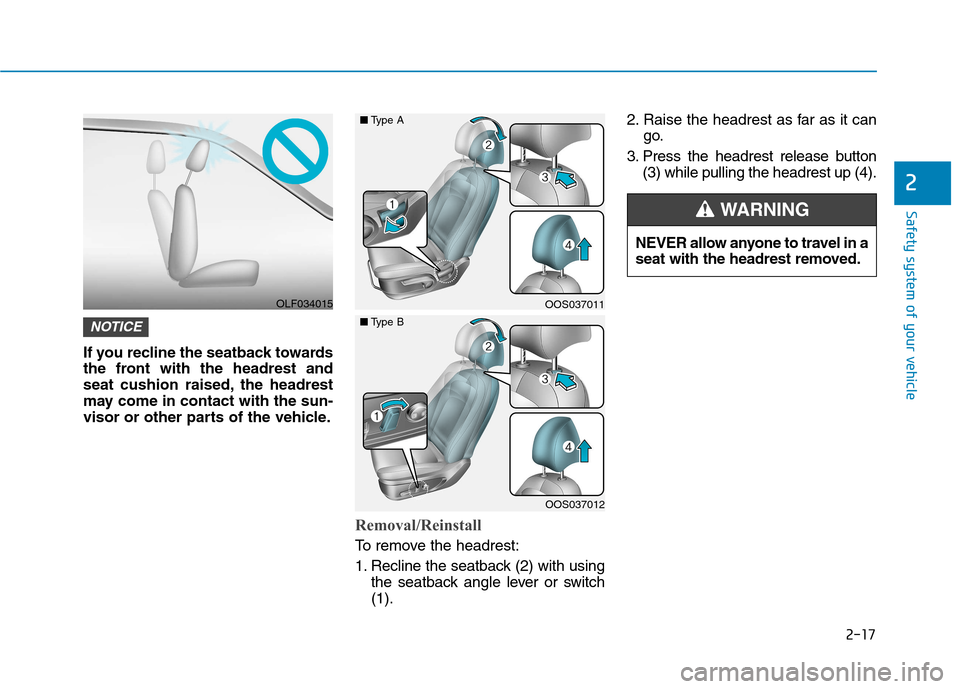

Removal/Reinstall
To remove the headrest:
1. Recline the seatback (2) with usingthe seatback angle lever or switch (1). 2. Raise the headrest as far as it can
go.
3. Press the headrest release button (3) while pulling the headrest up (4).
NOTICE
OOS037011
OOS037012
■Type A
■Type B
OLF034015 NEVER allow anyone to travel in a
seat with the headrest removed.
WARNING

2-18
Safety system of your vehicle

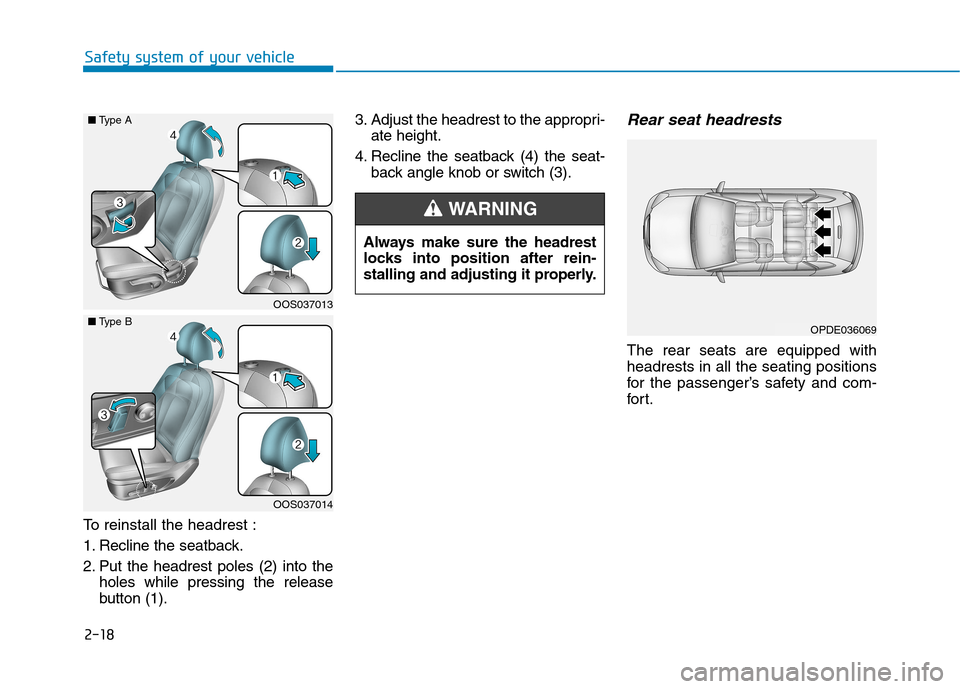

To reinstall the headrest :
1. Recline the seatback.
2. Put the headrest poles (2) into theholes while pressing the release
button (1). 3. Adjust the headrest to the appropri-
ate height.
4. Recline the seatback (4) the seat- back angle knob or switch (3).
Rear seat headrests
The rear seats are equipped withheadrests in all the seating positions
for the passenger’s safety and com-
for t.
OPDE036069
Always make sure the headrest
locks into position after rein-
stalling and adjusting it properly.
WARNING
OOS037013
OOS037014
■
Type A
■Type B
