2018 Hyundai Ioniq Electric immobilizer

Convenient features of your vehicle
Accessing Your Vehicle .........................................3-3
Smart Key ........................................................................\
....3-3
Immobilizer System ...........................................................3-8
Door Locks ..............................................................3-9
Operating Door Locks from Outside the Vehicle ......3-9
Operating Door Locks from Inside the Vehicle .......3-10
Auto Door Lock/Unlock Features ...............................3-12
Child-Protector Rear Door locks ................................3-12
Theft-Alarm System ............................................3-13
Driver Position Memory System ........................3-14
Storing Positions into Memory ..................................3-14
Recalling positions from memory ...............................3-15
Easy Access Function ....................................................3-15
Steering Wheel .....................................................3-16
Electric Power Steering (EPS) .....................................3-16
Tilt Steering / Telescope Steering ..............................3-16
Horn ........................................................................\
............3-17
Heated Steering Wheel (for Canada) .........................3-17
Mirrors ...................................................................3-18
Inside Rearview Mirror ..................................................3-18
Side View Mirrors ...........................................................3-34
Reverse Parking Aid Function......................................3-37
Windows ................................................................3-38
Power Windows ...............................................................3-39
Sunroof..................................................................3-42
Sunroof Opening and Closing ......................................3-43
Sliding the Sunroof .........................................................3-43
Tilting the Sunroof .........................................................3-44
Sunshade ........................................................................\
...3-44
Resetting the Sunroof ...................................................3-45
Exterior Features .................................................3-46
Hood ........................................................................\
...........3-46
Liftgate ........................................................................\
......3-48
Charging Door ..................................................................3-50
Instrument Cluster ...............................................3-51
Instrument Cluster Control............................................3-52
Gauges and Meters ........................................................3-52
Warning and Indicator lights ........................................3-58
LCD Display Messages ...................................................3-68
LCD Display ...........................................................3-80
LCD Display Control ........................................................3-80
LCD Display Modes .........................................................3-81
Trip Computer .......................................................3-90
Light .......................................................................3\
-94
Exterior Lights .................................................................3-94
Interior Lights...................................................................3-99
Welcome System ...........................................................3-102
3

3-8
Convenient features of your vehicle
Immobilizer System
(if equipped)
The immobilizer system helps pro-
tects your vehicle from theft. If an
improperly coded key (or other
device) is used, the power system is
disabled.
When the POWER button is placed in
the ON position, the immobilizer sys-
tem indicator should come on briefly,
then go off. If the indicator starts to
blink, the system does not recognize
the coding of the key.
Place the POWER button to the OFF
position, then place the POWER button
to the ON position again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e., key
chain) is near the key. The vehicle
may not start because the metal may
interrupt the transponder signal from
transmitting normally.
If the system repeatedly does not
recognize the coding of the key, it is
recommended that you contact your
HYUNDAI dealer.Do not attempt to alter this system or
add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.
The transponder in your key is an
important part of the immobilizer
system. It is designed to give
years of trouble-free service, how-
ever you should avoid exposure to
moisture, static electricity and
rough handling. Immobilizer sys-
tem malfunction could occur.
Information
This device complies with Part 15 of
the FCC rules.
Operation is subject to the following
three conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer- ence received, including interference
that may cause undesired operation.
3. Changes or modifications not expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the device.
i
NOTICE
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
immobilizer password is a cus-
tomer unique password and
should be kept confidential.
WARNING

3-66
Convenient features of your vehicle
Electronic StabilityControl (ESC) OFFIndicator Light
This indicator light illuminates:
When the POWER button is in the
ON position.
- It illuminates for approximately 3seconds and then goes off.
When you deactivate the ESC sys- tem by pressing the ESC OFF but-
ton.
For more information, refer to
"Electronic Stability Control (ESC)"
in chapter 5.
Immobilizer Indicator Light
This indicator light illuminates for
up to 30 seconds:
When the vehicle detects the smart
key in the vehicle with the POWER
button in the ACC or ON position.
- At this time, you can start the vehi-
cle ( indicator ON).
- The indicator light goes off after starting the vehicle ( indicator
ON).
This indicator light blinks for a few
seconds:
When the smart key is not in the
vehicle.
- At this time, you cannot start the vehicle.
This indicator light illuminates for
2 seconds and goes off:
If the smart key is in the vehicle and
the POWER button is ON, but the
vehicle cannot detect the smart key.
In this case, have your vehicle inspect-
ed by an authorized HYUNDAI dealer.
This indicator light blinks:
When the battery voltage of thesmart key is low.
- At this time, you can not start thevehicle. However, you can start the
( indicator ON) if you press the
POWER button with the smart key.
(For more information, refer to
"Starting the vehicle" in chapter
5).
When there is a malfunction with the immobilizer system.
In this case, have your vehicle
inspected by an authorized HYUNDAI
dealer.

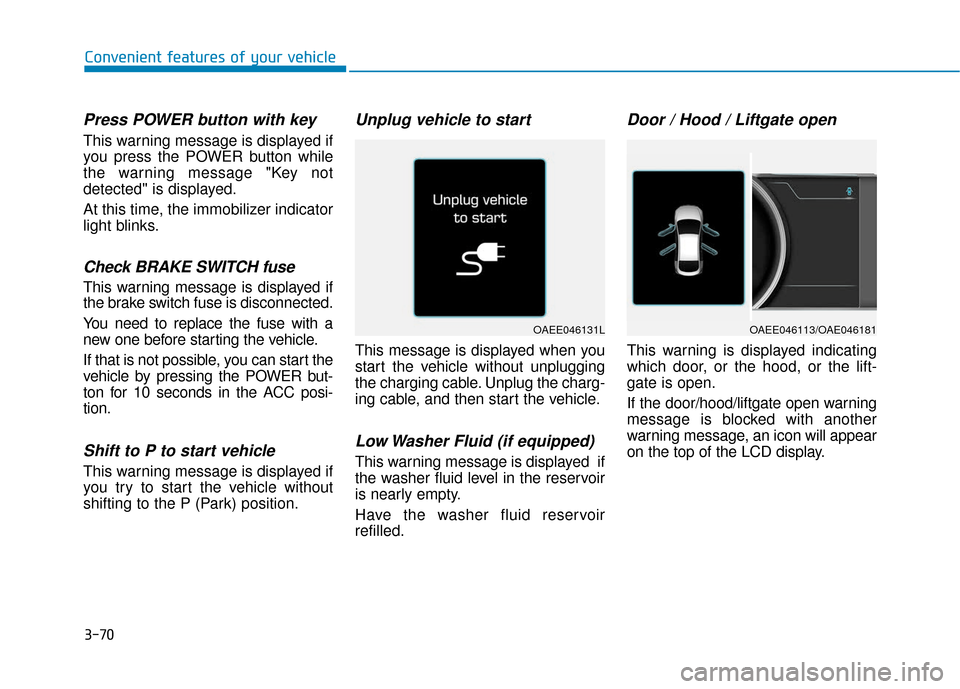

3-70
Convenient features of your vehicle
Press POWER button with key
This warning message is displayed if
you press the POWER button while
the warning message "Key not
detected" is displayed.
At this time, the immobilizer indicator
light blinks.
Check BRAKE SWITCH fuse
This warning message is displayed if
the brake switch fuse is disconnected.
You need to replace the fuse with a
new one before starting the vehicle.
If that is not possible, you can start the
vehicle by pressing the POWER but-
ton for 10 seconds in the ACC posi-
tion.
Shift to P to start vehicle
This warning message is displayed if
you try to start the vehicle without
shifting to the P (Park) position.
Unplug vehicle to start
This message is displayed when you
start the vehicle without unplugging
the charging cable. Unplug the charg-
ing cable, and then start the vehicle.
Low Washer Fluid (if equipped)
This warning message is displayed if
the washer fluid level in the reservoir
is nearly empty.
Have the washer fluid reservoir
refilled.
Door / Hood / Liftgate open
This warning is displayed indicating
which door, or the hood, or the lift-
gate is open.
If the door/hood/liftgate open warning
message is blocked with another
warning message, an icon will appear
on the top of the LCD display.
OAEE046131LOAEE046113/OAE046181

I-6
Gauges and meters ..........................................................3-52
Glove box......................................................................3-\
124
Hazard warning flasher .....................................................6-2
Hazardous driving conditions .........................................5-89
Head restraints ................................................................2-16Front seat head restraints............................................2-17
Rear seat head restraints .............................................2-19
Headlamp delay function ................................................3-97
Headlamp position ..........................................................3-95
Headlight bulb replacement ............................................7-55
Heated steering wheel .....................................................3-17
Heater ........................................................................\
....3-107
Height adjustment ...........................................................2-27
High beam operation.......................................................3-96
Highway driving .............................................................5-91
Hill-start Assist Control (HAC) ......................................5-34
Hood........................................................................\
........3-46
Horn ........................................................................\
........3-17
How to use this manual ....................................................F-6 If the vehicle overheats .....................................................6-6
If the vehicle stalls at a crossroad or crossing ..................6-2
If the vehicle stalls while driving .....................................6-2
If the vehicle will not start ................................................6-3
If you have a flat tire ......................................................6-14
If you have a flat tire while driving ..................................6-3
Immobilizer system...........................................................3-8
Impact sensing door unlock ............................................3-12
Improtant safety precautions.............................................2-2
Air bag hazards ............................................................2-2
Always wear your seat belt ..........................................2-2
Control your speed .......................................................2-3
Driver distraction..........................................................2-2
Keep your vehicle in safe condition.............................2-3
Restrain all children .....................................................2-2
In case of emergency while driving..................................6-2
Indicator light..................................................................3-58
Inside rearview mirror ....................................................3-18
Instrument cluster ...........................................................3-51 Assist mode ................................................................3-83
Gauges and meters .....................................................3-52
Gear shift indicator .....................................................3-56
Icy road warning light ................................................3-57
Index
G
H
I

I-13
User settings mode..........................................................3-84
Vanity mirror lamp........................................................3-101
Vehicle certification label .................................................8-7
Vehicle data collection and event data recorders .............F-8
Vehicle identification number (VIN) ................................8-7
Vehicle load limit ............................................................5-96Tire loading information label....................................5-96
Vehicle modification .........................................................F-7
Vehicle Stability Management (VSM)............................5-33
Volume and weight ...........................................................8-5
Warning and indicator lights...........................................3-58 Anti-lock Brake System (ABS) warning light ...........3-61
AUTO HOLD indicator light .....................................3-63
Autonomous Emergency Braking (AEB) warning light ..........................................................3-64
Charging indicator light .............................................3-59
Charging system warning light ..................................3-62
Cruise indicator light ..................................................3-67
Cruise SET indicator light..........................................3-67 ECO mode indicator light ..........................................3-68
Electric power steering (EPS) warning light .............3-62
Electronic brake force warning light..........................3-61
Electronic parking brake warning light......................3-63
Electronic Stability Control (ESC) indicator light .....3-65
Electronic Stability Control (ESC) OFF indicator light..................................................3-66
High beam indicator light ..........................................3-67
High voltage battery low level warning light ............3-59
Immobilizer indicator light ........................................3-66
Lane Departure Warning System (LDWS) warning light ...........................................................3-64
LED headlamp warning light .....................................3-64
Light ON indicator light .............................................3-67
Low tire pressure warning light .................................3-62
Master warning light ..................................................3-65
Parking brake & brake fluid warning light ................3-60
Power down warning light .........................................3-58
Ready indicator ..........................................................3-58
Regenerative brake warning light ..............................3-59
Seat belt warning light ...............................................3-59
Service warning light .................................................3-58
SPORT mode indicator light ......................................3-68
Supplemental restraint system warning light .............3-59
Turn signal indicator light ..........................................3-67
Warning light ..................................................................3-58
Washer fluid ....................................................................7-17\
I
Index
U
V
W
