2018 Hyundai Elantra rear combination light

7
Tires and Wheels .................................................7-33
Tire Care ........................................................................\
....7-33
Recommended Cold Tire Inflation Pressures ...........7-34
Check Tire Inflation Pressure ......................................7-35
Tire Rotation...................................................................\
..7-36
Wheel Alignment and Tire Balance ............................7-37
Tire Replacement ............................................................7-37
Wheel Replacement ........................................................7-38
Tire Traction .....................................................................7-3\
8
Tire Maintenance ............................................................7-39
Tire Sidewall Labeling ....................................................7-39
Tire Terminology and Definitions................................7-43
All Season Tires ...............................................................7-46
Summer Tires ...................................................................7-46
Snow Tires ........................................................................\
7-46
Radial-Ply Tires ...............................................................7-46
Low Aspect Ratio Tires..................................................7-47
Fuses ......................................................................7-\
48
Instrument Panel Fuse Replacement..........................7-49
Engine Compartment Panel Fuse Replacement.......7-50
Fuse/Relay Panel Description ......................................7-53
Light Bulbs ............................................................7-59
Headlamp, Parking Lamp,
Turn Signal Lamp and Side Marker ............................7-59
Side Repeater Lamp Replacement ..............................7-70
Rear Combination Light Bulb Replacement ..............7-70
High Mounted Stop Light Replacement ....................7-74
License Plate Light Bulb Replacement ......................7-74
Interior Light Bulb Replacement .................................7-75
Appearance Care..................................................7-76
Exterior Care ....................................................................7-76\
Interior Care .....................................................................7-8\
0
Emission Control System ....................................7-83
Crankcase Emission Control System ..........................7-83
Evaporative Emission Control System Including
Onboard Refueling Vapor Recovery (ORVR)............7-83
Exhaust Emission Control System ..............................7-84
California Perchlorate Notice.............................7-86

7-57
7
Maintenance
Fuse NameFuse rating Protected Component
MULTI
FUSE-1 MAIN 180A Fuse : ABS1, ABS2, B/ALARM HORN, POWER OUTLET
MDPS 80A MDPS Unit
MULTI
FUSE-2
B+5 60A PCB Block (Fuse : ECU3, ECU4, HORN, FUEL PUMP, ENGINE CONTROL RELAY)
B+2 60A Smart Junction Block (Fuse : S/HEATER FRT, ARISU)
B+3 60A Smart Junction Block (Fuse : ARISU, IPS)
B+4 50A Smart Junction Block (Fuse : S/HEATER FRT, P/WINDOW LH, P/WINDOW RH, TRUNK,
SUNROOF, AMP, P/SEAT DRV)
COOLING FAN 1 60A Not Used
REAR HEATED 50A Rear Heated Relay
BLOWER 40A Blower Relay
IG1 40A Ignition Switch, E/R Junction Block (PDM #2, #3 (ACC/IG1) Relay)
IG2 40A Ignition Switch, E/R Junction Block (PDM #4 (IG2) Relay, START Relay)
FUSE
B/UP LAMP 10A Electro Chromic Mirror, Rear Combination Lamp (IN) LH/RH, Smart Junction Block (IPS
Control Module)
POWER OUTLET 3 20A Cigarette Lighter
POWER OUTLET 2 20A Front Power Outlet
H/LAMP HI 10A Not Used
TCU 1 15A Not Used
VACUUM PUMP 1 20A Not Used
A/CON 10A A/Con Relay
COOLING FAN 2 40A Cooling Fan 1/2 Relay
B+1 40A Smart Junction Block (Leak Current Autocut Device, Fuse : BRAKE SWITCH, MODULE 1,
DR LOCK, PDM 1, PDM 2)
DCT1 40A Not Used

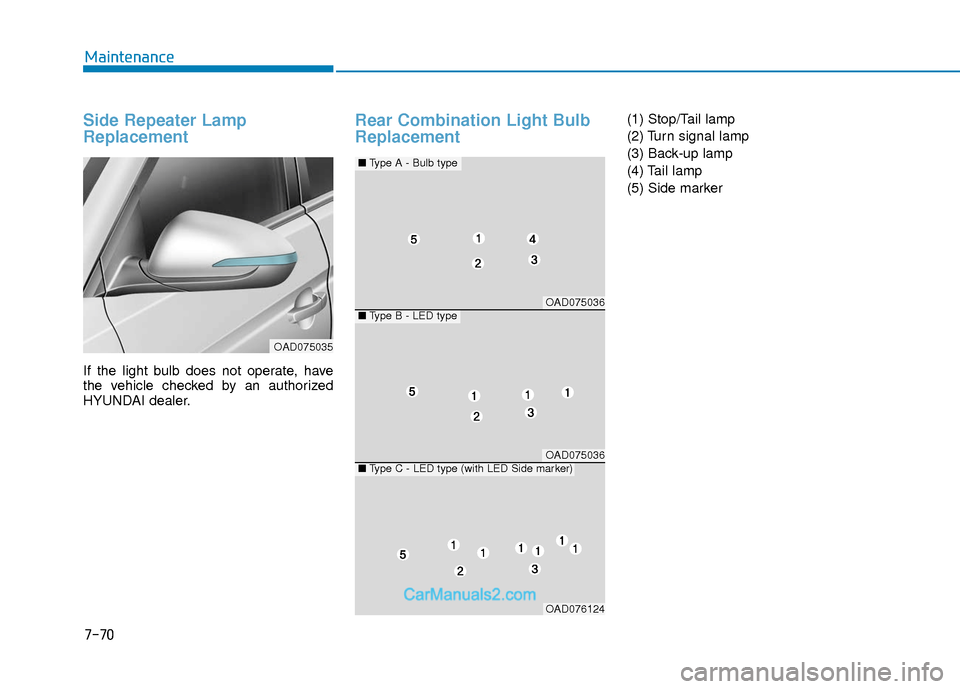

7-70
Maintenance
Side Repeater Lamp
Replacement
If the light bulb does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.
Rear Combination Light Bulb
Replacement (1) Stop/Tail lamp
(2) Turn signal lamp
(3) Back-up lamp
(4) Tail lamp
(5) Side marker
OAD075035
OAD075036
OAD075036
OAD076124
■Type B - LED type
■Type A - Bulb type
■Type C - LED type (with LED Side marker)

7-71
7
Maintenance
Outside lamp
1. Open the trunk lid.
2. Remove the service cover by pullingout the service cover. 3. Loosen the assembly retaining nuts.
4. Remove the rear combination light
assembly from the body of the vehicle.
OAD075051
OAD075050
OAD075049
OAD075080N
OAD075081N
OAD075038
■Type B - LED type
■Type A - Bulb type
■Type C - LED type (with LED Side marker)
Turn signalSide marker
Tail/stop
Side marker
Turn signal
Turn signal

B
BU
U L
LB
B
W
W A
AT
TT
TA
A G
G E
E
8-3
88
Specifications, Consumer information and Reporting safety defects
Light Bulb Bulb typeWattage
Front Headlamp
Low
Type A, B HB3
60
Type C D5S 25
High Type A, B, C H7 55
Low/High Type D D1S35
Turn signal lamp PY28/8W28/8
Parking lamp Type A
PY28/8W 28/8
Type B, C, D LEDLED
Side marker lamp Type A, B, C
W5W5
Type D LEDLED
Daytime running lamp (DRL)* LEDLED
Side repeater lamp (Outside mirror) LEDLED
Rear Rear combination lamp Outside Tail/Stop
Type A P21/5W
21/5
Type B, C LED LED
Turn signal Type A, B PY27W
27
Type C P27W 27
Side marker Type A, B W5W
5
Type C LED LED
(Continued)
* If equipped

I-6
Lane Keeping Assist System (LKAS) ............................5-62Limitations of the System ..........................................5-66
LKAS Function Change .............................................5-68
LKAS Malfunction.....................................................5-67
LKAS Operation ........................................................5-63
LCD Display (For Supervision Cluster) .........................3-80 LCD Display Control .................................................3-80
LCD Display Modes ..................................................3-81
User Settings Mode ....................................................3-85
Light ........................................................................\
........3-98 Exterior Lights............................................................3-98
Interior Lights...........................................................3-104
Welcome System ......................................................3-107
Light Bulbs .....................................................................7-5\
9 Headlamp, Parking Lamp, Turn Signal Lamp and Side Marker .......................7-59
High Mounted Stop Light Replacement ....................7-74
Interior Light Bulb Replacement ...............................7-75
License Plate Light Bulb Replacement ......................7-74
Rear Combination Light Bulb Replacement ..............7-70
