2018 Hyundai Elantra turn signal bulb

7-68
Maintenance
Side marker
1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the socket from the assemblyby turning the socket counterclock-
wise until the tabs on the socket align
with the slots on the assembly.
4. Remove the bulb from the socket by pulling out the bulb.
5. Insert a new bulb.
Parking lamp/Daytime running
lamp (LED type)
Your vehicle is equipped with LED lamps.
LED lamps do not have replaceable
bulbs. If the LED lamp does not operate,
have the vehicle checked by an author-
ized HYUNDAI dealer.
Type D - HID headlamp type (LED side marker)
(1) Headlamp (Low/High)
(2) Turn signal lamp
(3) Side marker
(4) Daytime running lamp (DRL) &
Parking lamp
Headlamp (Low/High, HID type)
If the light bulb does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.
Information
If your vehicle is equipped with High
Intensity Discharge (HID) headlamps,
these headlamps contain mercury. So if
you need to have your vehicle disposed,
you should remove the HID Headlamps
before disposal. The removed HID head-
lamps should be recycled, re-used or dis-
posed as hazardous waste.
i
OAD075082N
HID Headlamp low beam
Do not attempt to replace or
inspect the low beam (XENON bulb)
due to electric shock danger. If the
low beam (XENON bulb) is not
working, have your vehicle checked
by an authorized HYUNDAI Dealer.
WARNING
OAD076123

7-69
7
Maintenance
Information
HID lamps have superior performance vs.
halogen bulbs.
HID lamps are estimated by the manufac-
turer to last twice as long or longer than
halogen bulbs depending on their frequen-
cy of use. They will probably require
replacement at some point in the life of the
vehicle. Cycling the headlamps on and off
more than typical use will shorten HID
lamps life. HID lamps do not fail in the
same manner as halogen incandescent
lamps. If a headlamp goes out after a peri-
od of operation but will immediately
relight when the headlamp switch is cycled
it is likely the HID lamp needs to be
replaced. HID lighting components are
more complex than conventional halogen
bulbs thus have higher replacement cost.
Turn signal lamp
1. Open the hood.
2. Disconnect the negative battery cable.
3. Remove the socket from the assemblyby turning the socket counterclock-
wise until the tabs on the socket align
with the slots on the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
5. Install a new bulb by inserting it into the socket and rotating it until it locks
into place. 6. Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly.
7. Push the socket into the assembly and turn the socket clockwise.
Side marker/Parking lamp/Daytime
running lamp (LED type)
Your vehicle is equipped with LED lamps.
LED lamps do not have replaceable
bulbs. If the LED lamp does not operate,
have the vehicle checked by an author-
ized HYUNDAI dealer.
i
OAD076127

7-70
Maintenance
Side Repeater Lamp
Replacement
If the light bulb does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.
Rear Combination Light Bulb
Replacement (1) Stop/Tail lamp
(2) Turn signal lamp
(3) Back-up lamp
(4) Tail lamp
(5) Side marker
OAD075035
OAD075036
OAD075036
OAD076124
■Type B - LED type
■Type A - Bulb type
■Type C - LED type (with LED Side marker)

7-71
7
Maintenance
Outside lamp
1. Open the trunk lid.
2. Remove the service cover by pullingout the service cover. 3. Loosen the assembly retaining nuts.
4. Remove the rear combination light
assembly from the body of the vehicle.
OAD075051
OAD075050
OAD075049
OAD075080N
OAD075081N
OAD075038
■Type B - LED type
■Type A - Bulb type
■Type C - LED type (with LED Side marker)
Turn signalSide marker
Tail/stop
Side marker
Turn signal
Turn signal

7-72
Maintenance

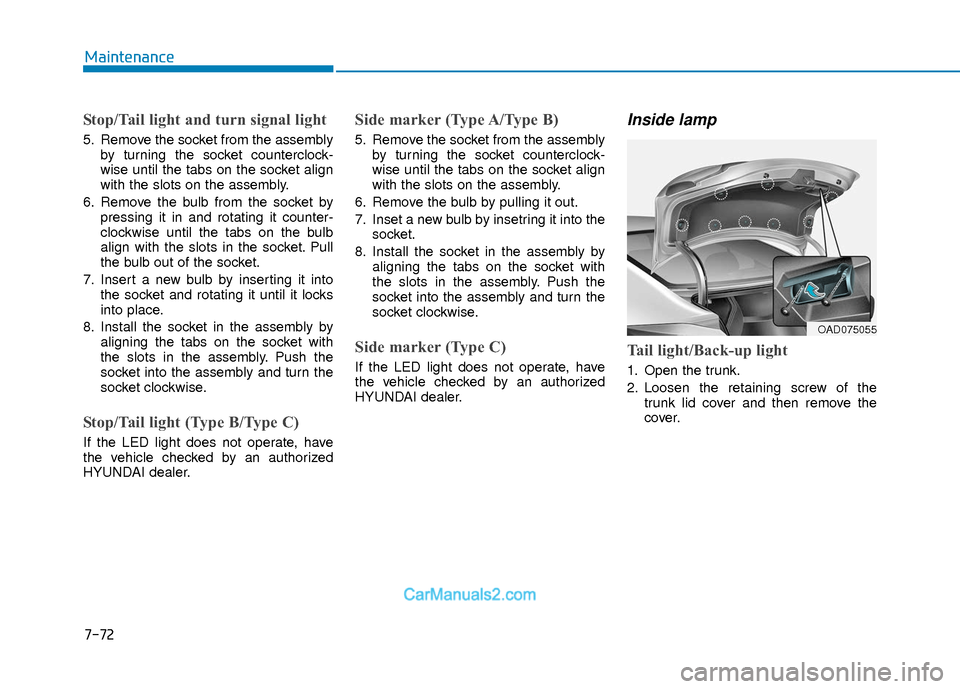

Stop/Tail light and turn signal light
5. Remove the socket from the assemblyby turning the socket counterclock-
wise until the tabs on the socket align
with the slots on the assembly.
6. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
7. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
8. Install the socket in the assembly by aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
Stop/Tail light (Type B/Type C)
If the LED light does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.
Side marker (Type A/Type B)
5. Remove the socket from the assemblyby turning the socket counterclock-
wise until the tabs on the socket align
with the slots on the assembly.
6. Remove the bulb by pulling it out.
7. Inset a new bulb by insetring it into the socket.
8. Install the socket in the assembly by aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
Side marker (Type C)
If the LED light does not operate, have
the vehicle checked by an authorized
HYUNDAI dealer.
Inside lamp
Tail light/Back-up light
1. Open the trunk.
2. Loosen the retaining screw of thetrunk lid cover and then remove the
cover.
OAD075055

B
BU
U L
LB
B
W
W A
AT
TT
TA
A G
G E
E
8-3
88
Specifications, Consumer information and Reporting safety defects
Light Bulb Bulb typeWattage
Front Headlamp
Low
Type A, B HB3
60
Type C D5S 25
High Type A, B, C H7 55
Low/High Type D D1S35
Turn signal lamp PY28/8W28/8
Parking lamp Type A
PY28/8W 28/8
Type B, C, D LEDLED
Side marker lamp Type A, B, C
W5W5
Type D LEDLED
Daytime running lamp (DRL)* LEDLED
Side repeater lamp (Outside mirror) LEDLED
Rear Rear combination lamp Outside Tail/Stop
Type A P21/5W
21/5
Type B, C LED LED
Turn signal Type A, B PY27W
27
Type C P27W 27
Side marker Type A, B W5W
5
Type C LED LED
(Continued)
* If equipped
