5-38
Driving your vehicle
Electronic Stability Control
(ESC)
The Electronic Stability Control (ESC)
system helps to stabilize the vehicle dur-
ing cornering maneuvers. ESC checks
where you are steering and where the
vehicle is actually going. ESC applies
braking pressure to any one of the vehi-
cle's brakes and intervenes in the engine
management system to assist the driver
with keeping the vehicle on the intended
path. It is not a substitute for safe driving
practices. Always adjust your speed and
driving to the road conditions.
ESC operation
ESC ON condition
When the ignition switch is in the ON
position, the ESC and the ESC OFF indi-
cator lights illuminate for approximately
three seconds. After both lights go off,
the ESC is enabled.
When operating
When the ESC is in operation,
the ESC indicator light blinks:
When you apply your brakes under conditions which may lock the wheels,
you may hear sounds from the brakes,
or feel a corresponding sensation in
the brake pedal. This is normal and it
means your ESC is active.
When the ESC activates, the engine may not respond to the accelerator as
it does under routine conditions.
If the Cruise Control was in use when the ESC activates, the Cruise Control
automatically disengages. The Cruise
Control can be reengaged when the
road conditions allow. See "Cruise
Control System" later in this chapter. (if
equipped)
When moving out of the mud or driving on a slippery road, the engine RPM
(revolutions per minute) may not
increase even if you press the acceler-
ator pedal deeply. This is to maintain
the stability and traction of the vehicle
and does not indicate a problem.
OAD055010N
Never drive too fast for the road
conditions or too quickly when cor-
nering. The ESC system will not
prevent accidents.
Excessive speed in turns, abrupt
maneuvers, and hydroplaning on
wet surfaces can result in severe
accidents.
WARNING

5-69
Driving your vehicle
5
Cruise Control operation
1. CRUISE indicator
2. SET indicator
The Cruise Control system allows you to
drive at speeds above 20 mph (30 km/h)
without depressing the accelerator pedal.
Information
• During normal cruise control operation,when the SET switch is activated or
reactivated after applying the brakes,
the cruise control will energize after
approximately 3 seconds. This delay is
normal.
• Before activating the cruise control function, the system will check to verify
that the brake switch is operating nor-
mally. Depress the brake pedal at least
once after turning ON the ignition or
starting the engine.
i
C CR
R U
U I
IS
S E
E
C
C O
O N
NT
TR
R O
O L
L
OAD055035
Take the following precautions:
If the Cruise Control is left on,
("CRUISE" indicator light in the
instrument cluster is illuminated)
the Cruise Control can be activat-
ed unintentionally. Keep the
Cruise Control system off
("CRUISE" indicator light OFF)
when the Cruise Control is not in
use, to avoid inadvertently set-
ting a speed.
Use the Cruise Control system
only when traveling on open
highways in good weather.
Do not use the Cruise Control
when it may be unsafe to keep
the vehicle at a constant speed:
- When driving in heavy traffic or
when traffic conditions make it
difficult to drive at a constant
speed
- When driving on rainy, icy, or snow-covered roads
- When driving on hilly or windy roads
- When driving in windy areas
- When driving with limited view (possibly due to bad weather
such as fog, snow, rain and
sandstorm)
WARNING

5-70
Driving your vehicle
To set Cruise Control speed
1. Press the CRUISE button on thesteering wheel to turn the system on.
The "CRUISE" indicator will illuminate.
2. Accelerate to the desired speed, which must be more than 20 mph (30
km/h). 3. Push the toggle switch (1) down (SET-),
and release it. The SET indicator light
will illuminate.
4. Release the accelerator pedal.
Information
On a steep slope, the vehicle may slightly
slow down or speed up, while driving
uphill or downhill.
To increase Cruise Control speed
Push the toggle switch (1) up (RES+)
and hold it, while monitoring the SET
speed on the instrument cluster.
Release the toggle switch when the
desired speed is shown and the vehi-
cle will accelerate to that speed.
Push the toggle switch (1) up (RES+) and release it immediately. The cruis-
ing speed will increase 1.0 mph (1.6
km/h) each time the toggle switch is
operated in this manner.
Depress the accelerator pedal. When the vehicle attains the desired speed,
push the toggle switch (1) down (SET-).
i
OAD055019
OAD055020
OAD055021

5-71
Driving your vehicle
5
To decrease Cruise Controlspeed
Push the toggle switch (1) down (SET-)
and hold it. Your vehicle will gradually
slow down. Release the toggle switch
at the speed you want to maintain.
Push the toggle switch (1) down (SET-) and release it immediately. The cruising
speed will decrease 1.0 mph (1.6 km/h)
each time the toggle switch is operated
in this manner.
Lightly tap the brake pedal. When the vehicle attains the desired speed, push
the toggle switch (1) down (SET-).
To temporarily accelerate withthe Cruise Control ON
Depress the accelerator pedal. When you
take your foot off the accelerator, the
vehicle will return to the previously set
speed.
If you push the toggle switch down (SET-)
at the increased speed, the Cruise Control
will maintain the increased speed.
Cruise Control will be canceledwhen:
Depressing the brake pedal.
Pressing the CANCEL button located
on the steering wheel.
Pressing the CRUISE button. Both the CRUISE indicator and the "SET" indi-
cator will turn OFF.
Moving the shift lever into N (Neutral).
Decreasing the vehicle speed to less than approximately 20 mph (30 km/h).
The ESC (Electronic Stability Control) is operating.
Downshifting to 2
ndgear when in
Manual Shift mode.
OAD055020OAD055022

5-72
Driving your vehicle
Information
Each of the above actions will cancel
Cruise Control operation (the "SET" indi-
cator in the instrument cluster will go off),
but only pressing the CRUISE button will
turn the system off. If you wish to resume
Cruise Control operation, push the toggle
switch up (RES+) located on your steering
wheel. You will return to your previously
preset speed, unless the system was turned
off using the CRUISE button.
To resume preset Cruisingspeed
Push the toggle switch (1) up (RES+). If
the vehicle speed is over 20 mph (30
km/h), the vehicle will resume the preset
speed.
To turn Cruise Control off
Press the CRUISE button (the
"CRUISE" indicator light will go off).
Turn the vehicle OFF.
i
OAD055019
OAD055021

5-73
Driving your vehicle
5
➀Cruise Indicator
➁ Set Speed
➂ Vehicle-to-Vehicle Distance
The Smart Cruise Control System allows
you to program the vehicle to maintain
constant speed and distance detecting
the vehicle ahead without depressing the
accelerator/brake pedal.
S S M
M A
AR
RT
T
C
C R
R U
U I
IS
S E
E
C
C O
O N
NT
TR
R O
O L
L
S
S Y
Y S
ST
T E
EM
M
(
( I
IF
F
E
E Q
Q U
UI
IP
P P
PE
ED
D )
)
OLF054430N
For your safety, please read the
owner's manual before using the
Smart Cruise Control system.
WARNING
Do not use smart cruise control
when towing a trailer.
WARNING
The Smart Cruise Control System
is not a substitute for safe driving
practices, but a convenience func-
tion only. It is the responsibility of
the driver to always check the
speed and distance to the vehicle
ahead.
WARNING
Take the following precautions:
If the Smart Cruise Control is left
on, ("CRUISE" indicator light in
the instrument cluster is illumi-
nated) the Smart Cruise Control
can be activated unintentionally.
Keep the Smart Cruise Control
System off ("CRUISE" indicator
light OFF) when the Smart Cruise
Control is not in use, to avoid
inadvertently setting a speed.
Set the Smart Cruise Control
speed under the posted speed,
which is regulated by the law.
Use the Smart Cruise Control
System when traveling on open
highways in good weather.
Do not use the Smart Cruise
Control when it may not be safe
to keep the vehicle at a constant
speed:
- When driving in heavy traffic or
when traffic conditions make it
difficult to drive at a constant
speed
- When driving on rainy, icy, or snow-covered roads
(Continued)
WARNING

5-74
Driving your vehicle

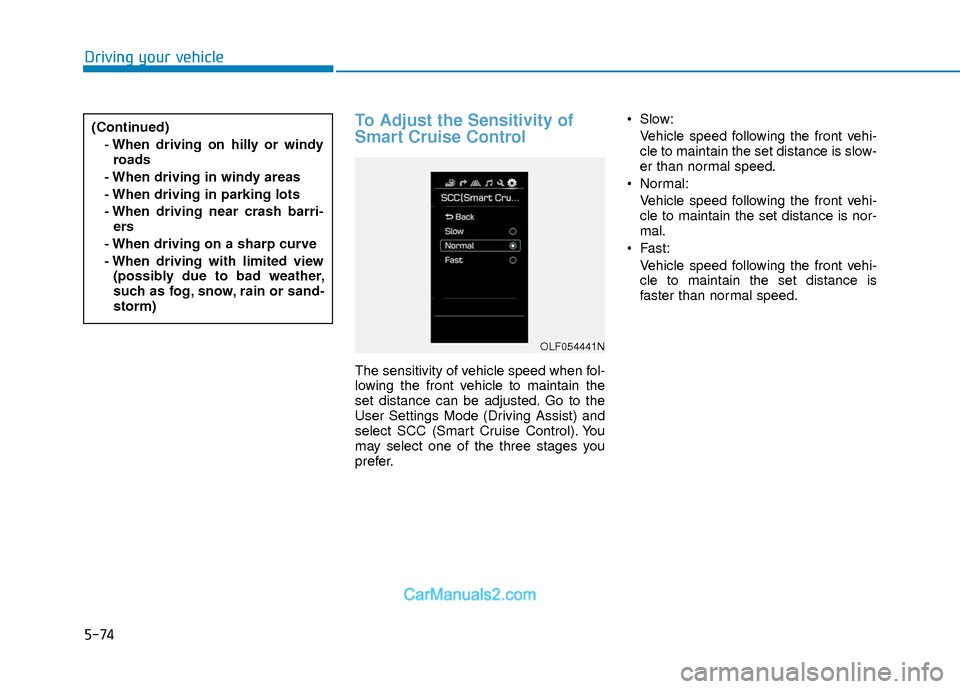

To Adjust the Sensitivity of
Smart Cruise Control
The sensitivity of vehicle speed when fol-
lowing the front vehicle to maintain the
set distance can be adjusted. Go to the
User Settings Mode (Driving Assist) and
select SCC (Smart Cruise Control). You
may select one of the three stages you
prefer. Slow:
Vehicle speed following the front vehi-
cle to maintain the set distance is slow-
er than normal speed.
Normal: Vehicle speed following the front vehi-
cle to maintain the set distance is nor-
mal.
Fast: Vehicle speed following the front vehi-
cle to maintain the set distance is
faster than normal speed.
(Continued)
- When driving on hilly or windyroads
- When driving in windy areas
- When driving in parking lots
- When driving near crash barri- ers
- When driving on a sharp curve
- When driving with limited view (possibly due to bad weather,
such as fog, snow, rain or sand-
storm)
OLF054441N

5-75
Driving your vehicle
5
To Convert to Cruise Control
Mode
The driver may choose to only use the
Cruise Control Mode (speed control
function) by doing as follows:
1. Turn the Smart Cruise Control Systemon (the "CRUISE" indicator will be on
but the system will not be activated).
2. Press and hold the Vehicle-to-Vehicle Distance button for more than 2 sec-
onds.
3. Choose between "Smart Cruise Control (SCC) Mode" and "Cruise
Control (CC) Mode". When the system is canceled using the
CRUISE button or the CRUISE button is
used after the engine is turned on, the
SCC Mode will turn on.
Smart Cruise Control Speed
To set Smart Cruise Control
speed
1. Push the CRUISE button on the steer-
ing wheel to turn the system on. The
"CRUISE" indicator will illuminate.
2. Accelerate to the desired speed. The Smart Cruise Control speed canbe set as follows:
km/h): when there is no vehicle in
front
km/h): when there is a vehicle in
front
OLF054205N/OLF054431N
When using the Cruise Control
Mode, you must manually adjust
the distance to other vehicles by
depressing the accelerator or brake
pedal. The system does not auto-
matically adjust the distance to
vehicles in front of you.
WARNING
OAD055019
