5

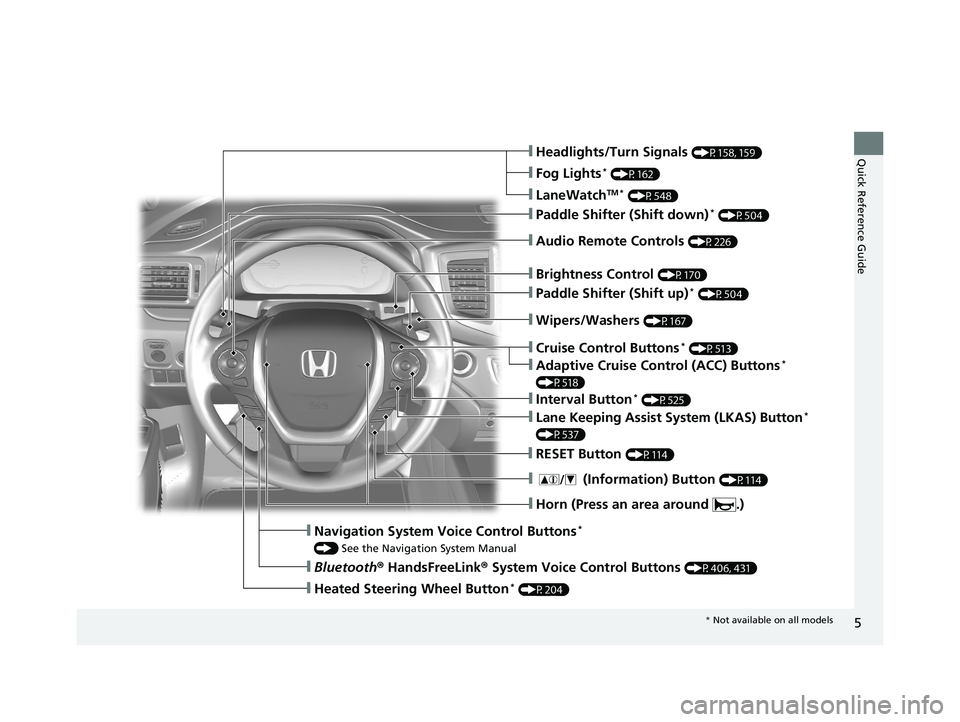

Quick Reference Guide❙Headlights/Turn Signals (P158, 159)
❙Fog Lights* (P162)
❙LaneWatchTM * (P548)
❙Paddle Shifter (Shift down)* (P504)
❙Audio Remote Controls (P226)
❙Wipers/Washers (P167)
❙Paddle Shifter (Shift up)* (P504)
❙Brightness Control (P170)
❙Cruise Control Buttons* (P513)
❙Adaptive Cruise Control (ACC) Buttons*
(P518)
❙Interval Button* (P525)
❙Lane Keeping Assist System (LKAS) Button*
(P537)
❙RESET Button (P114)
❙Horn (Press an area around .)
❙ (Information) Button (P114)
❙Navigation System Voice Control Buttons*
() See the Navigation System Manual
❙Bluetooth ® HandsFreeLink ® System Voice Control Buttons (P406, 431)
❙Heated Steering Wheel Button* (P204)
* Not available on all models
18 PILOT-31TG76200.book 5 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P591)
❙Windshield Wipers (P167, 609)
❙Tires (P613, 637)
❙Door Lock/Unlock Control (P124)
❙Power Door Mirrors (P176)
❙Headlights (P159, 603)
❙Front Side Marker Lights (P159, 605)
❙Front Turn Signal/Parking* Lights (P158, 159, 606)
❙Fog Lights* (P162, 606)
❙Side Turn Signal Lights* (P158, 606)
❙Daytime Running Lights /Parking Lights*
(P159, 166, 605)
❙How to Refuel (P580)
❙High-Mount Brake Light (P608)
❙Opening/Closing the Tailgate (P138)
❙Rear Wiper (P169, 611)
❙Multi-View Rear Camera (P578)
❙Tailgate Release Button (P139)
❙Rear License Plate Lights (P608)
❙Rear Side Marker Lights (P607)
❙Taillights (P607)
❙Brake Lights and Rear Turn Signal Lights (P607)
❙Back-Up Lights (P608)
18 PILOT-31TG76200.book 8 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

12
Quick Reference Guide
Instrument Panel (P77)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
IndicatorAnti-lock Brake System
(
ABS ) Indicator
Vehicle Stability Assist
®
(VSA® ) System Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
IndicatorParking Brake and
Brake System
Indicator (Red)Supplemental
Restraint System
Indicator
Low Fuel Indicator
Gauges (P113)/Multi-Information Display (MID) (P114)/System Indicators (P78)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Smart Entry System
Indicator Ambient
Meter
Gear Position Indicator Fuel Gauge
Tachometer
Temperature
Gauge
Speedometer
MID
M (sequential mode) Indicator/
Sequential Mode Gear Selection
Indicator
*
Brake System
Indicator (Amber)
All-wheel drive system
(AWD) Indicator*
Blind spot information
(BSI) Indicator*
System Indicators
Collision Mitigation Braking
SystemTM (CMBSTM) Indicator*
Road Departure Mitigation
(RDM) Indicator*
Security System Alarm
Indicator
U.S.
Canada U.S.
Canada
Fog Light Indicator
Auto Idle-stop System
Indicator (Amber)*
Auto Idle-stop
Indicator (Green)*
ECON Mode Indicator
Auto high-beam
system Indicator
*
Lane Keeping Assist
System ( LKAS) Indicator*
CRUISE MAIN
Indicator*
CRUISE CONTROL
Indicator*
Adaptive Cruise
Control ( ACC)
Indicator
*
Intelligent Traction
Management Indicator
18 PILOT-31TG76200.book 12 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

14
Quick Reference Guide
Turn Signals (P158)
Lights (P159)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P167)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent wipers
Wiper/Washer Control Lever
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Adjustment Ring
Low Sensitivity*1
Lower speed, fewer sweeps*2
High Sensitivity*1
Higher speed, more sweeps*2(+:(+:
(-:(-:
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
● Cleaning the windshield
● Driving through a car wash
● No rain present
Steering Wheel (P174)
● To adjust, push the adjustment lever
down, adjust to the de sired position, then
pull up the lever back in place.
Models with automatic intermittent wipers
18 PILOT-31TG76200.book 14 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

46
uuAirbags uAirbag System Components
Safe Driving
The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. Both side
curtain airbags are depl oyed in a rollover.
The airbag system includes:
aTwo SRS (Supplemental Restraint System)
front airbags. The driver’s airbag is stored
in the center of the steering wheel; the
front passenger’s airbag is stored in the
dashboard. Both are marked SRS
AIRBAG.
bTwo side airbags, one for the driver and
one for a front passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG .
cTwo side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG.
dAn electronic control unit that, when the
vehicle is on, continually monitors
information about the various impact
sensors, buckle sensors, rollover sensor,
the airbag activators, the seat belt
tensioners, driver and front passenger
seat belt, and other vehicle information.
During a crash event the unit can record
such information.
eAutomatic front seat belt tensioners. The
driver’s and front passenger’s seat belts
incorporate sensors that detect whether
or not they are fastened.
fA driver's seat position sensor. This
sensor determines the optimal force at
which the airbag will deploy in a crash.
gWeight sensors in the front passenger’s
seat. The front passenger’s airbag will be
turned off if the weight on the seat is 65
lbs (29 kg) or less (the weight of an infant
or small child).
hImpact sensors that can detect a
moderate to severe front impact, side
impact, or if your vehicle is about to
rollover.
iAn indicator on the dashboard that alerts
you that the front passenger’s front
airbag has been turned off.
jAn indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.
kSafing Sensor
lA rollover sensor that can detect if your
vehicle is about to roll over and signal the
control unit to deploy both side curtain
airbag.
18 PILOT-31TG76200.book 46 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Electric Power
Steering (EPS)
System Indicator
●Comes on when you set the
power mode to ON, and goes off
when the engine starts.
●Comes on if there is a problem
with the EPS system.
●Stays on constantly or does not come on
at all - Have your vehicle checked by a
dealer.
2If the Electric Power Steering (EPS)
System Indicator Comes On P. 656
Low Tire Pressure/
TPMS Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if the tire pressure of
any of the tires becomes
significantly low.
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS with Tire Fill
Assist, or when a compact spare
tire
* is temporarily installed.
●Comes on while driving - Stop in a safe
place, check tire pres sures, and inflate the
tire(s) if necessary.
●Blinks and remains on - Have your vehicle
checked by a dealer. If the vehicle is fitted
with a compact spare, get your regular tire
repaired or replaced and put back on your
vehicle as soon as you can.
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blinks along with all turn signals if
you press the hazard warning
button.
●Does not blink or blinks rapidly - A turn
signal light bulb has blown. Change the
bulb immediately.
2 Front Turn Signal/Parking* and Fog*
Light Bulbs P. 606
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
* Not available on all models
18 PILOT-31TG76200.book 86 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

119
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 120
Locking and Unlocking the Doors Key Types and Functions .................. 121
Locking/Unlocking the Doors from the Outside .......................................... 124
Low Smart Entry Remote Signal Strength*... 123Locking/Unlocking the Doors from the Inside ............................................. 131
Childproof Door Locks ..................... 133
Auto Door Locking/Unlocking .......... 134
Customizing the Auto Door Locking/ Unlocking Setting ........................... 135
Opening and Closing the Tailgate ... 138
Security System Immobilizer System .......................... 146 Security System Alarm...................... 146
Opening and Closing the Windows.... 149Moonroof*.............................................. 151Panoramic Roof*............................... 152
Operating the Switches Around the Steering Wheel
ENGINE START/STOP Button............. 155
Turn Signals ..................................... 158
Light Switches.................................. 159
Fog Lights
*...................................... 162
Auto High-Beam System*................ 163
Daytime Running Lights ................... 166
Wipers and Washers ........................ 167
Brightness Control ........................... 170
Defogger/Heated Door Mirror
*........ 171 Driving Position Memory System
*.... 172
Adjusting the Steering Wheel .......... 174
Adjusting the Mirrors
Interior Rearview Mirror ................... 175
Power Door Mirrors ......................... 176
Adjusting the Seats
Adjusting the Seat Positions ............. 177
Rear Seats........................................ 186
Armrest ........................................... 189
Interior Lights/Interior Convenience ItemsInterior Lights .................................. 191
Interior Convenience Items .............. 195
Heating and Cooling
*....................... 209
Climate Control System*.................. 214
* Not available on all models
18 PILOT-31TG76200.book 119 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

158
uuOperating the Switches Around the Steering Wheel uTurn Signals
Controls
Turn Signals
The turn signals can be used when the power
mode is in ON.
■One-touch turn signal
When you lightly push up or down and release
the turn signal lever, th e exterior turn signals
and turn signal indica tor blink three times.
This feature can be used when signaling for a
lane change.
Right Turn
Left Turn
