Handling the Unexpected
Shift Lever Does Not Move*
Follow the procedure below if you cannot move the shift lever out of the (P
position.
1.Set the parking brake.
2. Remove the built-in key from the smart
entry remote.
3. Open the lid of the console compartment.
4. Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the shift lock
release slot as shown in the image, and
remove the cover.
5. Insert the key into the sh ift lock release slot.
6. While pushing the key down, press the shift
lever release button and place the shift lever
into
(N.
u The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.
■Releasing the Lock
Cover
Release
Button
Shift Lock
Release Slot
* Not available on all models
18 PILOT-31TG76200.book 648 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

660
uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the outer side of the side panel cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box Type A
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1DR P/W20 A
2DOOR LOCK20 A
3SMART7.5 A
4AS P/W20 A
5FR ACC SOCKET20 A
6FUEL PUMP20 A
7ACG15 A
8FRONT WIPER7.5 A
9IG1 SMART*17.5 A
ABS/VSA*27.5 A
10SRS10 A
11REAR LEFT P/W20 A
12−−
13REAR RIGHT P/W20 A
14FUEL LID20 A
15DR P/SEAT (REC)(20 A)
16REAR FOG(7.5 A)
17FR SEAT HEATER(20 A)
18INTR LT7.5 A
19DR REAR DOOR UNLOCK10 A
20AS SIDE DOOR UNLOCK10 A
21DRL7.5 A
22KEY LOCK7.5 A
23A/C7.5 A
24IG1a FEED BACK7.5 A
*1:Models with Auto idle-stop system
*2:Models without Auto idle-stop system
25INST PANEL LIGHTS7.5 A
26LUMBAR SUPPORT(10 A)
27PARKING LIGHTS7.5 A
28OPTION10 A
29BACK LT*17.5 A
METER*27.5 A
30REAR WIPER10 A
31ST MOTOR*17.5 A
MISS SOL*27.5 A
32SRS7.5 A
33AS SIDE DOOR LOCK10 A
34DR DOOR LOCK10 A
35DR DOOR UNLOCK10 A
36DR P/SEAT (SLIDE)(20 A)
37RIGHT H/L HI10 A
38LEFT H/L HI10 A
39IG1b FEED BACK7.5 A
40ACC7.5 A
41DR REAR DOOR LOCK10 A
42−−
Circuit ProtectedAmps
18 PILOT-31TG76200.book 660 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

664
Handling the Unexpected

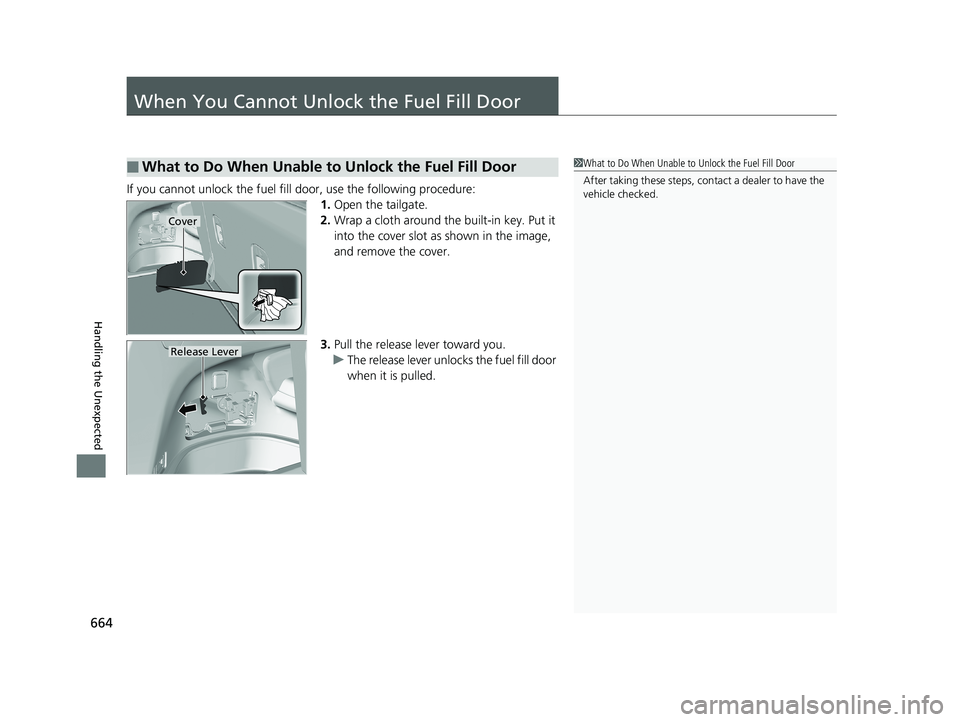

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure:1.Open the tailgate.
2. Wrap a cloth around the built-in key. Put it
into the cover slot as shown in the image,
and remove the cover.
3. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Release Lever
18 PILOT-31TG76200.book 664 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

665
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Wrap a cloth around the built-in key. Put it
into the cover slot as shown in the image,
and remove the cover.
4. Remove the funnel from the cover.
5. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.Funnel
Cover
Funnel
18 PILOT-31TG76200.book 665 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

683
Index
Daytime Running Lights .......................... 605
Fog Lights ............................................... 606
Front Side Marker Lights ......................... 605
Front Turn Signal Lights .......................... 606
Headlights .............................................. 603
High-Mount Brake Light.......................... 608
Parking Lights ................................. 605, 606
Rear License Plate Lights ......................... 608
Side Turn Signal/Emergency Indicator Lights .................................................... 606
Taillight and Rear Side Marker Lights....... 607
Bulb Specifications ................................... 668
C
Car Wash Mode........................................ 501
Carbon Monoxide Gas ............................... 74
Carrying Cargo ................................. 469, 471
CD Player .................................................. 282
Certification Label ................................... 670
Changing Bulbs ........................................ 603
Charging System Indicator ................ 79, 654
Child Safety ................................................ 58
Childproof Door Locks ............................ 133
Child Seat ................................................... 58
Booster Seats ............................................ 73
Child Seat for Infants ................................ 60
Child Seat for Small Children .................... 61
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 67
Larger Children ......................................... 72 Rear-facing Child Seat ............................... 60
Selecting a Child Seat ................................ 62
Childproof Door Locks ............................. 133
Cleaning the Exterior ............................... 631
Cleaning the Interior ................................ 629
Climate Control System ............................ 214
Changing the Mode ................................ 214
Defrosting the Windshield and
Windows ............................................... 215
Dust and Pollen Filter ............................... 628
Recirculation and Fresh Air Mode ............ 215
Sensors .................................................... 220
Synchronization Mode ............................. 217
Using Automatic Climate Control ............ 214
Clock .......................................................... 120
Coat Hook ................................................. 202
Collision Mitigation Braking SystemTM
(CMBSTM) .................................................. 559
Collision Mitigation Braking SystemTM
(CMBSTM)
Indicator .............................................. 95, 96
Compact Spare Tire .......................... 637, 669
Compass .................................................... 465
Console Compartment ............................. 195
Controls ..................................................... 119
Coolant (Engine) ....................................... 599
Adding to the Radiator ............................ 600
Adding to the Reserve Tank ..................... 599
Overheating ............................................ 652
Creeping (Automatic Transmission) ........ 494
Cross Traffic Monitor ................................ 574 Cruise Control
........................................... 513
CRUISE CONTROL Indicator ....................... 88
CRUISE MAIN Indicator.............................. 88
Indicator.................................................... 88
Cup Holders .............................................. 198
Customer Service Information ................. 678
Customized Features ................................ 367
D
Daytime Running Lights .......................... 166
Dead Battery ............................................. 649
Defaulting All the Settings ...................... 402
Defrosting the Windshield and Windows ......................................... 212, 215
Detachable Anchor .................................... 42
Devices that Emit Radio Waves ............... 671
Dimming
Headlights ............................................... 159
Rearview Mirror....................................... 175
Dipstick (Engine Oil) ................................. 595
Directional Signals (Turn Signal) ............. 158
Display Button .......................................... 247
Door Mirrors ............................................. 176
Doors ......................................................... 121
Auto Door Locking .................................. 134
Auto Door Unlocking .............................. 134
Door Open Message.................................. 36
Keys ........................................................ 121
Locking/Unlocking the Doors from the
Inside .............................................. 15, 131
18 PILOT-31TG76200.book 683 ページ ２０１８年３月３０日　金曜日　午前１１時５１分

686
Index
Fog Lights .................................................. 87
Gear Position ............................................. 80
Hazard Warning ........................................ 86
High Beam................................................. 86
Immobilizer System .................................... 87
Lane Keeping Assist System (LKAS) .... 93, 537
Lights On ................................................... 87
Low Fuel .................................................... 82
Low Oil Pressure ................................ 79, 654
Low Tire Pressure/TPMS ..................... 86, 657
M (sequential mode) Indicator/Sequential Mode Gear Selection ............................... 80
Malfunction Indicator Lamp ............... 79, 655
Parking Brake and Brak e System ........ 78, 656
Road Departure Mitigation (RDM) .............. 91
Seat Belt Reminder .............................. 38, 82
Security System Alarm ............................... 88
Supplemental Restraint System ............ 55, 83
System Message ........................................ 88
Transmission .............................................. 80
Turn Signal ................................................ 86
Vehicle Stability Assist ® (VSA ®) OFF .... 85, 544
Vehicle Stability Assist ® (VSA ®)
System ............................................. 84, 543
Information ............................................... 667
Information Button .................................. 114
Instant Fuel Economy ............................... 117
Instrument Panel ........................................ 77
Brightness Control ................................... 170
Intelligent Traction Management System ...................................................... 511 Intelligent VTM4 (i-VTM4)
....................... 550
Interior Lights ........................................... 191
Interior Rearview Mirror .......................... 175
iPhone ....................................................... 321
iPod ........................................... 237, 285, 321
J
Jack (Wheel Nut Wrench) ........................ 641
Jump Starting ........................................... 649
K
Key Number Tag ....................................... 122
Keyless Lockout Prevention ..................... 130
Keys ........................................................... 121
Lockout Prevention.................................. 130
Number Tag ............................................ 122
Rear Door Won’t Open............................ 133
Remote Transmitter ................................. 129
Types and Functions ................................ 121
Kickdown (Automatic Transmission) ....... 494
L
Lane Keeping Assist System (LKAS)......... 535
Indicator.................................................... 93
LaneWatch
TM............................................. 548
Language (HFL) ................................ 407, 433
LATCH (Child Seats) .............................. 63, 69
Lights ................................................. 159, 603
Automatic ............................................... 160 Bulb Replacement ................................... 603
Daytime Running Lights .......................... 166
High Beam Indicator ................................. 86
Interior.................................................... 191
Light Switches......................................... 159
Lights On Indicator.................................... 87
Turn Signals ............................................ 158
Load Limits ............................................... 471
Locking/Unlocking ................................... 121
Auto Door Locking/Unlocking ................. 134
Childproof Door Locks ............................ 133
From Inside ............................................. 131
From Outside .......................................... 124
Keys........................................................ 121
Using a Key............................................. 130
Lockout Prevention System ..................... 130
Low Battery Charge ................................. 654
Low Fuel Indicator ..................................... 82
Low Oil Pressure Indicator ................. 79, 654
Low Tire Pressure Indicator ....................... 86
Lower Anchors ..................................... 63, 69
Lubricant Specifications Chart ................ 669
Luggage (Maximum Load Limit) ............. 471
Lumbar Support ....................................... 177
18 PILOT-31TG76200.book 686 ページ ２０１８年３月３０日　金曜日　午前１１時５１分
