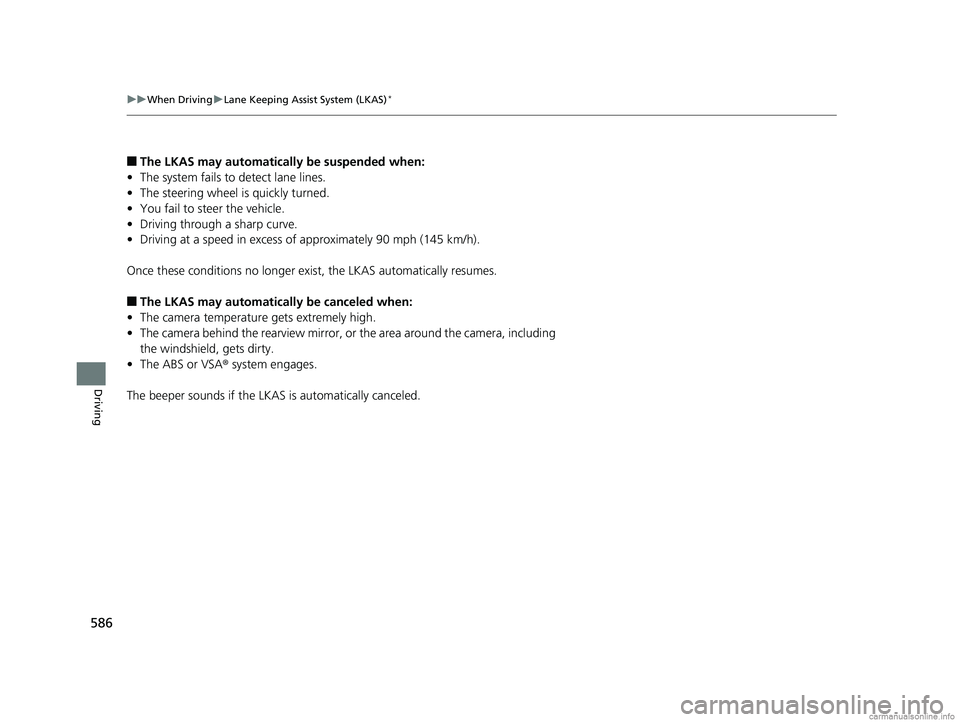

2018 HONDA ODYSSEY Rearview mirror

586
uuWhen Driving uLane Keeping Assist System (LKAS)*
Driving
■The LKAS may automatically be suspended when:
• The system fails to detect lane lines.
• The steering wheel is quickly turned.
• You fail to steer the vehicle.
• Driving through a sharp curve.
• Driving at a speed in excess of approximately 90 mph (145 km/h).
Once these conditions no longer exis t, the LKAS automatically resumes.
■The LKAS may automatically be canceled when:
• The camera temperature gets extremely high.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
• The ABS or VSA ® system engages.
The beeper sounds if the LKAS is automatically canceled.
18 US ODYSSEY-31THR6010.book 586 ページ ２０１８年１２月６日　木曜日　午後４時１８分

608
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Driving
Collision Mitigati on Braking SystemTM (CMBSTM)*
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The CMBSTM is designed to alert you when a
potential collision is determined, as well as to reduce your vehicle speed to help
minimize collision severity when a collision is deemed unavoidable.
■How the system works
1 Collision Mitigation Braking SystemTM (CMBSTM)*
Important Safety Reminder
The CMBSTM is designed to reduce the severity of an
unavoidable collision. It do es not prevent a collision
nor stop the vehicle automati cally. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately acco rding to the driving
conditions.
The CMBS
TM may not activate or may not detect a
vehicle in front of y our vehicle under certain
conditions:
2 CMBS
TM Conditions and Limitations P. 612
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera
* P. 562
Be careful not to have the radar sensor cover strongly
impacted.
1 How the system works
Rapid vibrations on the steering wheel alert you
when the your vehicle speed is between 19 and 62
mph (30 and 100 km/h) with an oncoming vehicle
detected in front of you.
When the CMBS
TM activates, it may automatically
apply the brake. It will be canceled when your vehicle
stops or a potential coll ision is not determined.
When to use
The camera is
located behind
the rearview
mirror.
The radar sensor is
in the front grille.
The system starts monitoring the roadway ahead when your vehicle speed is about
3 mph (5 km/h) and there is a vehicle in front of you.
The CMBS
TM activates when:●The speed difference between your vehicl e and a vehicle or pedestrian detected
in front of you becomes about 3 mph (5 km/h) and over with a chance of a
collision.
●Your vehicle speed is about 62 mph (100 km/h) or less and there is a chance of a
collision with an oncoming detected ve hicle or a pedestrian in front of you.
* Not available on all models
18 US ODYSSEY-31THR6010.book 608 ページ ２０１８年１２月６日　木曜日　午後４時１８分

615
uuBraking uCollision Mitigation Braking SystemTM (CMBSTM)*
Continued
Driving
■Automatic shutoff
CMBSTM may automatically shut itself off and the CMBSTM indicator comes and stays
on when:
• The temperature inside the system is high.
• You drive off-road or on a mountain road, or curved and winding road for an
extended period.
• An abnormal tire condition is detected (wrong tire size, flat tire, etc.).
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
Once the conditions that caused CMBS
TM to shut off improve or are addressed (e.g.,
cleaning), the system comes back on.
18 US ODYSSEY-31THR6010.book 615 ページ ２０１８年１２月６日　木曜日　午後４時１８分

752
Index
C
CabinTalkTM............................................... 522
CabinWatchTM........................................... 521
Car Wash Mode ........................................ 548
Carbon Monoxide Gas ................................ 80
Cargo Hooks .............................................. 239
Carrying Cargo .................................. 525, 527
CD Player ................................................... 332
Center Pocket ............................................ 230
Certification Label .................................... 740
Changing Bulbs ......................................... 658
Charging System Indicator ................. 87, 716
Child Safety ................................................. 62
Childproof Door Locks ............................. 157
Child Seat .................................................... 62
Booster Seats ............................................. 79
Child Seat for Infants ................................. 64
Child Seat for Small Children ..................... 65
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt .......................................................... 72
Larger Children .......................................... 78
Rear-facing Child Seat ............................... 64
Selecting a Child Seat ................................ 66
Using a Tether ........................................... 74
Childproof Door Locks .............................. 157
Cleaning the Exterior ............................... 691
Cleaning the Interior ................................ 688
Climate Control System .................... 248, 252
Changing the Mode ........................ 248, 252
Defrosting the Windshield and Windows ....................................... 249, 253 Dust and Pollen Filter............................... 687
Recirculation/Fresh Air Mode ................... 248
Sensors ................................................... 257
Using Automatic Climate Control .... 248, 252
Clock .......................................................... 142
Coat Hooks ............................................... 238
Collision Mitigation Braking System
TM
(CMBSTM) Indicator ............................ 99, 100
Compact Spare Tire .......................... 699, 739
Console Box .............................................. 228
Console Compartment with Lid .............. 229
Controls ..................................................... 141
Coolant (Engine) ...................................... 653
Adding to the Radiator ............................ 654
Adding to the Reserve Tank..................... 653
Overheating ............................................ 713
Temperature Gauge ................................ 119
Creeping (Automatic Transmission) ........ 543
Cruise Control ........................................... 559
Indicator.................................................... 95
Cup Holders .............................................. 231
Customer Service Information ................. 749
Customized Features ........................ 133, 442
D
Daytime Running Lights .......................... 193
Dead Battery ............................................. 711
Defaulting All the Settings ...................... 466
Defrosting the Windshield and
Windows ......................................... 249, 253 Detachable Anchor
.................................... 43
Devices that Emit Radio Waves ............... 741
Dimming Headlights .............................................. 189
Rearview Mirror ...................................... 206
Dipstick (Engine Oil) ................................ 649
Directional Signals (Turn Signal) ............. 189
Door Mirrors ............................................. 207
Doors ........................................................ 144
Auto Door Locking.................................. 158
Auto Door Unlocking .............................. 158
Door and Tailgate Open Message ............. 37
Keys........................................................ 144
Locking/Unlocking the Doors from
the Inside .............................................. 154
Locking/Unlocking the Doors from the Outside ........................................... 147
Lockout Prevention System ..................... 153
DOT Tire Quality Grading ........................ 676
Driver Information Interface ................... 120
Accessing Content .................................. 122
Warning and Information Messages ........ 102
Driving ...................................................... 523
Automatic Transmission .......................... 543
Braking ................................................... 600
Cruise Control ........................................ 559
Shifting Gear .......................................... 544
Starting the Engine ................................. 536
Driving Position Memory System ............ 203
Dust and Pollen Filter .............................. 687
18 US ODYSSEY-31THR6010.book 752 ページ ２０１８年１２月６日　木曜日　午後４時１８分

755
Index
Malfunction Indicator Lamp .............. 86, 717
Parking Brake and Brake System (Amber) .......................................... 85, 719
Parking Brake and Brake System (Red) ....................................... 84, 718, 719
Road Departure Mitigation (RDM) ............. 97
Seat Belt Reminder.............................. 39, 89
Security System Alarm............................... 93
Snow Mode .............................................. 94
Supplemental Restraint System ........... 59, 90
System Message ....................................... 94
Transmission System ......................... 88, 721
Turn Signal ............................................... 92
Vehicle Stability Assist (VSA® )
System ............................................ 91, 589
VSA ® OFF.......................................... 91, 590
Information .............................................. 737
Instant Fuel Economy .............................. 125
Instrument Panel ........................................ 83
Brightness Control .................................. 200
Integrated Sunshades .............................. 244
Interior Lights ........................................... 225
Interior Rearview Mirror ......................... 206
iPad ........................................................... 375
iPhone ....................................................... 375
iPod ........................................... 276, 335, 375J
Jack (Wheel Nut Wrench) ........................ 702
Jump Starting ........................................... 711
K
Key Number Tag ....................................... 145
Keyless Lockout Prevention ..................... 153
Keys ........................................................... 144
Lockout Prevention .................................. 153
Number Tag ............................................ 145
Rear Door Won’t Open ............................ 157
Remote Transmitter ................................. 151
Types and Functions ................................ 144
Kickdown (Automatic Transmission) ....... 543
L
Lane Keeping Assist System (LKAS) Indicator
(Amber) ..................................................... 96
Lane Keeping Assist System (LKAS) Indicator (Green) ...................................................... 96
LaneWatch
TM............................................. 598
Language (HFL) ................................. 471, 497
LATCH (Child Seats) .................................... 67 Lights
................................................. 189, 658
Automatic ............................................... 190
Bulb Replacement ................................... 658
Daytime Running Lights........................... 193
Fog Lights ............................................... 192
High Beam Indicator .................................. 92
Interior .................................................... 225
Light Switches ......................................... 189
Lights On Indicator .................................... 93
Turn Signals ............................................ 189
Load Limits ................................................ 527
Locking/Unlocking .................................... 144
Auto Door Locking/Unlocking.................. 158
Childproof Door Locks............................. 157
From Inside ............................................. 154
From Outside .......................................... 147
Keys ........................................................ 144
Using a Key ............................................. 152
Lockout Prevention System ..................... 153
Low Battery Charge ................................. 716
Low Fuel Indicator ...................................... 89
Low Oil Pressure Symbol .......................... 716
Low Remote Signal Strength ................... 146
Lower Anchors ............................................ 67
Luggage (Maximum Load Limit) ............. 527
18 US ODYSSEY-31THR6010.book 755 ページ ２０１８年１２月６日　木曜日　午後４時１８分

756
Index
M
Maintenance..................................... 127, 635
Battery..................................................... 682
Brake Fluid............................................... 656
Cleaning .................................................. 688
Climate Control System ........................... 687
Coolant ................................................... 653
Maintenance Minder
TM............................ 639
Oil ........................................................... 649
Precautions .............................................. 636
Radiator................................................... 654
Remote Control and Wireless Headphone ............................................ 685
Remote Transmitter ................................. 684
Replacing Light Bulbs ............................... 658
Safety ...................................................... 637
Service Items............................................ 642
Tires ........................................................ 673
Transmission Fluid.................................... 655
Under the Hood....................................... 645
Malfunction Indicator Lamp .............. 86, 717
Map Lights ................................................ 226
Maximum Load Limit ................................ 527
Meters, Gauges ......................................... 119
Mirrors ....................................................... 206
Adjusting ................................................. 206
Door ........................................................ 207
Exterior .................................................... 207
Interior Rearview...................................... 206
Modifications (and Accessories) ............... 694Moonroof
................................................. 185
MP3/WMA/AAC ................ 279, 332, 338, 341
Multi-View Rear Camera .......................... 628
My Honda Music ....................................... 341
N
Navigation................................................ 126
Near Field Communication (NFC) ............ 356
Now Playing .............................................. 129
Numbers (Identification) .......................... 740
O
Odometer................................................. 121
Oil (Engine) ............................................... 648
Adding .................................................... 650
Checking................................................. 649
Displaying Maintenance Minder Information ........................................... 640
Low Oil Pressure Symbol.......................... 716
Oil Life .................................................... 127
Recommended Engine Oil ....................... 648
Viscosity .................................................. 648
Open Source Licenses ............................... 390
Opening/Closing
Hood....................................................... 646
Moonroof ............................................... 185
Power Windows ...................................... 182
Sliding Doors ........................................... 170
Tailgate ................................................... 159 Outside Temperature Display
................. 121
Overheating ............................................. 713
P
Panic Mode............................................... 181
Parking ..................................................... 617
Parking Brake ........................................... 600
Parking Brake and Brake System Indicator (Amber) ............................................. 85, 719
Parking Brake and Brake System Indicator (Red) .......................................... 84, 718, 719
Parking Sensor System ............................. 619
Passenger Front Airbag Off Indicator ....... 60
Passing Indicators ..................................... 189
Phone ........................................................ 128
Playing Bluetooth ® Audio ............... 282, 345
Power Sliding Doors ................................ 172
Unable to Close ...................................... 733
Power Tailgate ......................................... 161
Unable to Open ...................................... 731
Power Windows ....................................... 182
Precautions While Driving Rain ........................................................ 542
Pregnant Women ....................................... 45
Puncture (Tire) ......................................... 699
18 US ODYSSEY-31THR6010.book 756 ページ ２０１８年１２月６日　木曜日　午後４時１８分

757
Index
R
Radiator.................................................... 654
Radio (FM/AM) ................................. 274, 318
Radio (SiriusXM ®)..................................... 322
Radio Data System (RDS) ................. 275, 320
Range ........................................................ 125
RDS (Radio Data System) ................. 275, 320
Readiness Codes (Emissions Testing) ...... 744
Rear Defogger/Heated Door Mirror Button ..................................................... 201
Rear Entertainment System ..................... 396
Rear Seats (Folding Down) ...................... 222
Rearview Mirror ....................................... 206
Refueling .................................................. 630
Fuel Gauge ............................................. 119
Gasoline ......................................... 630, 738
Low Fuel Indicator..................................... 89
Regulations .............................. 594, 676, 741
Remote Transmitter ................................. 151
Removing a Second Row Outer Seat ...... 219
Removing the Second Row Center Seat ......................................................... 218
Replacement Battery ............................................ 684, 685
Bulbs ...................................................... 658
Front Wiper Blade Rubber ....................... 669
Fuses ...................................... 722, 724, 727
Tires........................................................ 679
Reporting Safety Defects ......................... 743Road Departure Mitigation (RDM)
Indicator .................................................... 97
S
Safe Driving ................................................ 33
Safety Check ............................................... 37
Safety Labels ............................................... 81
Safety Message ............................................. 1
Seat Belts ..................................................... 38
Adjusting the Shoulder Anchor .................. 42
Automatic Seat Belt Tensioners .................. 40
Checking ................................................... 46
Detachable Anchor .................................... 43
Fastening ................................................... 41
Installing a Child Seat with a Lap/Shoulder Seat Belt.......................................................... 72
Pregnant Women ...................................... 45
Reminder................................................... 39
Warning Indicator ................................ 39, 89
Seat Heaters ...................................... 242, 243
Seats .......................................................... 209
Adjusting ................................................. 209
Front Seats .............................................. 209
Seat Heaters .................................... 242, 243
Second Row Seats ................................... 216
Third Row Seats ....................................... 221
Second Row Seats Adjusting ................................................. 216 Security System
......................................... 179
Immobilizer System Indicator ..................... 93
Security System Alarm Indicator................. 93
Select Buttons ..................................... 23, 544
Operation................................................ 546
Selecting a Child Seat ................................. 66
Selector Knob (Audio) .............................. 267
Settings
Arrange Apps .......................................... 131
Show Tachometer ................................... 132
Shifting (Transmission) ............................. 544
Shoulder Anchor ........................................ 42
Show Tachometer .................................... 132
Show/Hide Apps ....................................... 130
Side Airbags ................................................ 56
Side Curtain Airbags .................................. 58
Siri Eyes Free ............................................. 359
SiriusXM ® Radio ........................................ 322
Sliding Doors ............................................ 170
Power Sliding Doors ................................ 172
Sliding the Second Row Magic Slide
TM
Seats ........................................................ 220
Smart Entry with Push Button Start System ..................................................... 147
Snow Mode Indicator ................................. 94
Snow Tires ................................................. 681
Social Playlist ............................................ 347
Spare Tire .......................................... 699, 739
Spark Plugs ............................................... 738
18 US ODYSSEY-31THR6010.book 757 ページ ２０１８年１２月６日　木曜日　午後４時１８分
