2018 HONDA CR-V USB

Visual Index
6
Quick Reference Guide
❙Rearview Mirror (P195)
❙Driver's Front Airbag
(P52)
❙Hood Release Handle (P571)
❙Driver’s Pocket
❙Fuel Fill Door Release Handle (P550)
❙Memory Buttons* (P 193)
❙Interior Fuse Box (P645)
❙Passenger's Front Airbag
(P52)
❙SET Button* (P 193)
❙Power Window Switches (P164)
❙Door Mirror Controls (P196)
❙Master Door Lock Switch (P 145)
❙Electric Parking Brake
Switch
(P524)
❙Automatic Brake Hold
Button
(P528)
❙Glove Box (P211)
❙Accessory Power Socket
(P217)
❙ECON Button (P471)
❙Shift Lever (P469)
❙Accessory Power Socket
(P217)
❙USB Port(s) (P233)
18 CR-V-31TLA6100.book 6 ページ ２０１７年９月７日　木曜日　午後３時５６分

7
Quick Reference Guide
❙Moonroof Switch* (P167)
❙Side Airbags (P56)
❙Rear Seat (P201)
❙LATCH to Secure a Child Seat (P68)
❙Grab Handle
❙Coat Hook (P219)
❙Panoramic Roof Switch* (P168)
❙Front Map Lights (P209)
❙Seat Belts (P40)
❙Rear Map Lights (P210)
❙Side Curtain Airbags (P58)
❙Seat Belt with Detachable Anchor (P46)
❙Cargo Area Light (P210)
❙Seat Belt to Secure a Child Seat (P72)
❙Seat Belt (Installing a Child Seat) (P71)
❙Accessory Power Socket* (P218)
❙USB Ports* (P233)
❙Front Seat (P197)
❙Sun Visors
❙Vanity Mirrors
❙Center Console Box (P212)
❙Rear Seat Heater Buttons*
(P224)
❙Sunglasses Holder (P221)
❙Ceiling Light (P207)
* Not available on all models
18 CR-V-31TLA6100.book 7 ページ ２０１７年９月７日　木曜日　午後３時５６分

Quick Reference Guide
19
Features (P231)
Audio Remote Controls
(P235)
●
(+ / (- Button
Press to adjust the volume up/down.
● SOURCE Button
Press to change the audio mode: FM1/
FM2/AM/USB or iPod/Pandora ®/
Bluetooth ®Audio.
Models with color audio system
SOURCE Button
(+ / (- / / Button
● / Button
Radio: Press to change the preset station.
Press and hold to select the next or
previous strong station.
iPod, USB device, or Bluetooth® Audio:
Press to skip to the beginning of
the next song or return to the
beginning of the current song.
USB device or Bluetooth® Audio
*:
Press and hold to change a folder.
Pandora ®:
Press to skip to the next track. Press
and hold to select the next or
previous station.
●( + / (- Bar
Press to adjust the volume up/down.
Swipe down quickly to mute the volume
or swipe up to cancel the mute.
● / Button
Press or to cycl e through the audio
mode as follows:
FM/AM/SiriusXM ®
*/USB/iPod/
Bluetooth ®Audio/Pandora®*/Apps*/
Audio Apps*
• When listening to the radio and
SiriusXM ®*
aPress ENTER to switch the display to a
preset list you stored in the preset
buttons.
bPress or to select a preset, then
press ENTER .
Models with Display Audio
ENTER Button
/ / / Button34(+ / (- Bar
34
34
34
* Not available on all models
18 CR-V-31TLA6100.book 19 ページ ２０１７年９月７日　木曜日　午後３時５６分

20
Quick Reference Guide
•When listening to a USB flash drive
aPress ENTER to display the folder list.
bPress or to select a folder.
cPress ENTER to display a list of tracks in
that folder.
dPress or to select a track, then
press ENTER .
You can also swipe up or down to scroll
through the list of tra cks alphabetically.
•When listening to an iPod
aPress ENTER to display the iPod music
list.
bPress or to select a category.
cPress ENTER to display a list of items in
the category.
dPress or to select an item, then
press ENTER .
uPress ENTER and press or
repeatedly until a desired item you
want to listen is displayed.
You can also swipe up or down to scroll
through the list of tra cks alphabetically.
34
34
34
34
34
•When listening to Pandora ®*
aPress ENTER to display the station list.
bPress or to select an item, then
press ENTER .
•When listening to Bluetooth®Audio
aPress ENTER to display the track list.
bPress or to select a track, then
press ENTER .
34
34
● / Button
Radio: Press to change the preset station. Press and hold to select the next or
previous strong station.
USB device: Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.
Pandora®
*:
Press to skip to the next track.
Press and hold to select the next or
previous station.
(Display/Information) Button: Press to change contents. 2Driver Information
Interface
*(P122)
18 CR-V-31TLA6100.book 20 ページ ２０１７年９月７日　木曜日　午後３時５６分

231
Features
This chapter describes how to operate technology features.
Audio SystemAbout Your Audio System ................ 232
USB Port(s) ....................................... 233
Audio System Theft Protection ......... 234
Audio Remote Controls .................... 235
Audio System Basic Operation Audio/Information Screen ................ 240
Adjusting the Sound ........................ 244
Display Setup ................................... 245
Playing AM/FM Radio ....................... 246
Playing an iPod ................................ 248
Playing Pandora ®.............................. 251
Playing a USB Flash Drive ................. 253
Models with color audio system
Playing Bluetooth ® Audio................. 256
Siri ® Eyes Free .................................. 259
Audio System Basic Operation Audio/Information Screen ................ 261
Adjusting the Sound ........................ 282
Display Setup ................................... 283
Voice Control Operation .................. 285
Playing AM/FM Radio ....................... 289
Playing SiriusXM ® Radio
*................. 293
Playing an iPod ................................ 300
Song By Voice
TM (SBV) ...................... 303
Playing Pandora ®*............................ 307
Playing a USB Flash Drive ................. 309
Models with Display Audio
Playing Bluetooth ® Audio ................ 312
HondaLink ®..................................... 314
Wi-Fi Connection ............................. 319
Siri ® Eyes Free .................................. 321
Apple CarPlay
TM............................... 322
Android AutoTM............................... 325
Audio Error Messages ...................... 329
General Information on the Audio System ............................................. 334
Customized Features ........................ 351
HomeLink ® Universal Transceiver
*.. 384
Bluetooth ® HandsFreeLink® ..... 387, 410
Compass
*.......................................... 444
* Not available on all models
18 CR-V-31TLA6100.book 231 ページ ２０１７年９月７日　木曜日　午後３時５６分

232
Features
Audio System
About Your Audio System
The audio system features AM/FM radio and SiriusXM ® Radio service*. It can also
play USB flash drives, and iPod, iPhone and Bluetooth® devices.
You can operate the audio system from the buttons and switches on the panel, the
remote controls on the steering wheel, or the icons on the touchscreen interface
*.
1About Your Audio System
SiriusXM ® Radio is available on a subscription basis
only. For more information on SiriusXM ® Radio
*,
contact a dealer.
2 General Information on the Audio System
P. 334
SiriusXM ® Radio is available in the United States and
Canada, except Ha waii, Alaska, and Puerto Rico.
SiriusXM ® is a registered trademark of SiriusXM
Radio, Inc.
iPod, iPhone and iTunes are trademarks of Apple Inc.
State or local laws may pr ohibit the operation of
handheld electronic devi ces while operating a
vehicle.
Remote Controls iPod
USB Flash Drive
* Not available on all models
18 CR-V-31TLA6100.book 232 ページ ２０１７年９月７日　木曜日　午後３時５６分

233
uuAudio System uUSB Port(s)
Features
USB Port(s)
Install the iPod USB connector or the USB flash
drive to the USB port.
u The USB port (1.0A) is for playing audio
files on a USB flash drive, connecting a
cellular phone, and charging devices.
u The USB port (1.5A) is for charging
devices, playing audio files and
connecting compatib le phones with
Apple CarPlay
TM or Android AutoTM.
■On the back of the center console
compartment*
The USB ports (2.5A) are only for charging
devices.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 USB Port(s)
•Do not leave the iPod or USB flash drive in the vehicle.
Direct sunlight and high te mperatures may damage it.
•We recommend using an extension cable with the
USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard disk
drive, as the device or your files may be damaged.
•We recommend keeping y our data backed up
before using the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The USB port can supply up to 1.0A/1.5A/2.5A of
power. It does not output 1.0A/1.5A/2.5A unless the
device requests.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Turn the ignition switch to ACCESSORY
( q or ON
(w*1 first.
This port is for battery charge only. You cannot play
music even if you have conne cted a music player to it.
Under certain conditions, a de vice connected to the port
may generate noise in the radio you are listening to.
USB Port (2.5A)
In the console compartment
Models
with
Display
Audio
Models
with color
audio
system
Models
with
Display
Audio
Models with Display Audio
On the back of the center console
compartment
* Not available on all models
18 CR-V-31TLA6100.book 233 ページ ２０１７年９月７日　木曜日　午後３時５６分

235
uuAudio System uAudio Remote Controls
Continued
Features

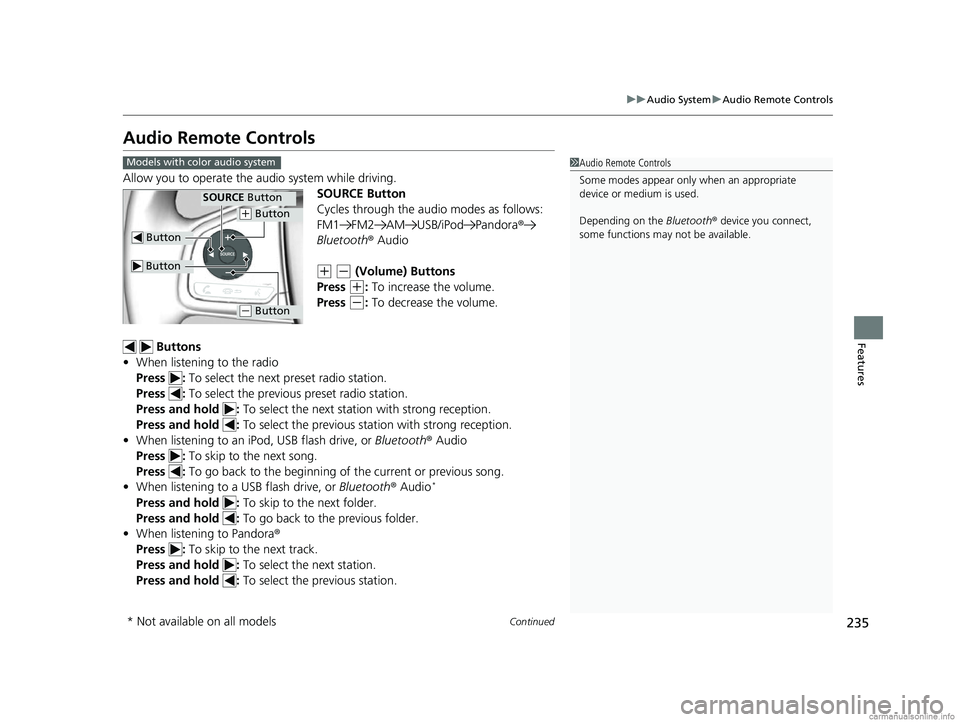

Audio Remote Controls
Allow you to operate the au dio system while driving.
SOURCE Button
Cycles through the audio modes as follows:
FM1 FM2 AM USB/iPod Pandora ®
Bluetooth ® Audio
(+ (- (Volume) Buttons
Press
(+: To increase the volume.
Press
(-: To decrease the volume.
Buttons
• When listening to the radio
Press : To select the next preset radio station.
Press : To select the previous preset radio station.
Press and hold : To select the next statio n with strong reception.
Press and hold : To select the previous station with strong reception.
• When listening to an iPod, USB flash drive, or Bluetooth® Audio
Press : To skip to the next song.
Press : To go back to the beginning of the current or previous song.
• When listening to a USB flash drive, or Bluetooth® Audio
*
Press and hold : To skip to the next folder.
Press and hold : To go back to the previous folder.
• When listening to Pandora®
Press : To skip to the next track.
Press and hold : To select the next station.
Press and hold : To select the previous station.
1Audio Remote Controls
Some modes appear only when an appropriate
device or medium is used.
Depending on the Bluetooth® device you connect,
some functions may not be available.Models with color audio system
Button
SOURCE Button
Button
(+ Button
(- Button
* Not available on all models
18 CR-V-31TLA6100.book 235 ページ ２０１７年９月７日　木曜日　午後３時５６分
