2018 HONDA CR-V Navigation Manual (in English)

23
uuPersonal Information uSaved Locations
Continued
System Setup
5. Select an option.
The following options are available:
• Name: Enters a new name for the location.
• Phone Number: Enters a phone number.
• Categories : Creates or changes the category in which this location is saved.
• Change Map Symbol : Select a new symbol.
18 CR-V NAVI-31TLA8100.book 23 ページ ２０１７年８月２５日　金曜日　午前９時４３分

24
uuPersonal Information uSaved Locations
System SetupH (Map) uu Saved
1.Select a saved location you want
to delete.
2. Select .
3. Select or .
4. Select Delete.
5. Select Yes.
■Deleting a Saved Location
18 CR-V NAVI-31TLA8100.book 24 ページ ２０１７年８月２５日　金曜日　午前９時４３分

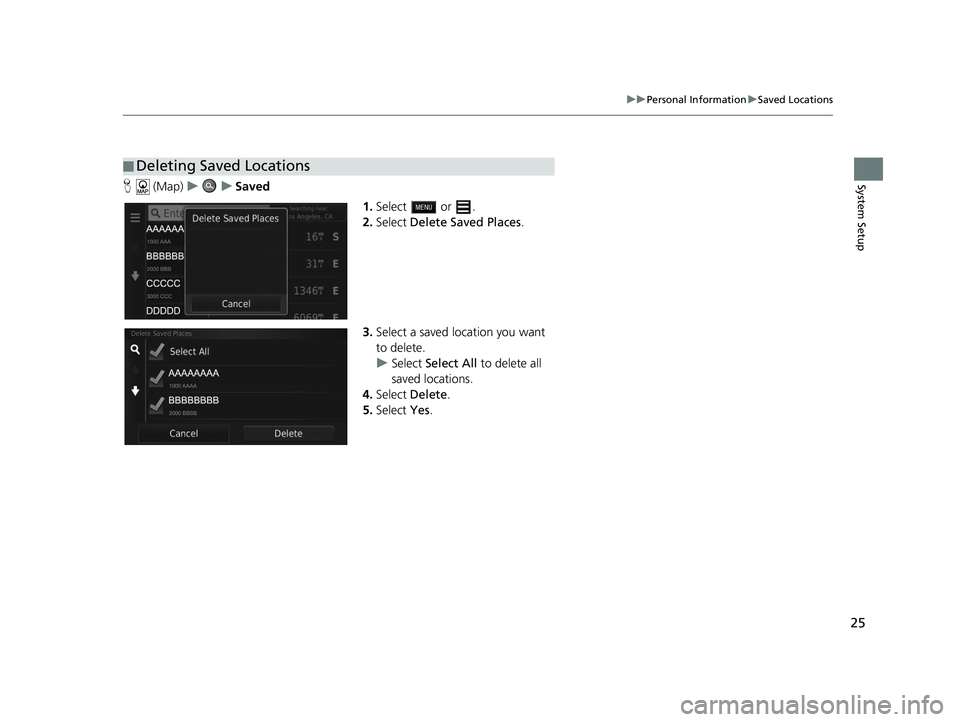

25
uuPersonal Information uSaved Locations
System SetupH (Map) uu Saved
1.Select or .
2. Select Delete Saved Places .
3. Select a saved location you want
to delete.
u Select Select All to delete all
saved locations.
4. Select Delete .
5. Select Yes.
■Deleting Saved Locations
18 CR-V NAVI-31TLA8100.book 25 ページ ２０１７年８月２５日　金曜日　午前９時４３分

26
System Setup
Display Mode Settings
Switching Display Mode Manually
Set the screen brightness separately for Day and Night modes. Press the
(Display Mode) icon to cycle through the display modes (Day to Night to Off).
Press the (Display Mode) icon.
uThe Brightness bar is displayed for
a few seconds.
u Select or to adjust the
brightness.1Switching Display Mode Manually
You can also adjust the display brightness by sliding
or swiping on the Brightness bar.
You can change the touchs creen sensitivity setting.
2 Refer to the Owners Manual.
18 CR-V NAVI-31TLA8100.book 26 ページ ２０１７年８月２５日　金曜日　午前９時４３分

27
uuDisplay Mode Settings uSwitching Display Mode Manually
System SetupIllumination
control Operation
(Display
Mode) iconSelects Day or Night display mode when the user
wants to change the brightness of the display
temporarily.
Remember: This button overrides all other display
brightness adjustments either set automatically by
the sunlight sensor or manually from the System
settings screen.
Sunlight sensor
(see your Owner’s
Manual for
location) If the sunlight sensor detects daylight and the
headlights are turned on, the system automatically
overrides the Nigh
t display and displays the Day
display mode.
Remember: If desired, use the (Display Mode)
icon to override th is automatic choice.
Dash illumination
adjustment knob
(see your Owner’s
Manual for
location)When the headlights are turn ed on, and you wish to
have the Day display mode, adjust the illumination
to the full brightness (beeps).
Remember: Adjust the dash brightness back to
midrange to allow auto switching by sensing the
headlights are on or off.
Headlights (Auto/
On/Off) When turned on, the di
splay changes to Night
display mode.
The previous three controls listed above can
“cancel” this function.
Remember: Use the (Display Mode) icon to
adjust the brightness of the display.
18 CR-V NAVI-31TLA8100.book 27 ページ ２０１７年８月２５日　金曜日　午前９時４３分

28
System Setup
Map & Vehicle
H (Map) u (Back) uSettings uMap & Vehicle
Change the map settings. Select an option.
The following options are available:
• Vehicle : Changes the icon to represent your position on the map.
2Vehicle P. 29
•Driving Map View : Sets the perspective on the map.
2Driving Map View (Map Orientation) P. 30
•Map Detail : Sets the level of detail on the map. More detail may cause the map
to draw slower.
2 Map Detail P. 31
•Map Theme : Changes the color of the map data.
2Map Theme P. 32
•Map Buttons : Sets which icons are included on the map. Up to three icons can
be included on the map.
2 Map Buttons P. 33
•Map Layers : Sets the data that appears on the map.
2Map Layers P. 34
•Dashboards : Sets the map dashboard layout.
2Dashboards P. 34
18 CR-V NAVI-31TLA8100.book 28 ページ ２０１７年８月２５日　金曜日　午前９時４３分

29
uuMap & Vehicle uVehicle
System Setup
• myMaps : Sets which installed maps the system uses.
2myMaps P. 35
Vehicle
H (Map) u (Back) uSettings uMap & Vehicle uVehicle
You can choose your vehicle icon. 1.Select an option.
2. Select Save.1Vehicle
The factory default is set to .
18 CR-V NAVI-31TLA8100.book 29 ページ ２０１７年８月２５日　金曜日　午前９時４３分

30
uuMap & Vehicle uDriving Map View (Map Orientation)
System Setup
Driving Map View (Map Orientation)
H (Map) u (Back) uSettings uMap & Vehicle uDriving Map View
Select the map orientation. 1.Select an option.
2. Select Save.
The following options are available:
• Track Up : Displays the map with your di rection of travel facing upwards.
• North Up: Displays the map with no rth always pointing up.
• 3-D (factory default): Displays the map in 3D with your direction of travel facing
upwards.
18 CR-V NAVI-31TLA8100.book 30 ページ ２０１７年８月２５日　金曜日　午前９時４３分
