2018 HONDA CR-V display

30
uuMap & Vehicle uDriving Map View (Map Orientation)
System Setup
Driving Map View (Map Orientation)
H (Map) u (Back) uSettings uMap & Vehicle uDriving Map View
Select the map orientation. 1.Select an option.
2. Select Save.
The following options are available:
• Track Up : Displays the map with your di rection of travel facing upwards.
• North Up: Displays the map with no rth always pointing up.
• 3-D (factory default): Displays the map in 3D with your direction of travel facing
upwards.
18 CR-V NAVI-31TLA8100.book 30 ページ ２０１７年８月２５日　金曜日　午前９時４３分

40
uuNavigation uCustom Avoidances
System SetupH (Map) u (Back) uSettings uNavigation uCustom Avoidances
u Add Avoid Area
1.Select the upper-left (right) corner
of the area to avoid. Select Next.
u The icon is displayed on the
map.
2. Select the lower-right (left) corner
of the area to avoid. Select Next.
u The selected area is shaded on
the map.
3. Select Done.
■Adding an Avoid Area
18 CR-V NAVI-31TLA8100.book 40 ページ ２０１７年８月２５日　金曜日　午前９時４３分

41
uuNavigation uCustom Avoidances
Continued
System SetupH (Map) u (Back) uSettings uNavigation uCustom Avoidances
u Add Avoid Road
1.Select the starting point of the
section of road to avoid. Select
Next .
u The icon is displayed on the
map.
2. Select the ending point of the road
section. Select Next.
u The selected road color
changes.
3. Select Done.
■Adding an Avoid Road
18 CR-V NAVI-31TLA8100.book 41 ページ ２０１７年８月２５日　金曜日　午前９時４３分

42
uuNavigation uCustom Avoidances
System SetupH (Map) u (Back) uSettings uNavigation uCustom Avoidances
1. Select the area or road to edit
from the list.
2. Select or .
u The menu screen is displayed.
3. Select an item.
The following items are available:
• Rename : Enters a new name.
• Delete: Deletes a selected area or road.
• Disable: Disables the avoidance.
■Editing a Custom Avoidance
18 CR-V NAVI-31TLA8100.book 42 ページ ２０１７年８月２５日　金曜日　午前９時４３分

44
System Setup
Traffic
H (Map) u (Back) uSettings uTraffic
Sets the traffic feature. Select an option.
The following options are available:
• Traffic : Enables the traffic feature.
2Traffic Information P. 82
•Current Provider : Sets the traffic provider to use for traffic data.
• Subscriptions : Displays the lists of the current traffic subscriptions.
• Optimize Route : Sets whether to use optimized alternate routes On Request
(factory default) or Automatic.
18 CR-V NAVI-31TLA8100.book 44 ページ ２０１７年８月２５日　金曜日　午前９時４３分

45
System Setup
Other Settings
Units
H (Map) u (Back) uSettings uUnits uUnits
Set the units and display on the map of the navigation system. 1.Select an option.
2. Select Save.
The following options are available:
• Miles (factory default): Sets the units to miles.
• Kilometers: Sets the units to kilometers.
18 CR-V NAVI-31TLA8100.book 45 ページ ２０１７年８月２５日　金曜日　午前９時４３分

49
uuOther Settings uDevice
Continued
System Setup
Device
H (Map) u (Back) uSettings uDevice
Select an option.
The following options are available:
• About : Displays the device information.
2About P. 50
•Travel History: Allows the system to record information for suggested routes,
previous routes and destinations, and Trip Log features.
• Clear Travel History: Deletes the recorded information.
• Update Map : Displays the description screen of map update.
2Obtaining a Navigation Update P. 130
18 CR-V NAVI-31TLA8100.book 49 ページ ２０１７年８月２５日　金曜日　午前９時４３分

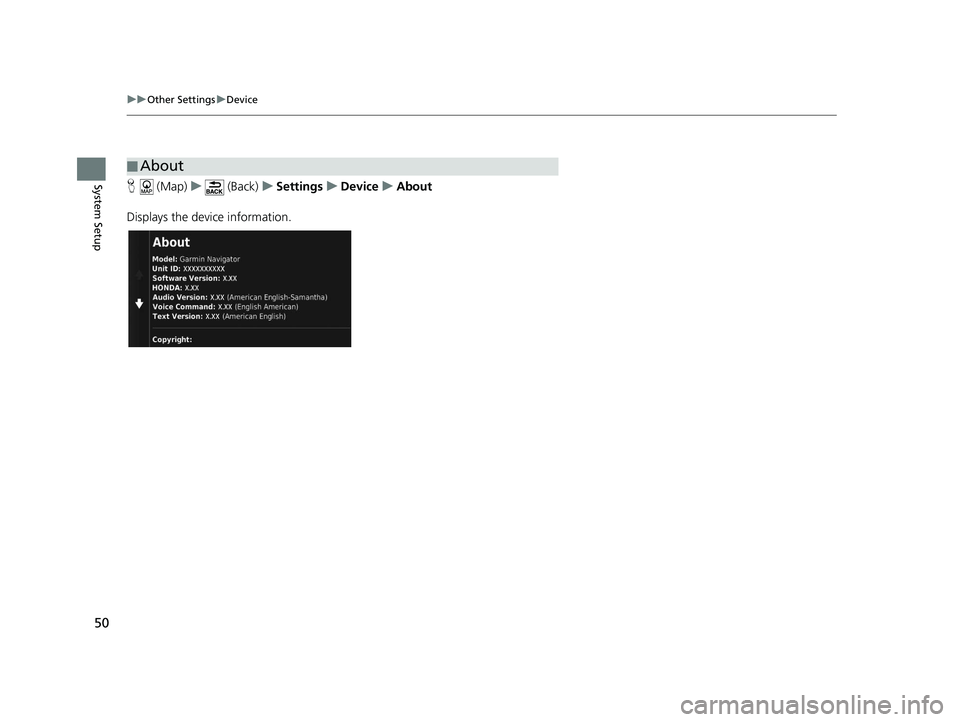

50
uuOther Settings uDevice
System SetupH (Map) u (Back) uSettings uDevice uAbout
Displays the device information.
■ About
18 CR-V NAVI-31TLA8100.book 50 ページ ２０１７年８月２５日　金曜日　午前９時４３分
