2018 HONDA CLARITY FUEL CELL climate control

Continued191
uuClimate Control System uUsing Automatic Climate Control
Controls

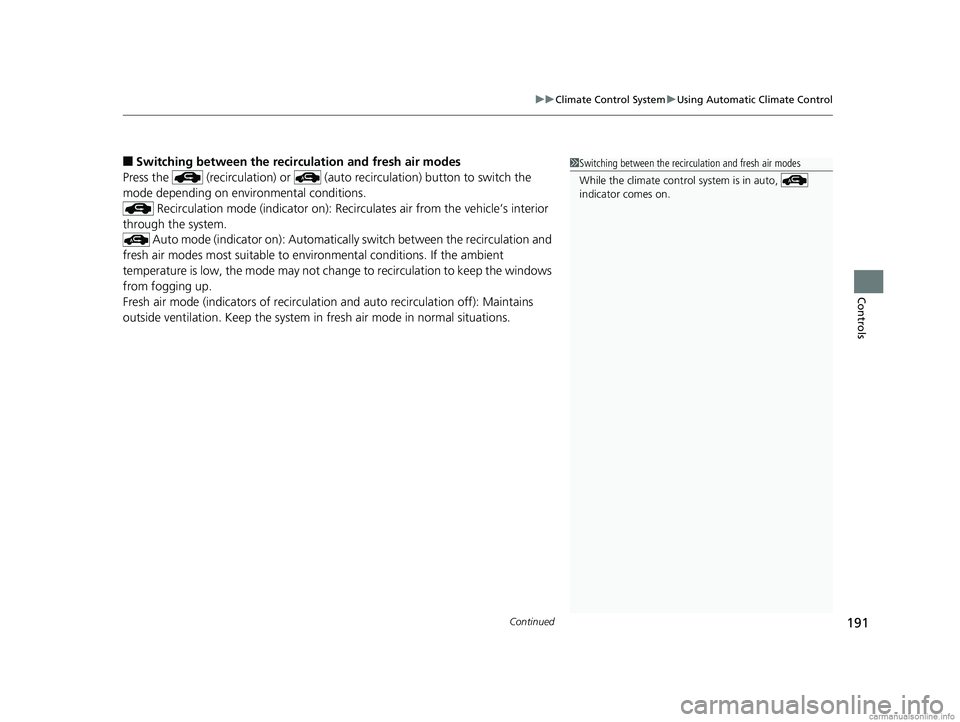

■Switching between the recirc ulation and fresh air modes
Press the (recirculation) or (auto recirculation) button to switch the
mode depending on environmental conditions.
Recirculation mode (indicator on): Reci rculates air from the vehicle’s interior
through the system. Auto mode (indicator on): Automatically switch between the recirculation and
fresh air modes most suitable to en vironmental conditions. If the ambient
temperature is low, the mode may not chan ge to recirculation to keep the windows
from fogging up.
Fresh air mode (indicators of recirculatio n and auto recirculation off): Maintains
outside ventilation. Keep the system in fresh air mode in normal situations.1 Switching between the recirc ulation and fresh air modes
While the climate control system is in auto,
indicator comes on.
18 CLARITY FUEL CELL PPO-31TRT6100.book 191 ページ ２０１７年１１月２１日　火曜日　午後３時３分

uuClimate Control System uUsing Automatic Climate Control
192
Controls

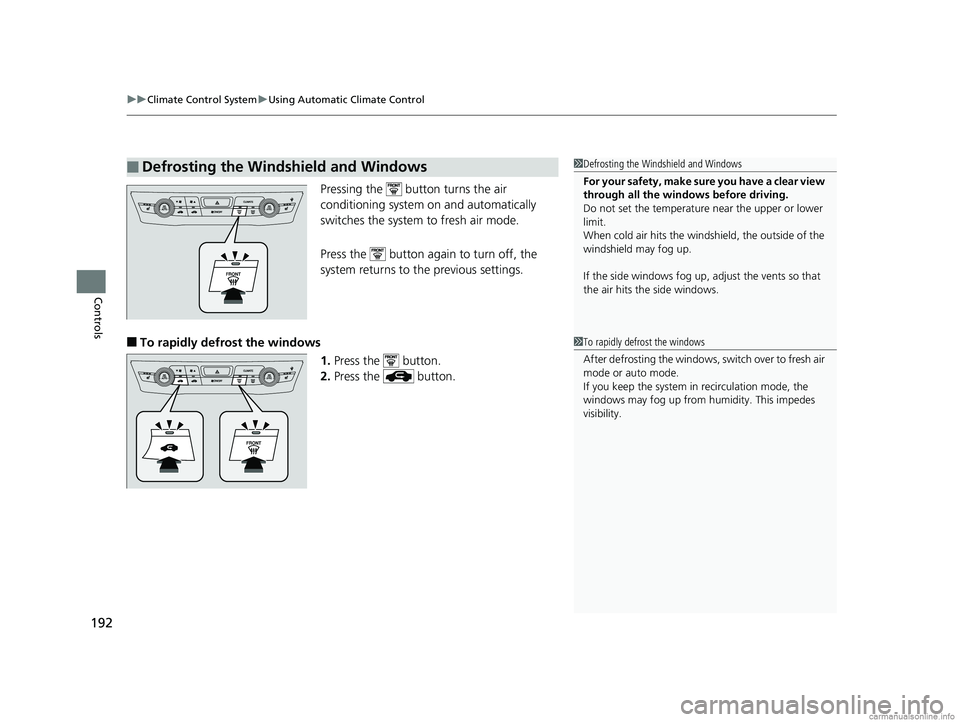

Pressing the button turns the air
conditioning system on and automatically
switches the system to fresh air mode.
Press the button again to turn off, the
system returns to the previous settings.
■To rapidly defrost the windows 1.Press the button.
2. Press the button.
■Defrosting the Windshield and Windows1Defrosting the Windshield and Windows
For your safety, make sure you have a clear view
through all the windows before driving.
Do not set the temperatur e near the upper or lower
limit.
When cold air hits the windshield, the outside of the
windshield may fog up.
If the side windows fog up, adjust the vents so that
the air hits th e side windows.
1To rapidly defrost the windows
After defrosting the windows, switch over to fresh air
mode or auto mode.
If you keep the system in recirculation mode, the
windows may fog up from humidity. This impedes
visibility.
18 CLARITY FUEL CELL PPO-31TRT6100.book 192 ページ ２０１７年１１月２１日　火曜日　午後３時３分

Continued193
uuClimate Control System uUsing Automatic Climate Control
Controls

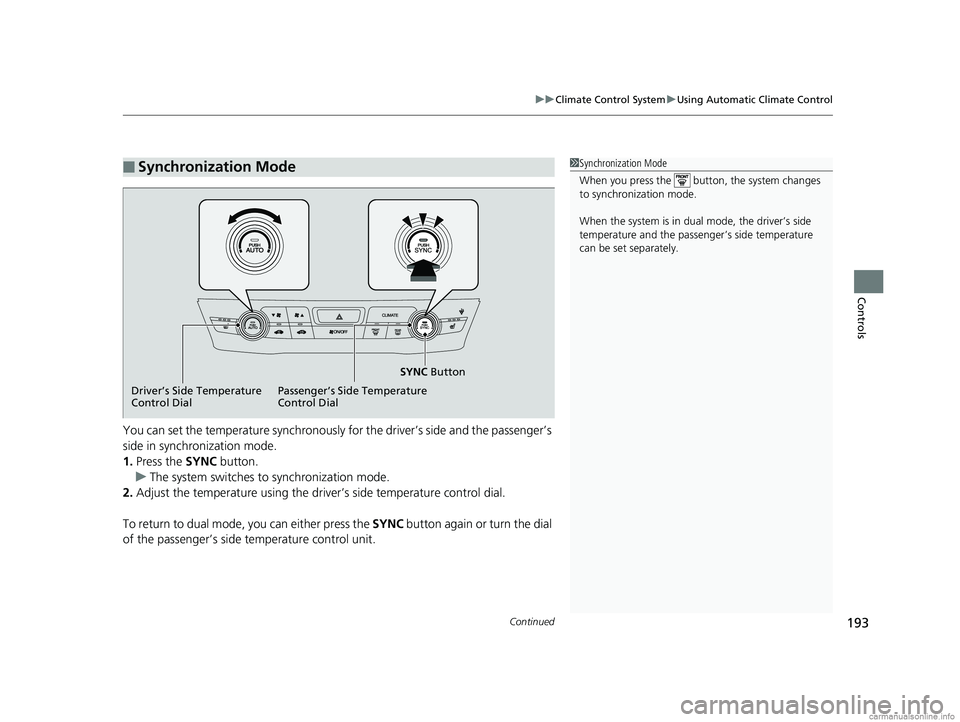

You can set the temperature synchronously for the driver’s side and the passenger’s
side in synchronization mode.
1. Press the SYNC button.
u The system switches to synchronization mode.
2. Adjust the temperature using the driv er’s side temperature control dial.
To return to dual mode, you can either press the SYNC button again or turn the dial
of the passenger’s side temperature control unit.
■Synchronization Mode1 Synchronization Mode
When you press the button, the system changes
to synchronization mode.
When the system is in dua l mode, the driver’s side
temperature and the passe nger’s side temperature
can be set separately.
SYNC Button
Passenger’s Side Temperature
Control Dial
Driver’s Side Temperature
Control Dial
18 CLARITY FUEL CELL PPO-31TRT6100.book 193 ページ ２０１７年１１月２１日　火曜日　午後３時３分

uuClimate Control System uUsing Automatic Climate Control
194
Controls

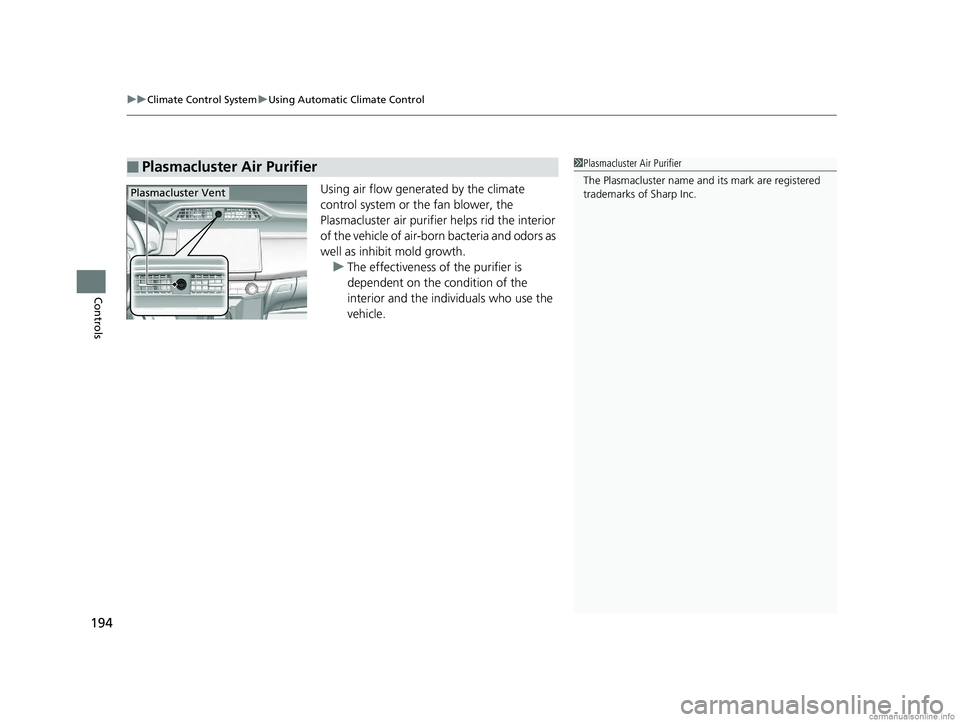

Using air flow generated by the climate
control system or the fan blower, the
Plasmacluster air purifier helps rid the interior
of the vehicle of air-born bacteria and odors as
well as inhibit mold growth.
u The effectiveness of the purifier is
dependent on the condition of the
interior and the individuals who use the
vehicle.
■Plasmacluster Air Purifier1Plasmacluster Air Purifier
The Plasmacluster name and its mark are registered
trademarks of Sharp Inc.
Plasmacluster Vent
18 CLARITY FUEL CELL PPO-31TRT6100.book 194 ページ ２０１７年１１月２１日　火曜日　午後３時３分

195
uuClimate Control System uUsing Automatic Climate Control
Controls
You can operate the climate control system from outside the vehicle.
■To turn on the system
1. Press the lock button.
u Some exterior lights flash.
2. Within about five seconds, press and hold
the climate button.
u Some exterior lights flash.
u After about five seconds, some exterior
lights flash six times and the climate
control system is turned on.
■To turn off the system
Press and hold th e climate button.
u Some exterior lights flash and the climate
control system is turned off.
■Turning the Climate Control System On and Off with the
Remote1Turning the Climate Control System On and Off with the Remote
The climate control system does not operate when
any of the following conditions are met.
•A door or the hood is not closed.
•The power mode is set to any mode other than
OFF.
•The brake pedal is being depressed.
The climate control system automatically turned off
when any of the following conditions are met.
•The system has been operated for more than 30
minutes.
•The High Voltage battery level becomes 15% or
lower.
•A door or the hood is opened.•The power mode is set to any mode other than OFF.
•The brake pedal is being depressed.
3WARNING
Make sure that no one is inside the vehicle
when you use the remote climate control
system. After a certain period of time has
elapsed, the system sh uts off temporarily.
During this time, the in terior of the vehicle
may heat up or cool down depending on
ambient temperatures. If a child is left
inside the vehicle, extreme temperature
exposure can result in death or serious
injury of the child.
Climate
Button Lock
Button
18 CLARITY FUEL CELL PPO-31TRT6100.book 195 ページ ２０１７年１１月２１日　火曜日　午後３時３分

196
uuClimate Control System uAutomatic Climate Control Sensors
Controls

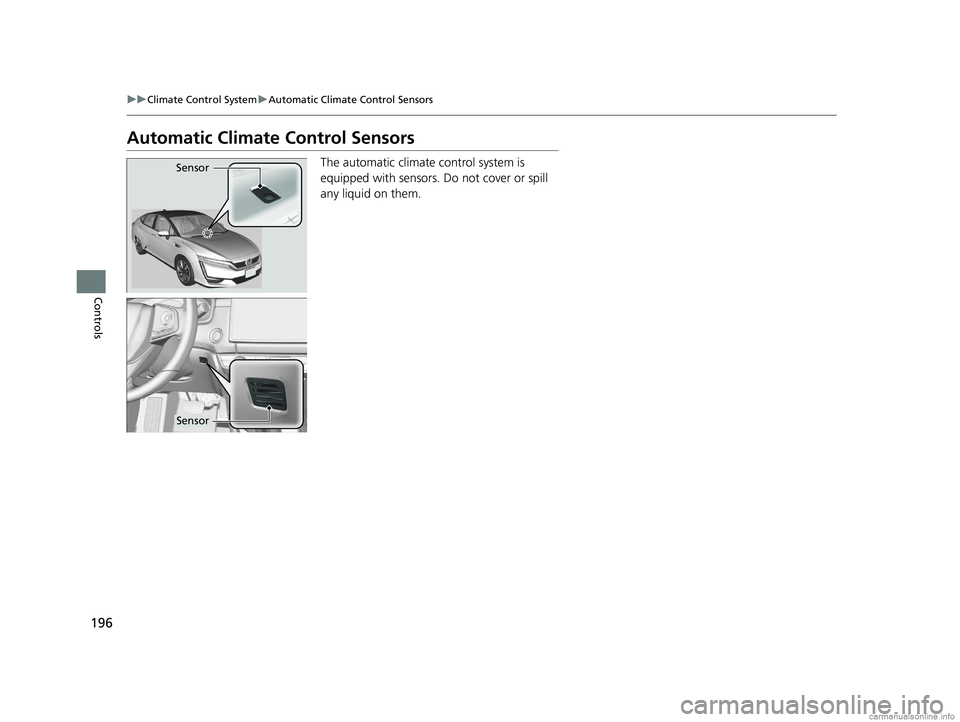

Automatic Climate Control Sensors
The automatic climate control system is
equipped with sensors. Do not cover or spill
any liquid on them.Sensor
Sensor
18 CLARITY FUEL CELL PPO-31TRT6100.book 196 ページ ２０１７年１１月２１日　火曜日　午後３時３分

233
uuAudio System Basic Operation uVoice Control Operation
Continued
FeaturesWhen the (Talk) button is pressed,
available voice comma nds appear on the
screen.
For a complete list of commands, say “ Voice
Help ” after the beep or select Voice Help.
You can see the list of commands in Voice
Info on the Info Menu screen. Select Info,
then select .
The system only recognizes the commands
on the following pages, at certain screens.
Free form voice commands are not
recognized.
■Voice Portal Screen■Phone Call
This can be only used when the phone is
connected. When the sy stem recognizes the
Phone call command, the screen will
change to the voice re cognition screen for
phone commands.
• Dial by Number
• Call History
• Redial
• Call
• Call
• Call Police
• Call 911
Phone Call commands are not available if
using Apple CarPlay.
■Music Search
This can be only used when the iPod or USB
device is connected.
■Climate Control
When the system recognizes the Climate
Control command, the screen will change
the dedicated screen to the climate control
voice recognition screen.
2 Climate Control Commands P. 235
■Audio
When the system recognizes the Audio
command, the screen will change to the
audio voice recognition screen.
• Audio On
*1
•Audio Off*1
•Radio FM
• Radio AM
• Radio SXM
• PANDORA
• iPod
• USB
• Other Sources
Pandora ® cannot be used while Android
Auto is active.
■Navigation
The screen changes to the navigation
screen.
2 Refer to the Navigation System Manual
■HondaLink ®
This can be only used when the phone is
connected.
*1: These commands toggle the function
on and off, so the co mmand may not match
your intended action.
18 CLARITY FUEL CELL PPO-31TRT6100.book 233 ページ ２０１７年１１月２１日　火曜日　午後３時３分

234
uuAudio System Basic Operation uVoice Control Operation
Features

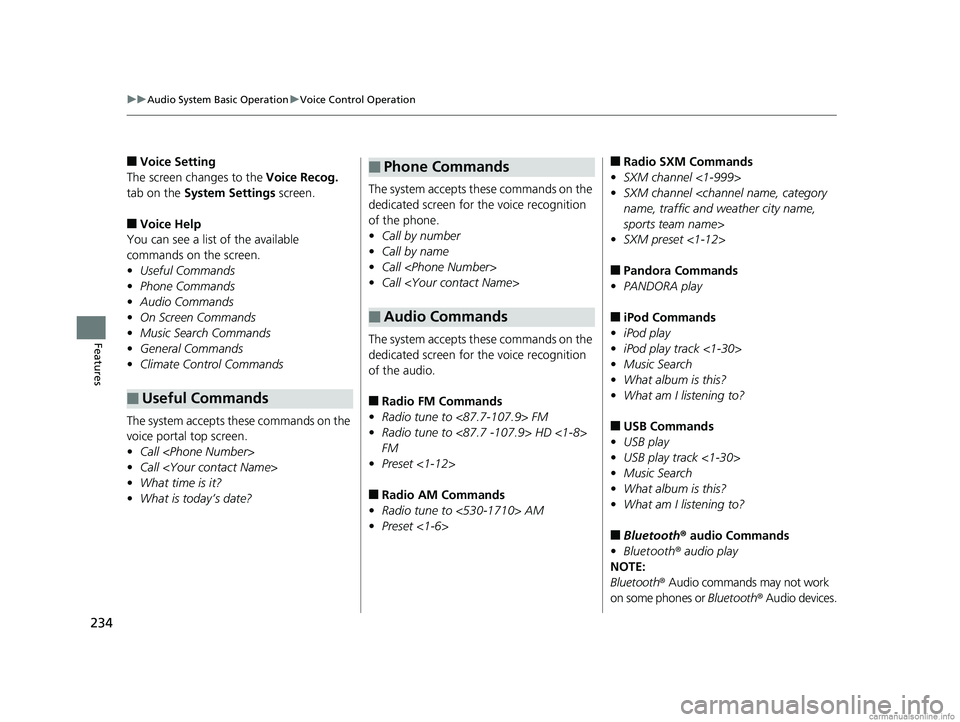

■Voice Setting
The screen changes to the Voice Recog.
tab on the System Settings screen.
■Voice Help
You can see a list of the available
commands on the screen.
• Useful Commands
• Phone Commands
• Audio Commands
• On Screen Commands
• Music Search Commands
• General Commands
• Climate Control Commands
The system accepts these commands on the
voice portal top screen.
• Call
• Call
• What time is it?
• What is today’s date?
■Useful Commands
The system accepts these commands on the
dedicated screen for the voice recognition
of the phone.
• Call by number
• Call by name
• Call
• Call
The system accepts these commands on the
dedicated screen for the voice recognition
of the audio.
■Radio FM Commands
• Radio tune to <87.7-107.9> FM
• Radio tune to <87.7 -107.9> HD <1-8>
FM
• Preset <1-12>
■Radio AM Commands
• Radio tune to <530-1710> AM
• Preset <1-6>
■Phone Commands
■Audio Commands
■Radio SXM Commands
• SXM channel <1-999>
• SXM channel name, traffic and weather city name,
sports team name>
• SXM preset <1-12>
■Pandora Commands
• PANDORA play
■iPod Commands
• iPod play
• iPod play track <1-30>
• Music Search
• What album is this?
• What am I listening to?
■USB Commands
• USB play
• USB play track <1-30>
• Music Search
• What album is this?
• What am I listening to?
■Bluetooth ® audio Commands
• Bluetooth ® audio play
NOTE:
Bluetooth ® Audio commands may not work
on some phones or Bluetooth® Audio devices.
18 CLARITY FUEL CELL PPO-31TRT6100.book 234 ページ ２０１７年１１月２１日　火曜日　午後３時３分
