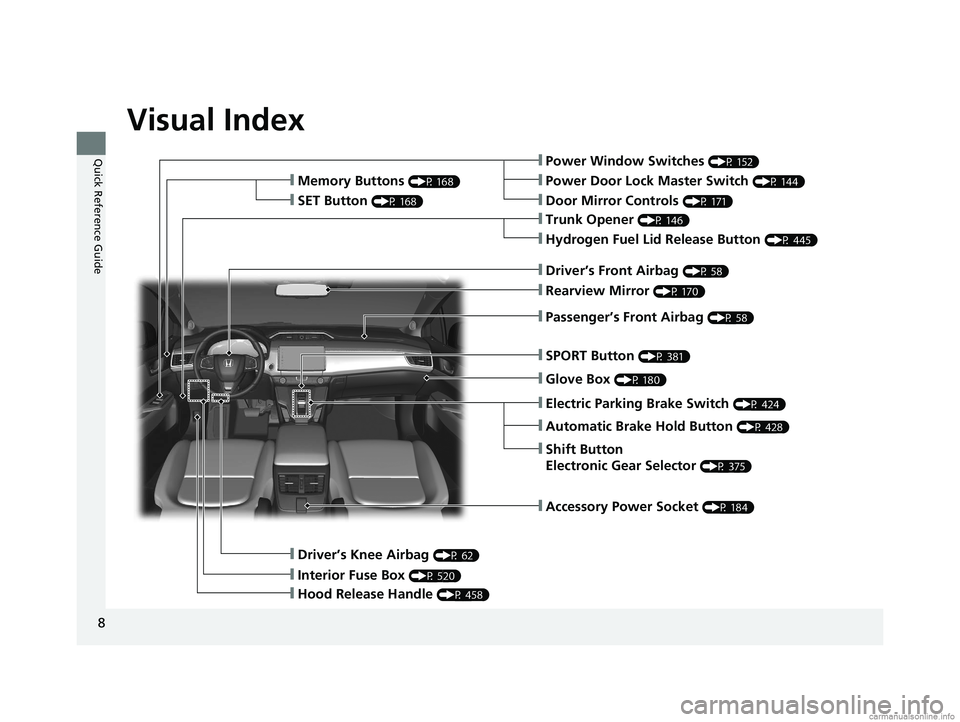

Visual Index
8
Quick Reference Guide❙Power Window Switches (P 152)
❙Trunk Opener (P 146)
❙Driver’s Knee Airbag (P 62)
❙Door Mirror Controls (P 171)
❙Power Door Lock Master Switch (P 144)
❙Hydrogen Fuel Lid Release Button (P 445)
❙Memory Buttons (P 168)
❙SET Button (P 168)
❙Interior Fuse Box (P 520)
❙Automatic Brake Hold Button (P 428)
❙Driver’s Front Airbag (P 58)
❙Passenger’s Front Airbag (P 58)
❙Rearview Mirror (P 170)
❙SPORT Button (P 381)
❙Glove Box (P 180)
❙Electric Parking Brake Switch (P 424)
❙Shift Button
Electronic Gear Selector
(P 375)
❙Accessory Power Socket (P 184)
❙Hood Release Handle (P 458)
18 CLARITY FUEL CELL PPO-31TRT6100.book 8 ページ ２０１７年１１月２１日　火曜日　午後３時３分

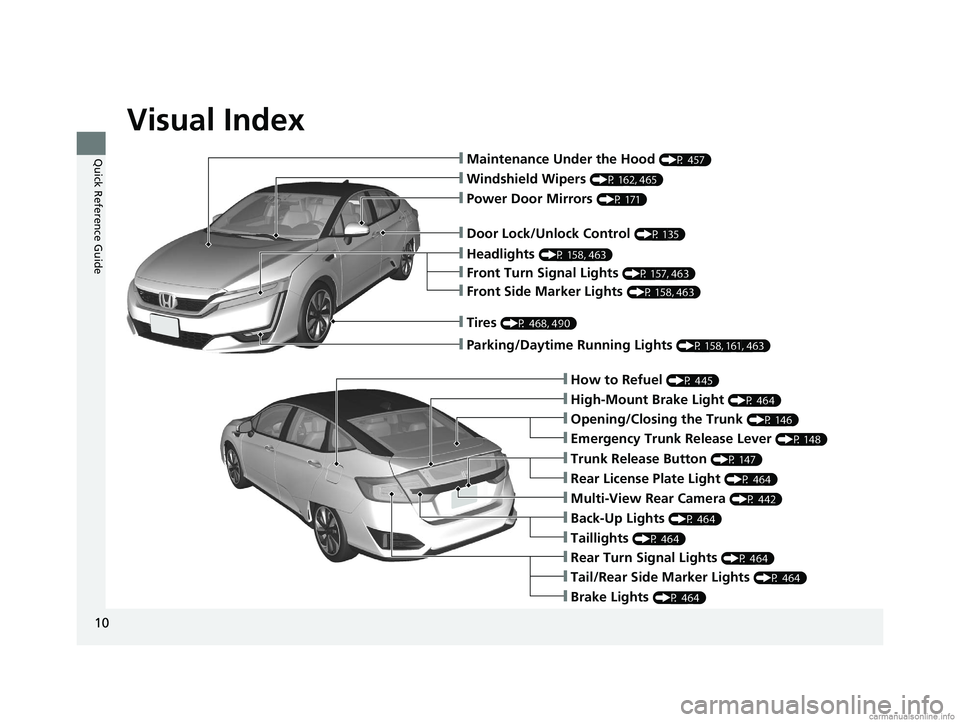

Visual Index
10
Quick Reference Guide❙Maintenance Under the Hood (P 457)
❙Windshield Wipers (P 162, 465)
❙Tires (P 468, 490)
❙Door Lock/Unlock Control (P 135)
❙Power Door Mirrors (P 171)
❙Headlights (P 158, 463)
❙Front Side Marker Lights (P 158, 463)
❙Front Turn Signal Lights (P 157, 463)
❙How to Refuel (P 445)
❙High-Mount Brake Light (P 464)
❙Emergency Trunk Release Lever (P 148)
❙Opening/Closing the Trunk (P 146)
❙Tail/Rear Side Marker Lights (P 464)
❙Brake Lights (P 464)
❙Rear Turn Signal Lights (P 464)
❙Back-Up Lights (P 464)
❙Taillights (P 464)
❙Trunk Release Button (P 147)
❙Rear License Plate Light (P 464)
❙Multi-View Rear Camera (P 442)
❙Parking/Daytime Running Lights (P 158, 161, 463)
18 CLARITY FUEL CELL PPO-31TRT6100.book 10 ページ ２０１７年１１月２１日　火曜日　午後３時３分

26
Quick Reference Guide
Instrument Panel (P 85)
Lights On Indicator
System Indicators
12-Volt Battery
Charging System
IndicatorAnti-lock Brake
System (
ABS)
Indicator
Vehicle Stability
Assist®
(VSA®) System
Indicator
VSA ® OFF Indicator Electric Power
Steering (EPS)
System Indicator
Lights Indicators
High Beam Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
Indicator
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Gauges (P 116)/Driver Information Interface (P 119)/
Head-Up Display
(P 127)/System Indicators (P 86)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Speedometer
Automatic Brake Hold
System Indicator Parking Brake and
Brake System
Indicator (Amber)
SPORT
Mode Indicator
Collision Mitigation
Brake System
TM
(CMBSTM) Indicator
Road Departure
Mitigation (RDM)
Indicator
Immobilizer System Indicator/
Security System Alarm Indicator
Automatic Brake Hold
Indicator
Head-Up Display
READY Indicator
POWER SYSTEM
Indicator
Gear Position
Indicator
Fuel Gauge
Driver Information
Interface
High Voltage Battery
Charge Level Gauge
POWER/CHARGE
Gauge
Low Fuel Indicator
Hydrogen Leak
Indicator Adaptive Cruise
Control (ACC) with
Low Speed Follow
(LSF) Indicator
Lane Keeping Assist
System (LKAS)
Indicator
18 CLARITY FUEL CELL PPO-31TRT6100.book 26 ページ ２０１７年１１月２１日　火曜日　午後３時３分

34
Quick Reference Guide

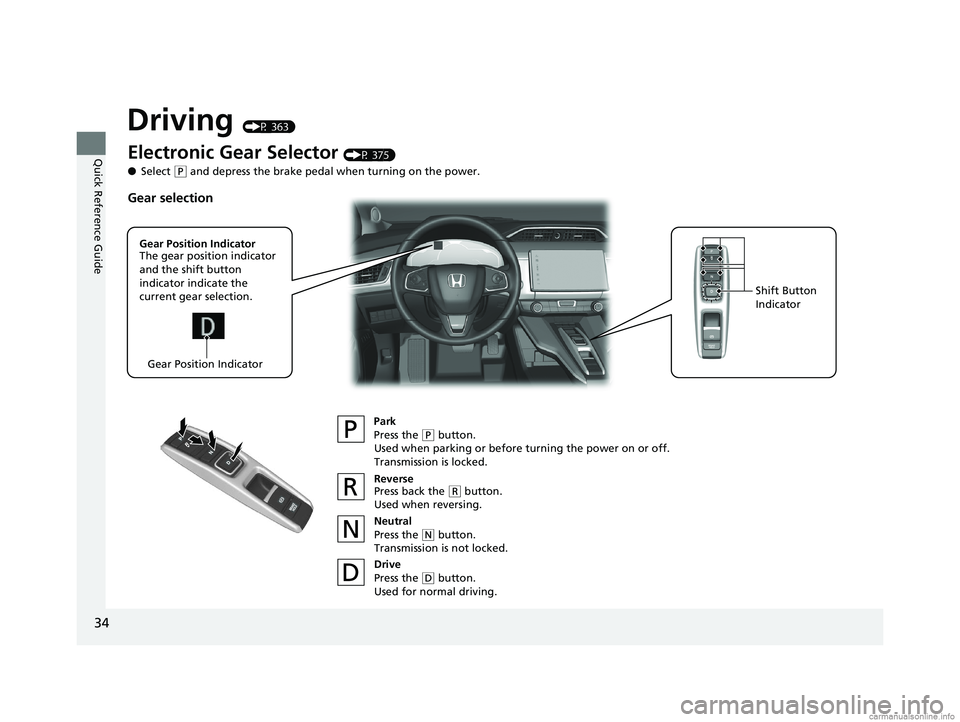

Driving (P 363)
Electronic Gear Selector (P 375)
● Select
(P and depress the brake pedal when turning on the power.
Park
Press the
(P button.
Used when parking or before turning the power on or off.
Transmission is locked.
Reverse
Press back the
( R button.
Used when reversing.
Neutral
Press the
( N button.
Transmission is not locked.
Drive
Press the
( D button.
Used for normal driving.
Gear Position Indicator
The gear position indicator
and the shift button
indicator indicate the
current gear selection.
Gear Position Indicator Shift Button
Indicator
Gear selection
18 CLARITY FUEL CELL PPO-31TRT6100.book 34 ページ ２０１７年１１月２１日　火曜日　午後３時３分

40
Quick Reference Guide

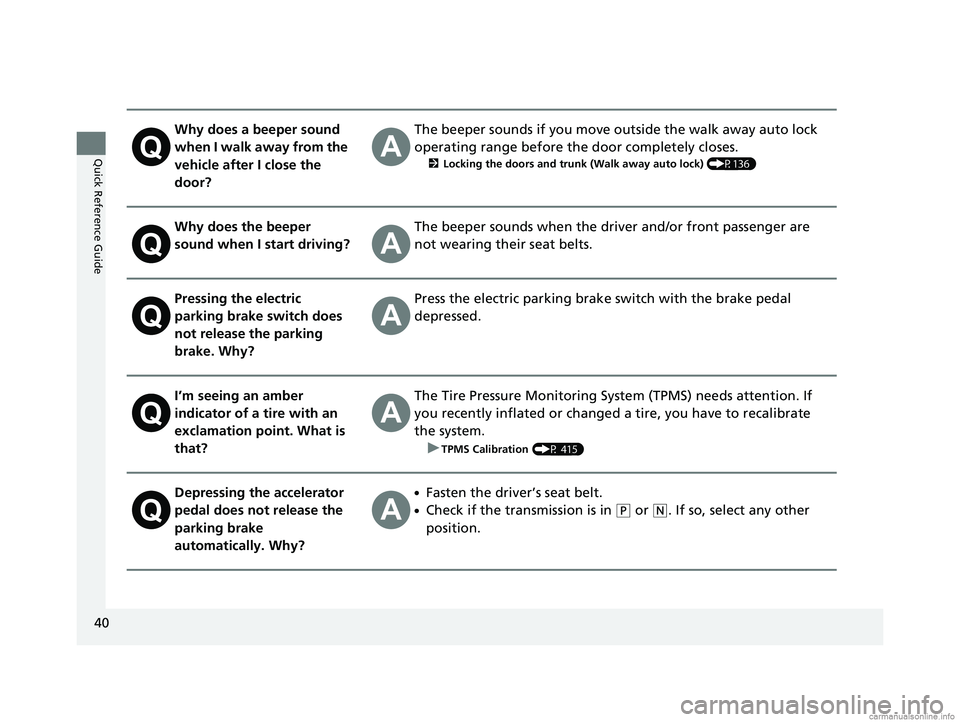

Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and trunk (Walk away auto lock) (P136)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?The Tire Pressure Monitoring Syst em (TPMS) needs attention. If
you recently inflated or changed a tire, you have to recalibrate
the system.
u
TPMS Calibration (P 415)
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
18 CLARITY FUEL CELL PPO-31TRT6100.book 40 ページ ２０１７年１１月２１日　火曜日　午後３時３分

41
Quick Reference Guide

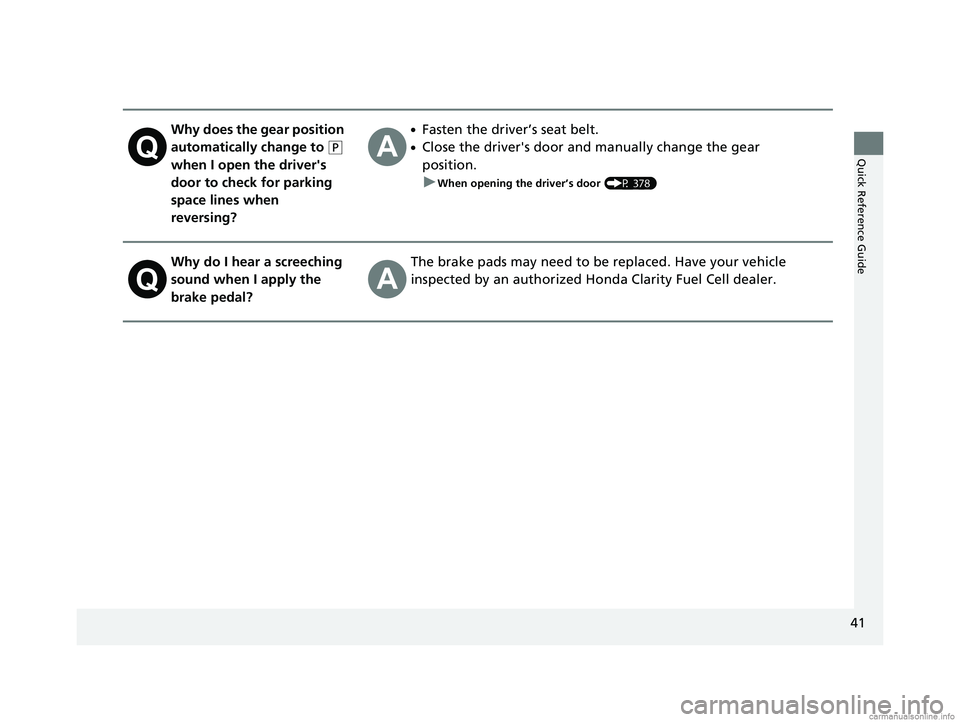

Why does the gear position
automatically change to
(P
when I open the driver's
door to check for parking
space lines when
reversing?
●Fasten the driver’s seat belt.
●Close the driver's door and manually change the gear
position. u
When opening the driver’s door (P 378)
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by an authorized Honda Clarity Fuel Cell dealer.
18 CLARITY FUEL CELL PPO-31TRT6100.book 41 ページ ２０１７年１１月２１日　火曜日　午後３時３分

86

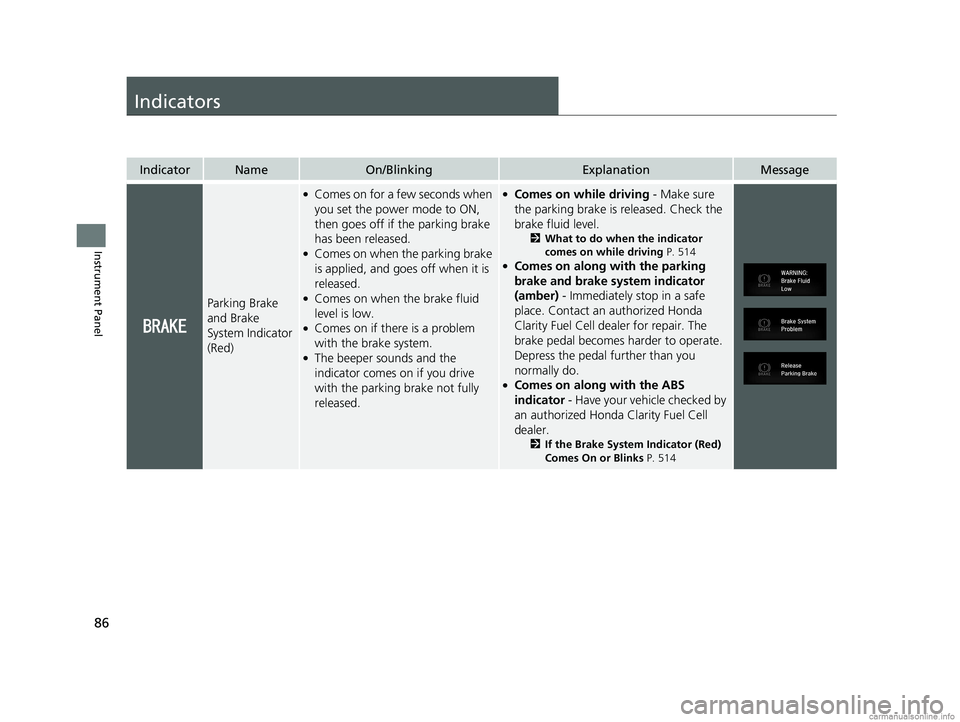

Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Red)
●Comes on for a few seconds when
you set the power mode to ON,
then goes off if the parking brake
has been released.
●Comes on when the parking brake
is applied, and goes off when it is
released.
●Comes on when the brake fluid
level is low.
●Comes on if there is a problem
with the brake system.
●The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
●Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 514
●Comes on along with the parking
brake and brake system indicator
(amber) - Immediately stop in a safe
place. Contact an authorized Honda
Clarity Fuel Cell dealer for repair. The
brake pedal becomes harder to operate.
Depress the pedal further than you
normally do.
●Comes on along with the ABS
indicator - Have your vehicle checked by
an authorized Honda Clarity Fuel Cell
dealer.
2 If the Brake System Indicator (Red)
Comes On or Blinks P. 514
18 CLARITY FUEL CELL PPO-31TRT6100.book 86 ページ ２０１７年１１月２１日　火曜日　午後３時３分

87
uuIndicators u
Continued
Instrument Panel

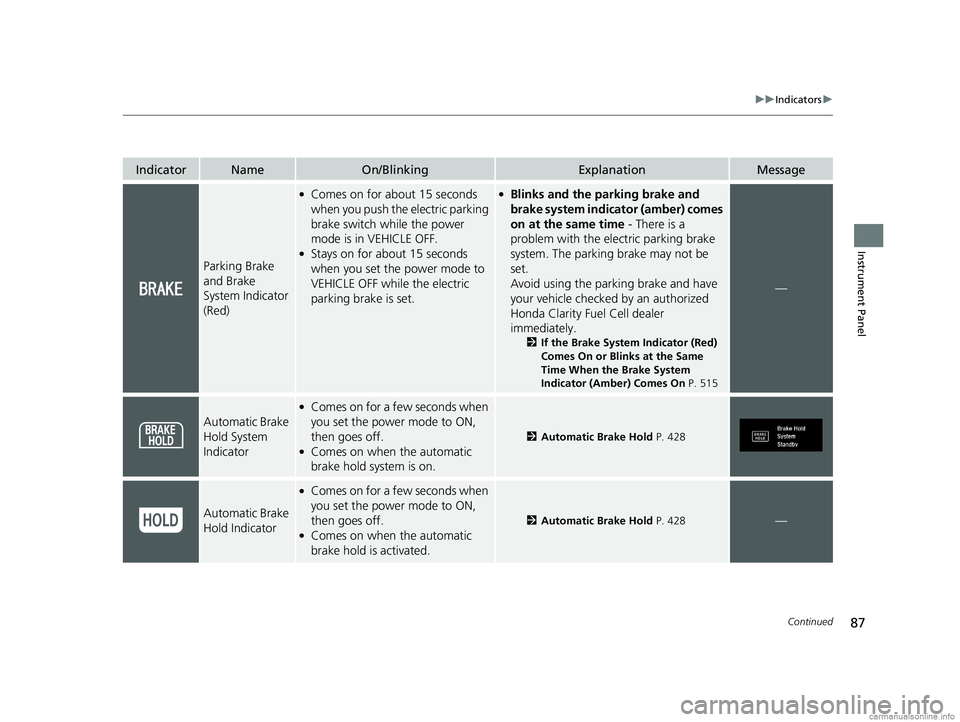

IndicatorNameOn/BlinkingExplanationMessage
