2018 HONDA CLARITY FUEL CELL brake

517
uuIndicator, Coming On/BlinkinguIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by
an authorized Honda Clarity Fuel Cell
dealer.
• Change the gear position to
(N after
turning the power system on.
u Check if the
(N position on the
instrument panel is lit and if the indicator
on the
(N button is lit or blinking.
u The power system cannot be turned on
unless the parking brake is set.
2 Turning on the Power P. 370
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to turn on the power system.
Make sure to set the parking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 526
18 CLARITY FUEL CELL PPO-31TRT6100.book 517 ページ ２０１７年１１月２１日　火曜日　午後３時３分

530
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelCLARITY FUEL CELL
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating 5,038 lbs (2,285 kg)
Gross Axle Weight
Rating (Front)2,646 lbs (1,200 kg)
Gross Axle Weight
Rating (Rear)2,458 lbs (1,115 kg)
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant TypeSE-A2 (POE)
Quantity 7.63 – 9.46 cu-in (125 – 155 cc)
■ Fuel
*1: A measured value when refueled at a hydrogen station with 70
MPa (10,153 psig) of supply pressure complaint with the SAE
(J2601) fueling protocol.
■Washer Fluid
Fuel requirementCompressed hydrogen gas
Hydrogen supply
pressure 70 MPa (10,153 psig) (at 59°F [15°C])
Hydrogen filling
amount*1Approximately 11 lbs (5 kg) (at 70 MPa
[10,153 psig])
Hydrogen tanks
capacity 37.3 US gal (141.3 L) (at 70 MPa
[10,153 psig])
Tank Capacity1.43 US qt (1.35 L)
■
Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Parking/Daytime Running LightsLED
Taillights/Rear Side Marker Lights LED
Brake LightsLED
Taillights LED
Back-Up LightsLED
Rear Turn Signal Lights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights1.4 WCenter Console LightLEDGlove Box LightLEDFront Foot LightsLEDTrunk LightLED
18 CLARITY FUEL CELL PPO-31TRT6100.book 530 ページ ２０１７年１１月２１日　火曜日　午後３時３分

531
uuSpecifications u
Information
■Brake Fluid
■ Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda Automatic Transmission Fluid
ATF DW-1
Capacity Change 1.85 US qt (1.75 L)
■ Inverter Coolant
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity0.81 US gal (3.05 L)
(change including the remaining
0.21 US gal (0.80 L) in the reserve tank)
■ Tire
RegularSize235/45R18 94VPressure
psi (kPa [kgf/cm2])36 (250 [2.5])
Wheel Size Regular 18 x 8J
18 CLARITY FUEL CELL PPO-31TRT6100.book 531 ページ ２０１７年１１月２１日　火曜日　午後３時３分

Index
540
Index
Index
Numbers
12-Volt Battery Charging System Indicator .................................................... 90
A
ABS (Anti-lock Brake System) ................... 430
Accessories and Modifications ................. 487
Accessory Power Sockets .......................... 184
Acoustic Vehicle Alerting System ............ 382
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) .................... 99, 389
Additives
Coolant ................................................... 459
Washer .................................................... 462
Adjusting
Armrest ................................................... 177
Front Seats .............................................. 172
Head Restraints........................................ 174
Mirrors .................................................... 170
Steering Wheel ........................................ 169
Temperature ............................................ 121
Agile Handling Assist ................................ 414
Air Conditioning System (Climate Control
System) .................................................... 188
Changing the Mode ................................ 190
Defrosting the Windshield and
Windows ............................................... 192
Dust and Pollen Filter ............................... 480
Plasmacluster ........................................... 194
Sensors .................................................... 196 Synchronization Mode............................. 193
Using Automatic Climate Control ............ 188
Air Pressure ....................................... 469, 531
Airbags ........................................................ 55
Advanced Airbags ..................................... 61
Airbag Care............................................... 69
Driver’s Knee Airbag.................................. 62
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 58
Indicator.............................................. 67, 93
Passenger Front Airbag Off Indicator ......... 68
Sensors ..................................................... 55
Side Airbags .............................................. 64
Side Curtain Airbags.................................. 66
AM/FM Radio ............................................ 236
Android Auto ........................................... 273
Anti-lock Brake System (ABS) .................. 430
Indicator.................................................... 92
Apple CarPlay ........................................... 270
Armrest ..................................................... 177
Audio Remote Controls ........................... 201
Audio System .................................... 198, 204
Adjusting the Sound................................ 229
Audio/Information Screen........................ 205
Changing the Home Screen Icon Layout .. 212
Changing the Screen Interface ................ 226
Closing Apps ........................................... 228
Customizing the Meter............................ 212
Display Setup .......................................... 230
Error Messages ........................................ 277
General Information ................................ 281 Home Screen .......................................... 218
Limitations for Manual Operation ............ 231
Menu Customize .................................... 227
MP3/WMA/AAC ..................................... 257
Reactivating ............................................ 200
Recommended Devices ........................... 283
Remote Controls ..................................... 201
Security Code ......................................... 200
Selecting an Audio Source ...................... 231
Status Area ............................................. 225
Theft Protection ...................................... 200
USB Flash Drives...................................... 283
USB Port ................................................. 199
Wallpaper Setup ..................................... 216
Audio/Information Screen ....................... 205
Authorized Manuals ................................ 537
Auto Door Locking/Unlocking ................ 145
Automatic Brake Hold ............................. 428
Indicator ........................................... 87, 428
Automatic Brake Hold System Indicator ........................................... 87, 428
Automatic Lighting .................................. 159
Average Fuel Economy ............................ 121
Average Fuel Economy Records .............. 124
Average Speed ......................................... 122
B
Battery
12-Volt ................................................... 477
18 CLARITY FUEL CELL PPO-31TRT6100.book 540 ページ ２０１７年１１月２１日　火曜日　午後３時３分

541
Index
12-Volt Battery Charging System
Indicator ......................................... 90, 513
Charging (12-Volt Battery) ...................... 478
High Voltage........................................... 419
Jump Starting ......................................... 506
Maintenance (Checking the 12-Volt Battery) ................................................. 477
Maintenance (Replacing) ......................... 479
Belts (Seat) .................................................. 48
Beverage Holders ..................................... 182
Bluetooth ® Audio ..................................... 260
Bluetooth ® HandsFreeLink ®.................... 329
Booster Seats (For Children) ...................... 82
Brake System ............................................ 424
Anti-lock Brake System (ABS) .................. 430
Automatic Brake Hold ............................. 428
Brake Assist System................................. 431
Fluid ....................................................... 461
Foot Brake .............................................. 427
Indicator (Red) ........................................ 515
Parking Brake.......................................... 424
Brake System (Amber)
Indicator ................................................... 88
Brake System (Red) Indicator ..................................... 86, 87, 514
Brightness Control (Head-Up Display) .... 165
Brightness Control (Instrument Panel) ... 164
Bulb Replacement .................................... 463
Brake/Taillights and Rear Side Marker
Lights .................................................... 464 Front Turn Signal and
Front Side Marker
Lights .................................................... 463
Headlights ............................................... 463
High-Mount Brake Light .......................... 464
Parking/Daytime Running Lights .............. 463
Rear License Plate Lights .......................... 464
Taillights and Back-Up Lights ................... 464
Taillights/Rear Side Marker, Brake and
Rear Turn Signal Lights .......................... 464
Bulb Specifications ................................... 530
C
Carrying Cargo.................................. 365, 367
Certification Label .................................... 532
Changing Bulbs ......................................... 463
Characteristics of Fuel Cell Vehicles .......... 11
Charging System Indicator ....................... 513
Child Safety ................................................. 70
Childproof Door Locks ............................. 144
Child Seat .................................................... 70
Booster Seats ............................................. 82
Child Seat for Infants ................................. 72
Child Seat for Small Children ..................... 73
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 77
Larger Children .......................................... 81
Rear-facing Child Seat ............................... 72
Selecting a Child Seat ................................ 74
Using a Tether ........................................... 79
Childproof Door Locks ............................. 144 Cleaning the Exterior
............................... 483
Cleaning the Interior ................................ 481
Climate Control System ............................ 188
Changing the Mode ................................ 190
Defrosting the Windshield and
Windows ............................................... 192
Dust and Pollen Filter............................... 480
Sensors ................................................... 196
Using Automatic Climate Control ............ 188
Clock .......................................................... 132
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 432
Coat Hook ................................................. 185
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 432
Console Compartment ............................. 181
Controls ..................................................... 131
Coolant ..................................................... 459
Adding to the Radiator ............................ 460
Adding to the Reserve Tank..................... 459
Overheating ............................................ 509
Creeping (Transmission) ........................... 374
Cup Holders .............................................. 182
Customer Service Information ................. 538
Customized Features ........................ 126, 300
D
Daytime Running Lights .......................... 161
Dead Battery (12-Volt) ............................. 506
18 CLARITY FUEL CELL PPO-31TRT6100.book 541 ページ ２０１７年１１月２１日　火曜日　午後３時３分

542
Index
Defrosting the Windshield and Windows .................................................. 192
Devices that Emit Radio Waves ................ 533
Dimming Headlights ............................................... 158
Rearview Mirror ....................................... 170
Directional Signals (Turn Signal) .............. 157
Display Button .......................................... 205
Door Mirrors ............................................. 171
Doors ......................................................... 133
Auto Door Locking .................................. 145
Auto Door Unlocking ............................... 145
Door Open Message .................................. 47
Keys ........................................................ 133
Locking/Unlocking the Doors from the Inside ............................................... 28, 142
Locking/Unlocking the Doors from the
Outside .................................................. 135
Lockout Prevention System ...................... 141
DOT Tire Quality Grading ........................ 471
Driver Information Interface .................... 119
Driver’s Knee Airbag .................................. 62
Driving ....................................................... 363
Braking .................................................... 424
Shifting Gear ........................................... 375
Transmission ............................................ 374
Turning on the Power .............................. 370
Driving Position Memory System ............. 167
Dust and Pollen Filter ............................... 480E
Eco Assist® System ...................................... 24
Eco Drive Display ...................................... 125
Elapsed Time ............................................. 122
Electric Power Steering (EPS) System
Indicator............................................ 93, 514
Electronic Stability Control (ESC) ............. 412
Emergency ................................................ 526
EPS (Electric Power Steering) System ........ 93
Expanded View Driver’s Mirror ............... 171
Exterior Care (Cleaning) ........................... 483
Exterior Mirrors ........................................ 171
F
FC System in Extreme Cold-weather
Conditions ............................................... 420
Features .................................................... 197
Filters Dust and Pollen ....................................... 480
Flat Tire ..................................................... 490
Floor Mats ................................................. 482
Fluids Brake ...................................................... 461
Coolant ................................................... 459
Transmission ........................................... 461
Windshield Washer ................................. 462
FM/AM Radio ............................................ 236
Foot Brake ................................................ 427
Front Airbags (SRS) ..................................... 58
Front Seat Heaters .................................... 186 Front Seats
................................................ 172
Adjusting ................................................ 172
Front Sensor Camera ............................... 383
Fuel ..................................................... 35, 444
Economy................................................. 447
Gauge .................................................... 116
How to Handle Leaked Hydrogen Gas ..... 511
Hydrogen Leak Indicator ........................... 90
Instant Fuel Economy .............................. 122
Low Fuel Indicator..................................... 90
Range ..................................................... 116
Refueling ................................................ 444
Requirement ................................... 444, 530
Fuel Cell Power Generation Monitor ...... 124
Fuel Cell Vehicle Precautions .................... 14
Fuel Economy ........................................... 447
Fuel Fill Door .............................................. 35
Fuses ......................................................... 518
Inspecting and Changing ........................ 525
Locations ........................................ 518, 520
G
Gauges ...................................................... 116
Gear Position Indicator ...................... 91, 377
Gear Shift Positions Transmission ........................................... 375
Glass (care) ....................................... 481, 484
Glove Box ................................................. 180
18 CLARITY FUEL CELL PPO-31TRT6100.book 542 ページ ２０１７年１１月２１日　火曜日　午後３時３分

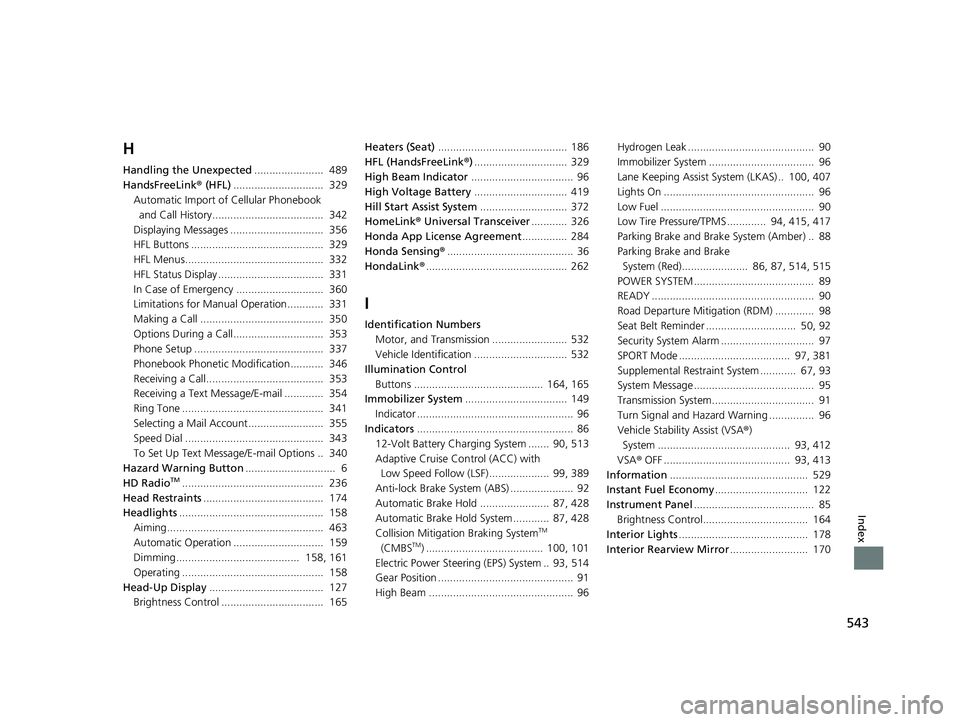

543
Index
H
Handling the Unexpected....................... 489
HandsFreeLink ® (HFL) .............................. 329
Automatic Import of Cellular Phonebook
and Call History..................................... 342
Displaying Messages ............................... 356
HFL Buttons ............................................ 329
HFL Menus.............................................. 332
HFL Status Display ................................... 331
In Case of Emergency ............................. 360
Limitations for Manual Operation............ 331
Making a Call ......................................... 350
Options During a Call.............................. 353
Phone Setup ........................................... 337
Phonebook Phonetic Modification........... 346
Receiving a Call....................................... 353
Receiving a Text Message/E-mail ............. 354
Ring Tone ............................................... 341
Selecting a Mail Account......................... 355
Speed Dial .............................................. 343
To Set Up Text Messa ge/E-mail Options .. 340
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 236
Head Restraints ........................................ 174
Headlights ................................................ 158
Aiming.................................................... 463
Automatic Operation .............................. 159
Dimming......................................... 158, 161
Operating ............................................... 158
Head-Up Display ...................................... 127
Brightness Control .................................. 165 Heaters (Seat)
........................................... 186
HFL (HandsFreeLink ®)............................... 329
High Beam Indicator .................................. 96
High Voltage Battery ............................... 419
Hill Start Assist System ............................. 372
HomeLink® Universal Transceiver ............ 326
Honda App License Agreement ............... 284
Honda Sensing ®.......................................... 36
HondaLink ®............................................... 262
I
Identification Numbers
Motor, and Transmission ......................... 532
Vehicle Identification ............................... 532
Illumination Control
Buttons ........................................... 164, 165
Immobilizer System .................................. 149
Indicator .................................................... 96
Indicators .................................................... 86
12-Volt Battery Charging System ....... 90, 513
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF).................... 99, 389
Anti-lock Brake System (ABS) ..................... 92
Automatic Brake Hold ....................... 87, 428
Automatic Brake Hold System ............ 87, 428
Collision Mitigation Braking System
TM
(CMBSTM) ....................................... 100, 101
Electric Power Steering (EPS) System .. 93, 514
Gear Position ............................................. 91
High Beam ................................................ 96 Hydrogen Leak .......................................... 90
Immobilizer System ................................... 96
Lane Keeping Assist Sy
stem (LKAS) .. 100, 407
Lights On .................................................. 96
Low Fuel ................................................... 90
Low Tire Pressure/TPMS ............. 94, 415, 417
Parking Brake and Brake System (Amber) .. 88
Parking Brake and Brake
System (Red)...................... 86, 87, 514, 515
POWER SYSTEM ........................................ 89
READY ...................................................... 90
Road Departure Mitigation (RDM) ............. 98
Seat Belt Reminder .............................. 50, 92
Security System Alarm ............................... 97
SPORT Mode ..................................... 97, 381
Supplemental Restraint System ............ 67, 93
System Message ........................................ 95
Transmission System.................................. 91
Turn Signal and Hazard Warning ............... 96
Vehicle Stability Assist (VSA® )
System ............................................ 93, 412
VSA ® OFF .......................................... 93, 413
Information .............................................. 529
Instant Fuel Economy ............................... 122
Instrument Panel ........................................ 85
Brightness Control................................... 164
Interior Lights ........................................... 178
Interior Rearview Mirror .......................... 170
18 CLARITY FUEL CELL PPO-31TRT6100.book 543 ページ ２０１７年１１月２１日　火曜日　午後３時３分

544
Index
Inverter Coolant........................................ 459
Adding to the Radiator ............................ 460
Adding to the Reserve Tank ..................... 459
Overheating............................................. 509
iPod ............................................................ 248
J
Jacking Points ........................................... 502
Jump Starting ............................................ 506
K
Key Number Tag ....................................... 134
Keyless Lockout Prevention ..................... 141
Keys ........................................................... 133
Lockout Prevention .................................. 141
Number Tag ............................................ 134
Rear Door Won’t Open ............................ 144
Remote Transmitter ................................. 139
Types and Functions ................................ 133
L
Lane Keeping Assist System (LKAS) ......... 405
LaneWatchTM............................................. 422
Language (HFL) ......................................... 331
LATCH (Child Seats) .................................... 75
Lights ................................................. 158, 463
Automatic ............................................... 159
Bulb Replacement .................................... 463
Daytime Running Lights ........................... 161 High Beam Indicator .................................. 96
Interior .................................................... 178
Light Switches ......................................... 158
Lights On Indicator .................................... 96
Turn Signals ............................................ 157
Load Limits ................................................ 367
Locking/Unlocking .................................... 133
Auto Door Locking/Unlocking.................. 145
Childproof Door Locks............................. 144
From Inside ............................................. 142
From Outside .......................................... 135
Keys ........................................................ 133
Using a Key ............................................. 140
Lockout Prevention System ..................... 141
Low Battery Charge (12-Volt) .................. 513
Low Smart Entry Remote Signal Strength .................................................. 134
Lower Anchors ............................................ 75
Luggage (Maximum Load Limit) ............. 367
M
Maintenance............................................. 449
12-Volt Battery ........................................ 477
Brake Fluid .............................................. 461
Cleaning ................................................. 481
Climate Control System ........................... 480
Coolant ................................................... 459
Maintenance Minder
TM............................ 453
Precautions ............................................. 450
Radiator .................................................. 460 Remote Transmitter ................................ 479
Replacing Light Bulbs .............................. 463
Safety ..................................................... 451
Service Items ........................................... 455
Tires........................................................ 468
Transmission Fluid ................................... 461
Under the Hood ...................................... 457
Map Lights ................................................ 179
Maximum Load Limit ............................... 367
Meters, Gauges ........................................ 116
Mirrors ...................................................... 170
Adjusting ................................................ 170
Door ....................................................... 171
Exterior ................................................... 171
Interior Rearview ..................................... 170
Modifications (and Accessories) .............. 487
Motor ........................................................ 532
Coolant .................................................. 459
Jump Starting ......................................... 506
MP3 ........................................................... 257
Multi-View Rear Camera ......................... 442
N
Numbers (Identification)......................... 532
O
Odometer................................................. 121
Open Source Licences .............................. 298
18 CLARITY FUEL CELL PPO-31TRT6100.book 544 ページ ２０１７年１１月２１日　火曜日　午後３時３分
