2018 HONDA CIVIC SEDAN hood release

Visual Index
6
Quick Reference Guide
❙Door Mirror Controls (P178)
❙Passenger’s Front Airbag
(P49)
❙Rearview Mirror (P177)
❙Accessory Power Socket
(P193)
❙Hood Release Handle (P525)
❙Trunk Opener (P153)
❙Power Door Lock Master Switch (P148)
❙Power Window Switches (P159)
❙Interior Fuse Box (P610)
❙Driver’s Front Airbag (P49)
❙USB Port (P213)
❙Shift Lever
Continuously Variable
Transmission
(P436)
Manual Transmission (P438)
❙ECON Button* (P442)
❙Electric Parking Brake Switch (P484)
❙Automatic Brake Hold Button (P487)
❙USB Port* (P213)
❙Wireless Charger* (P194)
❙SPORT Button* (P441)
❙Glove Box (P189)
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 6 ページ ２０１８年１０月３０日　火曜日　午前７時２８分

Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P523)
❙Windshield Wipers (P172, 547)
❙Tires (P550, 575)
❙Fog Lights* (P171, 540)
❙Power Door Mirrors (P178)
❙How to Refuel (P504)
❙
High-Mount Brake Light (P546)
Models without SPORT mode
❙Emergency Trunk Release Lever (P155)
❙Opening/Closing the Trunk (P153)
❙Multi-View Rear Camera (P501)
❙Door Lock/Unlock Control (P139)
❙Side Turn Signal Lights* (P168, 544)
❙Headlights (P168, 538)
❙Front Turn Signal Lights (P168, 542)
❙Parking/Daytime Running Lights (P168, 171, 544)
❙Front Side Marker Lights (P168, 543)
❙Taillights (P546)
❙Back-Up Lights (P545)
❙Brake Lights (P545)
❙Rear Turn Signal Lights (P545)
❙Tail/Rear Side Marker Lights (P545)
❙Trunk Release Button* (P154)
❙License Plate Light (P546)
❙
High-Mount Brake Light (P546)
Models with SPORT mode
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 8 ページ ２０１８年１０月３０日　火曜日　午前７時２８分

27
Quick Reference Guide
Maintenance (P 509)
Under the Hood (P 523)
● Check engine oil, engine coolant, and windshield washer fluid. Add
when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the dashboard.
bLocate the hood latch lever, pull it up, and then raise the hood.
Once you have raised the hood slightly, you can release the lever.
cWhen finished, close the hood and make sure it is firmly locked in
place.
Lights (P 538)
● Inspect all lights regularly.
Wiper Blades (P 547)
● Replace blades if they leave streaks
across the windshield.
Tires (P 550)
● Inspect tires and wheels
regularly.
● Check tire pressures regularly.
● Install snow tires for winter
driving.
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 27 ページ ２０１８年１０月３０日　 火曜日　午前７時２８分

Continued157
uuSecurity System uSecurity System Alarm
Controls
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The ignition switch is in LOCK
(0*1, and the key has been removed from the
ignition switch.
• The hood and trunk are closed.
• All doors are locked with the key, the remote transmitter, or smart entry system
*.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks. When the
blinking interval changes after about 15 se conds, the security system alarm is set.
■To cancel the security system alarm
The security system is canc eled when the vehicle is unlocked using the remote
transmitter, smart entry system
*, or the ignition swit ch is turned to ON (w*1. The
security system indicator go es off at the same time.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the trunk with the trunk opener on the
driver’s door or the emergency trunk opener.
•Opening the hood with the hood release.
•Taking the transmission out of ( P.
If the battery goes dead after you have set the
security system alarm, the security alarm may activate
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the remote transmitter or
smart entry system
*.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Continuously variable transmission models
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 157 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

182
uuAdjusting the Seats uHead Restraints
Controls

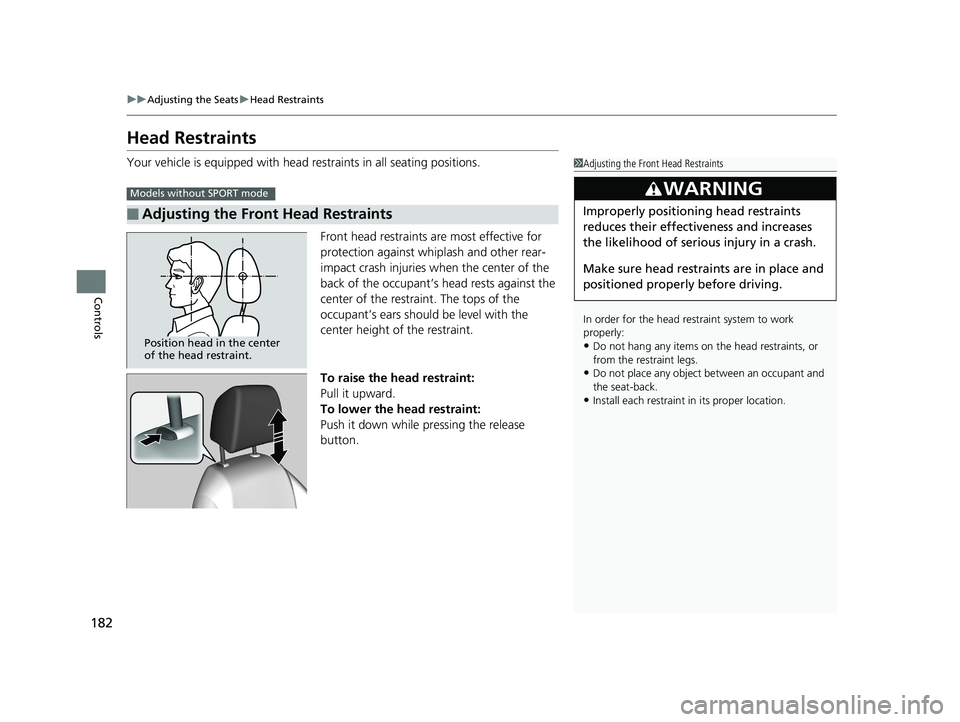

Head Restraints
Your vehicle is equipped with head restraints in all seating positions.
Front head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant’s head rests against the
center of the restraint. The tops of the
occupant’s ears should be level with the
center height of the restraint.
To raise the head restraint:
Pull it upward.
To lower the head restraint:
Push it down while pressing the release
button.
■Adjusting the Front Head Restraints
Models without SPORT mode
1Adjusting the Front Head Restraints
In order for the head restraint system to work
properly:
•Do not hang any items on the head restraints, or
from the restraint legs.
•Do not place any object be tween an occupant and
the seat-back.
•Install each restraint in its proper location.
3WARNING
Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.
Make sure head restraints are in place and
positioned properly before driving.
Position head in the center
of the head restraint.
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 182 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

525
uuMaintenance Under the Hood uOpening the Hood
Maintenance

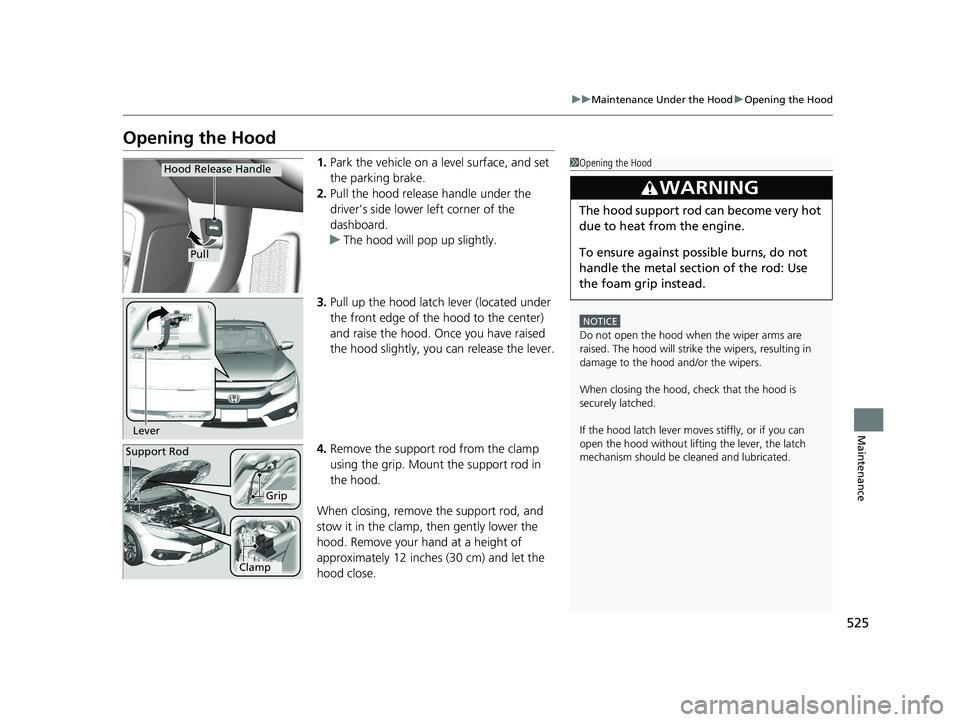

Opening the Hood
1. Park the vehicle on a level surface, and set
the parking brake.
2. Pull the hood release handle under the
driver’s side lower left corner of the
dashboard.
u The hood will pop up slightly.
3. Pull up the hood latch lever (located under
the front edge of the hood to the center)
and raise the hood. Once you have raised
the hood slightly, you can release the lever.
4. Remove the support rod from the clamp
using the grip. Mount the support rod in
the hood.
When closing, remove the support rod, and
stow it in the clamp, then gently lower the
hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close.1 Opening the Hood
NOTICE
Do not open the hood when the wiper arms are
raised. The hood will strike the wipers, resulting in
damage to the hood and/or the wipers.
When closing the hood, check that the hood is
securely latched.
If the hood latch lever moves stiffly, or if you can
open the hood without lifti ng the lever, the latch
mechanism should be cl eaned and lubricated.
3WARNING
The hood support rod can become very hot
due to heat from the engine.
To ensure against possible burns, do not
handle the metal section of the rod: Use
the foam grip instead.
Hood Release Handle
Pull
Lever
Support Rod
Grip
Clamp
