Driving
Turbo Engine Vehicle*
Handling Precautions
The turbocharger is a high-precision device to obtain greater horsepower by
delivering a large volume of compressed air into the engine using a turbine driven by
the engine’s exhaust gas pressure.
• When the engine is cold just after sta rting, avoid revving the engine or sudden
acceleration.
• Always replace the engine oil and engine oil filter according to the Maintenance
Minder. The turbine rotates at very high speeds over 100,000 rpm and its
temperature reaches over 1,2 92°F (700°C). It is lubricated and cooled by engine
oil. If you fail to replace the engine oil and filter at the scheduled distance or
interval, deteriorated engine oil may caus e failure such as sticking and abnormal
noise of the turbine bearing.1 Turbo Engine Vehicle*
The scheduled maintenance intervals for replacing
the filter is indicated on the driver information
interface. Follow the information of when to replace
them. 2 Maintenance Minder
TM P. 513
The temperature gauge pointer is at the mark
when you restart the engi ne after driving under high
load conditions such as at high speed or in hilly
terrain. This is normal. The gauge goes down after
you idle or drive the vehi cle for about one minute.
H
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 507 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

515
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
Maintenance
Minder Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder indicator does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
Continuously variable transmission models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 515 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

516
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder indicator does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 40,000 km (25,000 miles).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
Continuously variable transmission models
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
9●Service front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 516 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

520
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
U.S. models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for temporary tire repair kit
bottle (if equipped)
●Inspect these items:
• Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
Continuously variable transmission models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 520 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

521
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
Canadian models
*1: If a Maintenance Minder message does not appear more than 12 months after the display is reset,
change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures.
This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 40,000 km (25,000 miles).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
Continuously variable transmission models
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid*4
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
7●Replace brake fluid*5
9●Service front and rear brakes●Inspect these items: • Tie rod ends, steering gearbox, and boots
• Suspension components
• Driveshaft boots
• Brake hoses and lines (including ABS/VSA)
• All fluid levels and condition of fluids
• Exhaust system
#
•Fuel lines and connections#
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 521 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

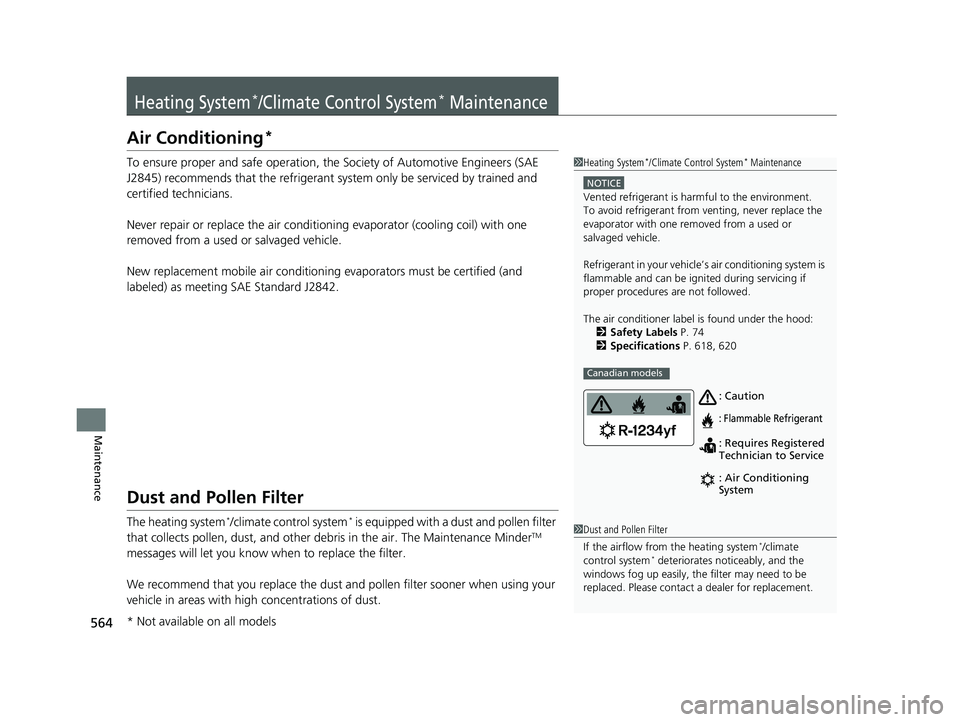

564
Maintenance
Heating System*/Climate Control System* Maintenance
Air Conditioning*
To ensure proper and safe operation, the Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant sy stem only be serviced by trained and
certified technicians.
Never repair or replace the air conditioning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.
New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.
Dust and Pollen Filter
The heating system*/climate control system* is equipped with a dust and pollen filter
that collects pollen, dust, and other de bris in the air. The Maintenance MinderTM
messages will let you know when to replace the filter.
We recommend that you replace the dust and pollen filter sooner when using your
vehicle in areas with high concentrations of dust.
1Heating System*/Climate Control System* Maintenance
NOTICE
Vented refrigerant is harmful to the environment.
To avoid refrigerant from venting, never replace the
evaporator with one re moved from a used or
salvaged vehicle.
Refrigerant in your vehicle’s air conditioning system is
flammable and can be igni ted during servicing if
proper procedures are not followed.
The air conditioner labe l is found under the hood:
2 Safety Labels P. 74
2 Specifications P. 618, 620
Canadian models
: Caution
: Flammable Refrigerant
: Requires Registered
Technician to Service
: Air Conditioning
System
1Dust and Pollen Filter
If the airflow from the heating system
*/climate
control system* deteriorates noticeably, and the
windows fog up easily, the filter may need to be
replaced. Please contact a dealer for replacement.
* Not available on all models
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 564 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

Index
631
Index
Index
A
ABS (Anti-lock Brake System).................. 490
Accelerator Position Meter ..................... 120
Accessories and Modifications ................ 570
Accessory Power Socket ........................... 193
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ........................... 91, 448
Adding the Coolant ................................. 534
Additives Coolant .................................................. 533
Engine Oil ............................................... 526
Washer ................................................... 537
Additives, Engine Oil ............................... 526
Adjusting
Armrest .................................................. 186
Clock ...................................................... 134
Front Head Restraints .............................. 182
Front Seats.............................................. 179
Mirrors.................................................... 177
Rear Seats ............................................... 185
Steering Wheel ....................................... 176
Temperature ................................... 112, 118
Adjusting the Clock ................................. 134
Adjusting the Sound ........................ 224, 259
Agile Handling Assist ............................... 475
Air Conditioning System (Climate Control System) .................................................... 202
Changing the Mode................................ 205
Defrosting the Windshield and Windows .............................................. 206
Dust and Pollen Filter .............................. 564 Recirculation/Fresh Air Mode ................... 205
Sensor ..................................................... 209
Synchronized Mode ................................. 208
Using Automatic Climate Control ............ 202
Air Pressure ............................... 551, 619, 621
Airbags ........................................................ 46
Advanced Airbags ..................................... 52
After a Collision ......................................... 49
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 49
Indicator .............................................. 57, 81
Passenger Front Airbag Off Indicator ......... 58
Sensors ...................................................... 46
Side Airbags .............................................. 53
Side Curtain Airbags .................................. 55
AM/FM Radio .................................... 226, 266
Android Auto ............................................ 303
Anti-lock Brake System (ABS) .................. 490
Indicator .................................................... 81
Apple CarPlay ........................................... 300
Armrest ..................................................... 186
Audio Remote Controls ............................ 215
Audio System ............................ 212, 219, 237
Adjusting the Sound ........................ 224, 259
Audio/Information Screen ................ 220, 238
Changing the Home Screen Icon Layout .. 242
Changing the Screen Interface ................. 256
Closing Apps ........................................... 258
Customizing the Meter ............................ 243
Display Setup ................................... 225, 260 Error Messages ........................................ 307
General Information ................................ 310
Home Screen........................................... 249
iPod ................................................ 228, 278
Limitations for Manual Operation ............ 261
Menu Customize ..................................... 257
MP3/WMA/AAC .............................. 231, 287
Reactivating ............................................ 214
Recommended Devices............................ 311
Remote Controls ..................................... 215
Security Code .......................................... 214
Selecting an Audio Source ....................... 261
Status Area ............................................. 255
Theft Protection ...................................... 214
USB Flash Drives ...................................... 311
USB Port(s) .............................................. 213
Wallpaper Setup.............................. 222, 247
Audio/Information Screen ............... 220, 238
Authorized Manuals ................................ 629
Auto Door Locking/Unlocking ................. 149
Customize ............................... 130, 150, 359
Automatic Brake Hold ............................. 487
Indicator............................................ 78, 487
Automatic Brake Hold System Indicator............................................ 78, 487
Automatic Lighting .................................. 169
Average Fuel Economy .................... 111, 117
Average Speed ..
....................................... 117
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 631 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分

632
Index
B
Battery....................................................... 560
Charging System Indicator ................. 79, 603
Jump Starting .......................................... 597
Maintenance (Checking the Battery) ........ 560
Maintenance (Replacing).......................... 562
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 191
Bluetooth ® Audio ............................. 234, 290
Bluetooth ® HandsFreeLink ®............. 361, 385
Booster Seats (For Children) ....................... 72
Brake System ............................................. 484
Anti-lock Brake System (ABS) ................... 490
Automatic Brake Hold.............................. 487
Brake Assist System ................................. 491
Fluid ........................................................ 536
Foot Brake ............................................... 486
Indicator (Red) ........................... 76, 605, 606
Parking Brake .......................................... 484
Braking Pressure Meter ............................ 120
Brightness Control (Instrument Panel) .... 174
Bulb Replacement ..................................... 538
Brake Light, Tail/Rear Side Marker Light, Rear Turn Signal Lights and Back-Up Lights .... 545
Fog Lights ................................................ 540
Front Side Marker Lights .......................... 543
Front Turn Signal Lights ........................... 542
Headlights ............................................... 538
High-Mount Brake Light .......................... 546 Parking/Daytime Running Lights .............. 544
Rear License Plate Light ........................... 546
Side Turn Signal/Emergency Indicator
Lights .................................................... 544
Taillights.................................................. 546
Bulb Specifications ........................... 618, 620
C
Carbon Monoxide Gas ............................... 73
Carrying Cargo ................................. 421, 423
Certification Label .................................... 622
Changing Bulbs ........................................ 538
Charging System Indicator ................. 79, 603
Child Safety ................................................. 60
Childproof Door Locks............................. 148
Emergency Trunk Opener ........................ 155
Child Seat .................................................... 60
Booster Seats ............................................ 72
Child Seat for Infants................................. 62
Child Seat for Small Children ..................... 63
Installing a Child Seat with a Lap/Shoulder Seat Belt ......................................................... 67
Larger Children ......................................... 71
Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Using a Tether ........................................... 69
Childproof Door Locks ............................. 148
Cleaning the Exterior ............................... 567
Cleaning the Interior ................................ 565 Climate Control System
........................... 202
Changing the Mode................................ 202
Defrosting the Windshield and Windows .............................................. 206
Dust and Pollen Filter .............................. 564
Recirculation/Fresh Air Mode................... 205
Sensors ................................................... 209
Synchronized Mode ................................ 208
Using Automatic Climate Control............ 202
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 492
Coat Hooks ............................................... 196
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 492
Compact Spare Tire .................. 575, 619, 621
Console Compartment ............................. 190
Continuously Variable Transmission
Creeping................................................. 435
Fluid ....................................................... 535
Kickdown ............................................... 435
Operating the Shift Lever .................. 24, 437
Shift Lever Does Not Move ...................... 600
Shifting ................................................... 436
Controls .................................................... 133
Coolant (Engine) ...................................... 533
Adding the Coolant ................................ 534
Overheating ............................................ 601
Creeping (Continuously Variable
Transmission) .......................................... 435
18 CIVIC 4D HCM (KA KC KL)-31TBA6201.book 632 ページ ２０１８年１０月３０日 　火曜日　午前７時２８分
